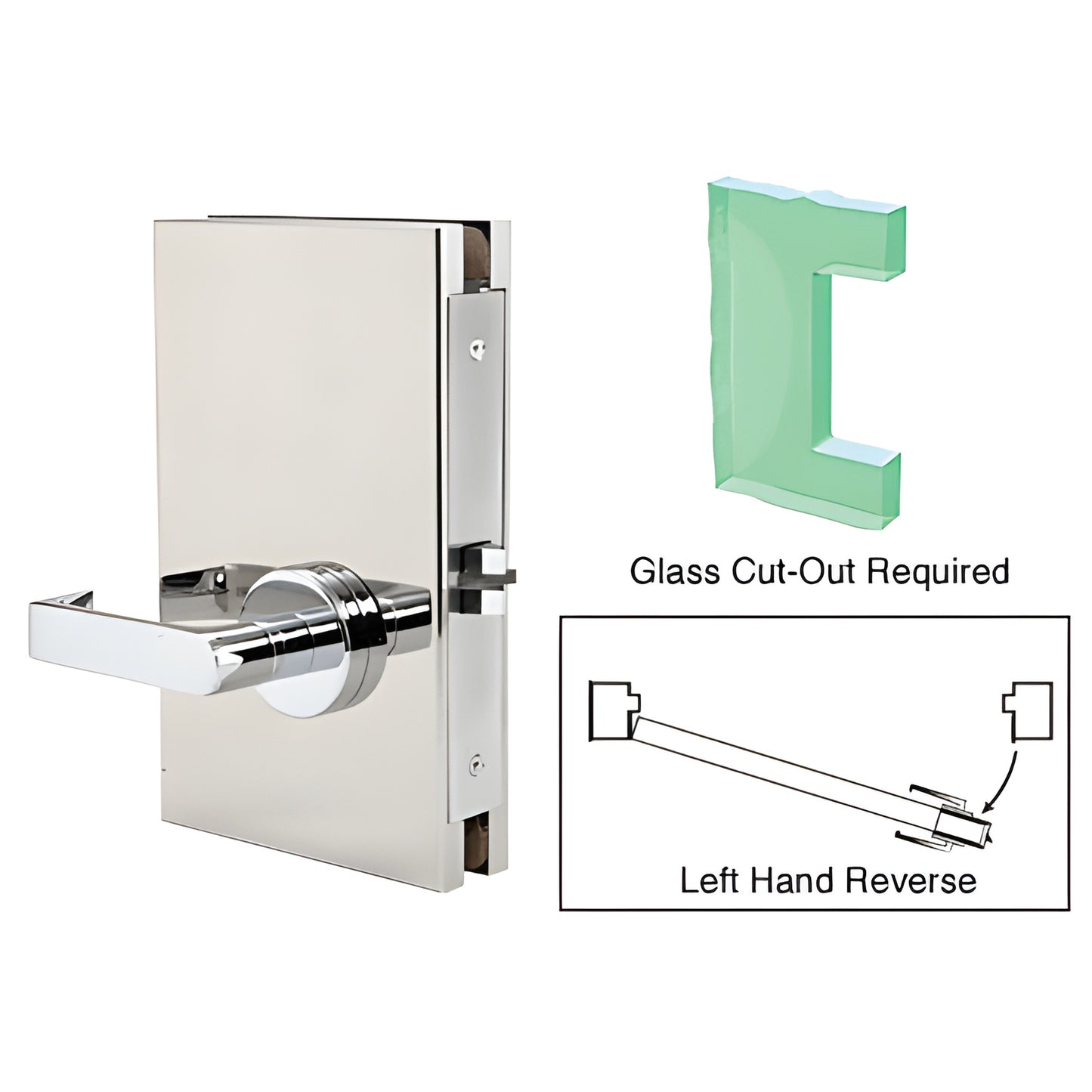

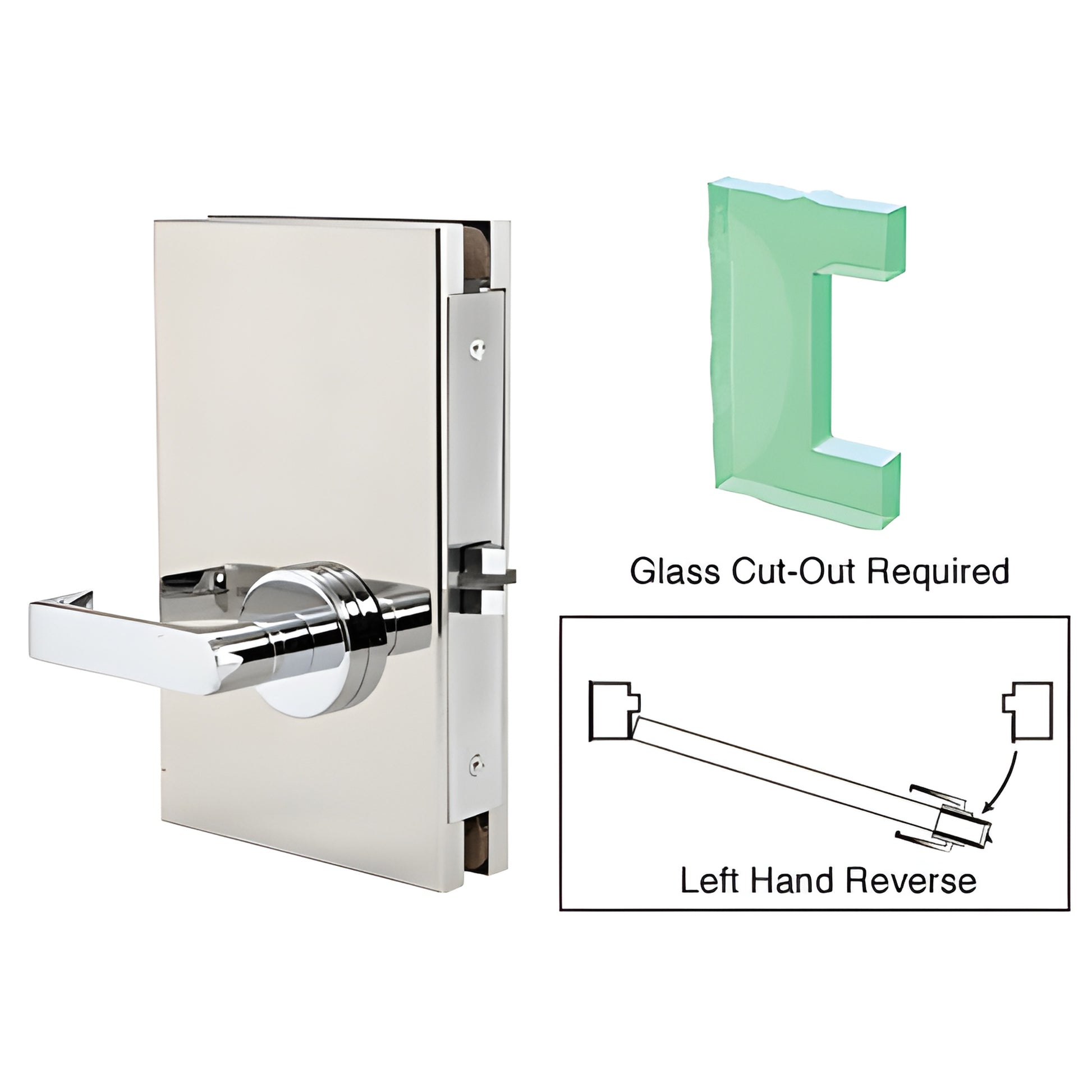

CRL Polished Stainless 6x10 Center Lock Deadlatch LHR Passage

• Five lock functions: Office, Entrance, Passage, Storeroom, and Classroom
• Fits 1/2" (12 mm) monolithic tempered glass; custom units for other glass thicknesses available on special order
• Designed for monolithic tempered glass
• Ships in under a week
• Available in five finishes
• Hassle-free installation — no cement or silicone required
• Jamb mount strike plates available on special order

CRL 6" x 10" Center Locks with Deadlatch deliver versatile security for 1/2" (12 mm) heavy glass doors. These center locks—available left- and right-handed—require only a simple cut-out in the glass and install cleanly without cement or silicone. Choose from five finishes and multiple lock functions to match commercial and institutional glass door applications. Ships quickly; custom glass-thickness units and jamb mount strike plates are available on special order.

Office Lock Function: Latchbolt operated by lever on either side (outside lever can be locked by rocker in faceplate) or by key outside. Auxiliary latchbolt deadlocks the main latch to resist jimmying. Turning the inside lever always retracts the lock for egress.

Entrance Lock: Latchbolt operated by lever on either side (unless deadbolt is projected). Deadbolt operated by key outside and thumbturn inside. Turning the inside lever retracts both latch and deadbolt for egress.

Passage Lock: Latchbolt operated by lever on either side. Inside lever always retracts the lock to allow exiting.

Storeroom Lock: Latchbolt operated by lever inside and by key outside; outside lever is fixed. Auxiliary latchbolt deadlocks the main latch to prevent jimmying. Inside lever always retracts the lock for egress. Commonly used with electric strikes.

Classroom Lock: Latchbolt operated by lever on either side except when the outside lever is locked by key. Key operates the latch and unlocks the outside lever; inside lever remains operable for egress.
