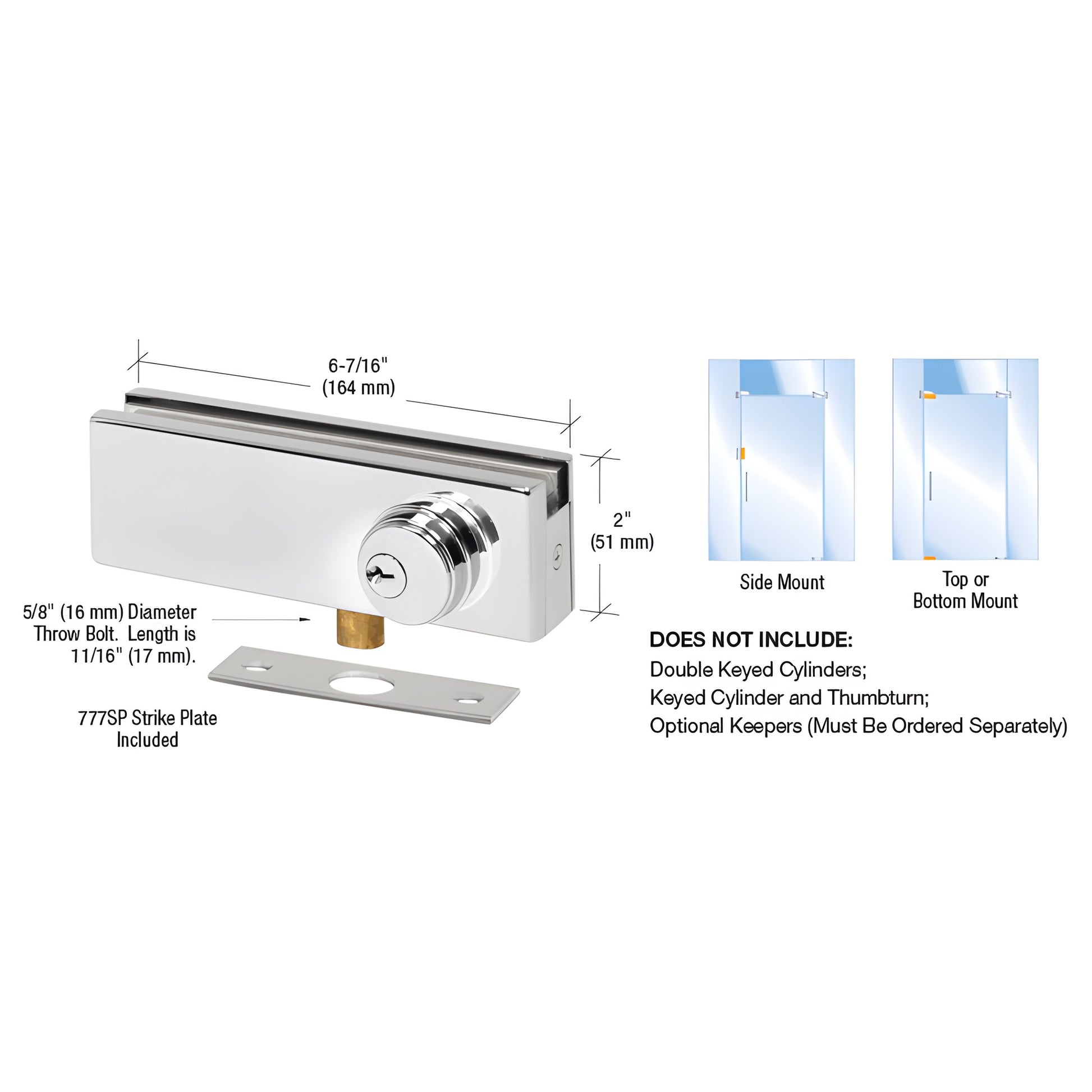

CRL Polished Stainless AMR Series Patch Lock

The CRL American Style Patch Lock is a versatile solution for securing doors, offering a high-density cast body with a lock mechanism and five architectural finishes.
It accommodates 3/8" or 1/2" (10 or 12 mm) glass with its included gaskets and can be mounted on the top, bottom, or vertical edge of doors.
To enhance installation flexibility, the Patch Lock can be secured to a glass panel or door using the AMR206 Sidelite Mount Keeper, with additional keepers like AMR207 and AMR208 available for various configurations.
Please note, optional cylinders must be ordered separately, and these include the AMR205CC Double Keyed Cylinders or the AMR205CT Single Keyed Cylinder with Thumbturn.
For double door applications, a bottom patch lock is required on the inactive leaf for optimal security.
Remember, cylinders are not included, and stainless steel components require periodic maintenance to preserve their finish.
For detailed product specifications and ordering, visit our technical references section.
