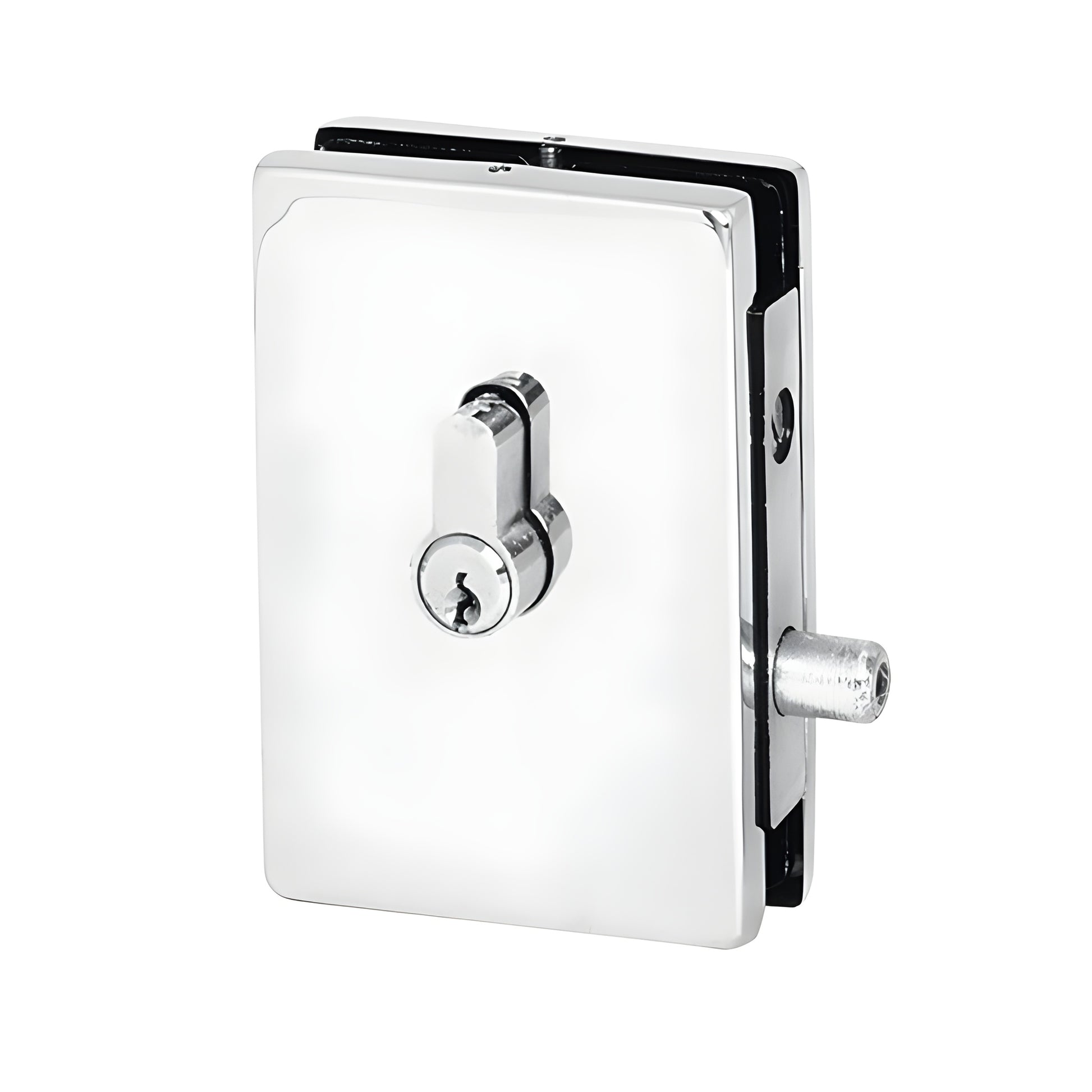

CRL EUR Polished Stainless Center-Housed Patch Lock for Glass Doors

• For use with EUR682 Glass Mounted Patch Keeper
• For 3/8" and 1/2" (10 and 12 mm) glass

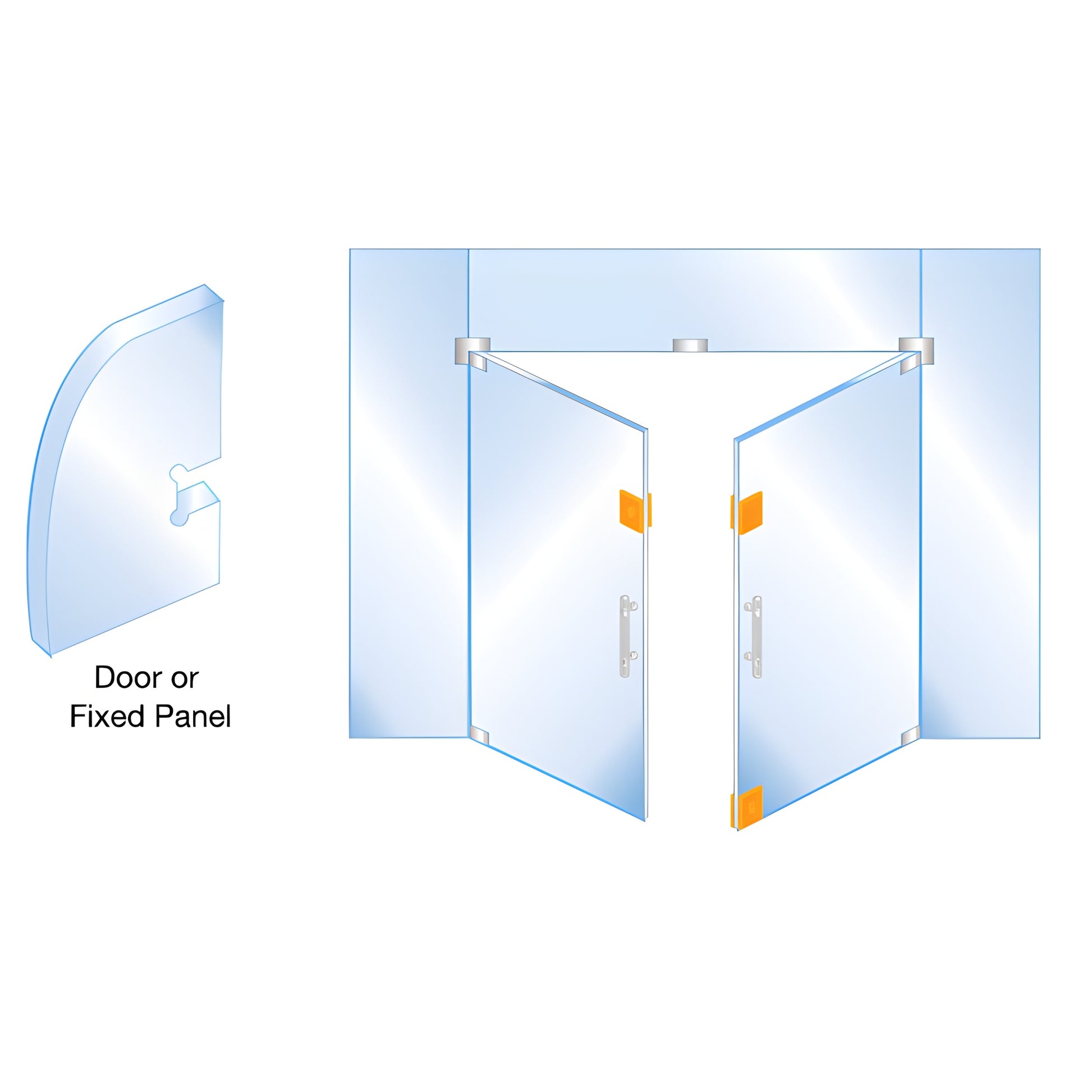

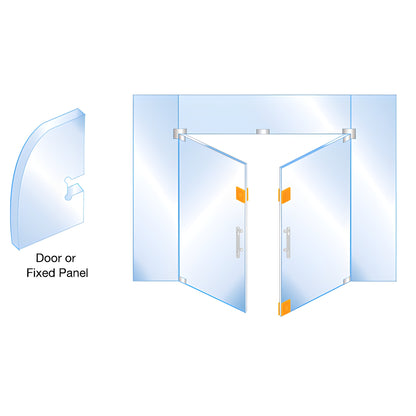

The CRL European Series Glass Mounted Patch Lock (SKU: EUR681PS) is engineered for glass-to-glass applications, including double glass doors or a glass door paired with a fixed glass panel. Patch Lock and Center Housed Keeper are sold separately. Ideal for frameless glass doors, this European-style patch lock supports 3/8" and 1/2" (10 and 12 mm) tempered glass installation.

PATCH LOCK INCLUDES:

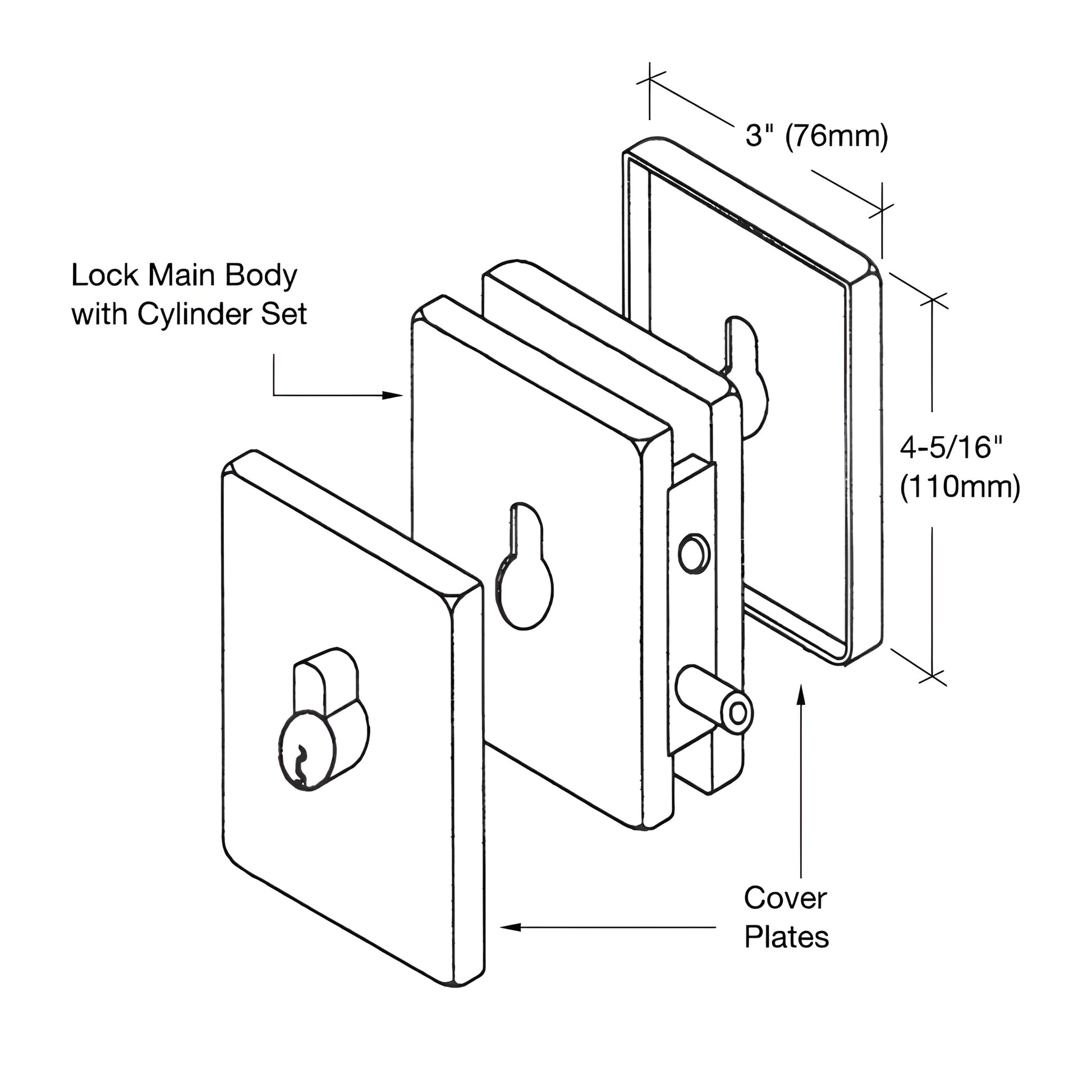

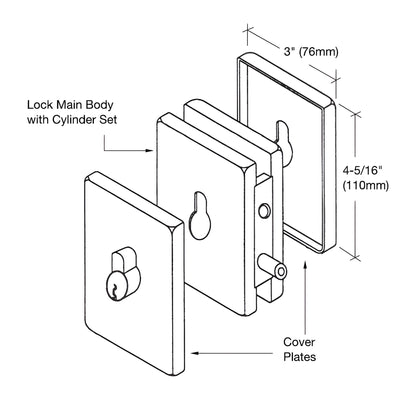

Aluminum machined body with lock mechanism and randomly keyed cylinder; cover plates (choice of four finishes); gaskets for 3/8" (10 mm) or 1/2" (12 mm) glass; template and instructions.

SPECIFICATIONS:
For Use With:
EUR682 Center Housed Keeper (order separately)
Glass Fabrication Required:
One cut-out.

GLASS MOUNTED KEEPER INCLUDES:
Aluminum machined body with keeper hole; cover plates (choice of four finishes); gaskets for 3/8" or 1/2" (10 or 12 mm) glass; template and instructions.

SPECIFICATIONS:
For Use With:
EUR681 European Center Housed Patch Lock (order separately)
Glass Fabrication Required:
One cut-out.

NOTE: For double door installations, an additional lock is required at the bottom of one door.

Stainless Steel Advisory:
