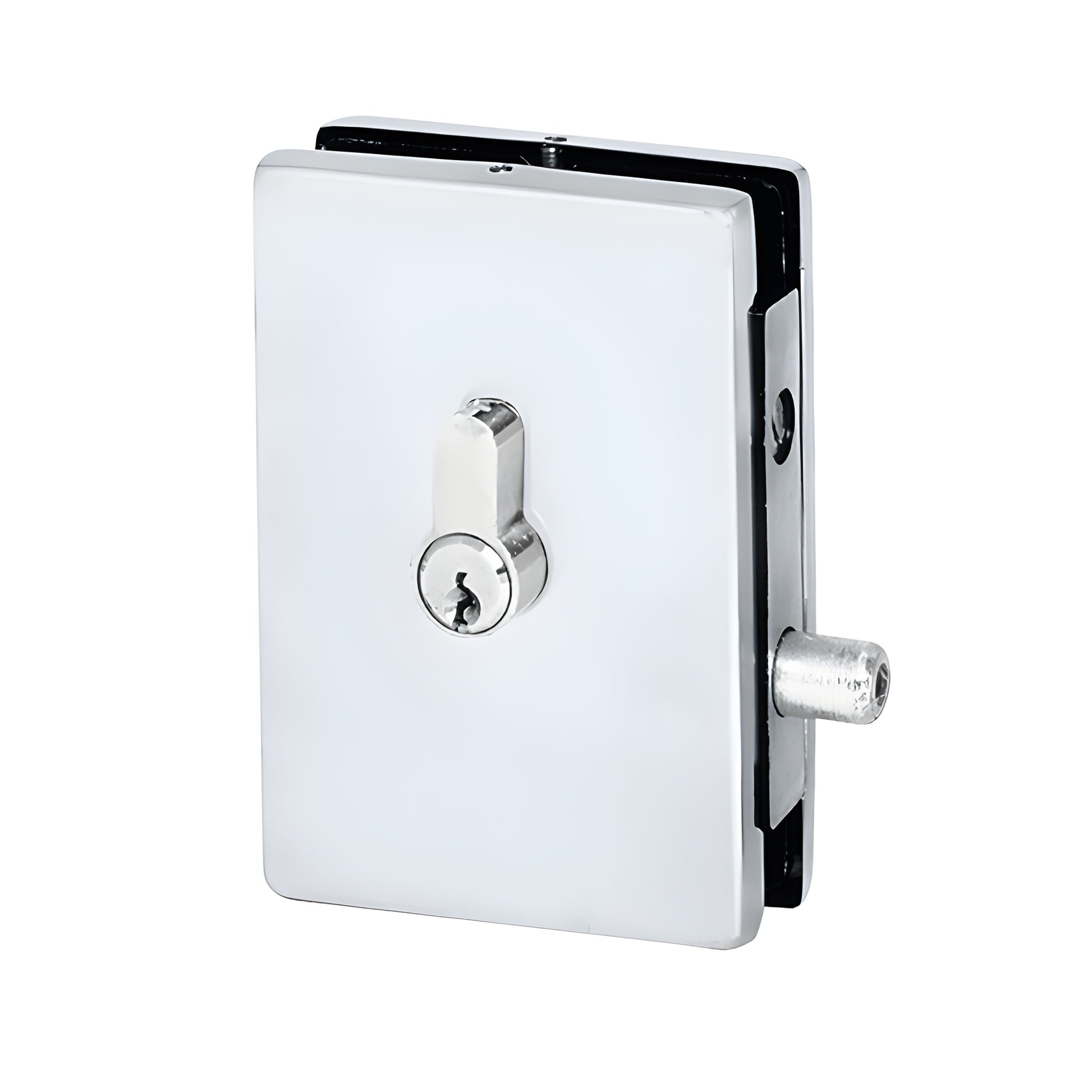

CRL EUR Series Satin Anodized Center Patch Lock for Glass Doors

• Fits EUR682 glass-mounted patch keeper (sold separately)
• For 3/8" and 1/2" (10 and 12 mm) glass

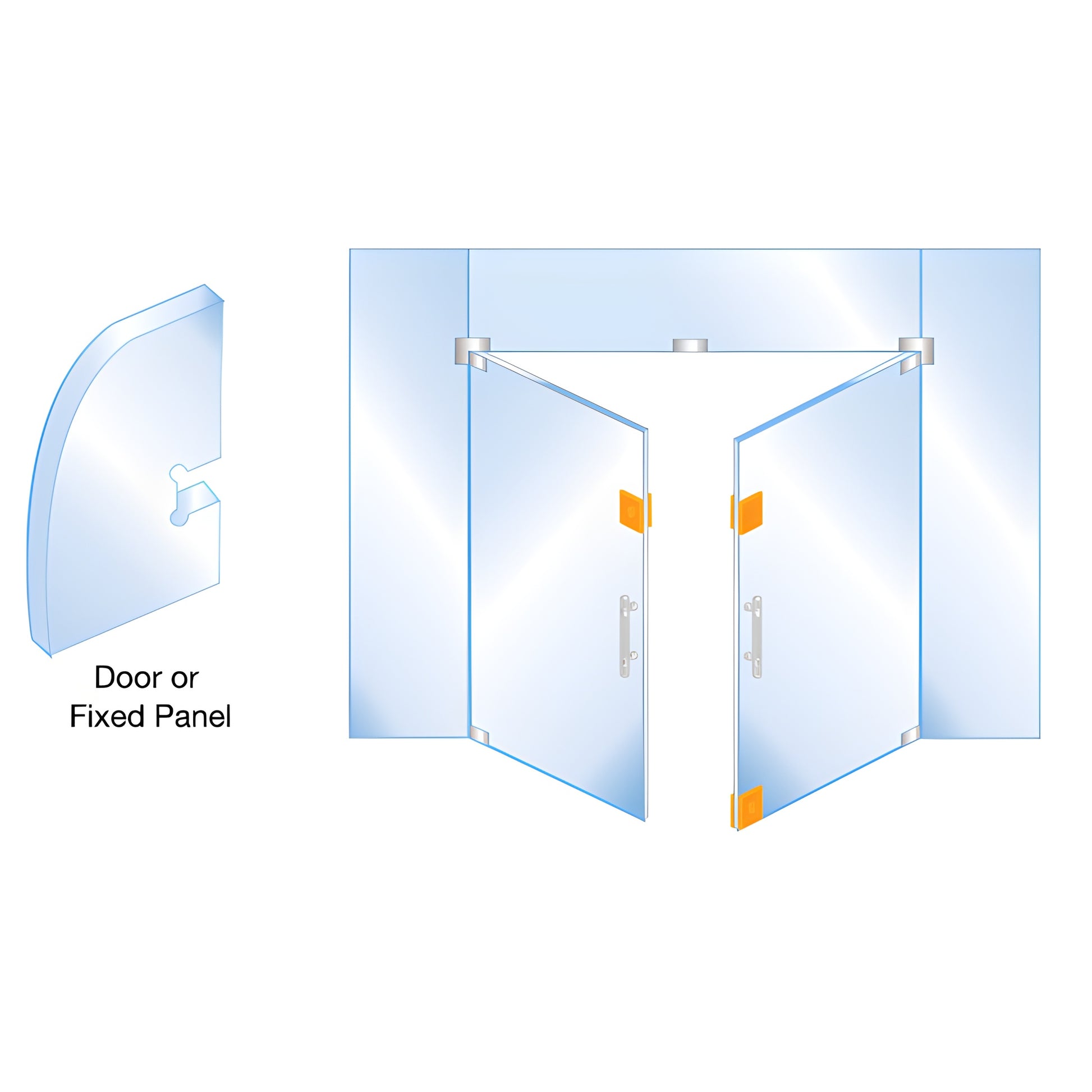

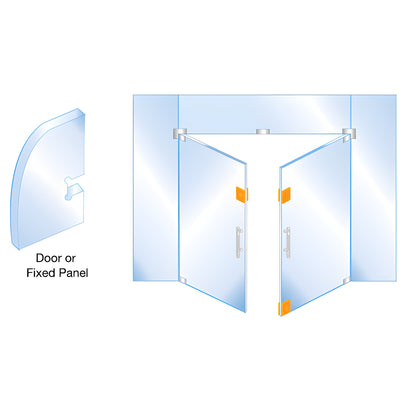

The CRL European Series Glass Mounted Patch Lock is engineered for glass-to-glass installations such as double glass doors or a door paired with a fixed glass panel. The Patch Lock and the matching Glass Mounted Keeper are ordered separately to allow flexible configuration for commercial storefronts and interior glass systems.

PATCH LOCK INCLUDES:

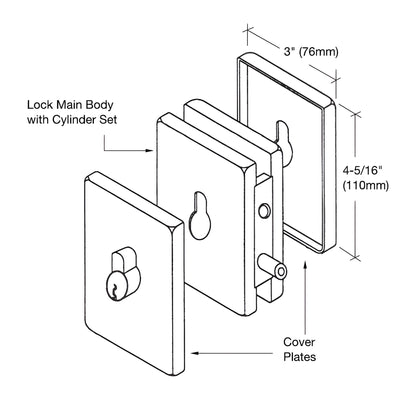

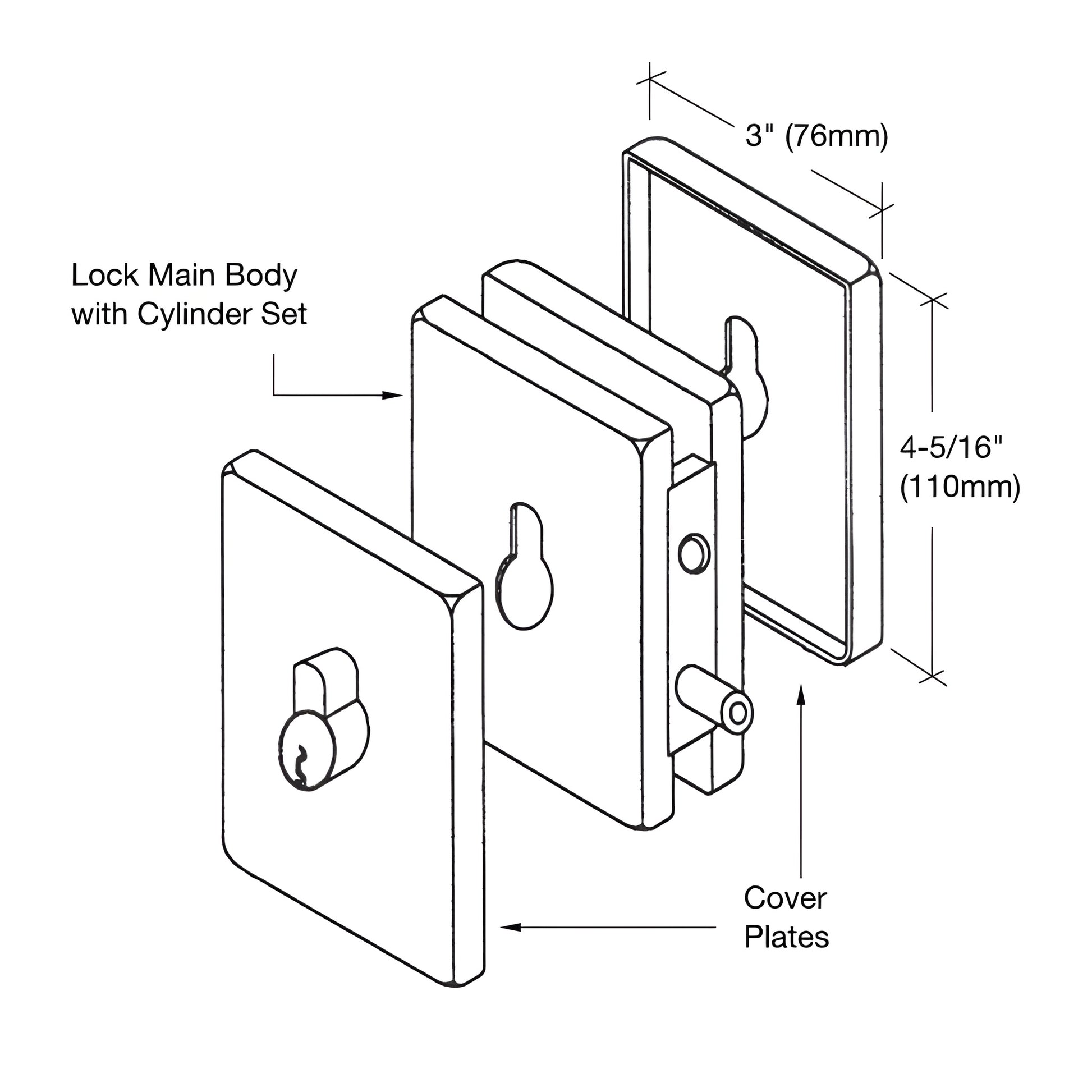

Aluminum machined body with lock mechanism and randomly keyed cylinder; choice of four cover plate finishes; gaskets for 3/8" (10 mm) and 1/2" (12 mm) glass; template and installation instructions.

SPECIFICATIONS:
For Use With:
EUR682 Center Housed Keeper (order separately)
Glass Fabrication Required:
One cut-out

GLASS MOUNTED KEEPER INCLUDES:
Aluminum machined body with keeper hole; choice of four cover plate finishes; gaskets for 3/8" or 1/2" (10 or 12 mm) glass; template and installation instructions.

SPECIFICATIONS:
For Use With:
EUR681 European Center Housed Patch Lock (order separately)
Glass Fabrication Required:
One cut-out

NOTE: An additional lock is required at the bottom of one door in double-door installations.
