Product Details
- For use with EUR682 Glass Mounted Patch Keeper
- For 3/8" and 1/2" (10 and 12 mm) Glass

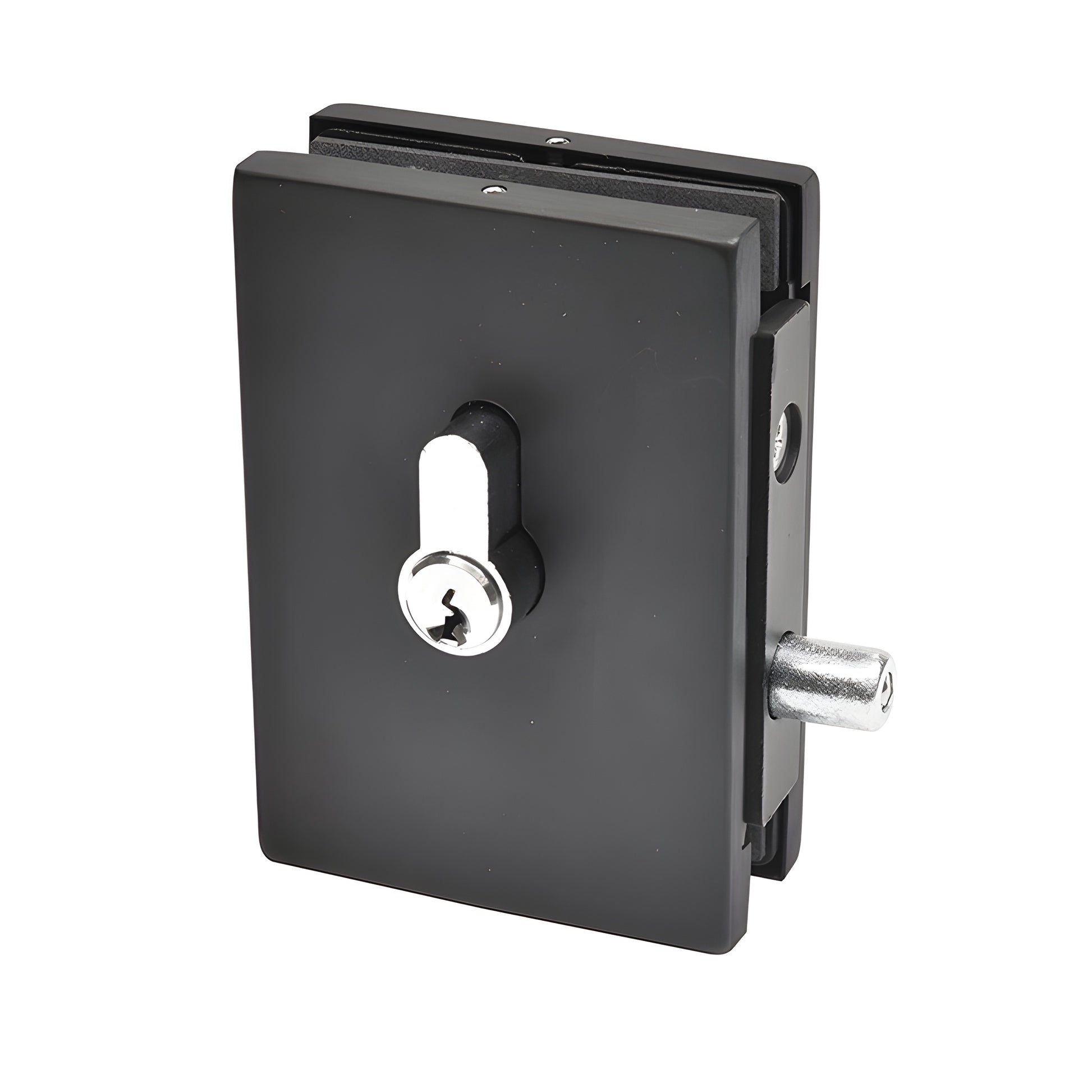

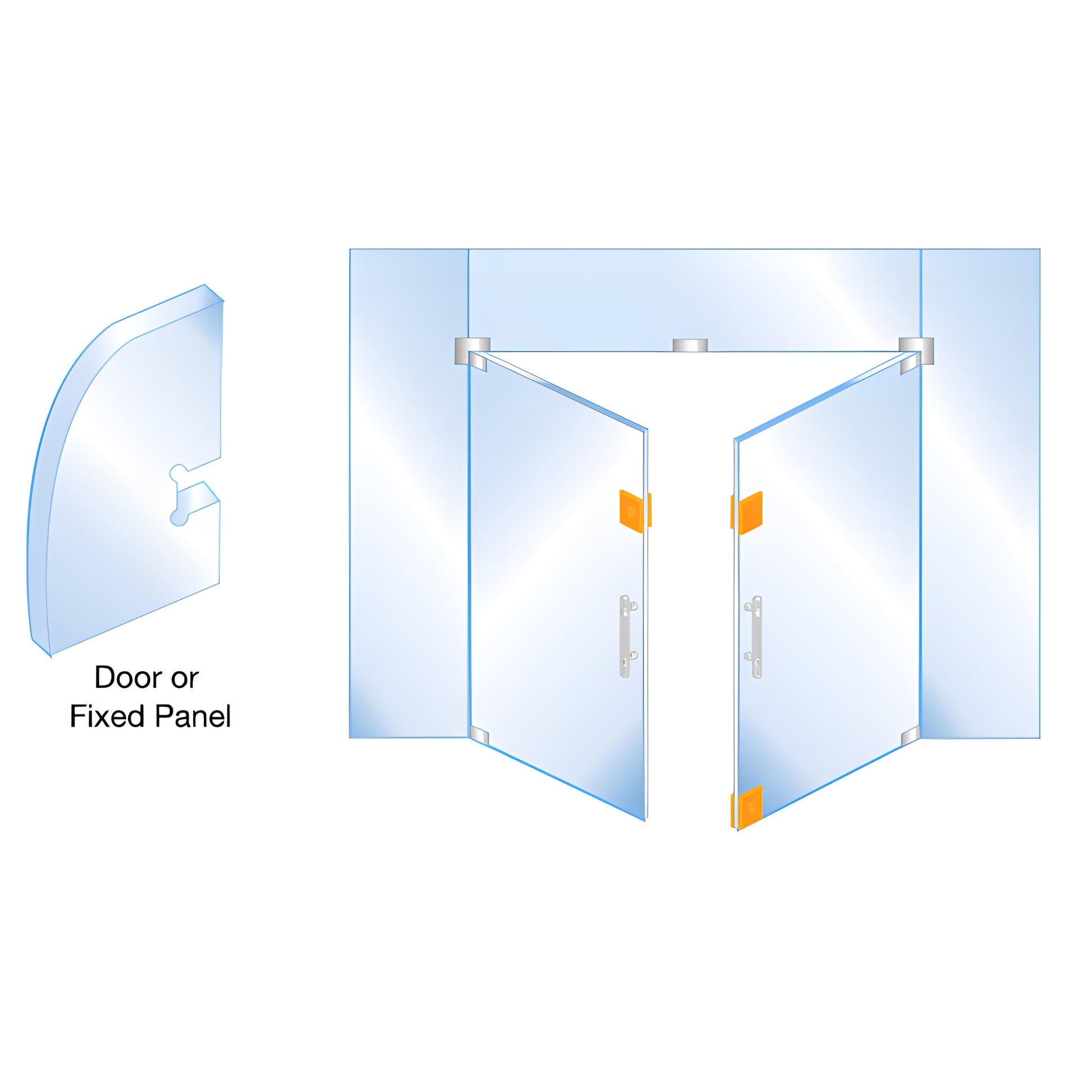

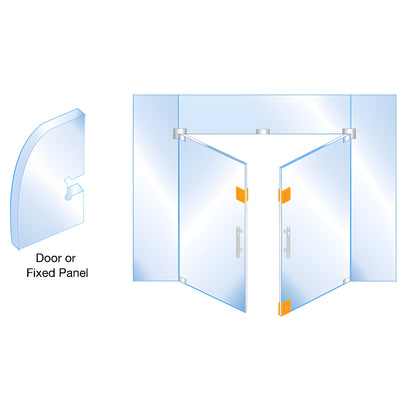

The CRL European Series Glass Mounted Patch Lock and Glass Mounted Keeper are designed to be used in glass-to-glass type applications. The Lock and Keeper can be used on double glass doors, or on a door and fixed glass panel. Patch Lock and Keeper must be ordered separately.

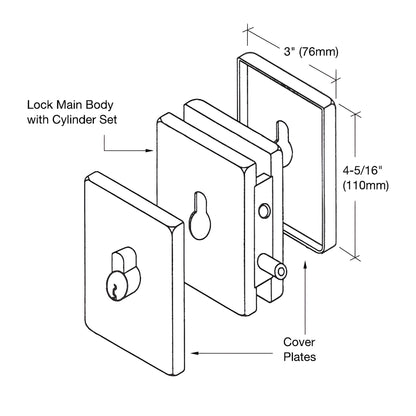

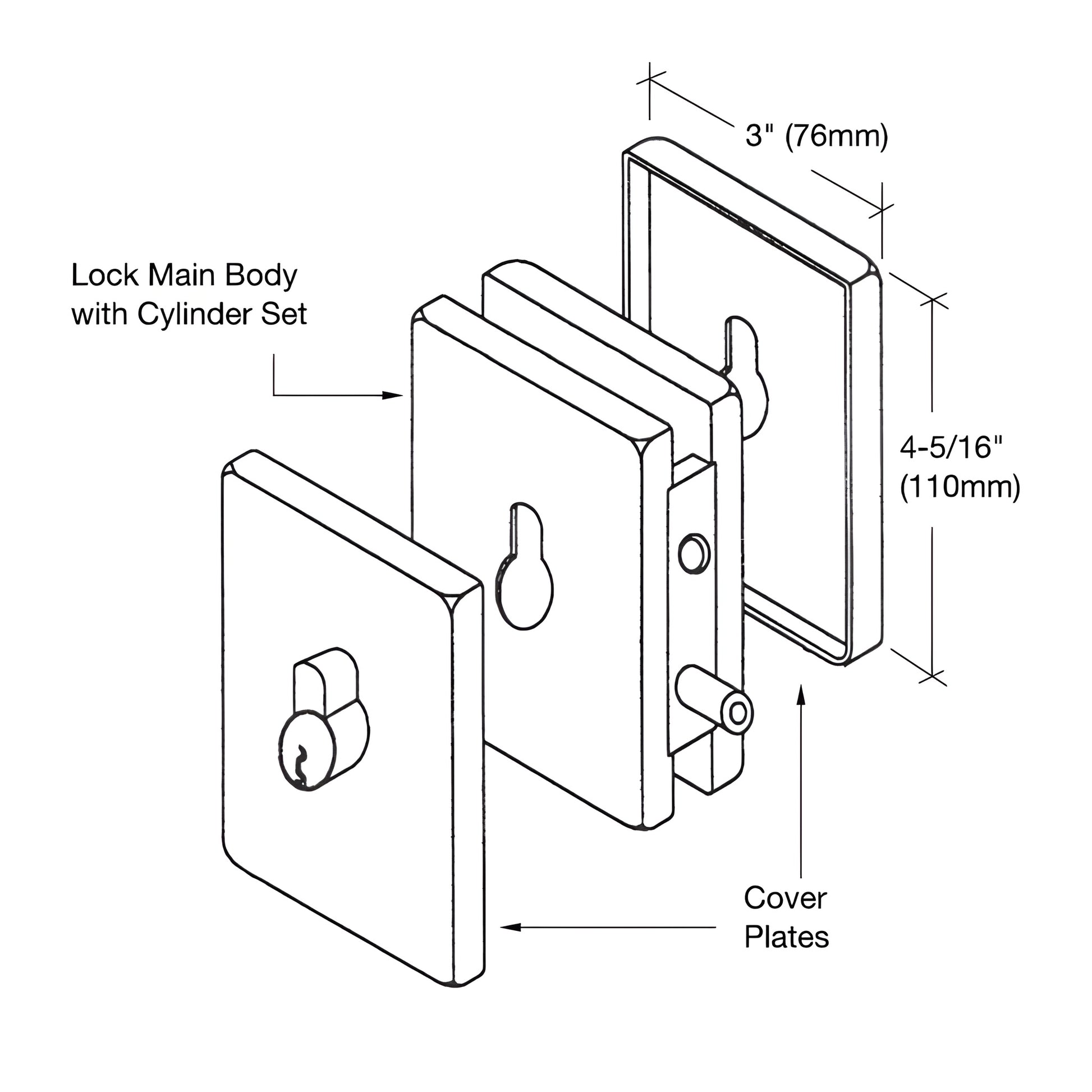

PATCH LOCK INCLUDES:
Aluminum Machined Body with Lock Mechanism and Randomly Keyed Cylinder; Cover Plates (Choice of Four Finishes); Gaskets for 3/8" (10 mm) or 1/2" (12 mm) Glass; Template and Instructions
SPECIFICATIONS:
For Use With:
EUR682 Center Housed Keeper (Order Separately)
Glass Fabrication Required:
One Cut-Out
GLASS MOUNTED KEEPER INCLUDES:
Aluminum Machined Body with Keeper Hole; Cover Plates (Choice of Four Finishes); Gaskets for 3/8" or 1/2" (10 or 12 mm) Glass; Template and Instructions
SPECIFICATIONS:
For Use With:
EUR681 European Center Housed Patch Lock (Order Separately)
Glass Fabrication Required:
One Cut-Out
NOTE: An additional Lock is required at the bottom of one door in double door installations.
