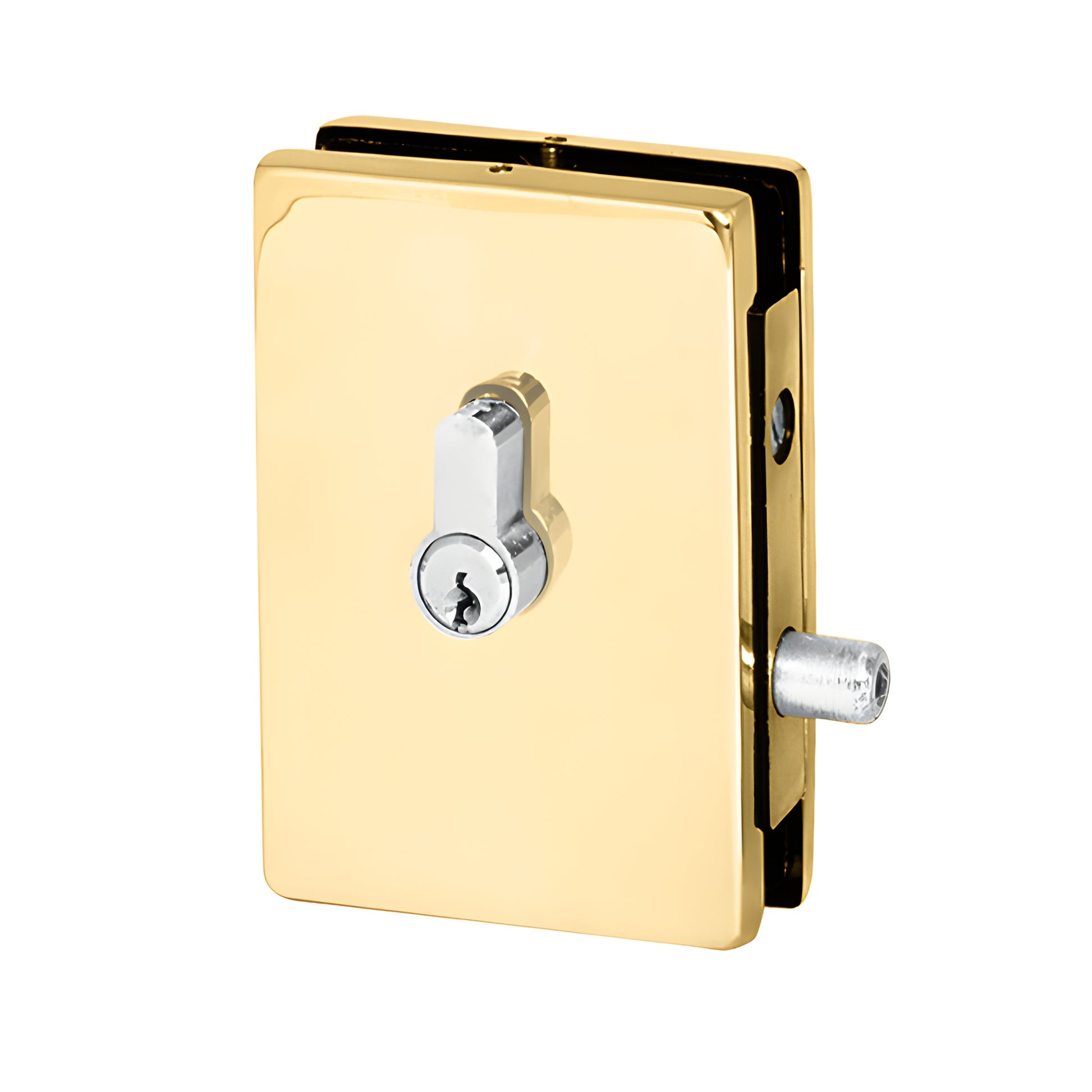

CRL Polished Brass EUR Series Center Housed Patch Lock
Item # EUR681BR
$127.81
CAD
Finish (5)
-
Satin Anodized -
Polished Brass -
Brushed Stainless Steel -
Matte Black -
Polished Stainless Steel
Overview
| SKU | EUR681BR |
|---|---|
| Sold As | 1 Each |
| Finish/Color | Polished Brass |
| Height | 4-5/16 in. (110 mm) |
Description
- For Use with EUR682 Glass Mounted Patch Keeper
- For 3/8" and 1/2" (10 and 12 mm) Glass

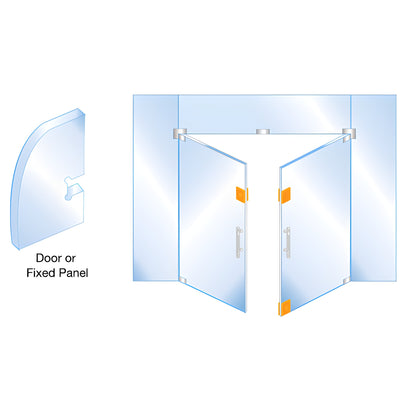

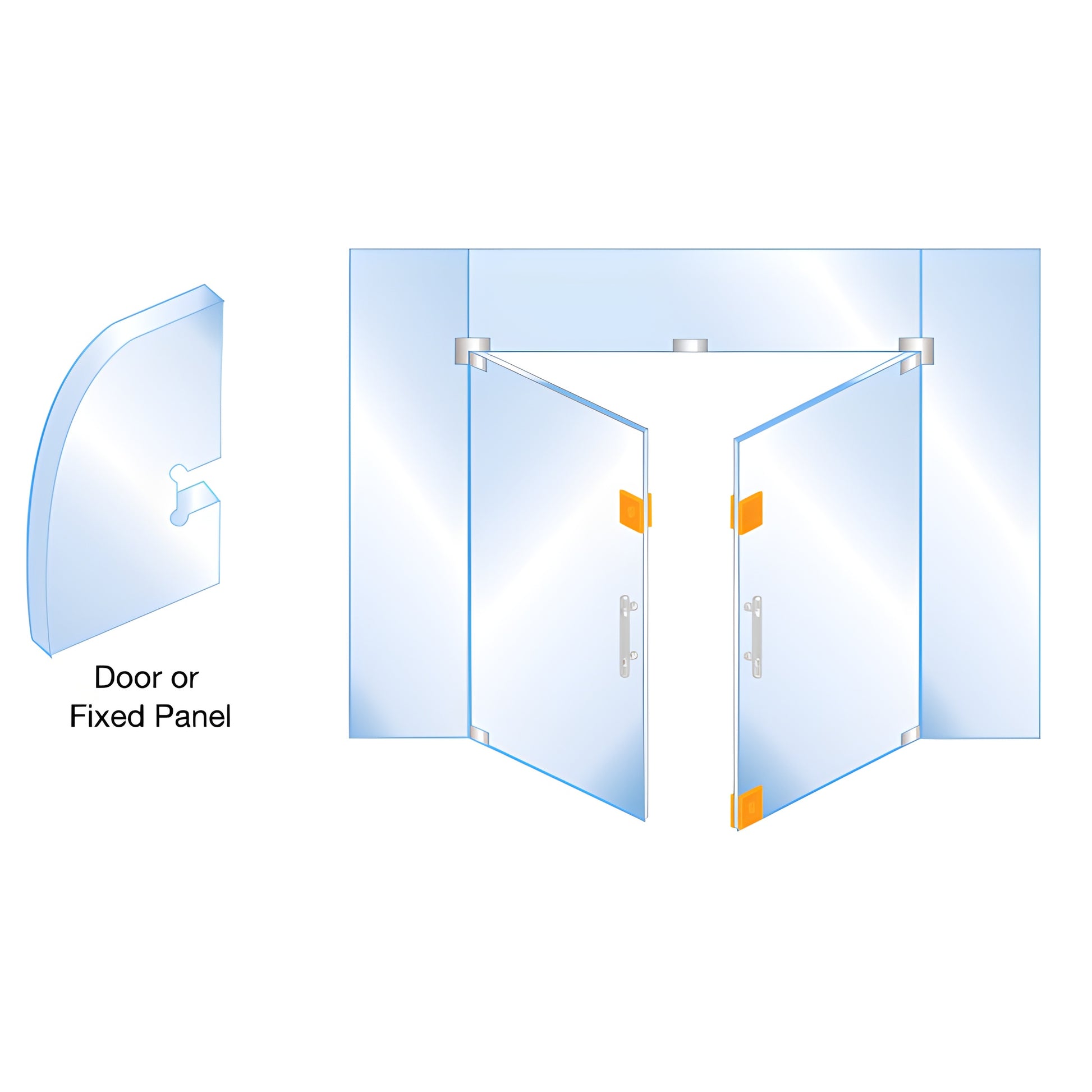

The CRL European Series Glass Mounted Patch Lock and Glass Mounted Keeper are designed to be used in glass-to-glass type applications. The Lock and Keeper can be used on double glass doors, or on a door and fixed glass panel. Patch Lock and Keeper must be ordered separately.

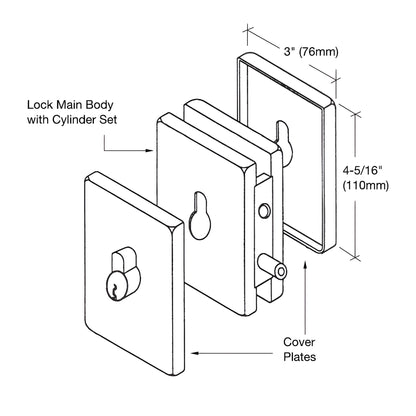

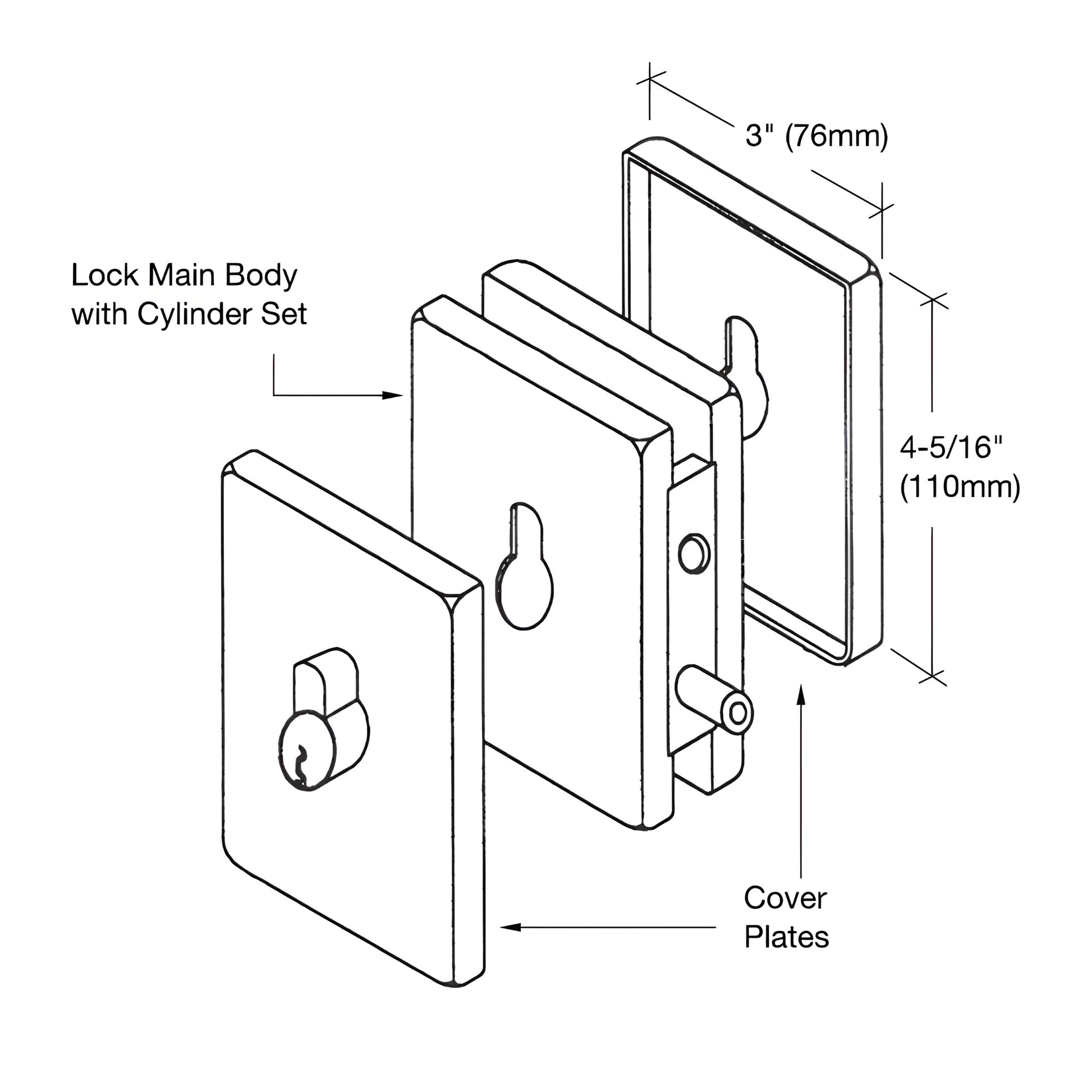

PATCH LOCK INCLUDES:
Aluminum Machined Body with Lock Mechanism and Randomly Keyed Cylinder; Cover Plates (Choice of Four Finishes); Gaskets for 3/8" (10 mm) or 1/2" (12 mm) Glass; Template and Instructions
SPECIFICATIONS:
For Use With:
EUR682 Center Housed Keeper (Order Separately)
Glass Fabrication Required:
One Cut-Out
GLASS MOUNTED KEEPER INCLUDES:
Aluminum Machined Body with Keeper Hole; Cover Plates (Choice of Four Finishes); Gaskets for 3/8" or 1/2" (10 or 12 mm) Glass; Template and Instructions
SPECIFICATIONS:
For Use With:
EUR681 European Center Housed Patch Lock (Order Separately)Glass Fabrication Required:
One Cut-Out
NOTE: An additional Lock is required at the bottom of one door in double door installations.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.Specifications
Templates
Cleaning & Maintenance
