CRL Polished Stainless European Patch Kit for Double Doors w/ Lock
CRL Polished Stainless European Patch Kit for Double Doors w/ Lock
Regular price
$1,233.58 CAD
Regular price
Sale price
$1,233.58 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHE7LPS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Pair With Transom-Sidelite
Door Type
F Style Glass Door
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16
Overview
- For 3/8" or 1/2" (10 or 12 mm) tempered glass
- Five architectural finishes
- Available with or without locks
CRL PHE7 European Double Door Kits (SKU: PHE7LPS) include all pivot and patch hardware needed to assemble a pair of free‑swinging glass doors with a fixed transom and sidelite (glass and extra supports for the fixed transom/sidelite not included). Pivot setback is 2-9/16" (65 mm). Compatible with a floor closer that uses a tapered spindle (floor closer ordered separately). Ideal long-tail keywords: European double door kit for tempered glass, pivot door hardware kit, architectural glass door patches.

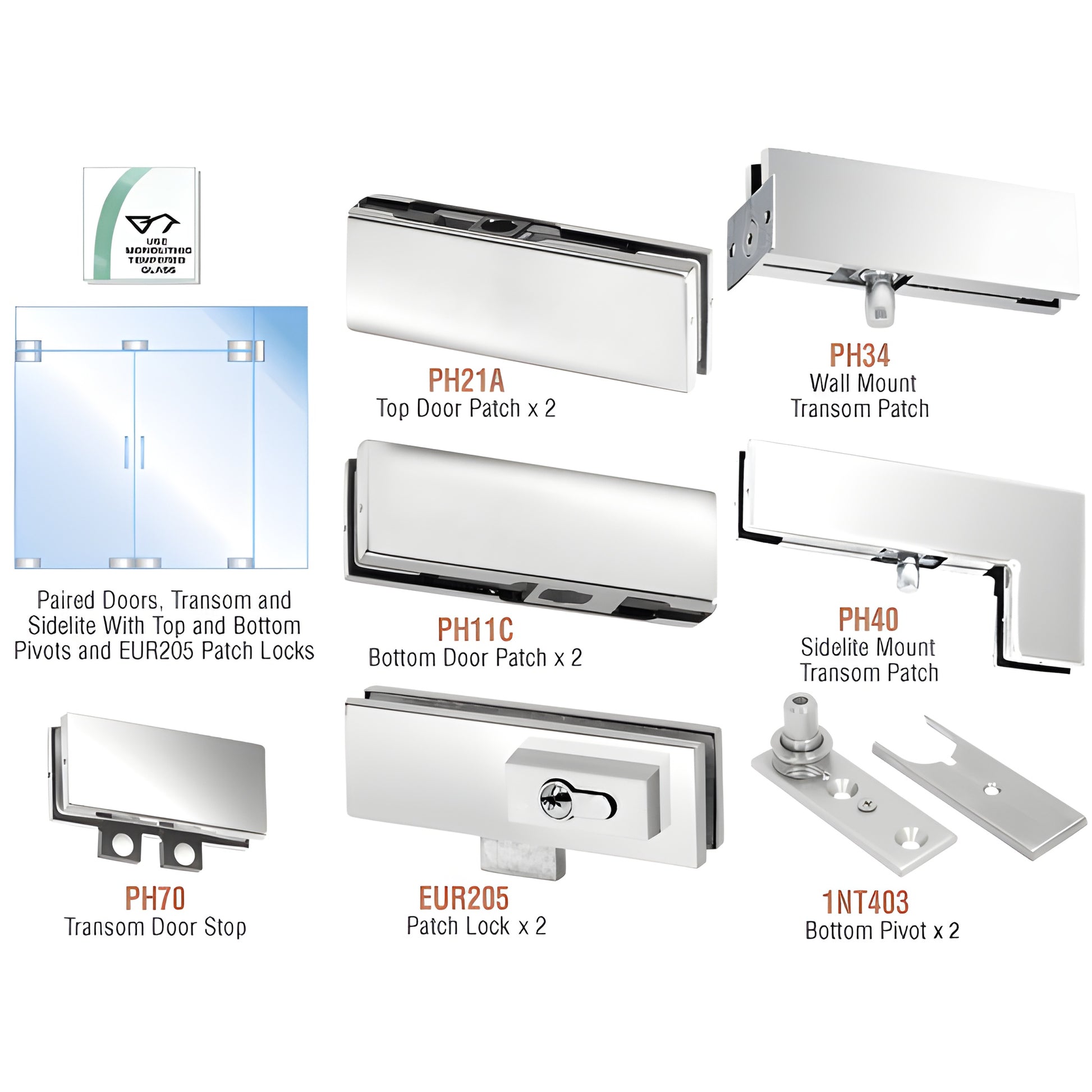

Kit contains:
- 1 - PH34 Wall Mount Transom Patch
- 1 - PH40 Sidelite Mount Transom Patch
- 2 - PH21A Top Door Patches
- 2 - PH11C Bottom Door Patches
- 1 - PH70 Transom Door Stop
- 2 - 1NT403 Bottom Pivots
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass requires holes and notches)
Kits with locks include two EUR205 patch locks; cylinders, thumbturns, and keepers are ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Stainless Steel Advisory:
Stainless steel is corrosion‑resistant but not completely rust‑ or stain‑proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more details.
Call or order online to get the PHE7LPS European Double Door Kit for your tempered glass installation today.
