CRL Polished Stainless European Patch Kit No Lock — Frameless Glass
CRL Polished Stainless European Patch Kit No Lock — Frameless Glass
Regular price
$258.42 CAD
Regular price
Sale price
$258.42 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHE1PS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Single
Door Type
A Style Glass Door
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16
Overview
- For 3/8" or 1/2" (10 or 12 mm) tempered glass
- Available with or without locks (lock option includes EUR205 patch lock; cylinders, thumbturns, and keepers sold separately)
CRL PHE1 European Patch Door Kits (SKU: PHE1PS) include the hardware needed to complete a single free-swinging glass door (glass not included). Designed for tempered glass, this European-style patch kit provides a 2-9/16" (65 mm) pivot setback and is compatible with floor closers that use tapered spindles (ordered separately). Ideal for frameless glass doors, shower doors, and commercial glass entrances where durable glass door hardware and concealed pivot solutions are required.

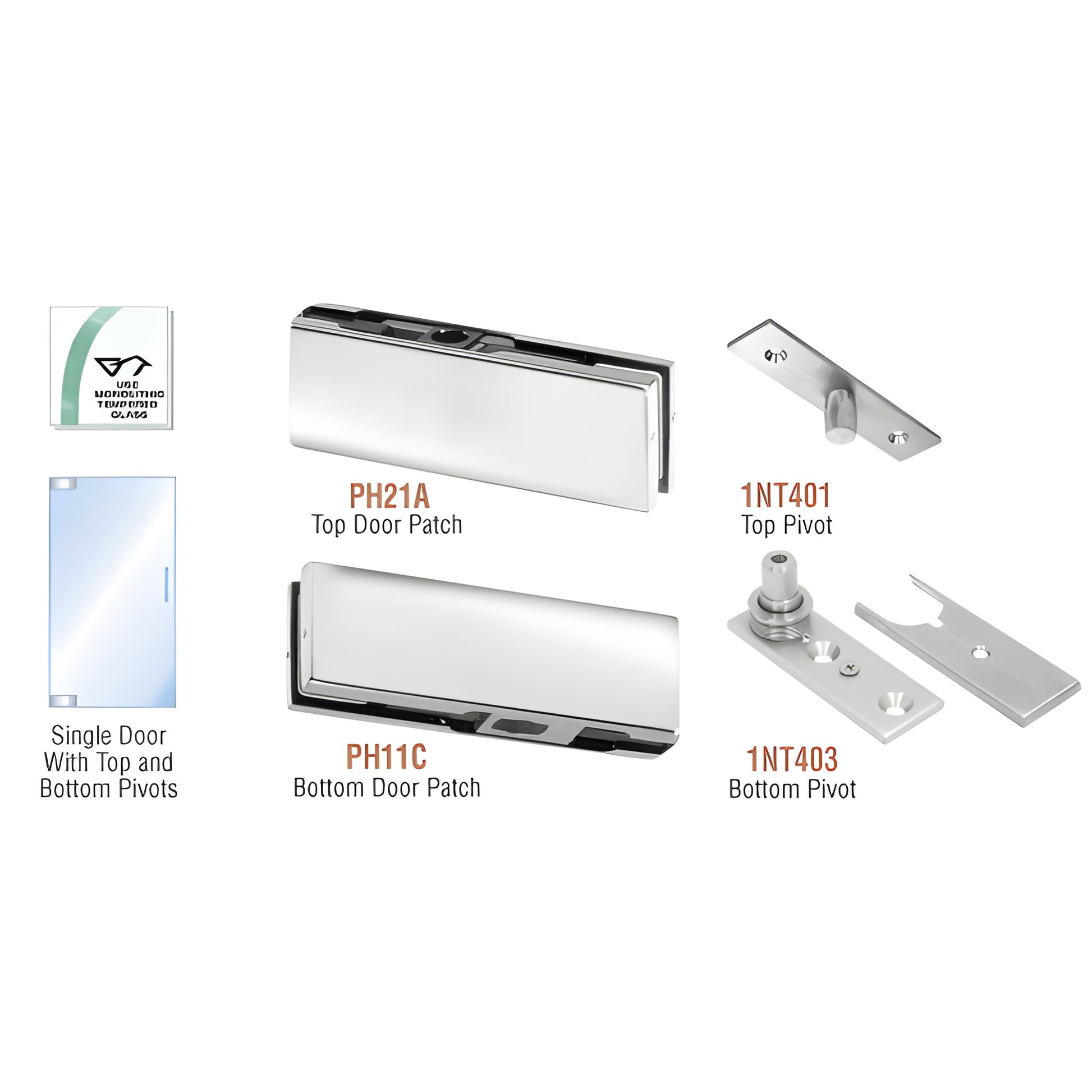

Kit Contains:
- 1 - PH21A Top Door Patch
- 1 - PH11C Bottom Door Patch
- 1 - 1NT401 Top Pivot
- 1 - 1NT403 Bottom Pivot
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)
Kits with the lock option also include one EUR205 patch lock. Note: cylinders, thumbturns, and keepers must be ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section.
Looking for reliable European patch door hardware for tempered glass? Order the CRL PHE1 European Patch Door Kit (SKU: PHE1PS) today or contact us for technical assistance.
