CRL Polished Stainless Glass Mount Lever Lock for Metal Frame Doors
CRL Polished Stainless Glass Mount Lever Lock for Metal Frame Doors
Regular price
$205.38 CAD
Regular price
Sale price
$205.38 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PTH310PS
Shipping Weight: 3.11 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 3.11 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Polished Stainless Steel |
| Glass Mounting Holes Diameter 1-3/4 in. | (44 mm) |
| Glazing Thickness | 3/8 in. or 1/2 in. (10 mm or 12 mm) |
| Height 2-5/8 in. | (67 mm) |
| Length 4-5/8 in. | (117 mm) |
| Series | Slimline |
Overview

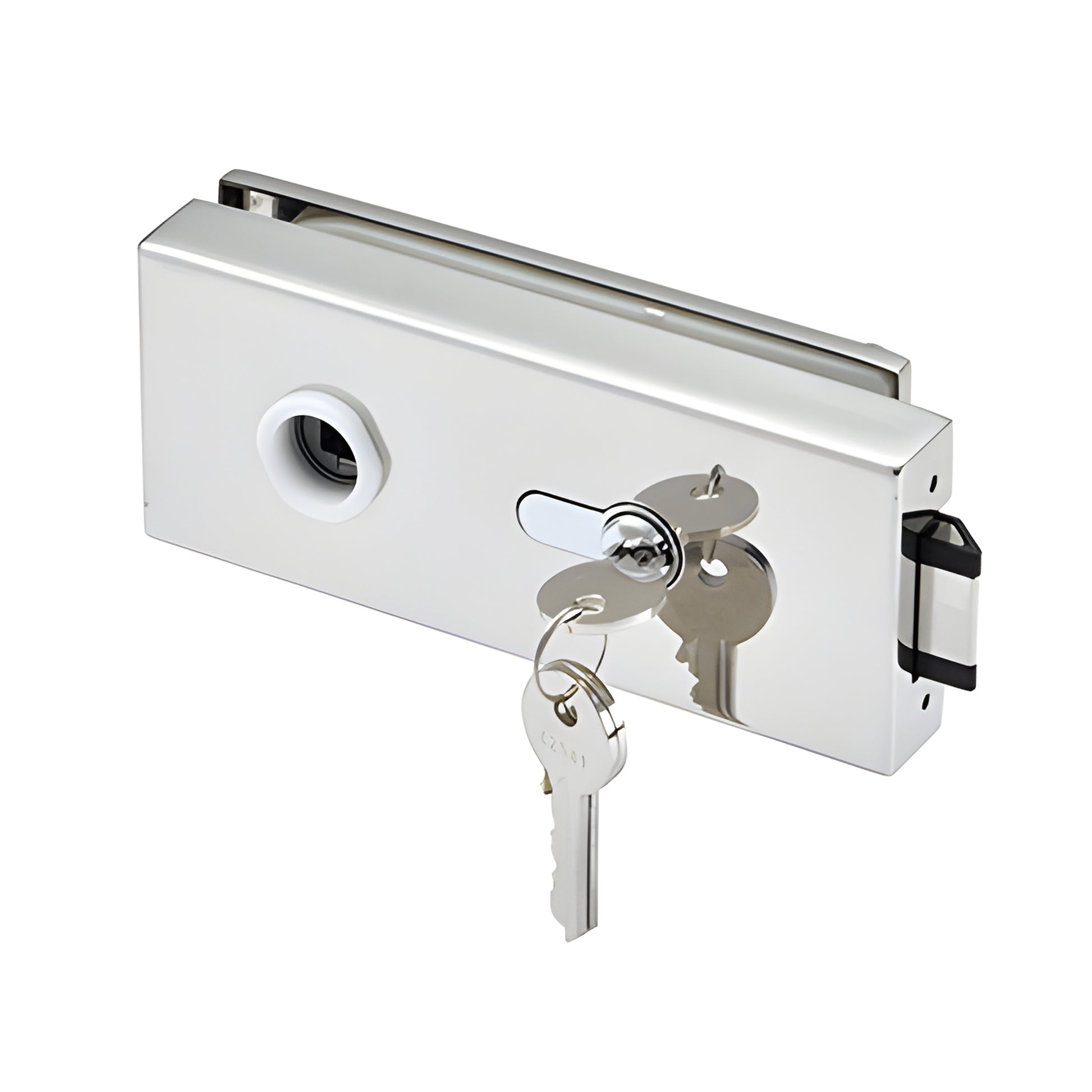

The CRL Glass Mounted Latch is expertly designed for single acting doors and is compatible with 3/8" or 1/2" (10 or 12 mm) glass doors, featuring a sleek slimline design.
Ideal for use with monolithic tempered glass, this latch requires glass fabrication with two 1-3/4" (44.5 mm) holes.
It comes equipped with the EC3 and EC4 Series, cylinder/thumbturn with three keys each, a template, and detailed instructions.
Please note, the handle is sold separately.
For optimal performance, regular maintenance of stainless steel components is recommended to preserve their finish.
Ideal for use with monolithic tempered glass, this latch requires glass fabrication with two 1-3/4" (44.5 mm) holes.
It comes equipped with the EC3 and EC4 Series, cylinder/thumbturn with three keys each, a template, and detailed instructions.
Please note, the handle is sold separately.
For optimal performance, regular maintenance of stainless steel components is recommended to preserve their finish.
