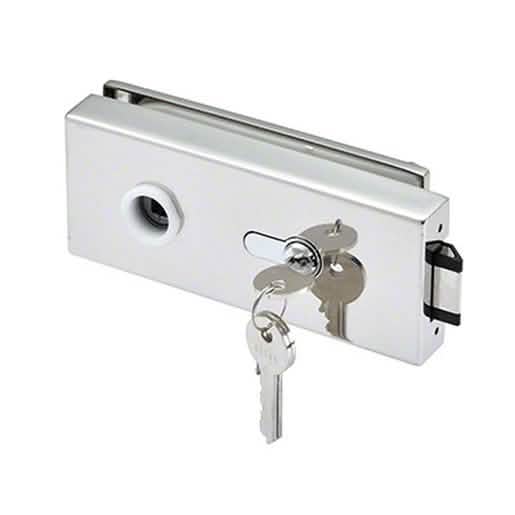

CRL Polished Stainless Glass Mount Lever Lock for Metal Frame Doors
CRL Polished Stainless Glass Mount Lever Lock for Metal Frame Doors
Regular price
$205.38 CAD
Regular price
Sale price
$205.38 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PTH313PS
Shipping Weight: 1.53 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 1.53 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Polished Stainless Steel |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
| Glazing | Type Tempered Monolithic, Tempered Laminated |
| Height 2-9/16 in. | (65 mm) |
| Length 6-1/4 in. | (159 mm) |
| Length - Rabbeted Side 5-11/16 in. | (144 mm) |
Overview
The CRL Glass Mounted Latch is expertly designed for single acting doors, accommodating 3/8" or 1/2" (10 or 12 mm) thick glass doors with a sleek slimline design.
Ideal for use with monolithic tempered glass, this latch seamlessly integrates into metal or wood frames when the door closes.
Please note, the handle is sold separately.
Glass fabrication requires two 1-3/4" (44.5 mm) holes, and the product includes EC3 and EC4 Series components, a cylinder/thumbturn with three keys each, a template, and instructions.
For accurate shipping weights and cost inquiries, please contact CRL Customer Service.
Ideal for use with monolithic tempered glass, this latch seamlessly integrates into metal or wood frames when the door closes.
Please note, the handle is sold separately.
Glass fabrication requires two 1-3/4" (44.5 mm) holes, and the product includes EC3 and EC4 Series components, a cylinder/thumbturn with three keys each, a template, and instructions.
For accurate shipping weights and cost inquiries, please contact CRL Customer Service.
