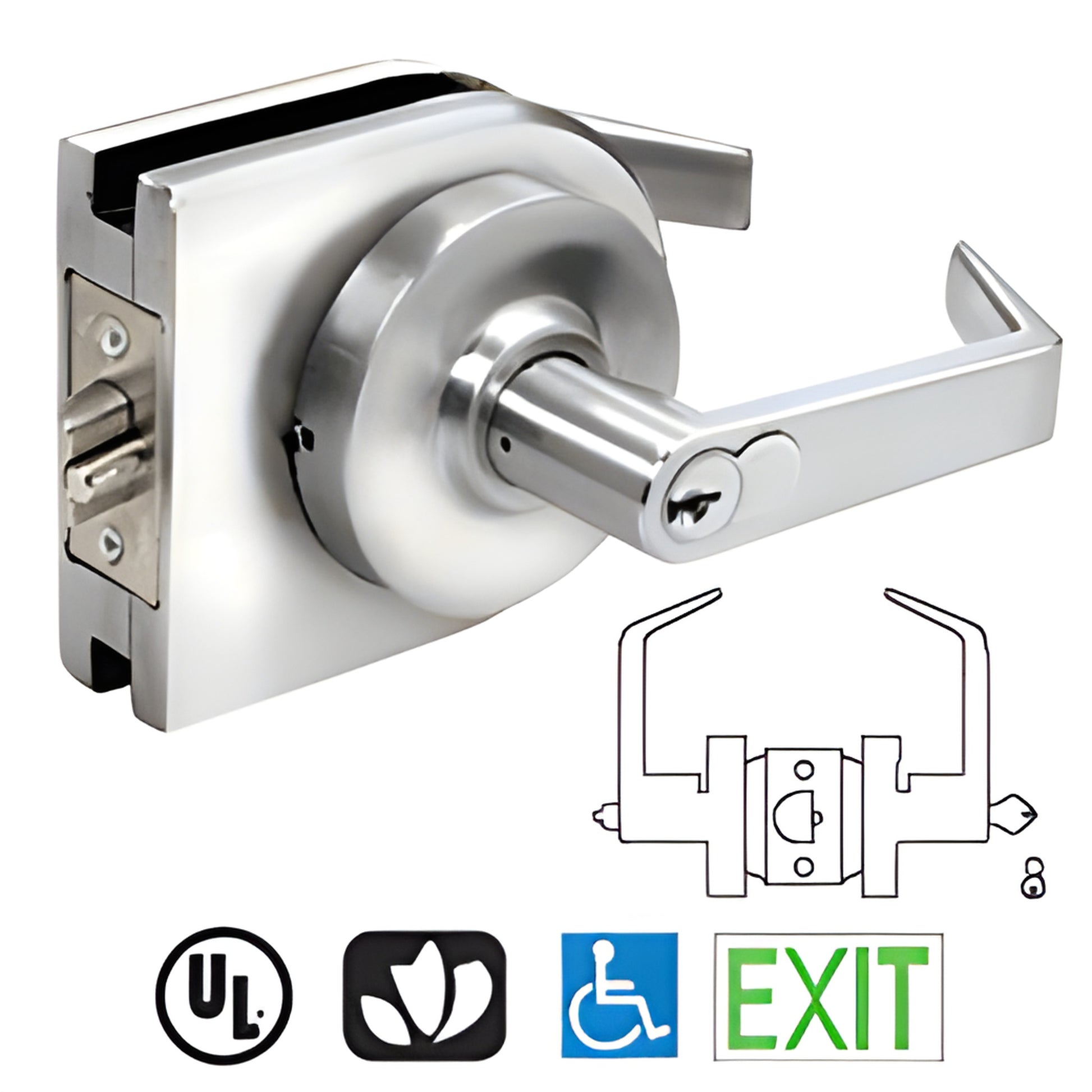

CRL Polished SS Grade 2 Entrance Lever Housing - 7-Pin SFIC
CRL Polished SS Grade 2 Entrance Lever Housing - 7-Pin SFIC
Regular price
$325.44 CAD
Regular price
Sale price
$325.44 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LH57PS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Cover Style
Round
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. (10 mm)
Height
4-1/2 in. (114 mm)
Width
5 in. (127 mm)
Overview
- Low-profile body design for use with 3/8" or 1/2" (10 or 12 mm) glass
- Supplied with ANSI A156.2 Grade 1 or Grade 2 lever lock
- Non-handed and reversible for left or right doors
- Five architectural finishes available
- Four function options (Entrance, Storeroom, etc.)
CRL's Lever Lock Housings (SKU: LH57PS) are easy-to-install and ship complete with housing and lever lockset for 3/8" or 1/2" (10 or 12 mm) thick glass. Entrance and Storeroom models are offered with either a Schlage® 'C' 6-pin keyway or a 7-pin Small Format Interchangeable Core (SFIC). An ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike is included.
Key compliance and certifications:
- ANSI A156.2 Grade 2. UL10C and UBC 7.2 for positive pressure
- ANSI A117.1 and ADA for barrier-free accessibility
- C-UBC California Amended Uniform Builders Code – 2001
- NFPA-80 National Fire Protection - 1999
- NFPA101 National Fire Protection - Life Safety – 2000
Product Warning:
Glass fabrication is required. Installation instructions and fabrication template included.
Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order LH57PS lever lock housings for durable, ADA-compliant glass door locking—contact CRL or your distributor to buy or request a quote.
