CRL Polished Stainless Steel Grade 2 Door Lever Lock Housing
CRL Polished Stainless Steel Grade 2 Door Lever Lock Housing
Regular price
$406.06 CAD
Regular price
Sale price
$406.06 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LH55PS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Cover Style
Round
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. (10 mm)
Height
4-1/2 in. (114 mm)
Width
5 in. (127 mm)
Overview
- Low-profile body design for 3/8" or 1/2" (10 or 12 mm) glass
- Includes ANSI A156.2 Grade 1 or Grade 2 lever lock
- Non-handed and reversible
- Five architectural finishes available
- Four function options

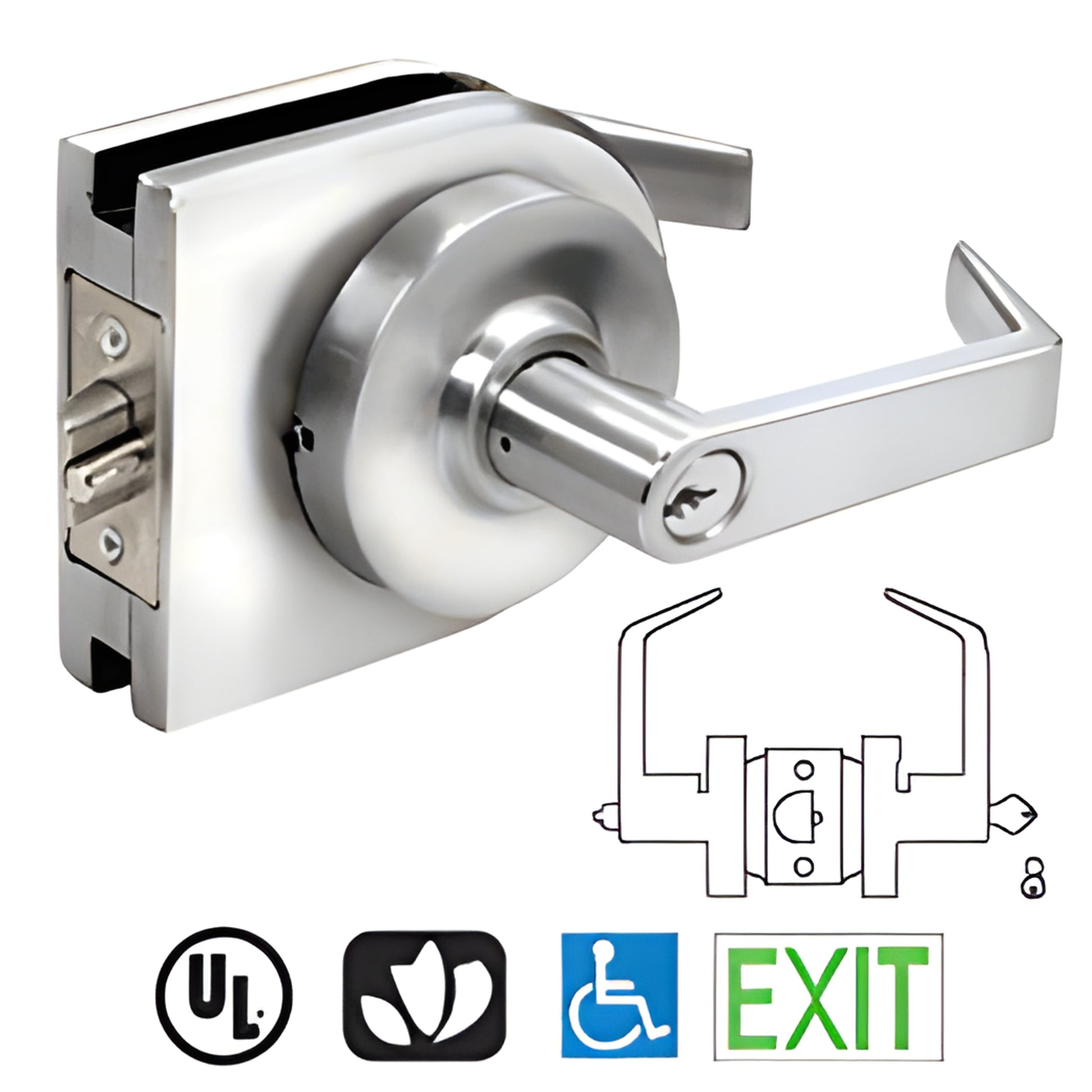

CRL's Lever Lock Housings (SKU: LH55PS) install easily and ship complete with housing and lever lockset sized for 3/8" or 1/2" (10 or 12 mm) thick glass. Entrance and storeroom models are offered with either a Schlage® 'C' 6‑Pin keyway or a 7‑Pin Small Format Interchangeable Core (SFIC). Includes ANSI 1‑1/4" x 4‑7/8" (32 x 124 mm) strike. Ideal for frameless glass doors, storefronts, and interior glass partitions requiring a low-profile lock housing.
• ANSI A156.2 Grade 2. UL10C and UBC 7.2 for positive pressure
• ANSI A117.1 and A.D.A. for barrier-free accessibility
• C-UBC California Amended Uniform Builders Code – 2001
• NFPA-80 National Fire Protection - 1999
• NFPA101 National Fire Protection - Life Safety – 2000
Product Warning:
Glass fabrication is required. Installation instructions and fabrication template included.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to help preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Looking for a low-profile glass door lock housing with reversible installation and multiple finishes? Order LH55PS or contact CRL for pricing and availability.
