CRL Polished Stainless Low Profile Round One-Piece Surface Mount Frameless Windscreen Clamp
CRL Polished Stainless Low Profile Round One-Piece Surface Mount Frameless Windscreen Clamp
Regular price
$364.09 CAD
Regular price
Sale price
$364.09 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# AFWC4SPS
Shipping Weight: 2.24 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 2.24 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1


Description

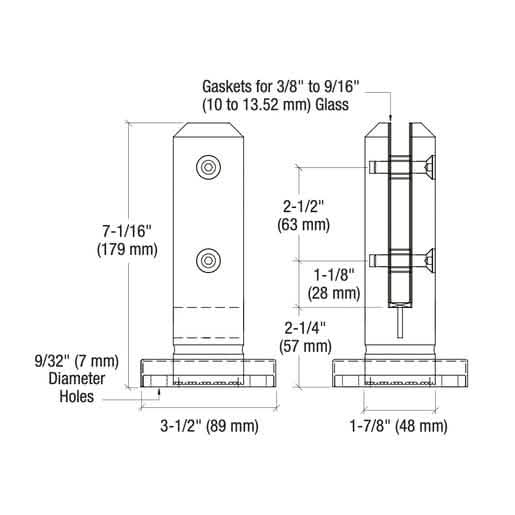

Attachment | Surface |
Base Plate Diameter 3-1/2 in. | (89 mm) |
Diameter | 1 7/8 in. (48 mm) |
Finish/Color | Polished Stainless Steel |
Glazing Thickness | 3/8 in., 1/2 in., 9/16 in. (10 mm, 12 mm, 14 mm) |
Material | Stainless Steel |
Mounting Hole Diameter 9/32 in. | (7 mm) |
Overview

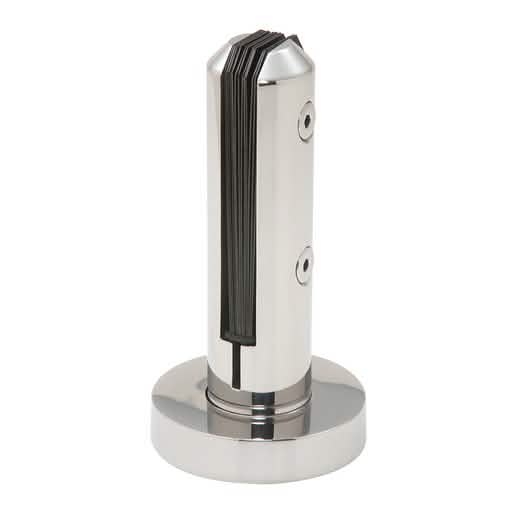

CRL One-Piece Surface Mount Clamps are expertly crafted for seamless installation on 3/8" or 1/2" (10 or 12 mm) Tempered Monolithic Glass and 9/16" (13.52 mm) Tempered Laminated Glass, making them ideal for pool decks and patios.
Their easy-to-install design requires only two 5/8" (16 mm) holes per clamp, with a height of 7-1/16" (179 mm).
These CRL Frameless Windscreen Clamps provide a sleek, unobtrusive solution for creating tempered glass windscreens or pool surrounds, eliminating the need for bulky frames.
Available in four styles for core-drilled concrete decks and a wall or planter box mount option, these clamps can also be customized with powder-painted finishes.
CRL, a global supplier, advises checking local building codes to ensure compliance.
For more details on product maintenance and shipping, please contact CRL Customer Service.
Their easy-to-install design requires only two 5/8" (16 mm) holes per clamp, with a height of 7-1/16" (179 mm).
These CRL Frameless Windscreen Clamps provide a sleek, unobtrusive solution for creating tempered glass windscreens or pool surrounds, eliminating the need for bulky frames.
Available in four styles for core-drilled concrete decks and a wall or planter box mount option, these clamps can also be customized with powder-painted finishes.
CRL, a global supplier, advises checking local building codes to ensure compliance.
For more details on product maintenance and shipping, please contact CRL Customer Service.
