CRL Polished Stainless Patch Door Kit for Transom & Sidelite - No Lock

• For 3/8" or 1/2" (10 or 12 mm) tempered glass
• Five architectural finishes

CRL PHA4 North American Door Kits (SKU: PHA4LPS) include complete hardware to assemble a free-swinging glass door with fixed transom and sidelite—glass and any additional supports for the fixed transom/sidelite are not included. Designed for tempered glass storefronts and interior glass partitions, this glass door pivot kit features a 2-3/4" (70 mm) pivot setback and accepts a floor closer with tapered spindle (floor closer ordered separately). Ideal for commercial and architectural applications requiring high-quality finishes and durable pivot hardware.

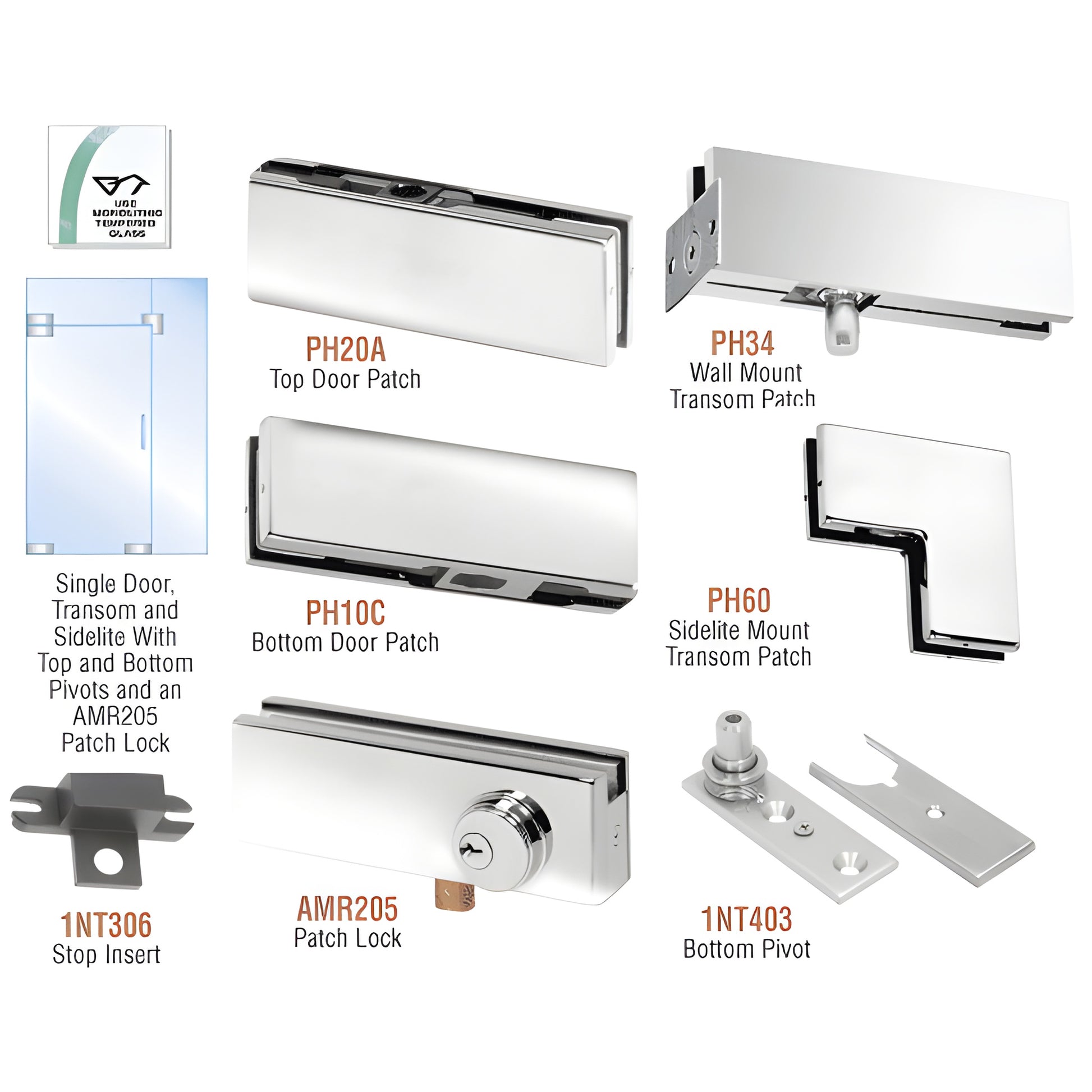

Kit contains:

• 1 - PH34 Wall Mount Transom Patch
• 1 - PH60 Sidelite Mount Transom Patch
• 1 - PH20A Top Door Patch
• 1 - PH10C Bottom Door Patch
• 1 - 1NT306 Stop Insert
• 1 - 1NT403 Bottom Pivot
• Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass must be drilled/notched where required)

Kits available with lock include one Cat. No. AMR205 patch lock; cylinders, thumbturns, and keepers are ordered separately.

NOTE: For recommended maximum door sizes when using this product, CRL follows GANA Guidelines.

Stainless Steel Advisory:

Order the PHA4LPS glass door pivot kit today to get a complete, architect-grade door hardware solution—contact CRL or your local distributor to purchase.
