CRL Polished Stainless Patch Kit for Double Glass Doors w/ Lock

• For 3/8" or 1/2" (10 or 12 mm) tempered glass
• Available with or without locks

CRL PHA8 North American Double Door Kits (SKU: PHA8LPS) include the hardware required to complete a pair of free-swinging tempered glass doors with fixed transom and two sidelites (glass and additional supports for the fixed transom and sidelites are not included). Pivot setback: 2-3/4" (70 mm). Compatible with a separately ordered floor closer with tapered spindle. These patch hardware kits are ideal for North American double door installations and tempered glass storefront or interior glass door projects.

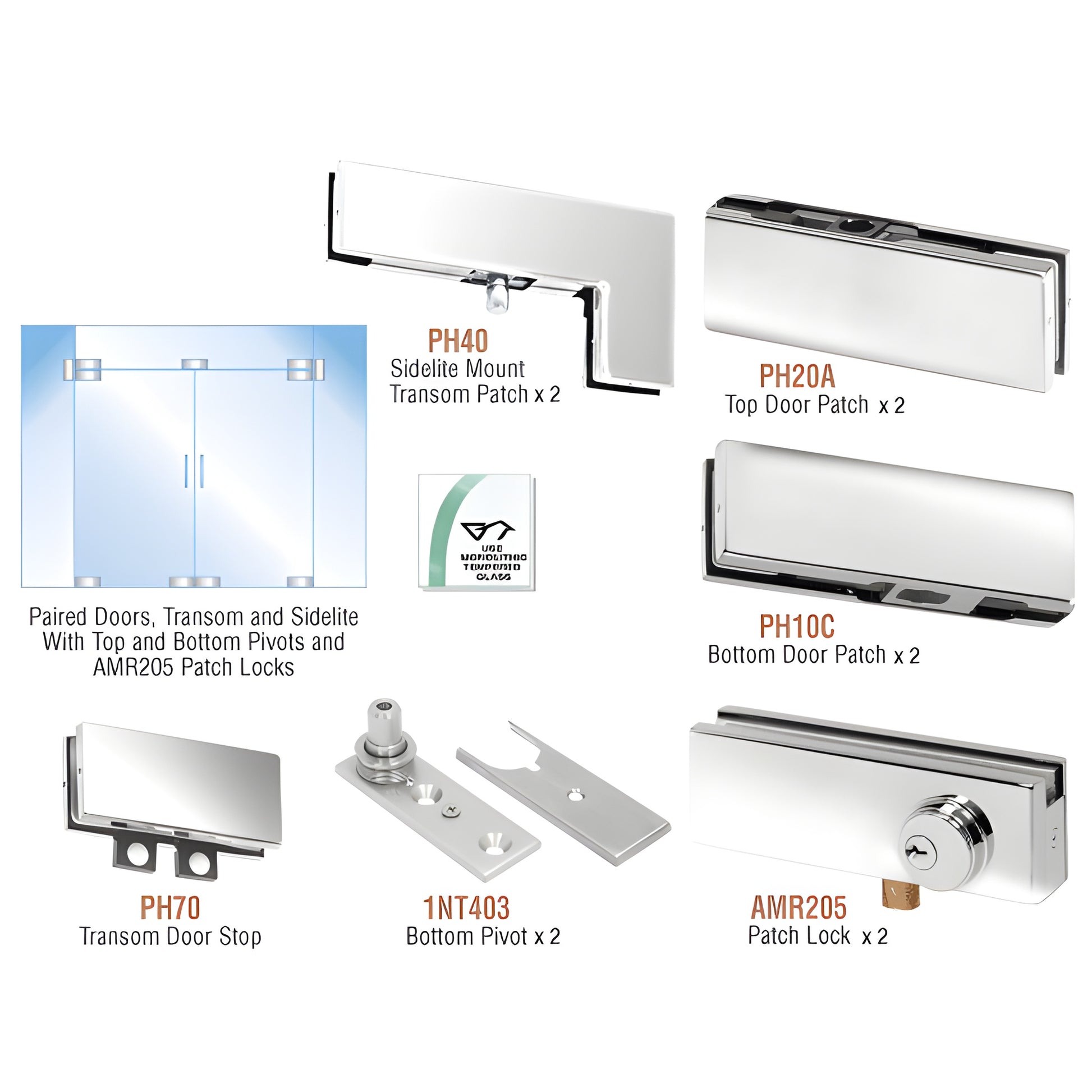

Kit Contains:

• 2 - PH40 sidelite mount transom patches
• 2 - PH20A top door patches
• 2 - PH10C bottom door patches
• 1 - PH70 transom door stop
• 2 - 1NT403 bottom pivots
• Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass requires holes and notches)

Kits with locks include two Cat. No. AMR205 patch locks; cylinders, thumbturns, and keepers are ordered separately. This double door patch kit supports common commercial and residential tempered glass door configurations and simplifies installation when paired with compatible transom and sidelite supports.

NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Stainless Steel Advisory:

Order the CRL PHA8 North American double door patch kit (PHA8LPS) for a complete tempered glass double door hardware solution — contact CRL or your local distributor to buy or get installation support.
