CRL Polished Stainless Patch Kit for Double Glass Doors w/Lock
CRL Polished Stainless Patch Kit for Double Glass Doors w/Lock
Regular price
$1,303.55 CAD
Regular price
Sale price
$1,303.55 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHE8LPS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Sidelite-Pair With Transom-Sidelite
Door Type
F Style Glass Door
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16
Overview
- For 3/8" or 1/2" (10 or 12 mm) tempered glass
- Available with or without locks (SKU: PHE8LPS)
CRL PHE8 European Double Door Kits include the complete hardware package to build a pair of free-swinging frameless glass doors with a fixed transom and two sidelites (glass and additional supports for the fixed transom/sidelites not included). Designed for commercial and high-traffic interiors, this European double glass door kit accepts 3/8" or 1/2" tempered glass and features a pivot setback of 2-9/16" (65 mm). A floor closer with tapered spindle (ordered separately) can be used with this kit.

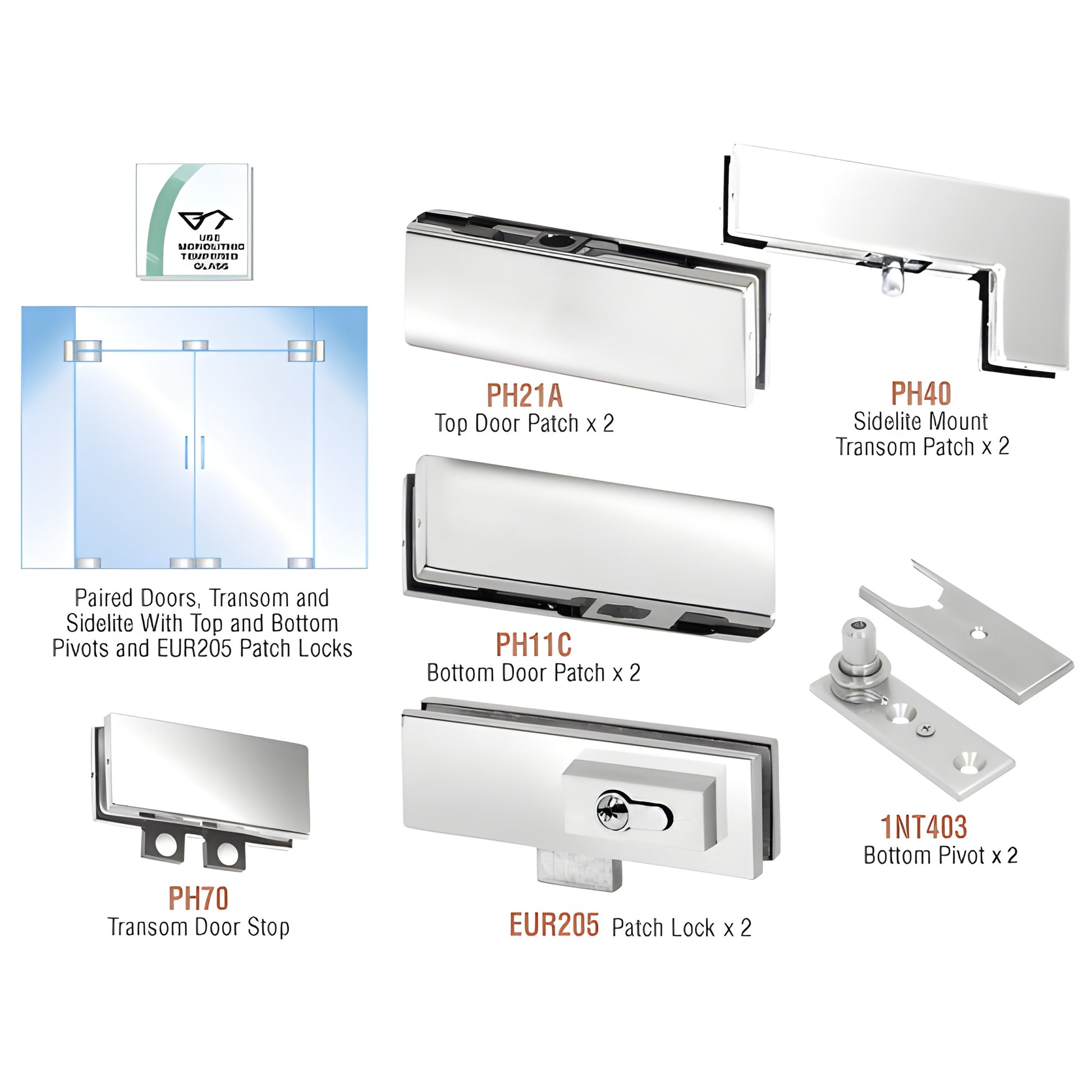

Kit Contains:
- 2 - PH40 Sidelite Mount Transom Patches
- 2 - PH21A Top Door Patches
- 2 - PH11C Bottom Door Patches
- 1 - PH70 Transom Door Stop
- 2 - 1NT403 Bottom Pivots
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass requires holes and notches)
Kits with locks include two EUR205 patch locks; cylinders, thumbturns, and keepers are ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Ideal for frameless glass commercial entrances and interior partitions—order the CRL PHE8 European double door kit (PHE8LPS) today to complete your tempered glass pivot door installation.
