CRL Polished Stainless Patch Kit for Frameless Glass Door w/ Lock
CRL Polished Stainless Patch Kit for Frameless Glass Door w/ Lock
Regular price
$778.12 CAD
Regular price
Sale price
$778.12 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHE5LPS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Sidelite-Single With Transom-Sidelite
Door Type
F Style Glass Door
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16
Overview
- 'All-Glass' Look
- For 3/8" or 1/2" (10 or 12 mm) tempered glass
- Available with or without locks
Complete hardware kit for a free-swinging glass door with fixed transom and two sidelites (glass and any additional structural supports not included). Pivot setback: 2-9/16" (65 mm). Compatible with a separately ordered floor closer with tapered spindle. Ideal for contemporary storefronts and interior all-glass pivot door applications.

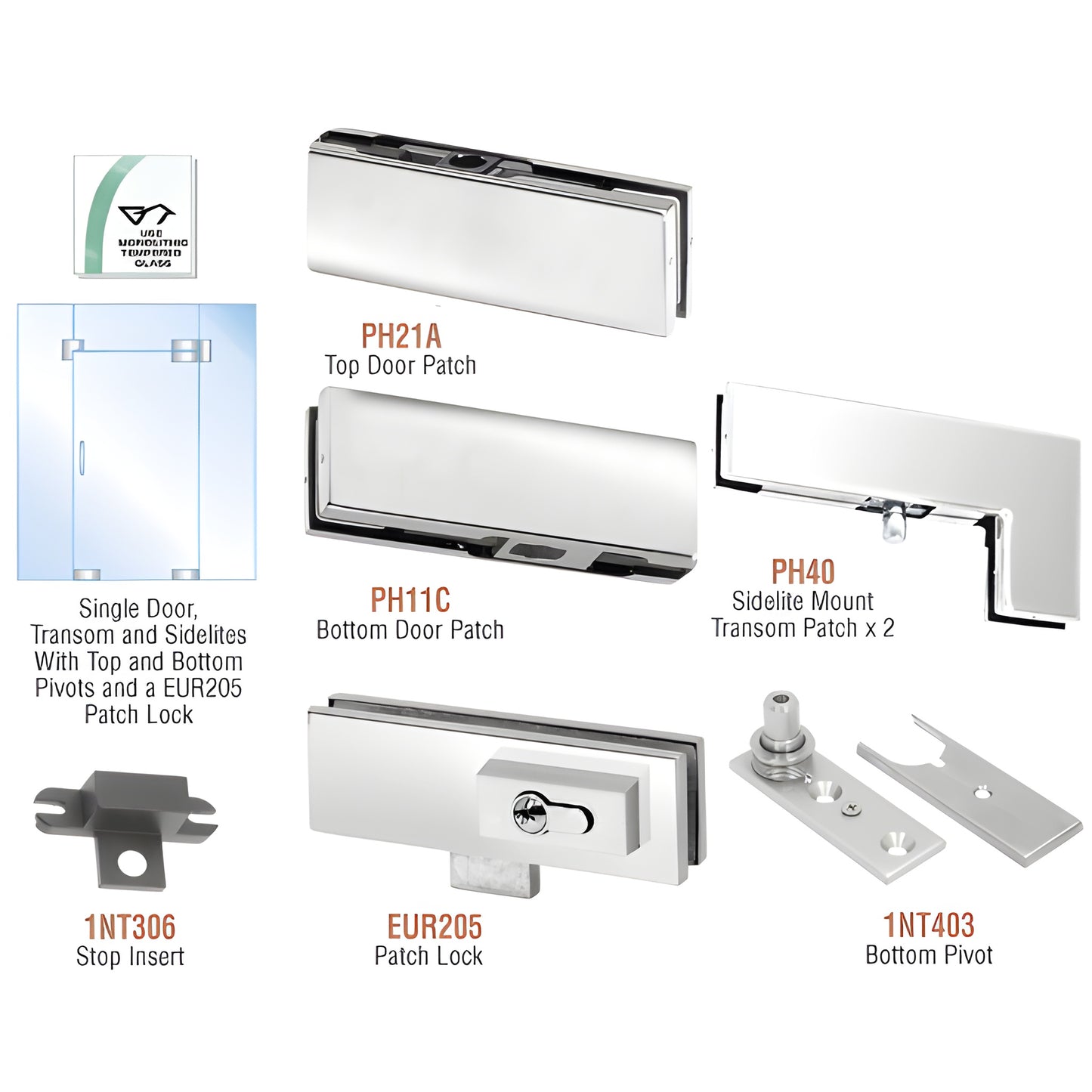

Kit Contains:- 2 - PH40 sidelite/transom mount patches
- 1 - PH21A top door patch
- 1 - PH11C bottom door patch
- 1 - 1NT306 stop insert
- 1 - 1NT403 bottom pivot
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass requires holes and notches)
Kits with locks include one EUR205 patch lock. Cylinders, thumbturns, and keepers are ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not entirely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order the CRL PHE5LPS European pivot door kit for tempered glass sidelites and transom today to achieve a seamless all-glass look—contact us or add to cart to get started.
