CRL 90° Polished Stainless Glass Spider Fitting 2V Arm Column Mount
CRL 90° Polished Stainless Glass Spider Fitting 2V Arm Column Mount
Regular price
$92.72 CAD
Regular price
Sale price
$92.72 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PMR2V90PS
Shipping Weight: 1.06 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.06 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Overview
- For use with glass up to 1/2" (12 mm)
- Complete with hardware to mount to post or column
- Glass attachments sold separately
- Use monolithic tempered glass

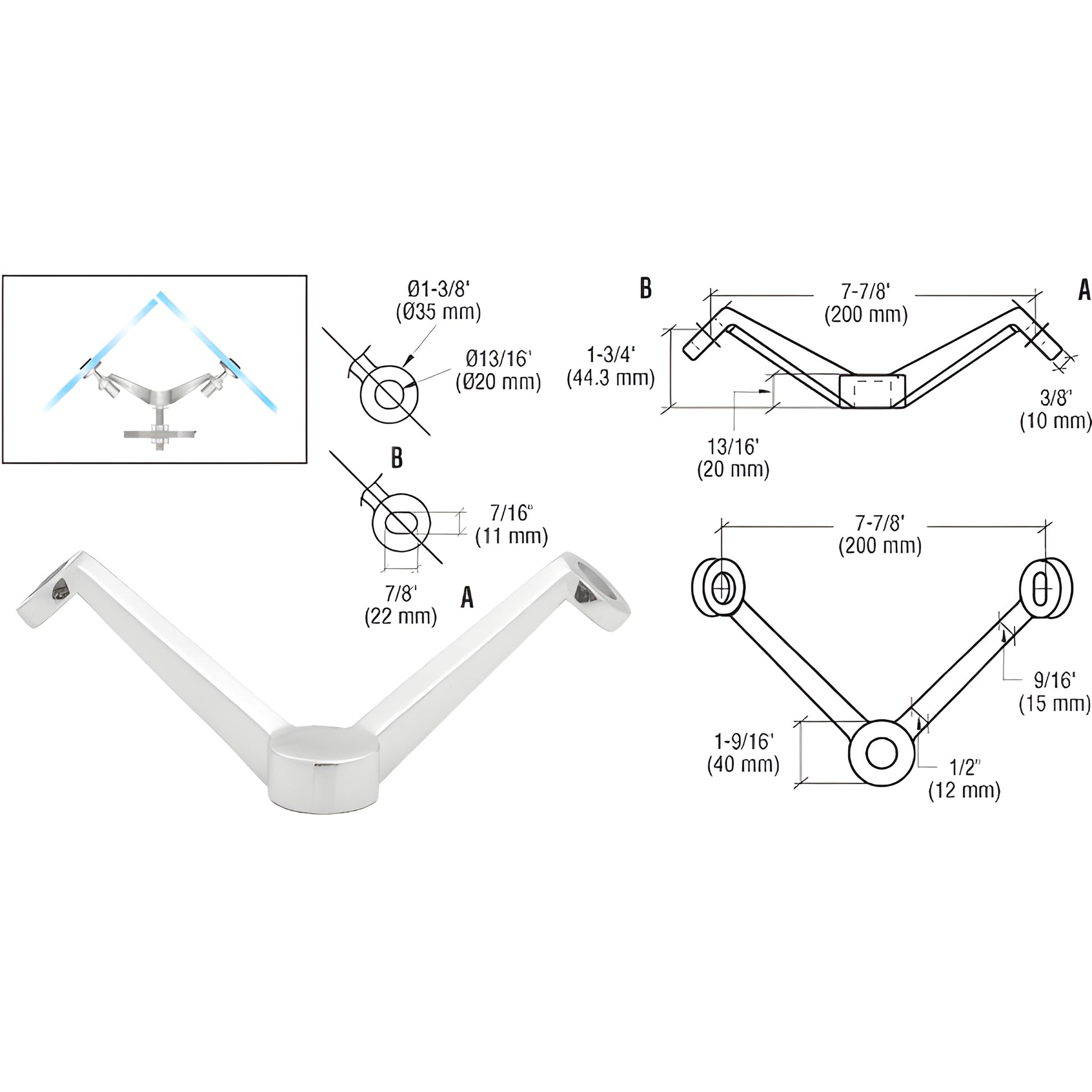

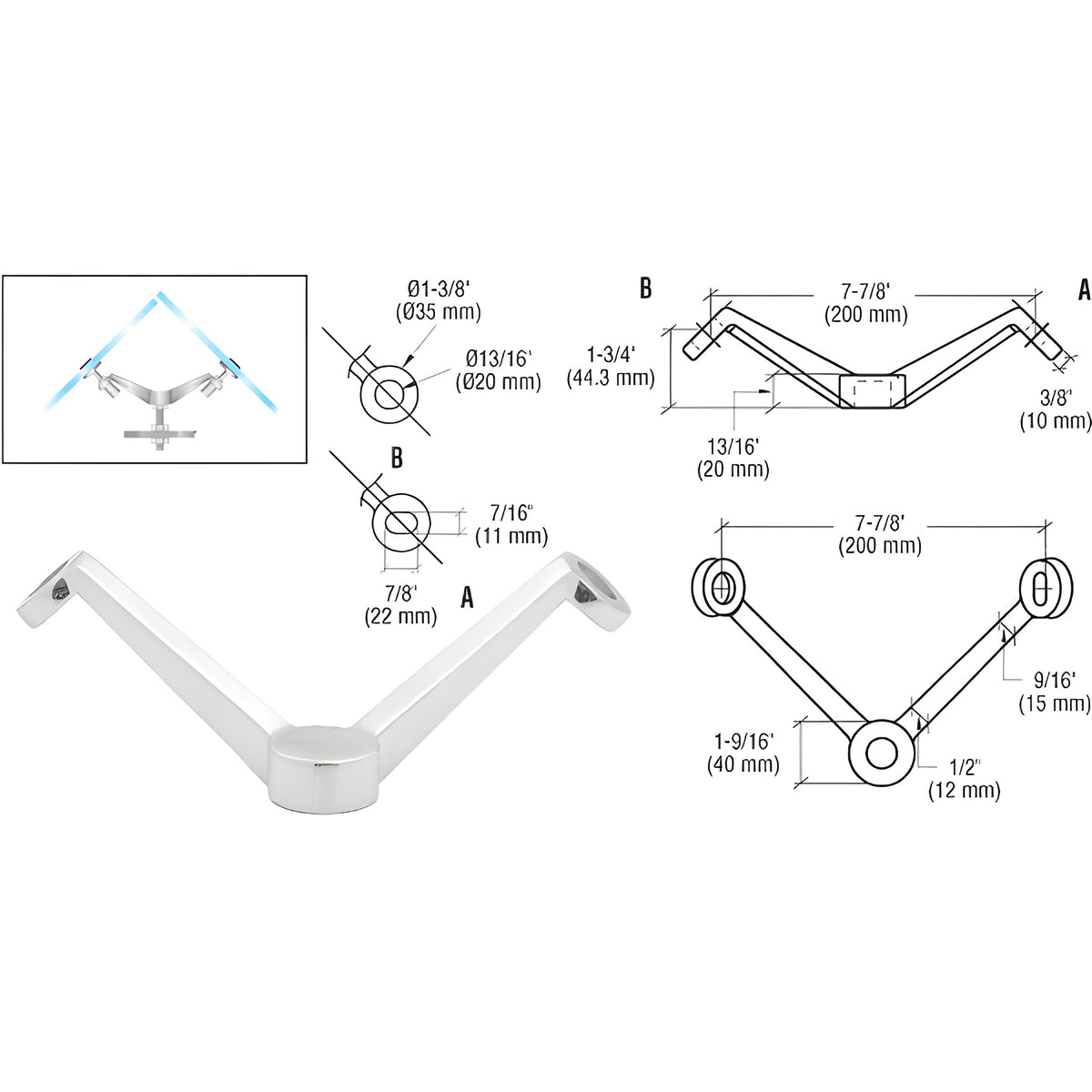

This CRL Double Arm Fitting (SKU: PMR2V90PS) attaches two 90° glass panels at the top or bottom of a structural corner post. Includes M16-2.0 x 99.5 mm (3-7/8") stainless steel threaded stud plus three matching nuts with washers. Replacement stud set available.
For companion fittings use Cat. No. PMR490BS or PMR490PS.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for details.
Designed for frameless glass railing and corner post installations, this double arm glass fitting is ideal for commercial and residential projects requiring secure 90-degree glass connections. Order PMR2V90PS or contact CRL Customer Service to confirm compatibility and availability.
Specifications
Cleaning & Maintenance
