- Beautifully Enhanced Aesthetics Including Concealed Mounting Hardware
- System Features One Sliding Door and One Fixed Panel
- Circular Header and Rollers Provide Symmetrical Aesthetics
- Handle or Knob for Door Glass Ordered Separately
- Accommodates 1/2" or 3/8" (12 or 10 mm) Thick Tempered Safety Glass (Not Included)
- Glass Clamps or U-Channel for Fixed Panel Ordered Separately
- One - 78" (1981 mm) Length of Header Bar
- Four - Rollers
- One - Stopper
- Two - Wall Mount Fittings
- Two - Track Holder Fittings for Fixed Panel
- One - Bottom Guide (includes inserts for both 1/2" and 3/8" (12 and 10 mm) Glass)
- Two - 40" (1016 mm) Bottom Sweeps with
- Drip Rail (one for 3/8" (10 mm) and one for 1/2" (12 mm)
- One - 80" (2032 mm) Clear L-Jamb NOTE: Customer to supply choice of Handle or Knob for door, and Glass Clamps or U-Channel for fixed panel. SPECIFICATIONS:
- Material: Stainless Steel
- Glass Thickness: 1/2" or 3/8" (12 or 10 mm) - Not Included
- Maximum Door Size: 36" (914 mm) wide or 100 lbs (45 kg) - Do not exceed either width or weight.
- Glass Fabrication Required for Both Door and Fixed Panel Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted. Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

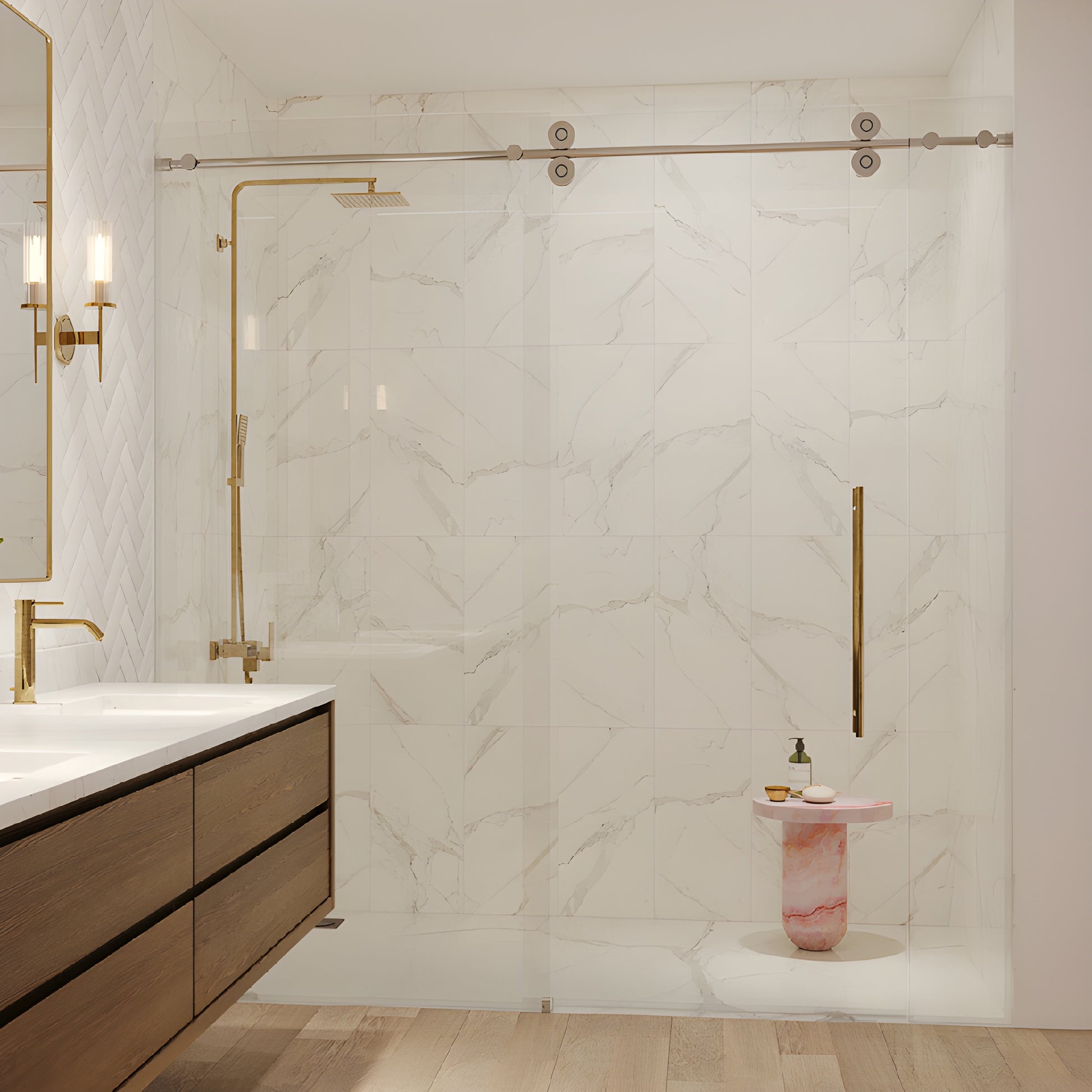

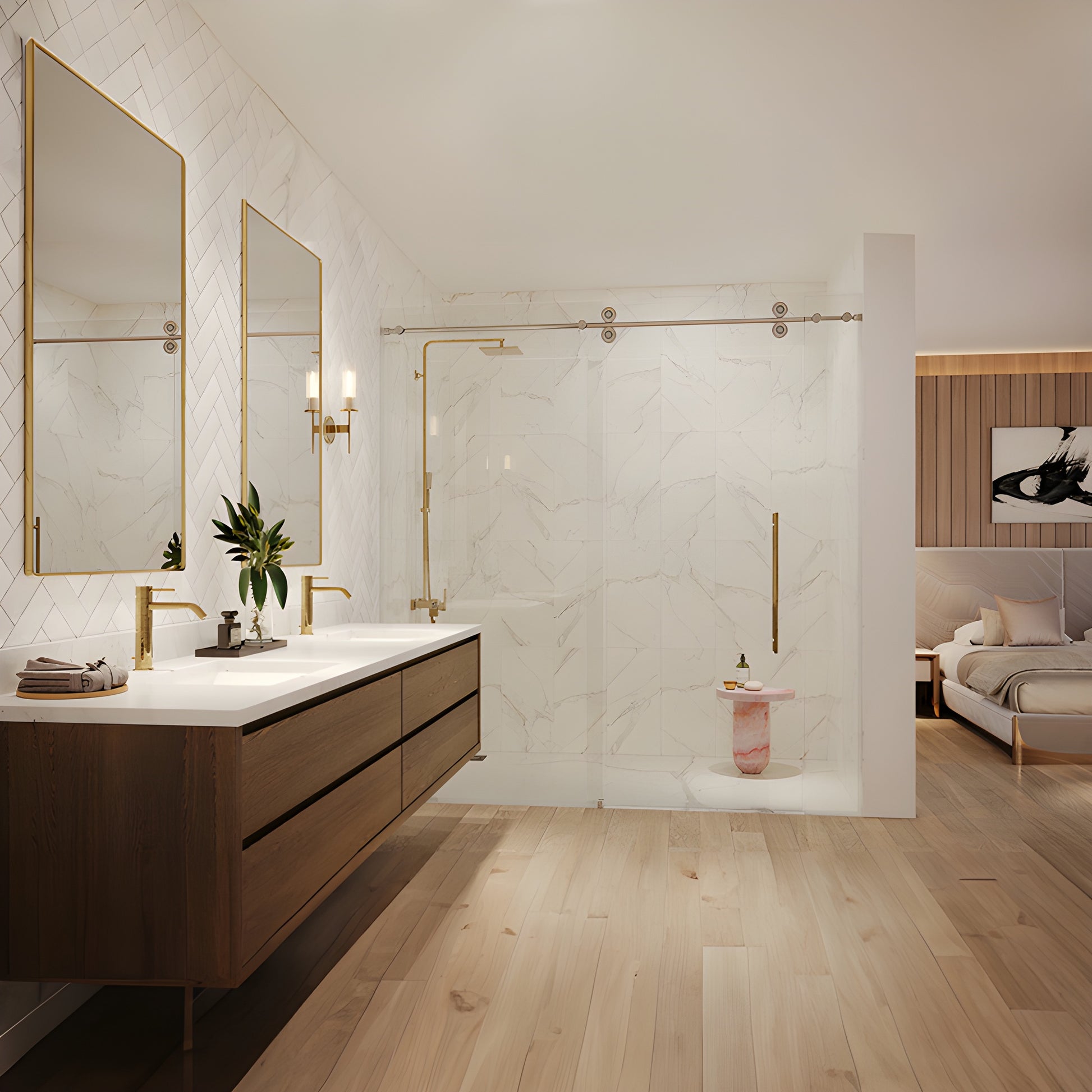

The circular shaped Header and the round Rollers of the
Premium Colonia Series Sliding Door System
are the perfect complement to each other. They help provide a luxurious sliding shower door system and a soft décor. The use of minimal hardware with concealed installation hardware lends itself to the popular modern sliding shower door systems by showing more glass, and no hardware. These quality Rollers assure quiet door travel, and make the door easy to slide. The Colonia Series Sliding System accommodates 1/2"or 3/8" (12 or 10 mm) thick tempered safety glass (not included), and the system allows that the fixed and sliding panels are reversible for installation as desired. The Colonia Series Sliding Door System is available in a choice of polished stainless steel, brushed stainless steel, matte black, brushed bronze, or the popular satin brass finish.

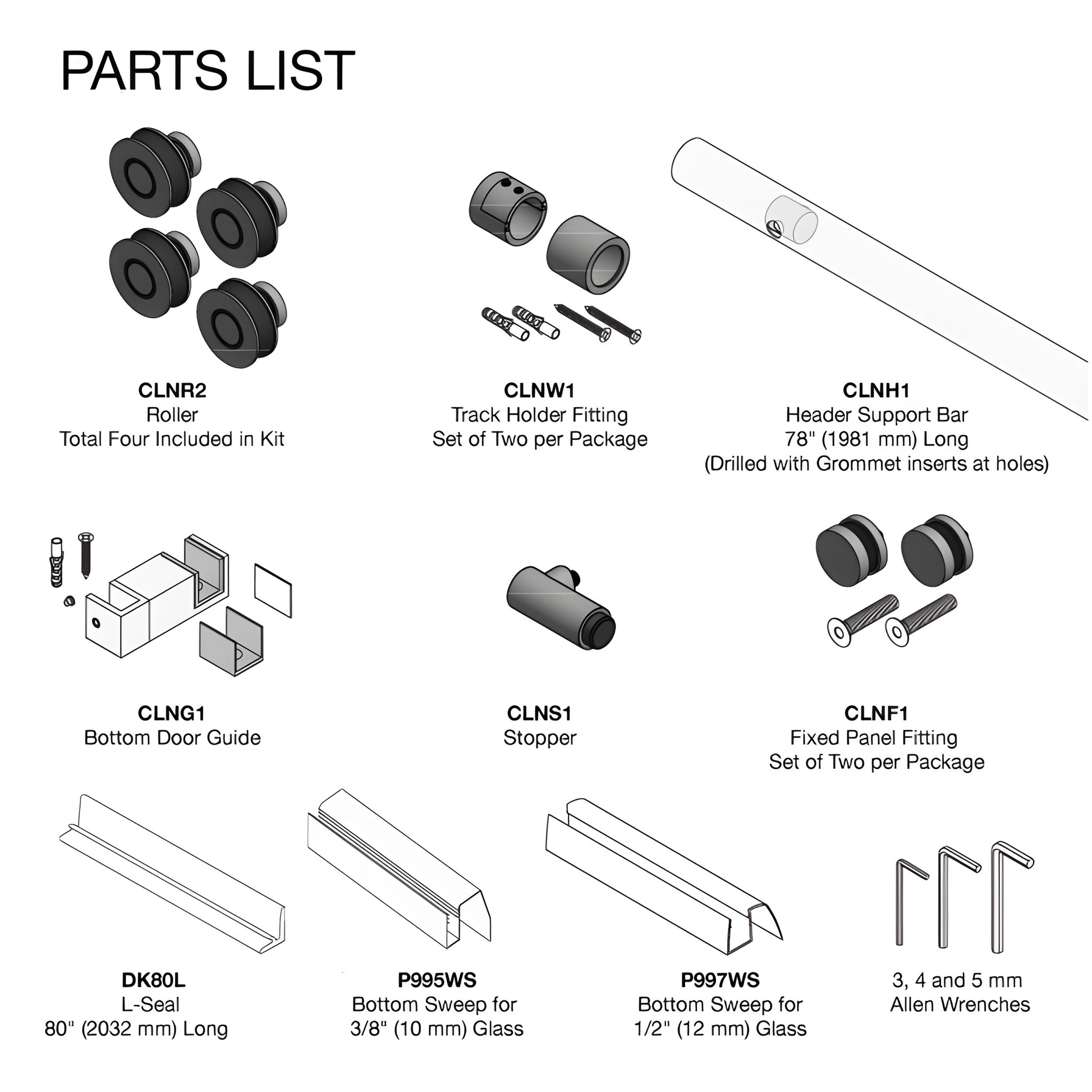

STANDARD 180 DEGREE KIT INCLUDES
One - 78" (1981 mm) Length of Header Bar

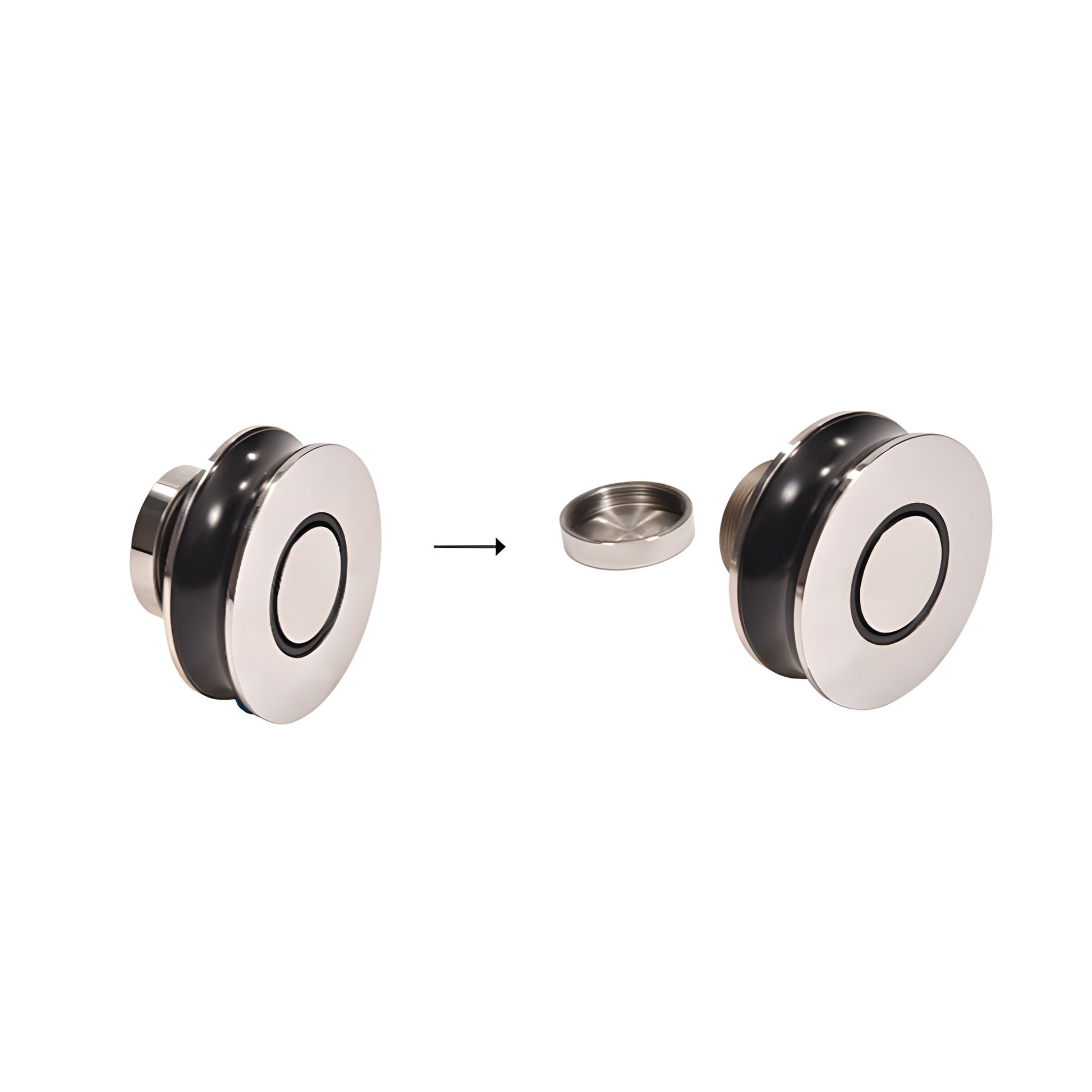

Four - Rollers

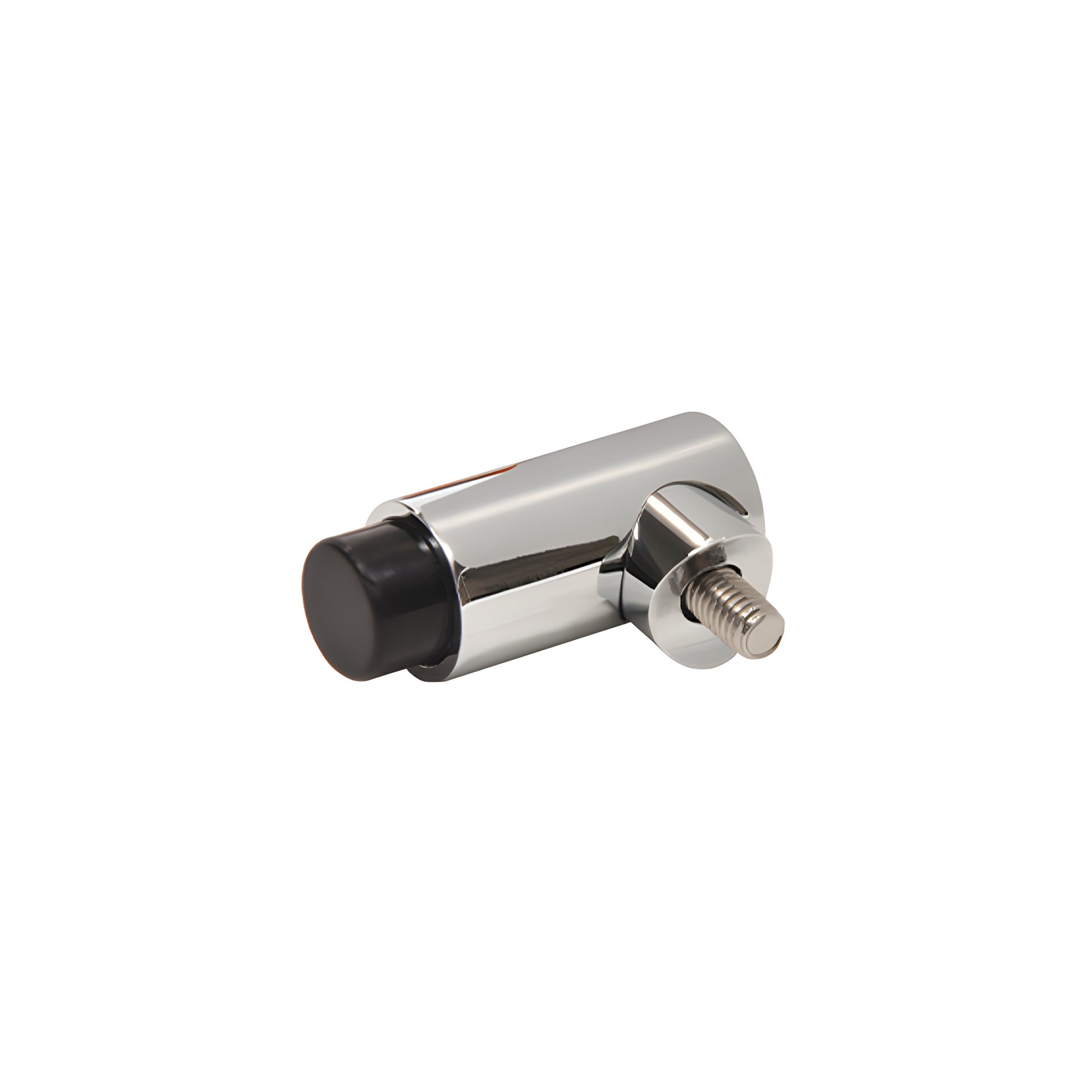

One - Stopper
Two - Wall Mount Fittings

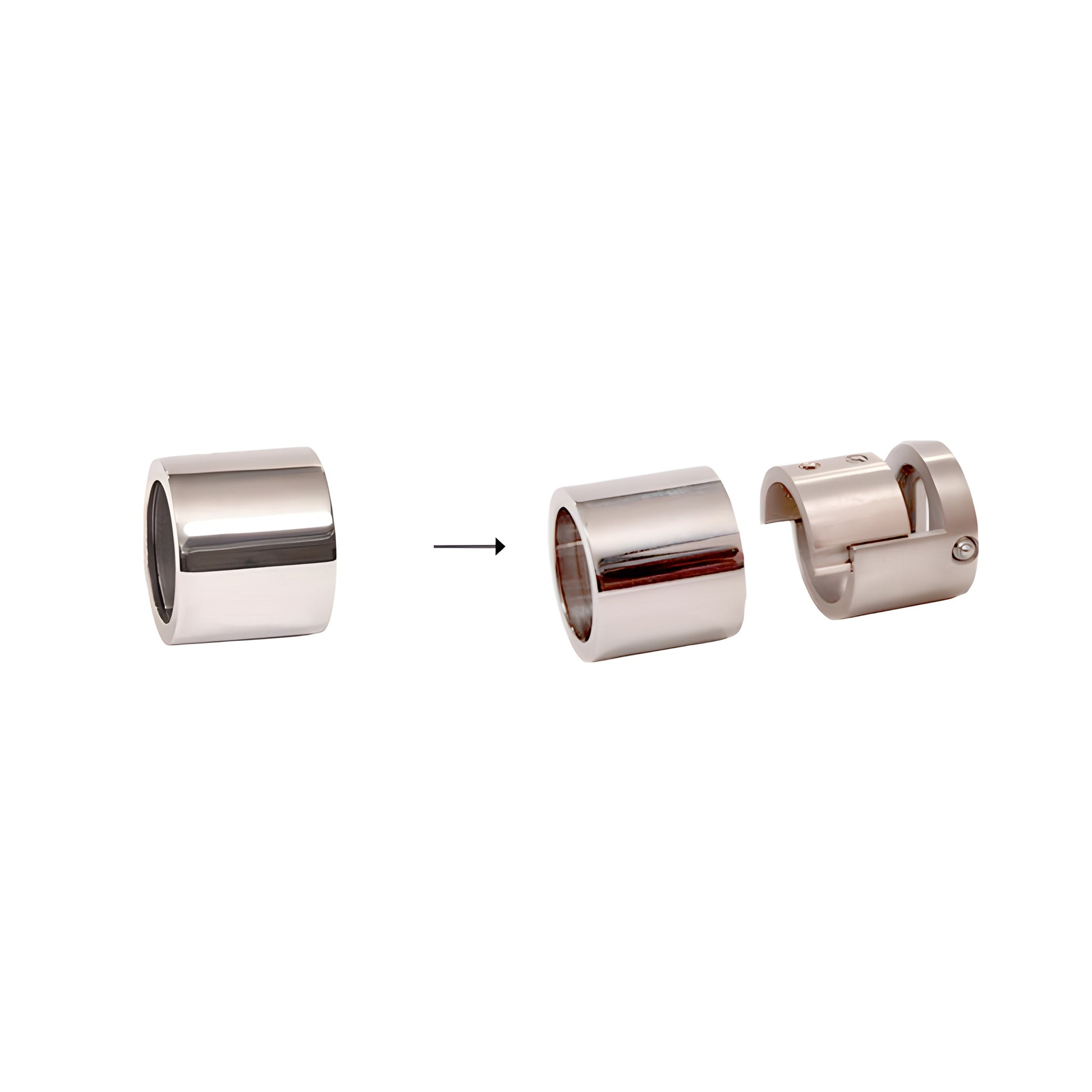

Two - Track Holder Fittings for Fixed Panel
One - Bottom Guide (includes inserts for both 1/2" and 3/8" (12 and 10 mm) Glass)
Two - 40" (1016 mm) Bottom Sweeps with
Drip Rail (one for 3/8" (10 mm) and one for 1/2" (12 mm)
One - 80" (2032 mm) Clear L-Jamb
NOTE
Customer to supply choice of Handle or Knob for door, and Glass Clamps or U-Channel for fixed panel.
SPECIFICATIONS
Material: Stainless Steel
Glass Thickness: 1/2" or 3/8" (12 or 10 mm) - Not Included
Maximum Door Size: 36" (914 mm) wide or 100 lbs (45 kg) - Do not exceed either width or weight.
Glass Fabrication Required for Both Door and Fixed Panel
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
