CRL Polished Stainless Steel Deluxe 180 Degree Serenity Series Sliding System

Design Style

Squared

Enclosure Type

Corner, Niche, Bathtub, Tailor Made Solutions

Finish/Color

Polished Stainless Steel

Glazing Thickness

5/16 in. To 3/8 in. (8 mm To 10 mm)

Length

78-3/4 in. (2000 mm)

Material

Stainless Steel

Maximum Door Weight

88 lbs. (39.9 kg)

Maximum Door Width

30 in. (762 mm)

Opening Style

Slide

Roller Location

Top

Series

Serenity

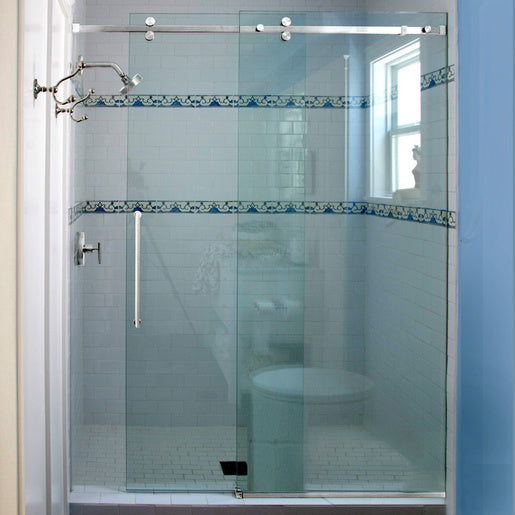

CRL 180° Serenity Series Sliding Shower Door System

Upgrade your bathroom with the CRL Deluxe 180° Serenity Series Sliding System, a premium solution designed for sleek, modern frameless shower enclosures. Engineered for both style and function, this system features quiet operation, minimal hardware, and a floating aesthetic that enhances any bathroom space.

Key Features

• One Sliding Door and One Fixed Panel
• Compatible with 5/16" to 3/8" (8 to 10 mm) Tempered Glass (Not Included)
• Monolithic Tempered Glass Compatibility
• Reversible Panel Configuration for Flexible Installation
• Smooth & Quiet Operation with Custom Roller Bearings
• Sleek Architectural Finishes Available
• U-Channel or Glass Clamps for Fixed Panel Sold Separately

Why Choose the Deluxe Serenity Series Sliding System?
Designed with minimal visible hardware, this sliding system delivers a frameless, floating appearance that brings a touch of elegance to your shower space. Its innovative roller bearing technology ensures effortless, quiet sliding every time.

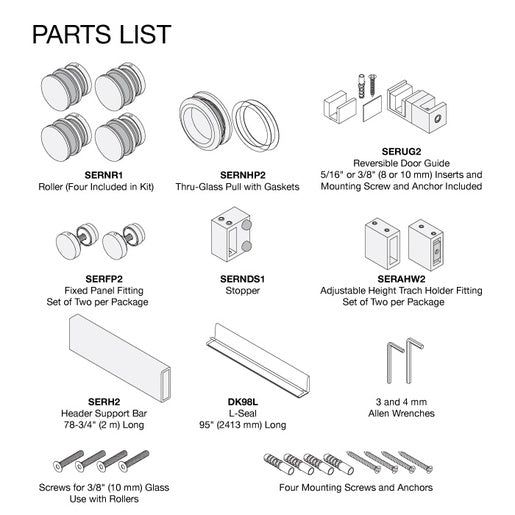

Deluxe Kit Includes:

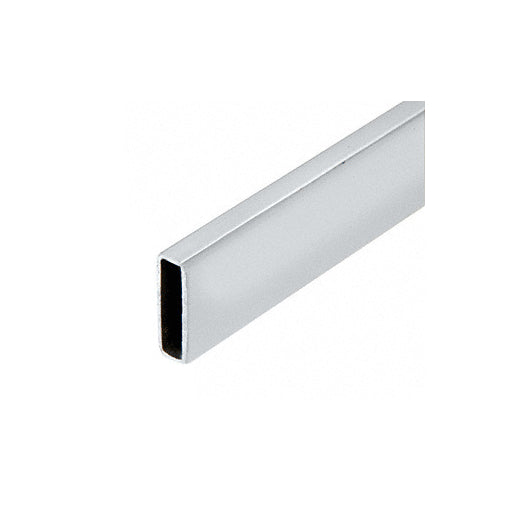

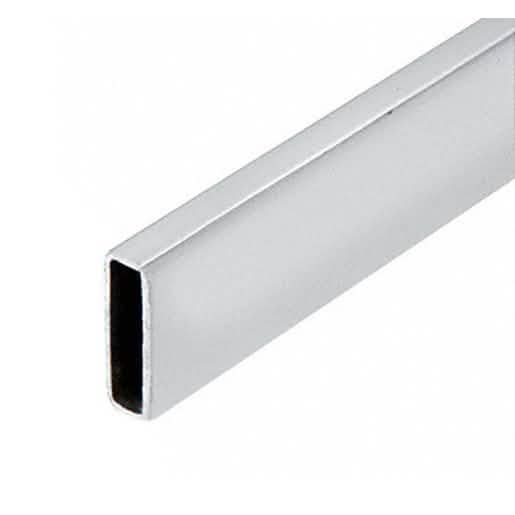

• One 78-3/4" (2 m) Header Bar

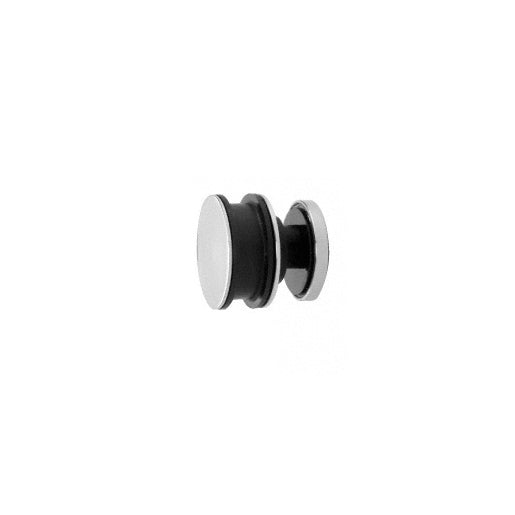

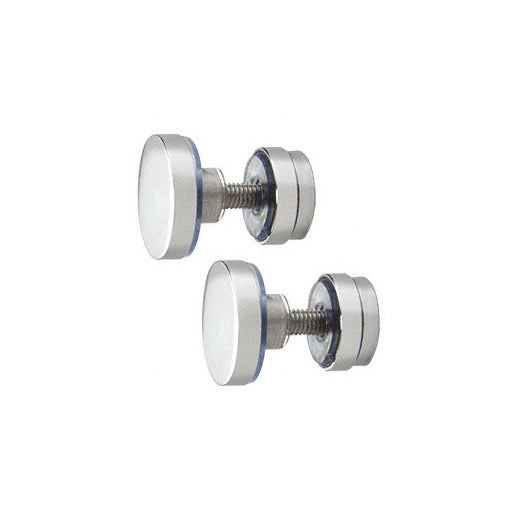

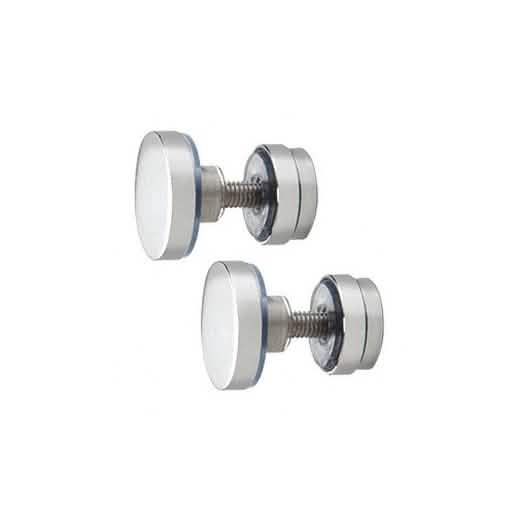

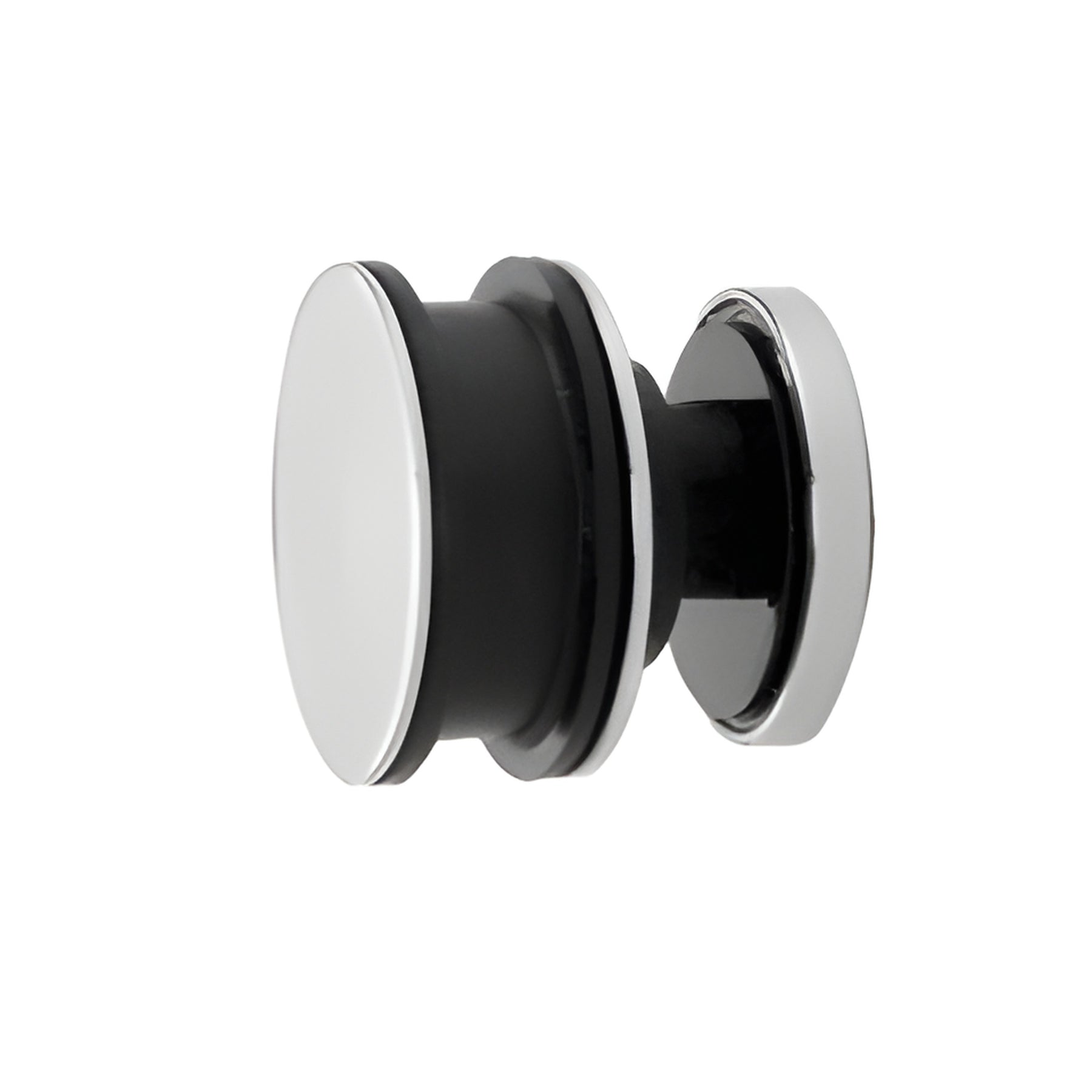

• Four Premium Roller Assemblies

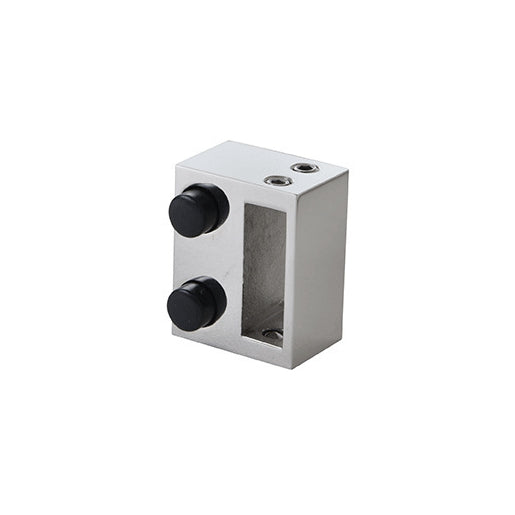

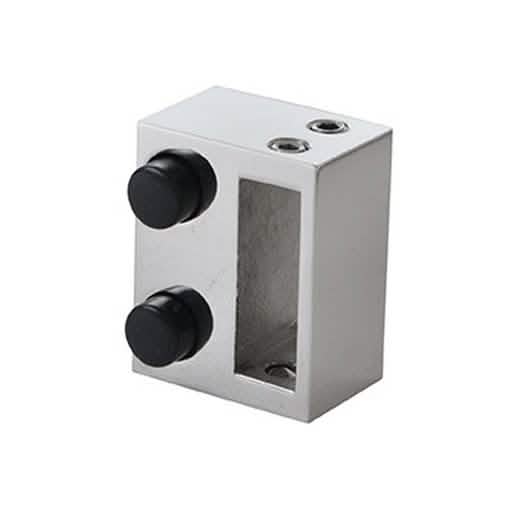

• One Door Stopper

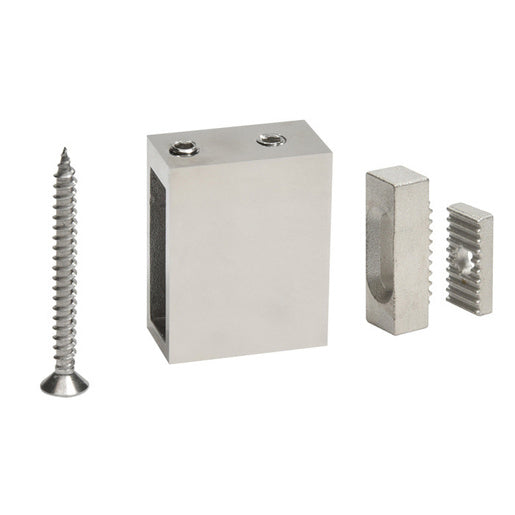

• Two Wall Track Holder Fittings
• Two Fixed Panel Track Holder Fittings

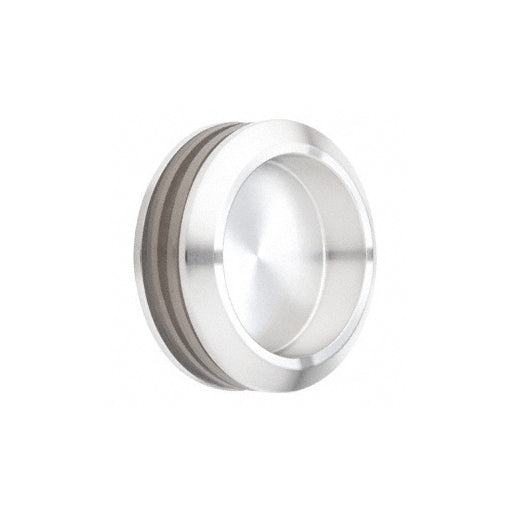

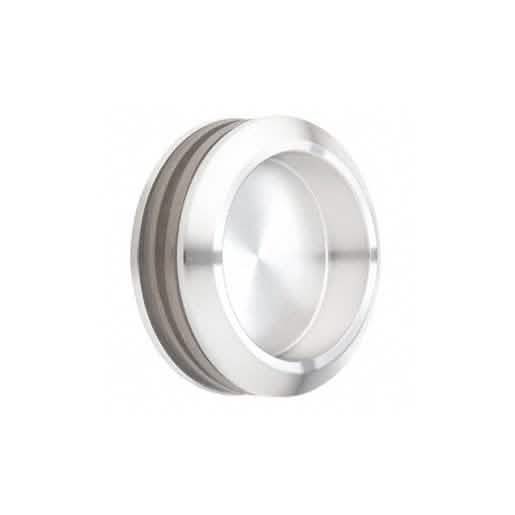

• One Through-Glass Pull Handle

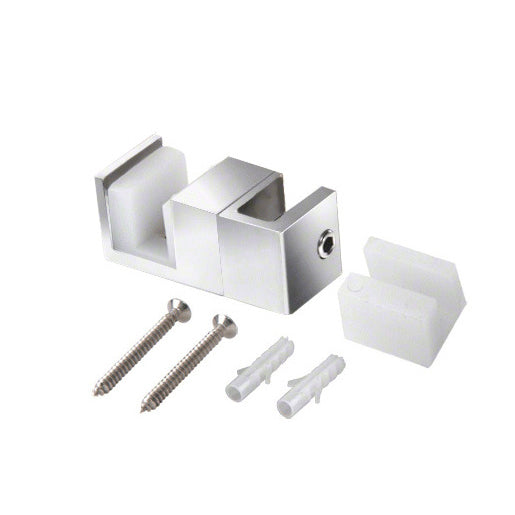

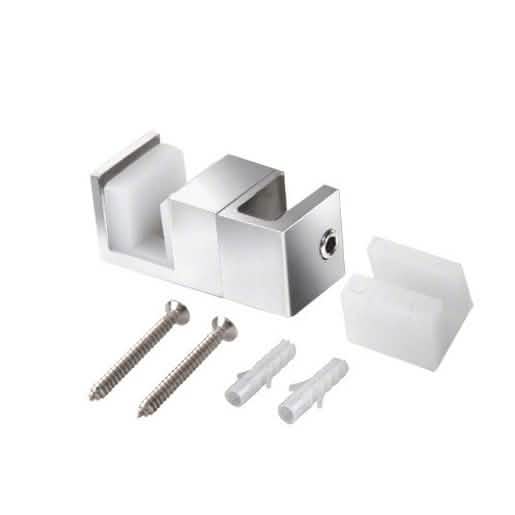

• One Door Guide

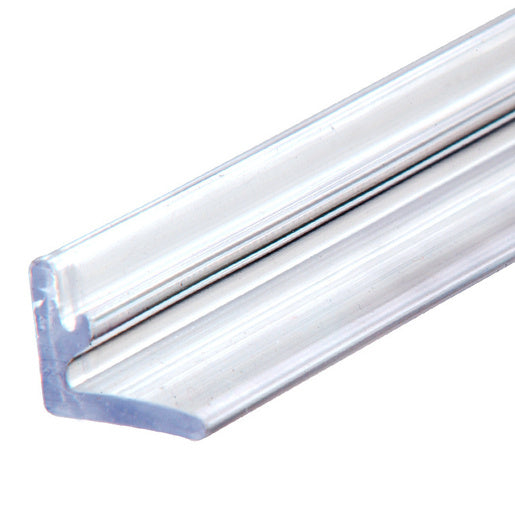

• One 85" (2.16 m) Clear L-Jamb

Technical Specifications

• Glass Thickness: 5/16" to 3/8" (8 to 10 mm) Tempered Safety Glass (Not Included)
• Material: High-Quality Stainless Steel
• Maximum Door Size: 30" (762 mm) Width or 88 lbs (40 kg) Weight
• Fabrication: Pre-drilled Holes Required in Door and Fixed Panel
• Optional Accessories: 90° Return Panel Accessory Kit (Sold Separately)

Product Advisory

• U-Channel or Glass Clamps for Fixed Panel must be purchased separately.
• Shipping weights are approximate; contact CRL Customer Service to confirm if needed.
• Monitor and screen settings may affect product color representation.

Stainless Steel Care Note:
While stainless steel is corrosion-resistant, it is not fully rust- or stain-proof. Regular maintenance is recommended to preserve its factory finish. Refer to the Stainless Steel Disclaimer in the Technical References section for more care information.

Polished Stainless Steel Finish Available
Enhance your frameless shower with the CRL 180° Serenity Series Sliding System in a stunning polished stainless steel finish—a perfect blend of form and function.

Optimize your modern bathroom design today with smooth, quiet, and stylish glass door hardware built for lasting performance.
