Product Details
- System Features One Sliding Door and One Fixed Panel
- Use Monolithic Tempered Glass
- Specially Designed Roller Bearings for Quiet Door Movement
- Fixed and Sliding Panels May Be Reversed for Installation
- For 5/16" to 3/8" (8 to 10 mm) Thick Tempered Glass (Not Included)
- U-Channel or Glass Clamps for Fixed Panel Must Be Ordered Separately
- Available in Several Architectural Finishes
- One - 78-3/4" (2 m) Length Header Bar

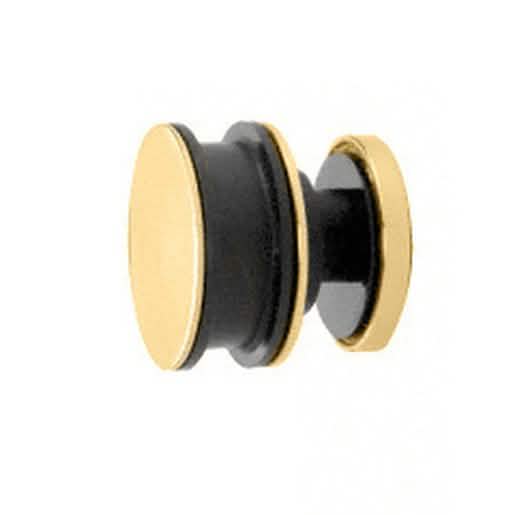

- Four - Rollers
- One - Stopper

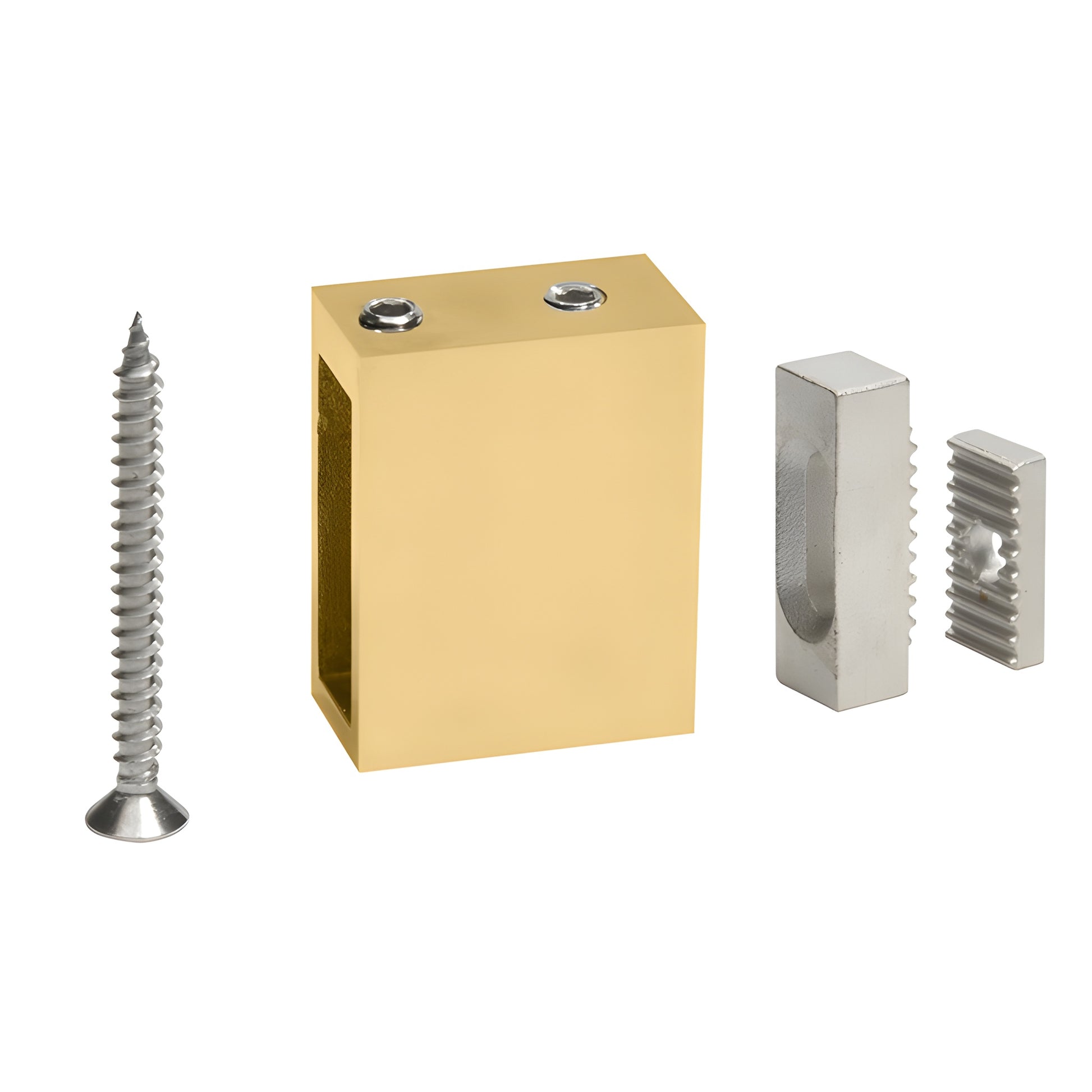

- Two - Track Holder Fittings for Wall
- Two - Track Holder Fittings for Fixed Panel

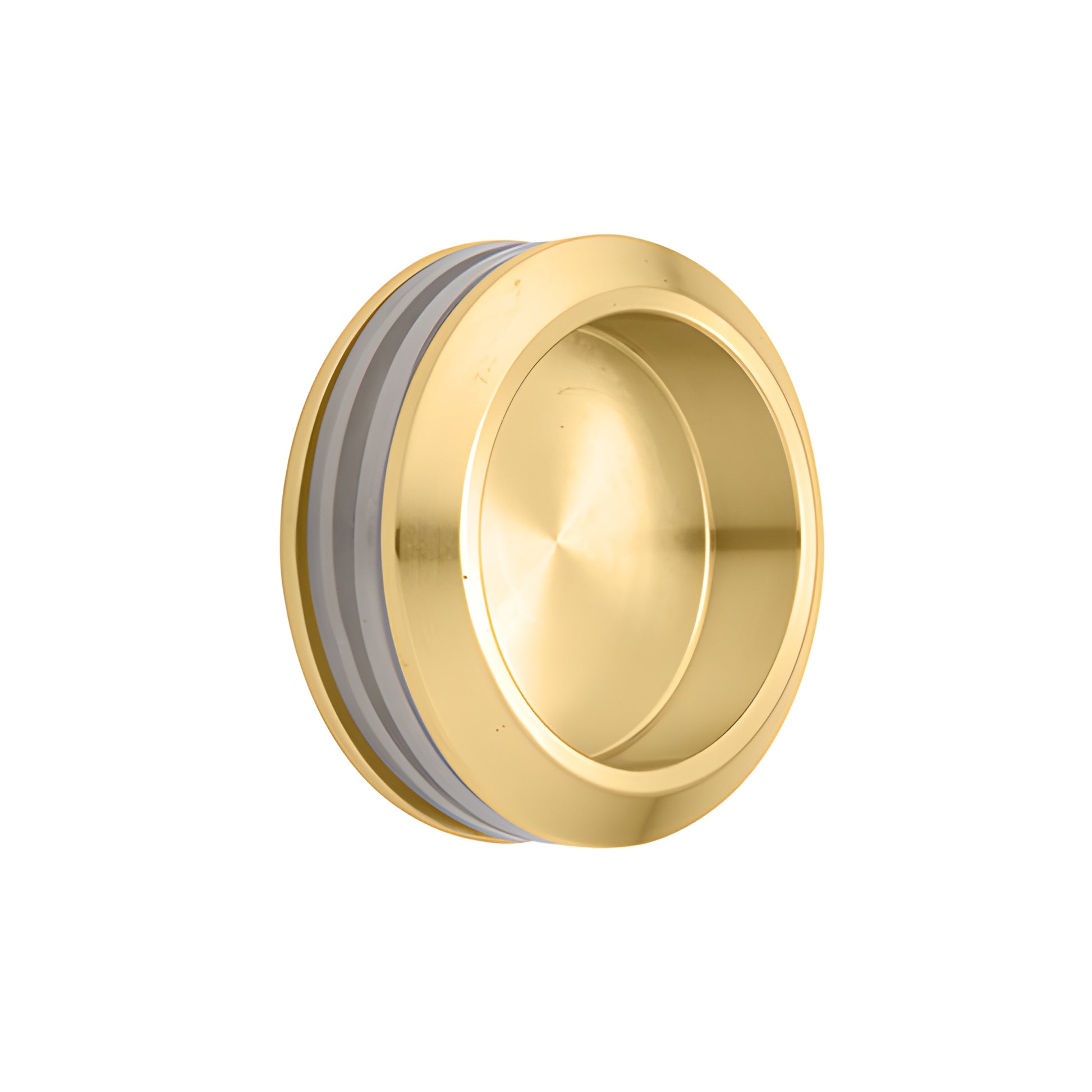

- One - Thru-Glass Pull
- One - Door Guide
- One - 85" (2.16 m) Clear L-Jamb SPECIFICATIONS:
- Glass Thickness Range: 5/16" to 3/8" (8 to 10 mm) Tempered Safety Glass (Not Included)
- Material: Stainless Steel
- Maximum Door Size: Do Not Exceed Either 30" (762 mm) Wide or 88 Pounds (40 kg)
- Fabrication: Holes Required in Both Door and Fixed Panel A 90 Degree Accessory Kit may be purchased separately for use with 90 degree return panels. Available in either polished stainless steel or brushed stainless steel, the Deluxe Serenity Series Sliding System will work with 3/8" or 5/16" (10 or 8 mm) thick tempered glass (not included). Do not exceed either 30" (762 mm) or 88 pounds (40 kg) for the door size. Glass fabrication is required in both the door and fixed panel. Product Warning: U-Channel or Glass Clamps for Fixed Panel Must Be Ordered Separately. Brass Finish Advisory: Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

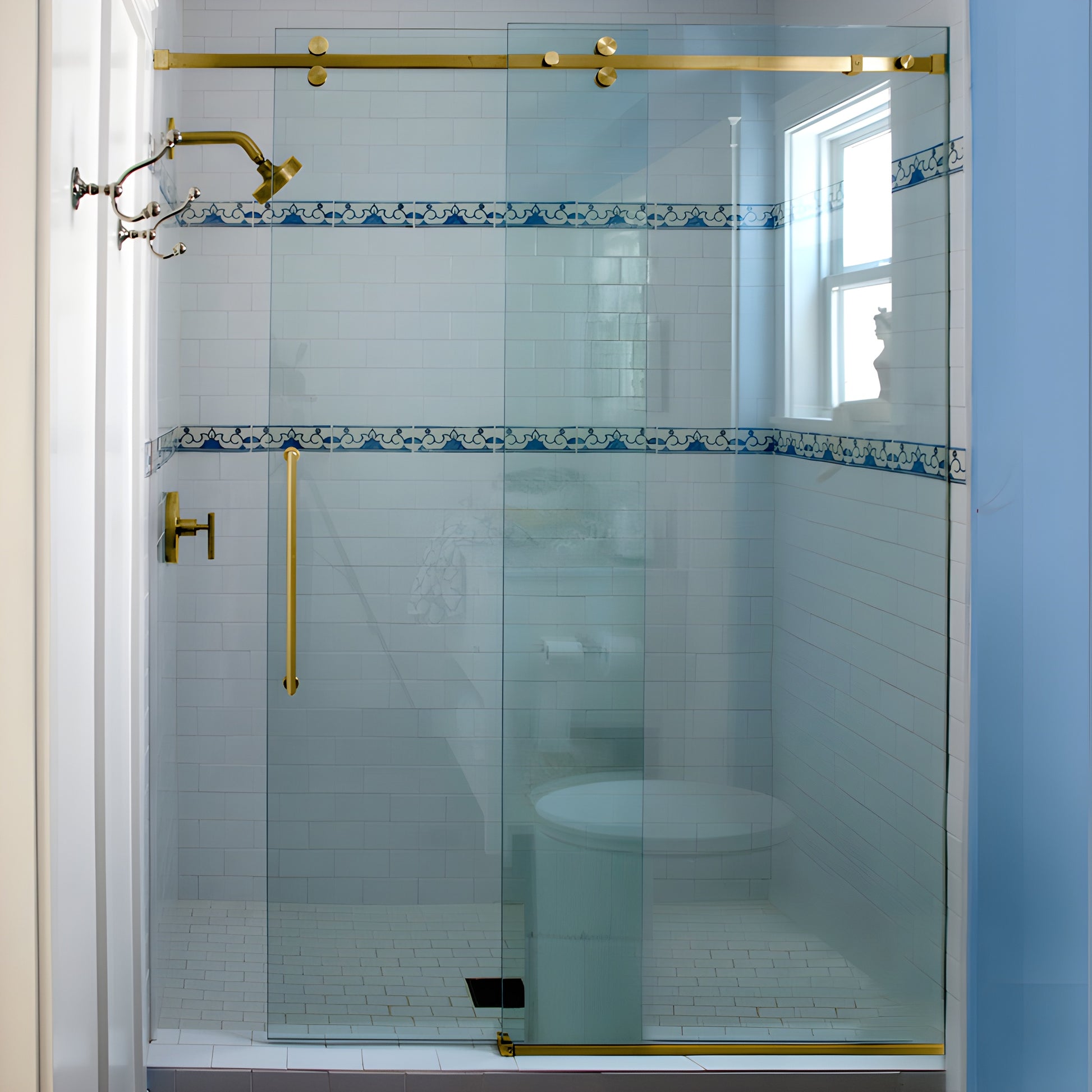

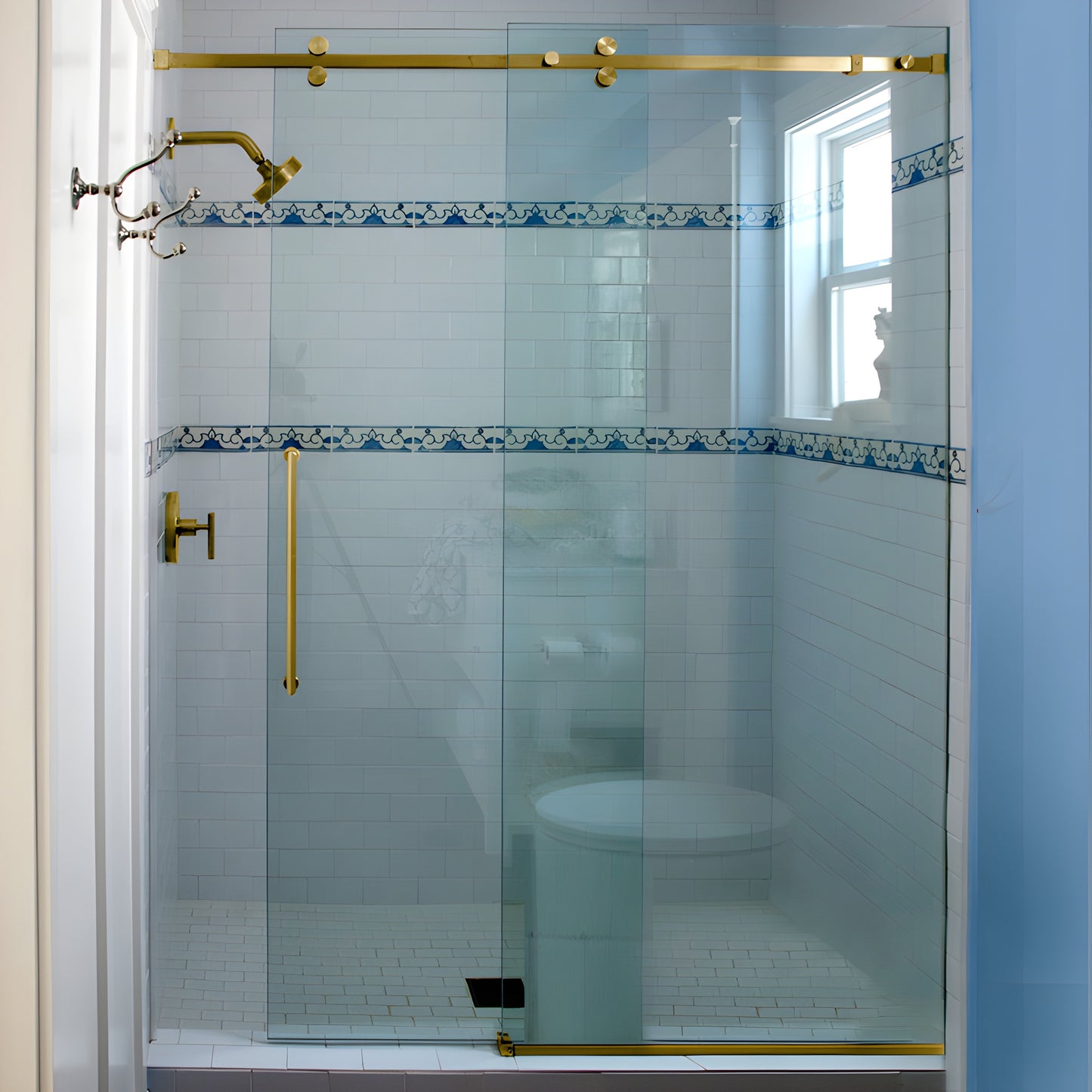

Our CRL Deluxe 180 Degree Serenity Series Sliding System has an entirely different look from traditional sliding systems. The use of minimal hardware provides a frameless look that gives the enclosure an almost floating appearance. Specially designed roller bearings allow for quiet and easy opening and closing of the door. One sliding panel and one fixed panel make the Deluxe Serenity Series both practical and beautiful.

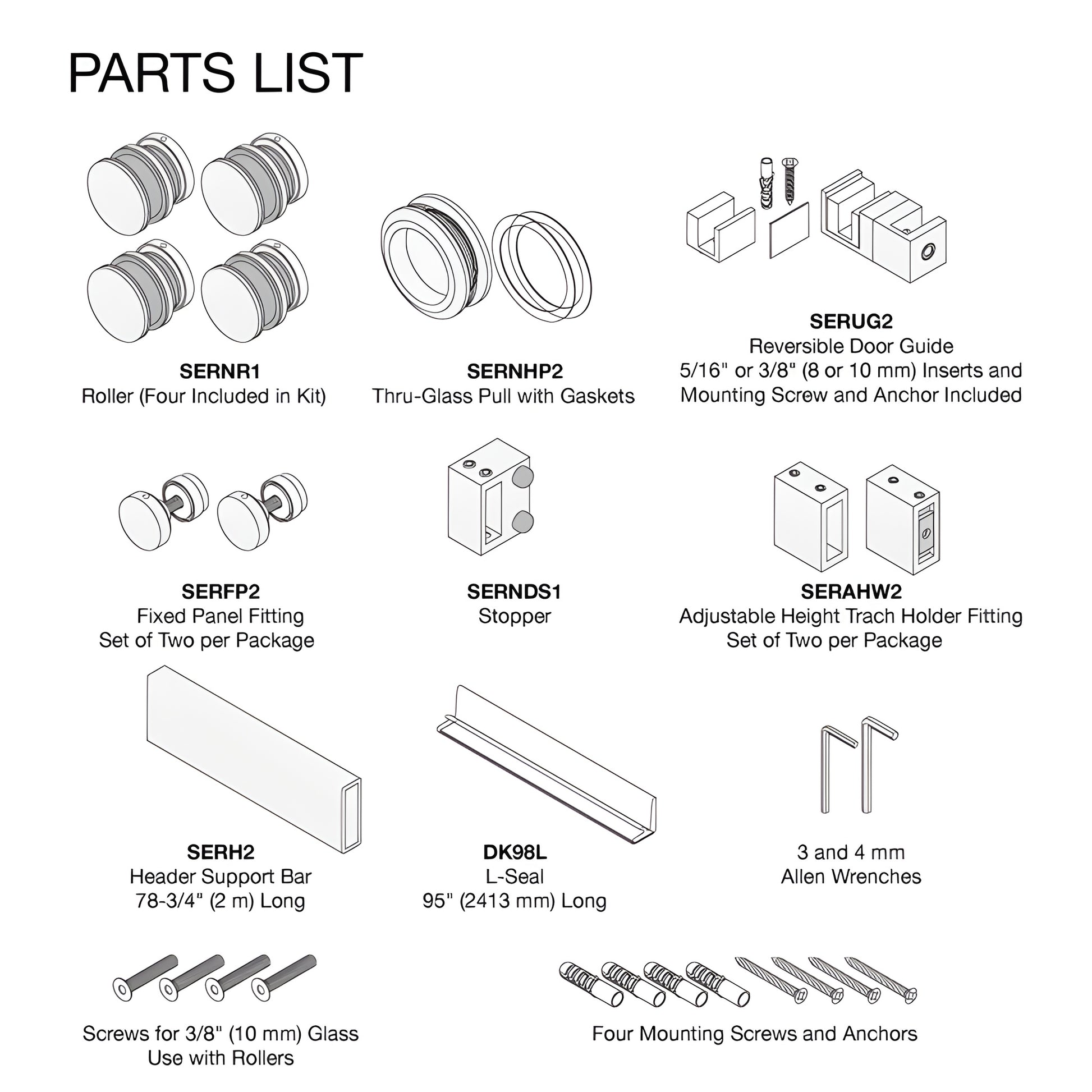

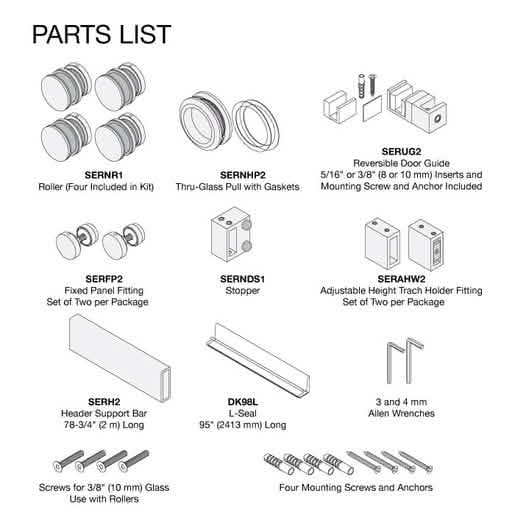

The Deluxe Kit Includes:
One - 78-3/4" (2 m) Length Header Bar
Four - Rollers
One - Stopper

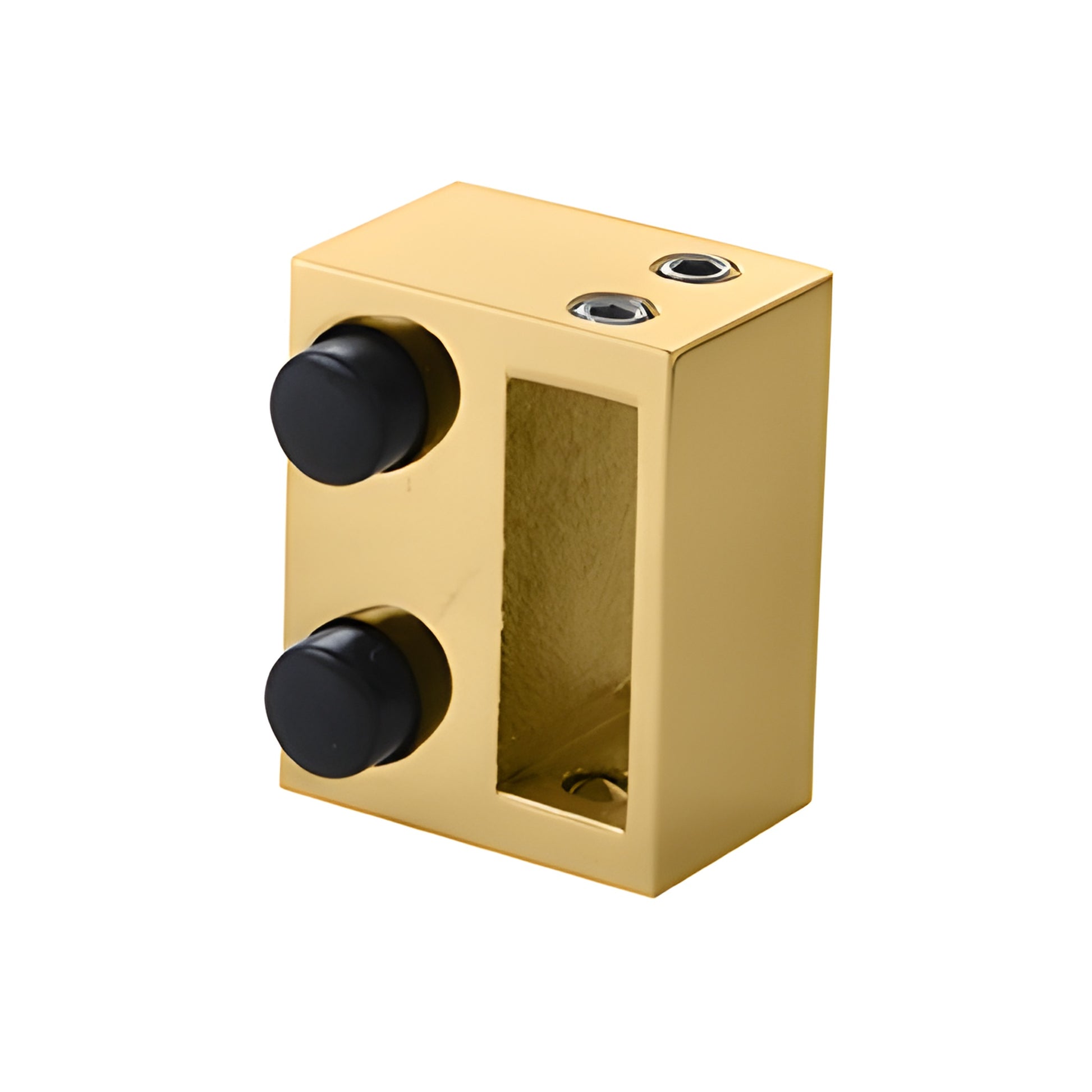

Two - Track Holder Fittings for Wall
Two - Track Holder Fittings for Fixed Panel

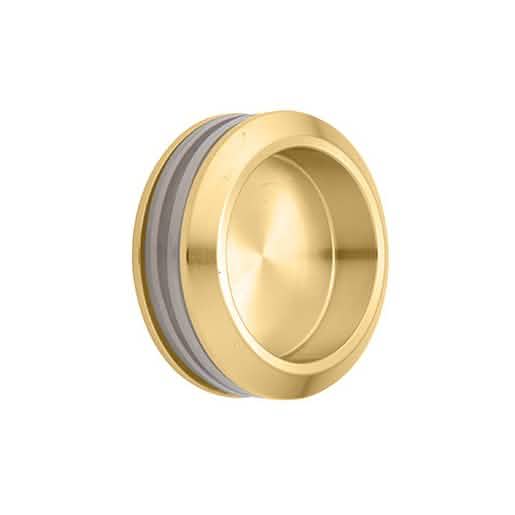

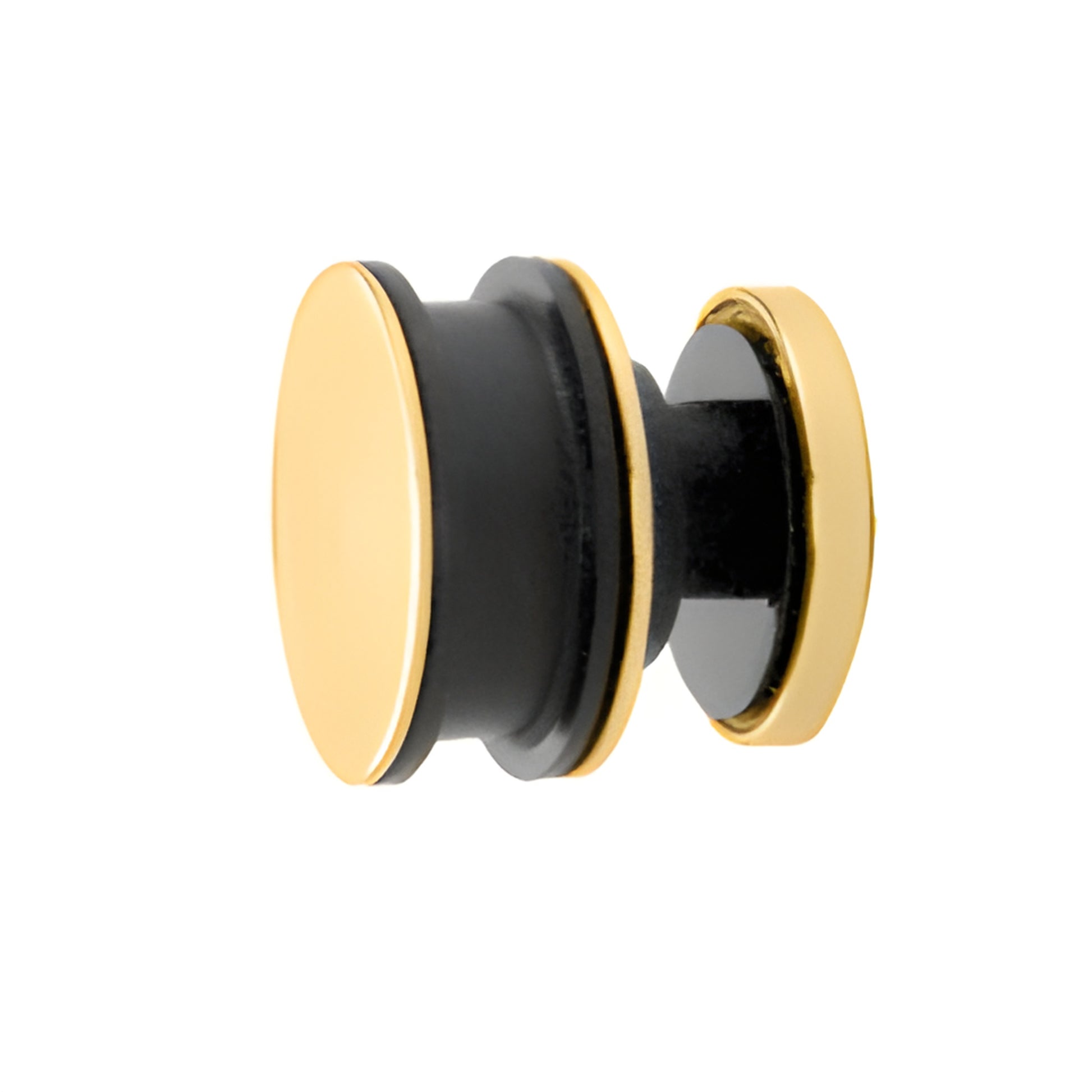

One - Thru-Glass Pull
One - Door Guide

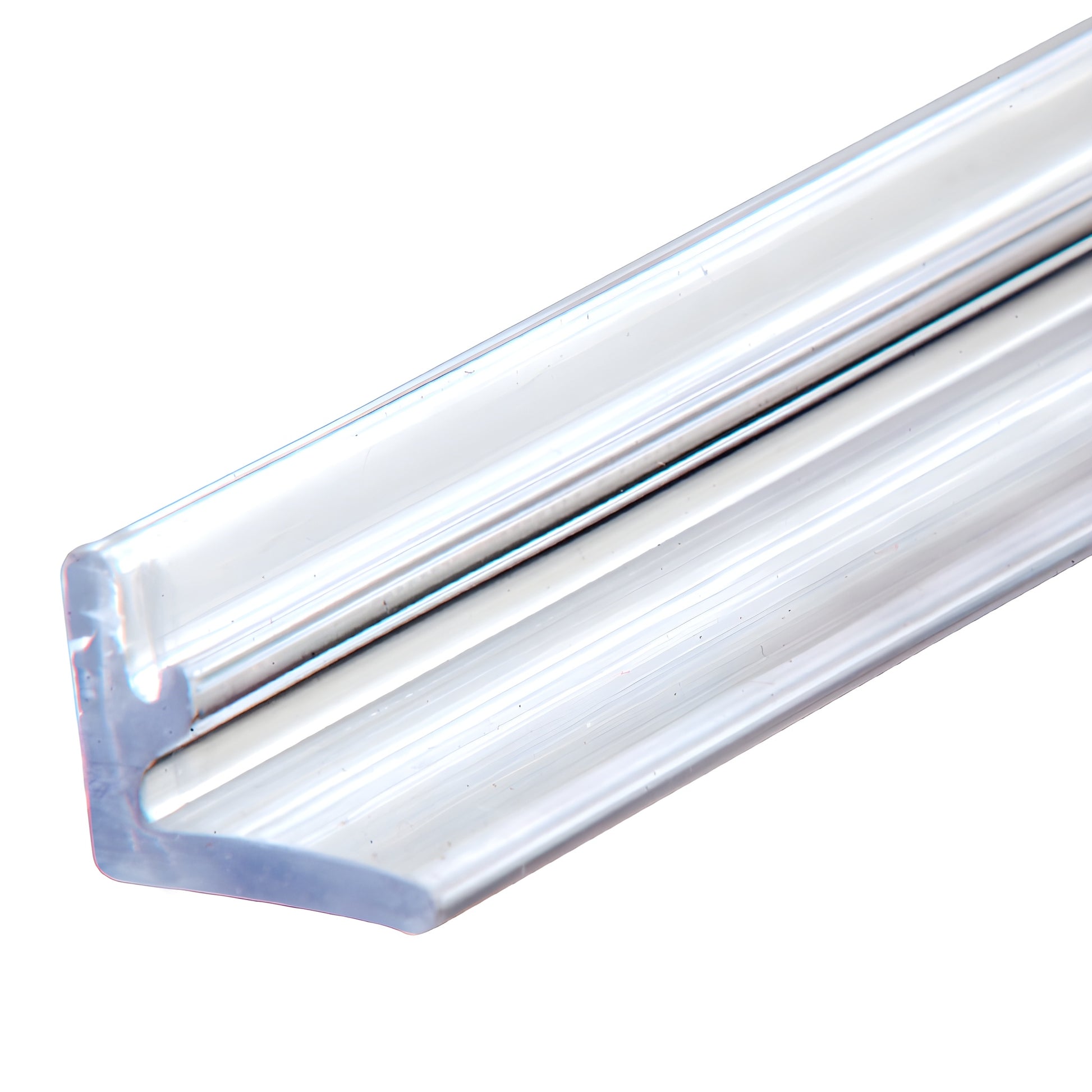

One - 85" (2.16 m) Clear L-Jamb
SPECIFICATIONS:
Glass Thickness Range: 5/16" to 3/8" (8 to 10 mm) Tempered Safety Glass (Not Included)
Material: Stainless Steel
Maximum Door Size: Do Not Exceed Either 30" (762 mm) Wide or 88 Pounds (40 kg)
Fabrication: Holes Required in Both Door and Fixed Panel
A 90 Degree Accessory Kit may be purchased separately for use with 90 degree return panels. Available in either polished stainless steel or brushed stainless steel, the Deluxe Serenity Series Sliding System will work with 3/8" or 5/16" (10 or 8 mm) thick tempered glass (not included). Do not exceed either 30" (762 mm) or 88 pounds (40 kg) for the door size. Glass fabrication is required in both the door and fixed panel.
Product Warning:
U-Channel or Glass Clamps for Fixed Panel Must Be Ordered Separately.
Brass Finish Advisory:Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
