CRL Polished Stainless Steel Slip-On Patch Lock for 3/8" Glass Doors
CRL Polished Stainless Steel Slip-On Patch Lock for 3/8" Glass Doors
Regular price
$476.87 CAD
Regular price
Sale price
$476.87 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1NT685CH
Shipping Weight: 1.24 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.24 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

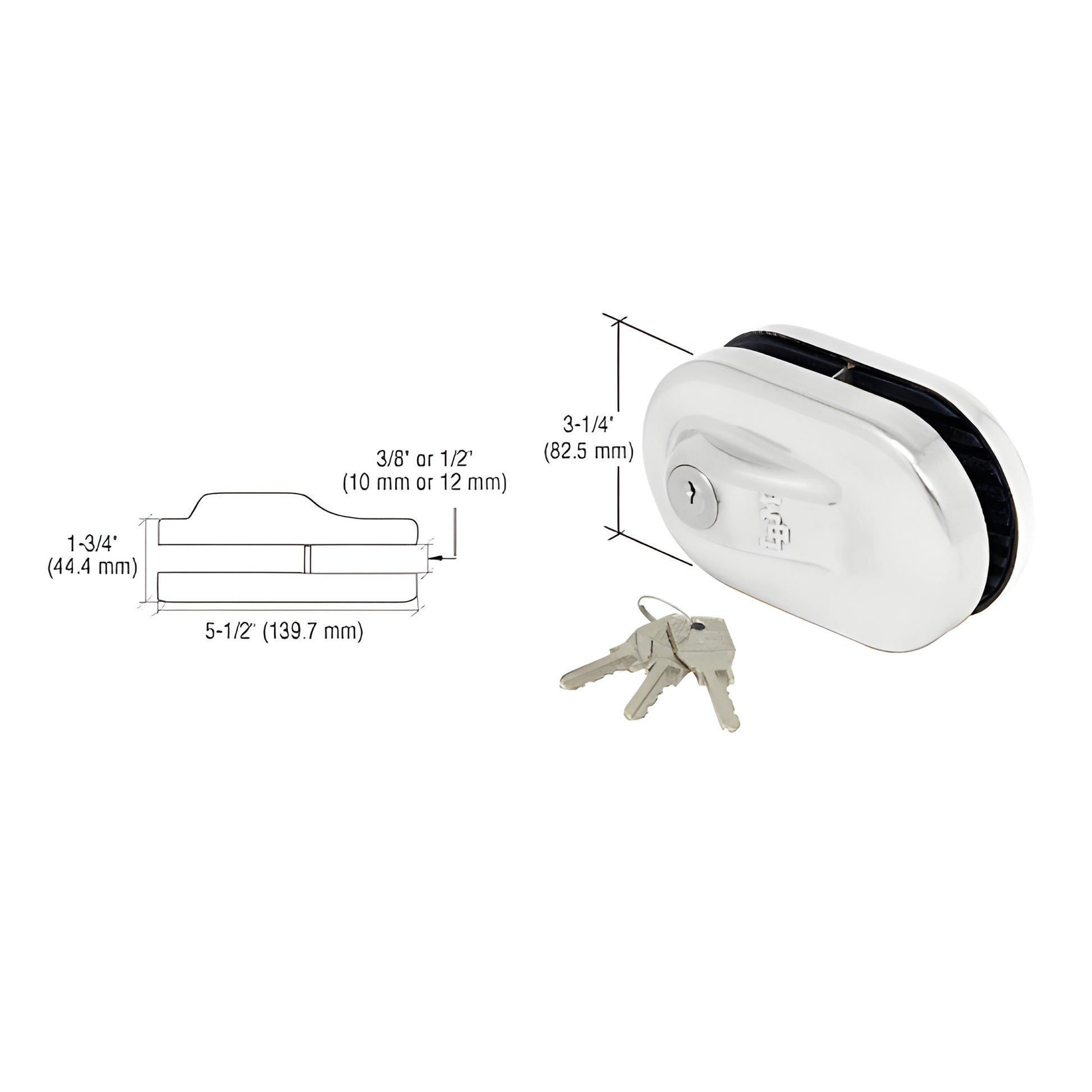

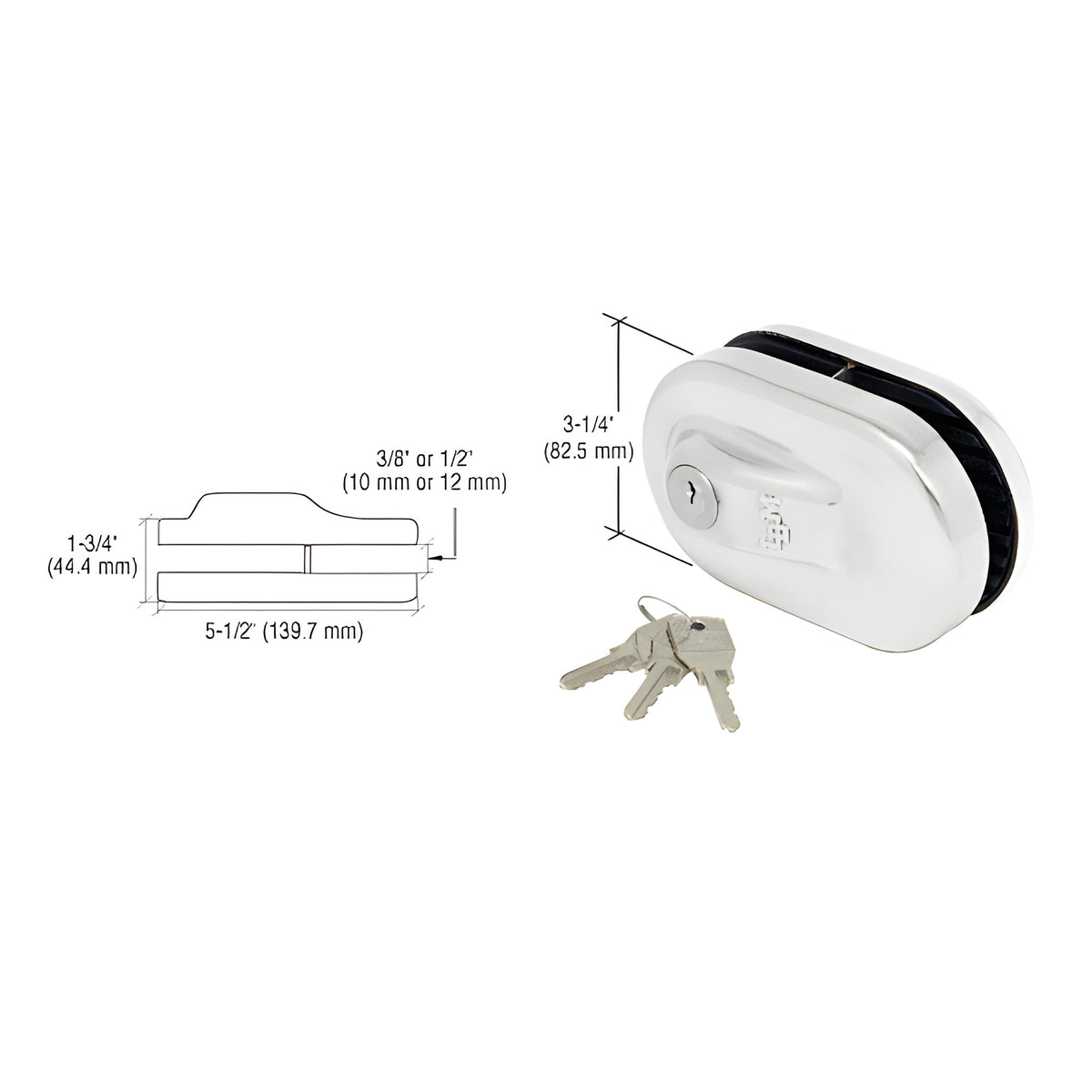

Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. (10 mm)
Height
3-1/4 in. (83 mm)
Material
304 Stainless Steel
Width
5-1/2 in. (140 mm)
Overview
- Easy slip-on installation and removal — no glass fabrication required
- Fits 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
- Lock cylinder keyed from one side; supplied with 3 keys (CRL Cat.No. SL1PKEY)
- Use as a primary glass patch lock or with a floor lock for added security
The CRL Glass Mounted Slip-On Patch Lock (SKU 1NT685CH) is a slip-on glass patch lock designed for frameless glass doors and storefronts. Its tool-free slip-on installation preserves the glass aesthetic and eliminates the need for drilling or permanent patch fabrication. Access is from one side only via a keyed cylinder; ideal for retail and commercial applications where clean, removable security is required.
INCLUDES:
Lock housing (Polished Brass or 304 Stainless Steel finish);
Three keys; Gaskets and installation instructions
SPECIFICATIONS:
For Use With: 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass doors
Recommended Gap Between Panels: 3/16" (5 mm)
Alloy: 304 Stainless Steel
Product Warning:
Recommended gap size between panels is 3/16" (5 mm).
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not impervious to staining or rust. Periodic maintenance is recommended to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for care instructions.
Looking for a removable glass patch lock for frameless doors? Order the CRL Glass Mounted Slip-On Patch Lock (SKU 1NT685CH) today or contact CRL Customer Service for compatibility and keying options.
