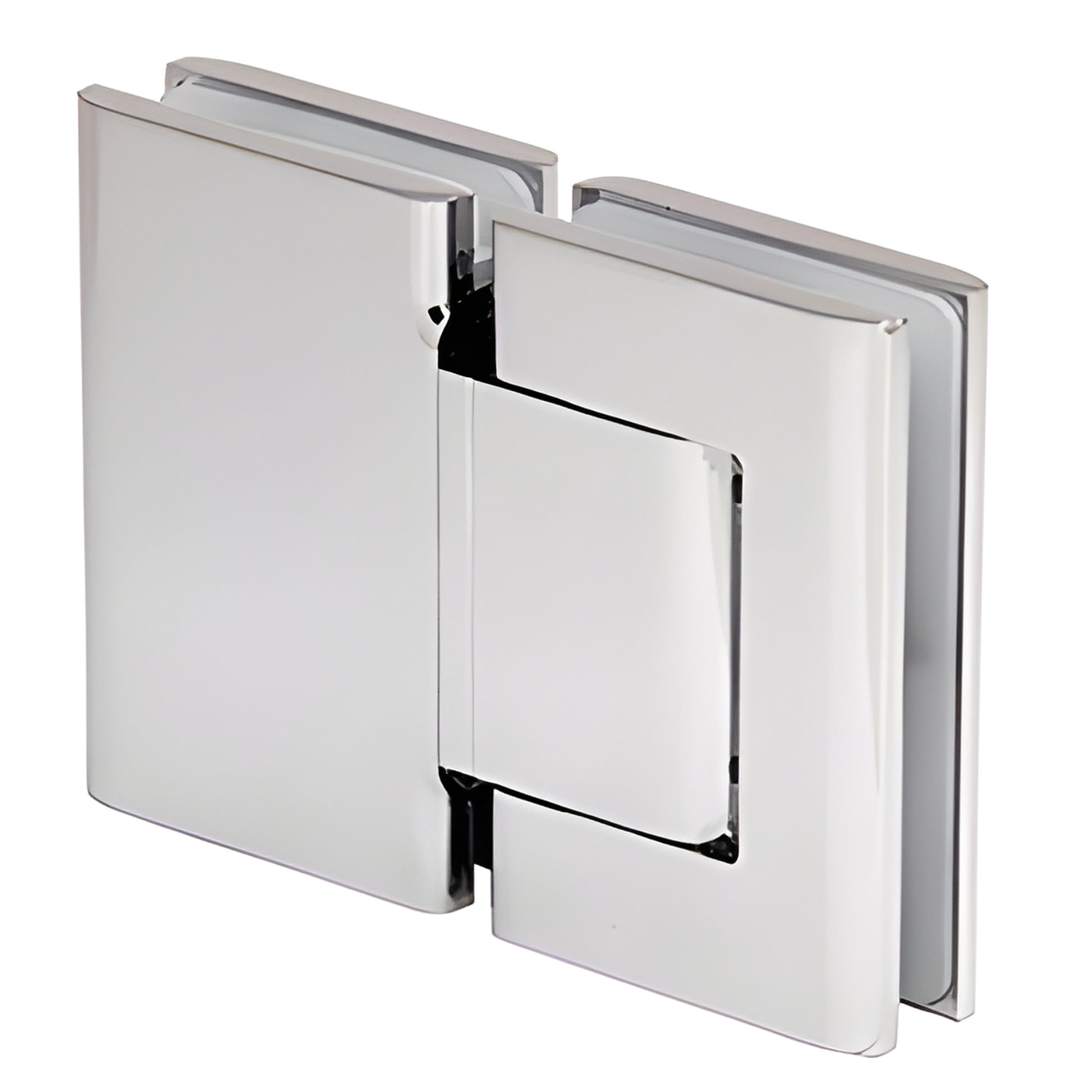

CRL Vernon Oil Dynamic 180° Polished SS Glass Door Hinge - Hold-Open

• For Self-Closing Glass Doors 5/16", 3/8" and 1/2" (8, 10 and 12 mm) thick
• Designed for interior glass doors and reliable in humid conditions and high temperatures
• Hold-open or no-hold-open models available
• Adjustable hydraulic closing speed for precise control
• A compact alternative to floor closers and patch fittings — enables all-glass installations without floor or overhead retrofitting

This CRL Oil Dynamic 180º Glass-to-Glass Hinge (SKU: H8015JCPS) swings in and out a full 90º with positive stops at 0º, +90º, and –90º. Closing speed is adjustable via a control valve. Use on interior doors (not for shower doors) up to 39" (1 m) wide; maximum capacity using two hinges is 176 lbs. (80 kg).

The Oil Dynamic Hinge blends automatic mechanical hinge behavior with hydraulic door closer performance to create a self-closing glass-to-glass hinge ideal for interior commercial and residential glass doors. Because it eliminates the need for a floor-mounted or overhead closer, it is well suited for retrofit projects and clean, frameless glass designs.

Properly mounted, two Oil Dynamic Hinges support 5/16", 3/8" or 1/2" (8, 10 or 12 mm) glass doors up to 39" (1 m) wide and 176 lbs. (80 kg). The hinge is ambidextrous and provides positive stops at 0º and 90º for flexible door positioning. Tested to over 1 million cycles for long-lasting service.

The hinge features an aluminum body and is available in distinct configurations for Wall Mount and Glass-to-Glass applications. It is not suitable for exterior or outdoor use.

SPECIFICATIONS:
SKU: H8015JCPS
Glass Thickness Range: 5/16", 3/8" and 1/2" (8, 10 and 12 mm)
Construction: Aluminum
Hinge Swings: 90º inwards and outwards (except H8060BT model, which swings one way)
Closing Type: Automatic closing from 0º to 80º with adjustable speed
Special Feature: Holds open at 90º (hold-open and no-hold-open models available; H8060BT exception)
Cut-Out Required
Includes: Snap-in molded gaskets for 5/16" to 9/16" (8 to 13.52 mm) glass; hex screws
Maximum Capacities Using Two Hinges:
