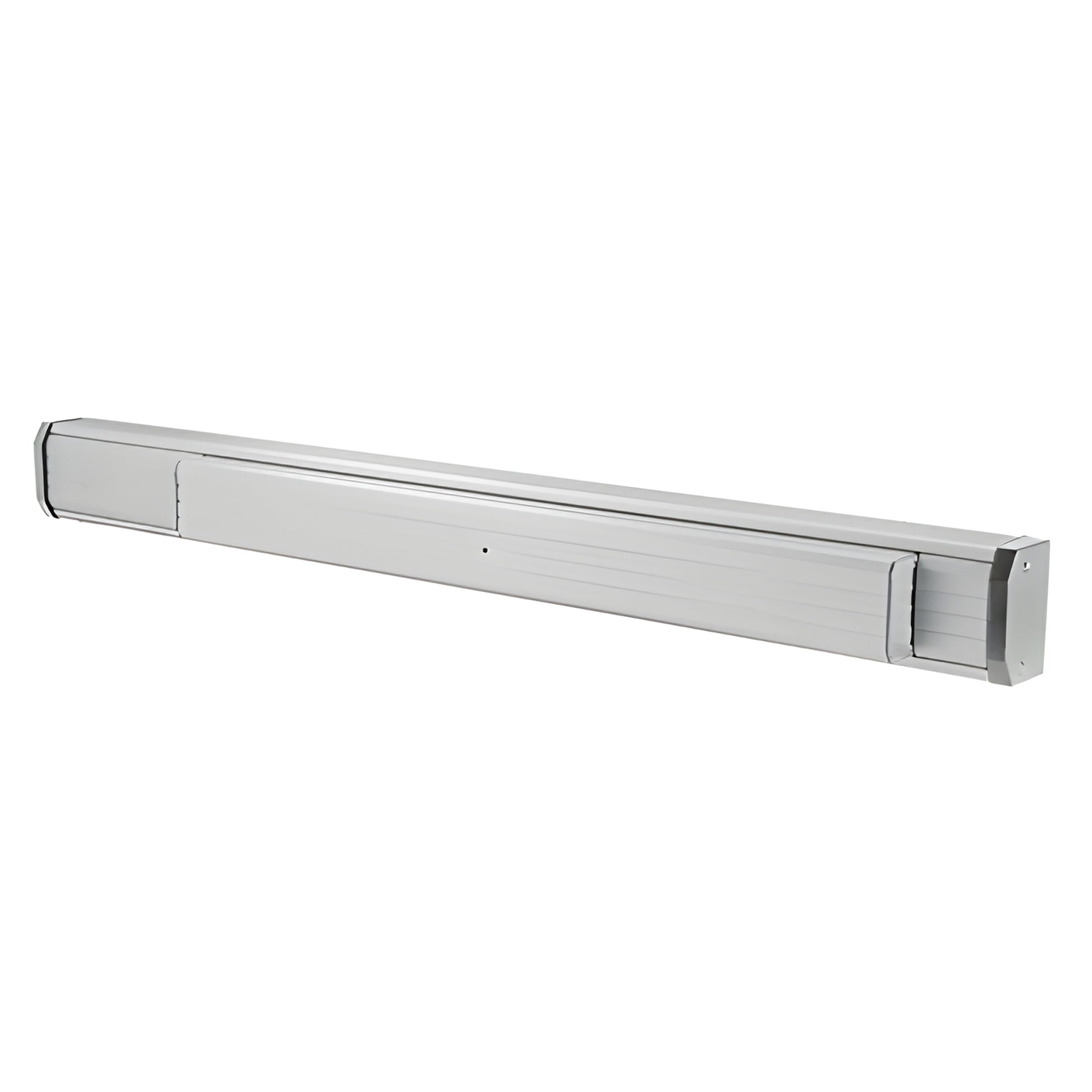

CRL Satin Aluminum 36" JacksonĀ® 1285 Push Pad Concealed Vertical Rod Right Hand Reverse Bevel Panic Exit Device
CRL Satin Aluminum 36" JacksonĀ® 1285 Push Pad Concealed Vertical Rod Right Hand Reverse Bevel Panic Exit Device
Regular price
$480.57 CAD
Regular price
Sale price
$480.57 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 311285R37628
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Brand | Jackson |
| Certification ANSI/BHMA | 156.3 |
| Door Height 84 in. | (2133.6 mm) |
| Door Thickness 1-3/4 in. | (44.5 mm) |
| Door Width 36 in. | (914.4 mm) |
| Finish/Color | Aluminum |
| Handing | Right Hand Reverse Bevel (RHR) |
| Includes | Mounting Hardware |
| Material | - End Cap Aluminum |
| Material | - Housing Aluminum |
| Material | - Latch & Strike Sintered Steel |
| Material | - Mechanical Components Stainless and Hardened Plated Steel |
| Minimum Stile Width 1-3/4 in. | (44.5 mm) |
| Model | 1285 |
| Panic Bar Base Height 3-3/16 in. | (81 mm) |
| Panic Bar Projection 2-7/8 in. | (73 mm) |
| Panic Bar Width Net 34-1/2 in. | (876.3 mm) |
| Panic | Dogging Standard Hex Key Dogging |
| Panic | Type Concealed Vertical Rods |
| Push Pad Width 24 in. | (609.6 mm) |
| Recommended | Door Type Aluminum Narrow, Medium, Wide Stile, Hollow Metal |
| Replacement Parts | 302861, 30821J628 |
| Series | 1200 |
| Tall Door Extention Rods | 301347 & 301348 |
| U | L Listed Yes |
Overview
The CRL JacksonĀ® Exit Device combines the trusted durability of the 10 Series Crossbar with a modern push-pad design, making it ideal for 1-3/4" (44 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors.
This versatile exit device is available in Rim, Concealed, and Surface Vertical Rod versions, featuring a "Soft-Touch" smooth action push-pad and a standard hex key dogging system.
Easily customizable, the device's base can be cut to size, and vertical rods can accommodate doors up to 84" (2.13 m) tall, with extensions available for taller doors.
Made from high-quality materials like extruded aluminum and plated steel, the exit device ensures reliability and style, with concealed mounting hardware for a sleek finish.
For more details or to order, please contact CRL Customer Service.
This versatile exit device is available in Rim, Concealed, and Surface Vertical Rod versions, featuring a "Soft-Touch" smooth action push-pad and a standard hex key dogging system.
Easily customizable, the device's base can be cut to size, and vertical rods can accommodate doors up to 84" (2.13 m) tall, with extensions available for taller doors.
Made from high-quality materials like extruded aluminum and plated steel, the exit device ensures reliability and style, with concealed mounting hardware for a sleek finish.
For more details or to order, please contact CRL Customer Service.
Specifications
Installation Instructions
CAD Drawings - pdf
