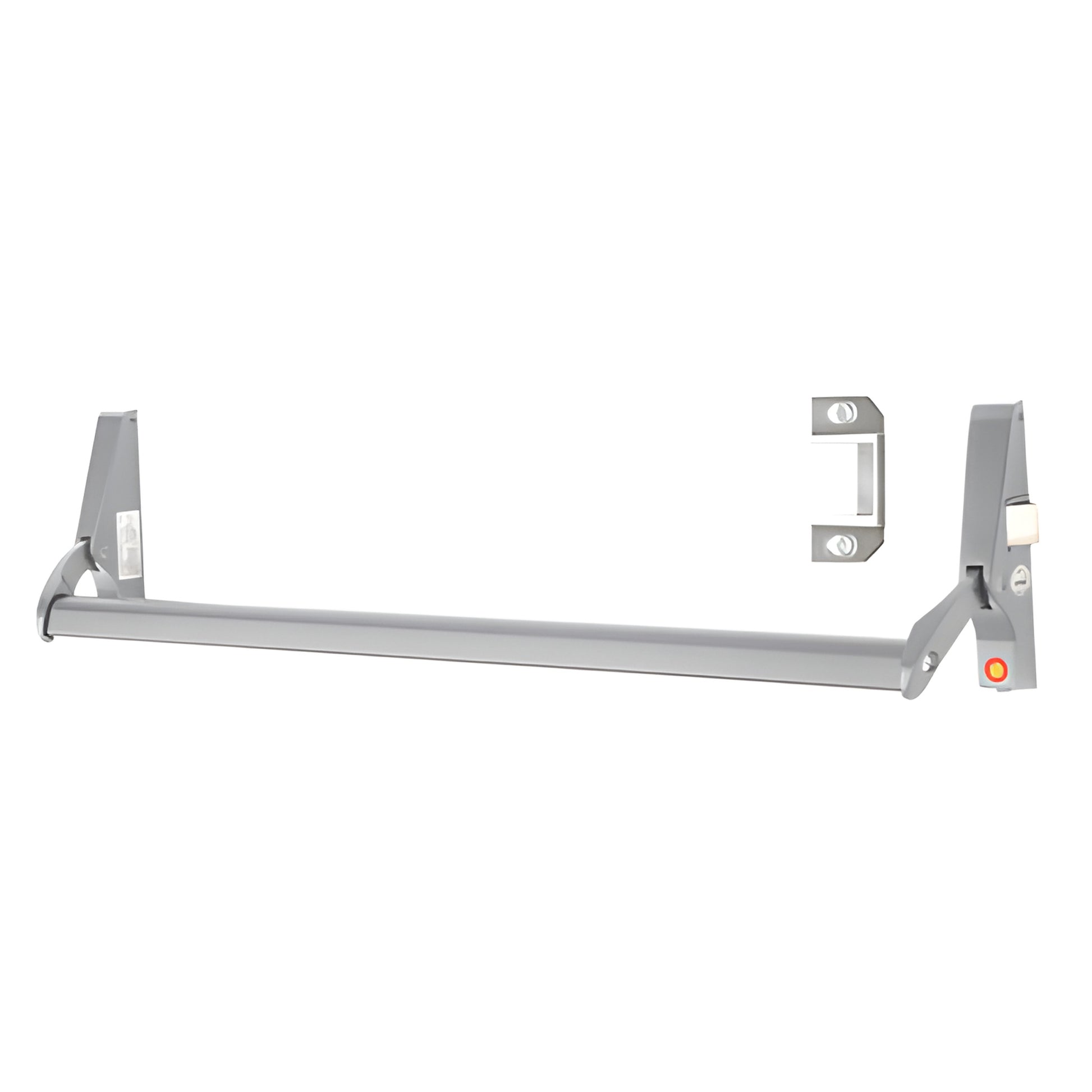

CRL Satin Aluminum 48" JacksonĀ® 10 Series Right Hand Reverse Bevel Crossbar Rim Panic Exit Device
CRL Satin Aluminum 48" JacksonĀ® 10 Series Right Hand Reverse Bevel Crossbar Rim Panic Exit Device
Regular price
$332.10 CAD
Regular price
Sale price
$332.10 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 311095RC4628
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Brand | Jackson |
| Certification ANSI/BHMA | 156.3 |
| Door Thickness 1-3/4 in. | (44.5 mm) |
| Door Width 48 in. | (1219.2 mm) |
| Finish/Color | Aluminum |
| Handing | Right Hand Reverse Bevel (RHR) |
| Includes | Mounting Hardware |
| Material | - Housing Aluminum |
| Material | - Latch & Strike Sintered Steel |
| Material | - Mechanical Components Stainless and Hardened Plated Steel |
| Minimum Stile Width 1-3/4 in. | (44.5 mm) |
| Model | 1095 |
| Panic Bar Projection 4-5/8 in. | (117.5 mm) |
| Panic Bar Width Net 48 in. | (1219.2 mm) |
| Panic | Dogging Screw Driver |
| Panic Head Base Width 1-1/4 in. | (31.8 mm) |
| Panic Head Height 7-5/16 in. | (185.7 mm) |
| Panic | Type Rim |
| Recommended | Door Type Narrow, Medium, Wide Stile, Aluminum, Wood, Hollow Metal |
| Replacement Parts | 30115, 301117628, 301409, DL911SCKDA, DL911SCKAA |
| Series | 10 |
| U | L Listed Yes |
Overview
CRL JacksonĀ® Exit Devices set the standard in aluminum storefront hardware, designed for durability and aesthetic appeal.
Ideal for 1-3/4" (44 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors, these devices feature a choice of crossbar or engraved "Push" paddle operation.
With concealed fastening for enhanced security, each device is crafted from high-quality materials, ensuring whisper-quiet operation.
Key specifications include a contoured, field-sizeable 48" crossbar and dual dogging features, while the materials used are high tensile strength aluminum, stainless steel, and hardened plated steel.
Note: Wood door mounting requires the Cat.
No.
30894 Wood Door Mounting Kit.
For precise shipping weights, please contact CRL Customer Service.
Ideal for 1-3/4" (44 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors, these devices feature a choice of crossbar or engraved "Push" paddle operation.
With concealed fastening for enhanced security, each device is crafted from high-quality materials, ensuring whisper-quiet operation.
Key specifications include a contoured, field-sizeable 48" crossbar and dual dogging features, while the materials used are high tensile strength aluminum, stainless steel, and hardened plated steel.
Note: Wood door mounting requires the Cat.
No.
30894 Wood Door Mounting Kit.
For precise shipping weights, please contact CRL Customer Service.
Specifications
