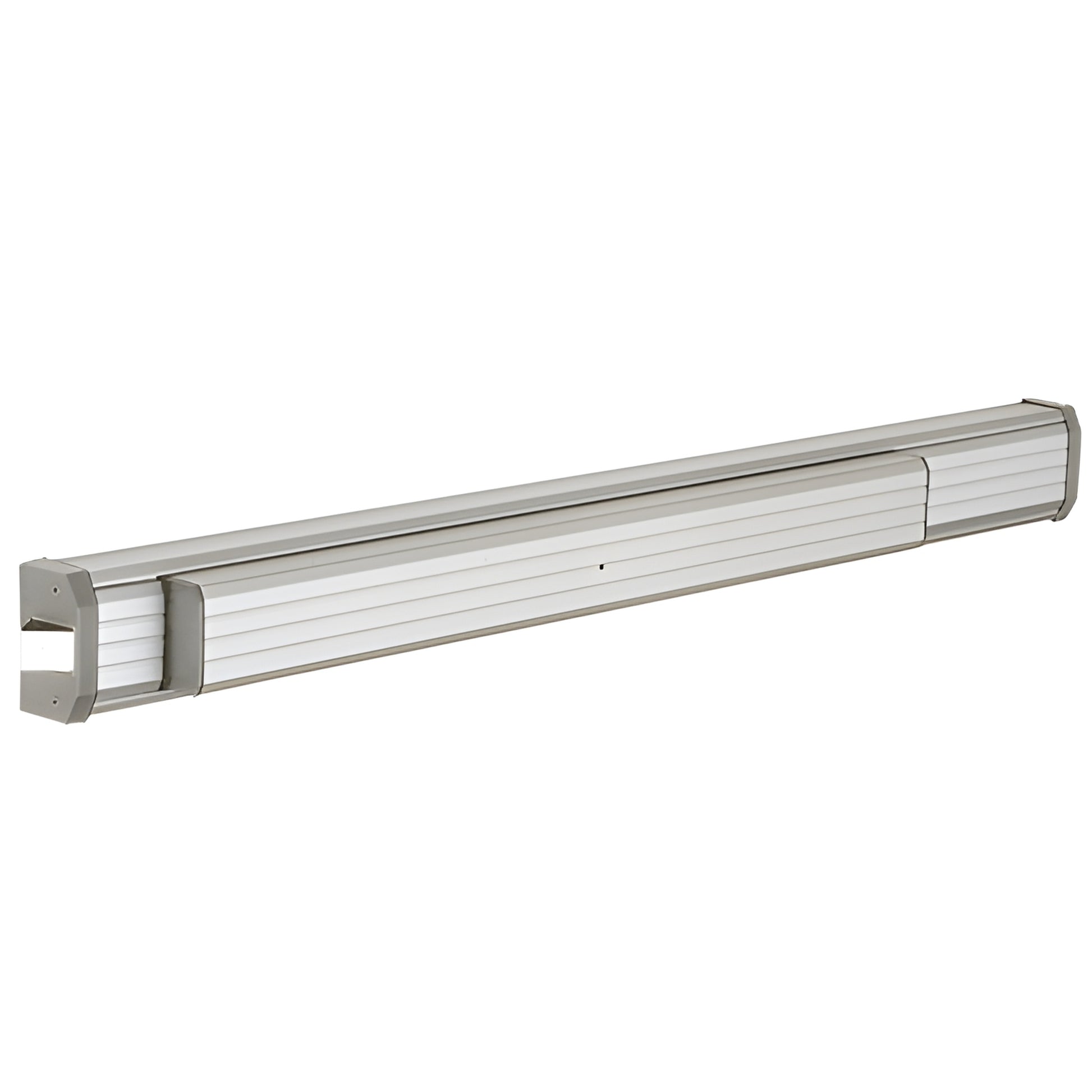

CRL Satin Aluminum 48" JacksonĀ® 1295 Push Pad Non-Handed Rim Panic Exit Device
CRL Satin Aluminum 48" JacksonĀ® 1295 Push Pad Non-Handed Rim Panic Exit Device
Regular price
$542.01 CAD
Regular price
Sale price
$542.01 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 311295C4628
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Brand | Jackson |
| Certification ANSI/BHMA | 156.3 |
| Door Thickness 1-3/4 in. | (44.5 mm) |
| Door Width 48 in. | (1219.2 mm) |
| Finish/Color | Aluminum |
| Handing | Non Handed |
| Includes | Mounting Hardware |
| Material | - End Cap Aluminum |
| Material | - Housing Aluminum |
| Material | - Latch & Strike Sintered Steel |
| Material | - Mechanical Components Stainless and Hardened Plated Steel |
| Minimum Stile Width 1-3/4 in. | (44.5 mm) |
| Model | 1295 |
| Panic Bar Base Height 3-3/16 in. | (81 mm) |
| Panic Bar Projection 2-7/8 in. | (73 mm) |
| Panic Bar Width Net 46-1/2 in. | (1181.1 mm) |
| Panic | Dogging Standard Hex Key Dogging |
| Panic | Type Rim |
| Push Pad Width 24 in. | (609.6 mm) |
| Recommended | Door Type Aluminum, Wood, Hollow Metal |
| Replacement Parts DL | 911SCKAA |
| Series | 1200 |
| U | L Listed Yes |
Overview
The CRL JacksonĀ® Exit Device is a top choice for those seeking a reliable and modern exit solution for 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors.
This versatile device, available in Rim, Concealed, and Surface Vertical Rod versions, features a sleek "Soft-Touch" push-pad that requires minimal pressure for quick release.
Designed with adaptability in mind, it can be cut to fit doors up to 84" (2.13 m) tall, with extensions available for taller doors.
Enhanced with a standard hex key dogging system and optional keyed cylinder dogging, this exit device offers concealed mounting hardware and a minimal projection of 2-7/8" (73 mm) from the door surface, ensuring a seamless and stylish installation.
This versatile device, available in Rim, Concealed, and Surface Vertical Rod versions, features a sleek "Soft-Touch" push-pad that requires minimal pressure for quick release.
Designed with adaptability in mind, it can be cut to fit doors up to 84" (2.13 m) tall, with extensions available for taller doors.
Enhanced with a standard hex key dogging system and optional keyed cylinder dogging, this exit device offers concealed mounting hardware and a minimal projection of 2-7/8" (73 mm) from the door surface, ensuring a seamless and stylish installation.
