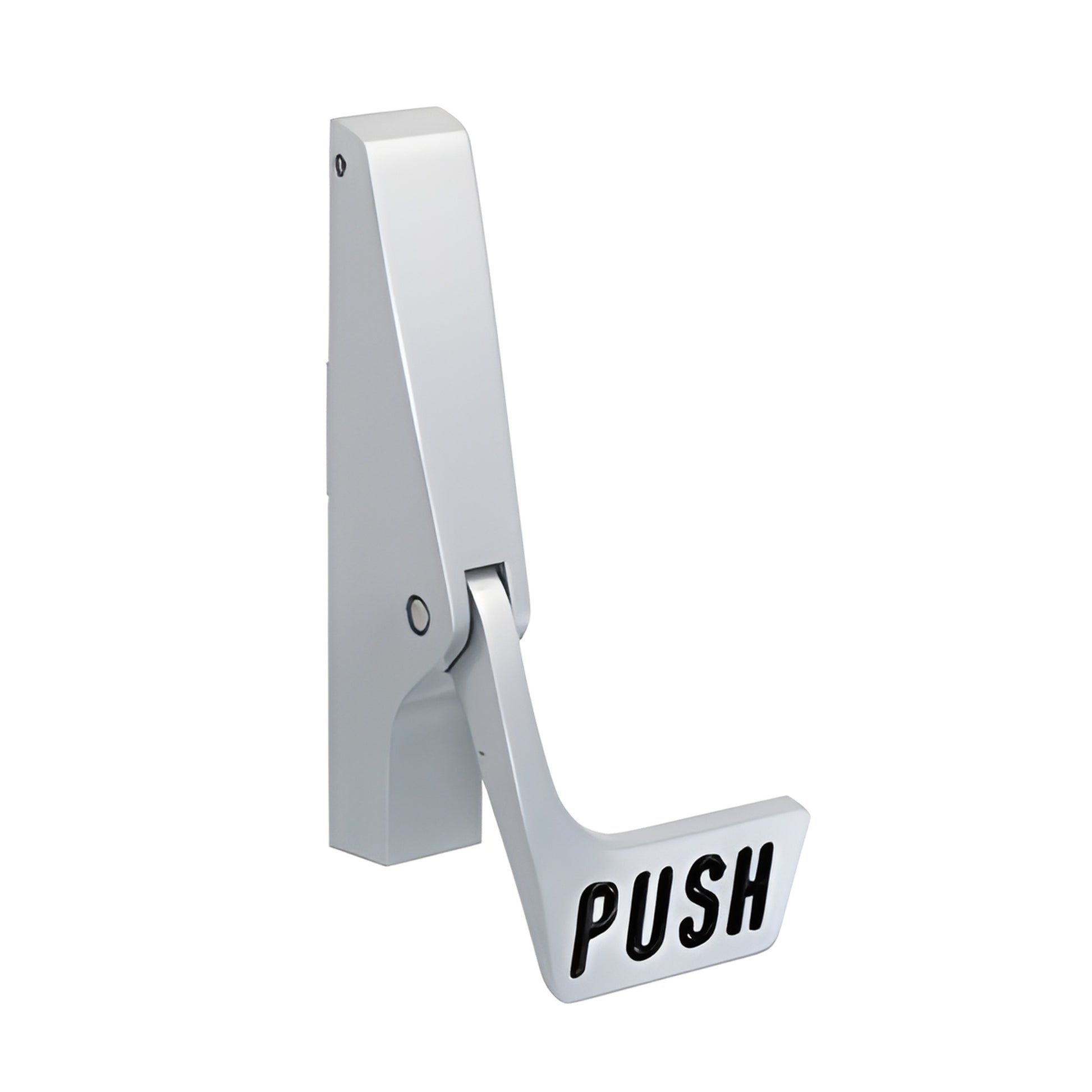

CRL Satin Aluminum Jackson® 10 Series Left-Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device
CRL Satin Aluminum Jackson® 10 Series Left-Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device
Regular price
$287.29 CAD
Regular price
Sale price
$287.29 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 311085PL7628
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Brand | Jackson |
| Certification ANSI/BHMA | 156.3 |
| Door Thickness | 1-3/4 |
| Finish/Color | Satin Aluminum |
| Handing | Left Hand Reverse Bevel (LHR) |
| Includes | Mounting Hardware |
| Material | - Housing Aluminum |
| Material | - Latch & Strike Sintered Steel |
| Material | - Mechanical Components Stainless and Hardened Plated Steel |
| Minimum Stile Width | 1-3/4 |
| Model | 1085 Paddle |
| Paddle Push Width | 3-3/8 |
| Panic Bar Projection | 4-5/8 |
| Panic | Dogging Screw Driver |
| Panic Head Base Width | 1-1/4 Inches |
| Panic Head Height | 7-5/16 |
| Panic Type Rim | (Paddle) |
| Recommended | Door Type Narrow, Medium, Wide Stile Aluminum, Wood, Hollow Metal Doors |
| Replacement Parts | 30115, 301117313, 301409, DL911SCKDDU, DL911SCKADU |
| Series | 10 |
| U | L Listed Yes |
Overview
The CRL Jackson® Exit Devices are the industry standard for aluminum storefront hardware, offering reliable and smooth operation for years.
Ideal for 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors, these devices come in both Rim and Concealed Vertical Rod versions.
They are designed for doors up to 84" (2.13 m) tall, with extensions available for taller doors, and feature concealed fastening for enhanced security.
The 10 Series Paddle Device offers a maintenance-free solution, while the 1085 Concealed Vertical Rod Device requires a mortise cylinder and mounting pad for keyed entry.
Crafted from high tensile strength aluminum and hardened plated steel, these exit devices are built to last.
For detailed specifications and to ensure accurate shipping costs, please contact CRL Customer Service before placing your order.
Ideal for 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors, these devices come in both Rim and Concealed Vertical Rod versions.
They are designed for doors up to 84" (2.13 m) tall, with extensions available for taller doors, and feature concealed fastening for enhanced security.
The 10 Series Paddle Device offers a maintenance-free solution, while the 1085 Concealed Vertical Rod Device requires a mortise cylinder and mounting pad for keyed entry.
Crafted from high tensile strength aluminum and hardened plated steel, these exit devices are built to last.
