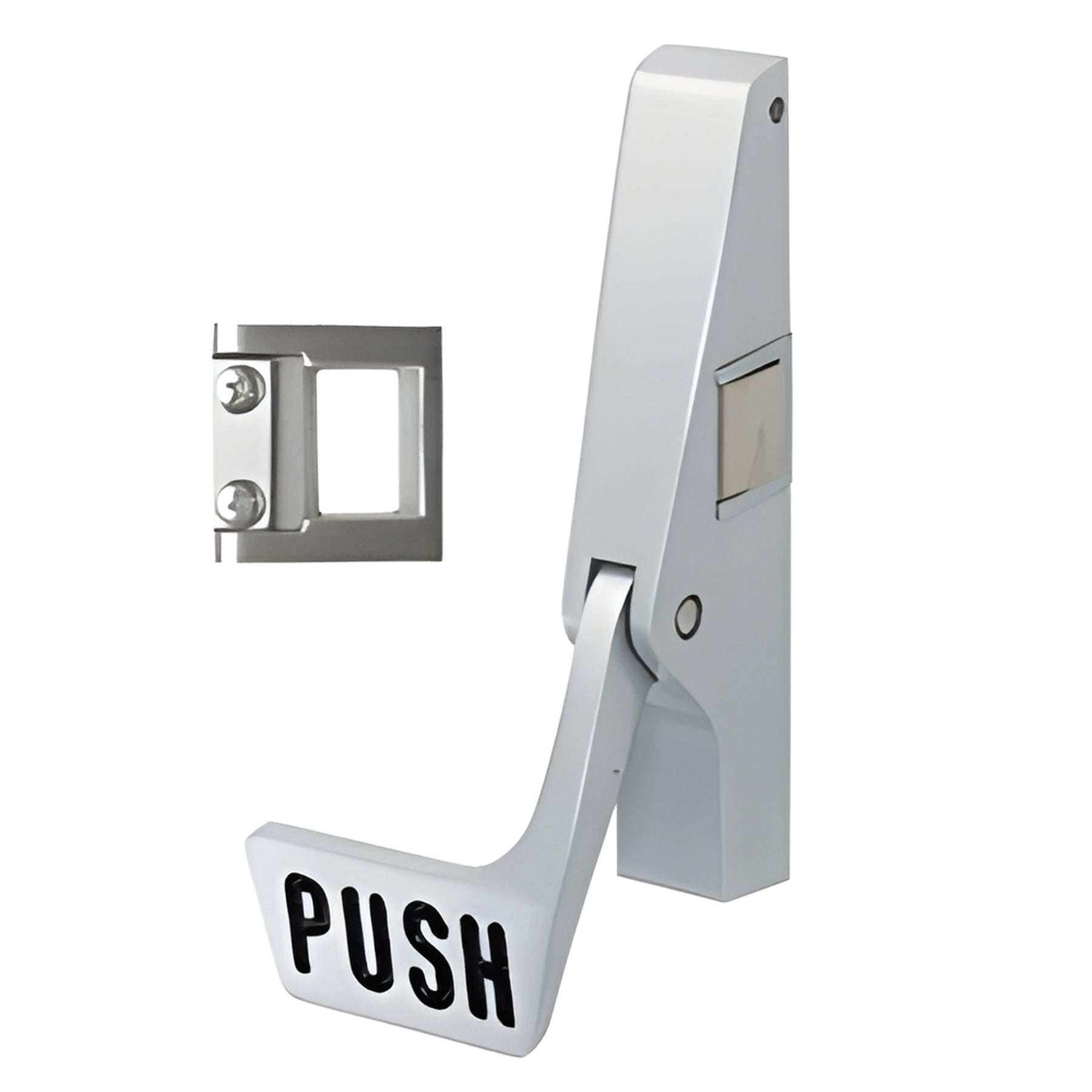

CRL Satin Aluminum Jackson® 10 Series with "S" Strike Right Hand Reverse Bevel Paddle Rim Panic Exit Device

Overview

SKU311095PRS628
Sold as1 Each
BrandJackson
CertificationANSI/BHMA 156.3
Door Thickness1-3/4 in. (44.5 mm)
Finish/Color:Aluminum
HandingRight Hand Reverse Bevel (RHR)
IncludesMounting Hardware
Material - HousingAluminum
Material - Latch & StrikeSintered Steel
Material - Mechanical ComponentsStainless and Hardened Plated Steel
Minimum Stile Width1-3/4 in. (44.5 mm)
Model1095 Paddle
Paddle Push Width3-3/8 in. (85.7 mm)
Panic Bar Projection4-5/8 in. (117.5 mm)
Panic DoggingScrew Driver
Panic Head Base Width1-1/4 in. (31.8 mm)
Panic Head Height7-5/16 in. (185.7 mm)
Panic TypeRim (Paddle)
Recommended Door TypeNarrow, Medium, Wide Stile, Aluminum, Wood, Hollow Metal
Replacement Parts30115, 301117628, 301409, DL911SCKDA, DL911SCKAA
Series10
UL ListedYes

Description

Product Details

  • Designed for Use with 1-3/4" (44.5 mm) Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors
  • S Strike for Additional Security
  • Handed, Non-Reversible

CRL Jackson® Exit Devices are universally recognized as the standard for aluminum storefront hardware. This paddle device is designed with simplicity in mind, yet it will provide many years of smooth, reliable operation. Available in both a Rim and Concealed Vertical Rod version this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The 10 Series Exit Device is the perfect solution when considering a reliable maintenance free means to satisfy life safety requirements.

Specifications
