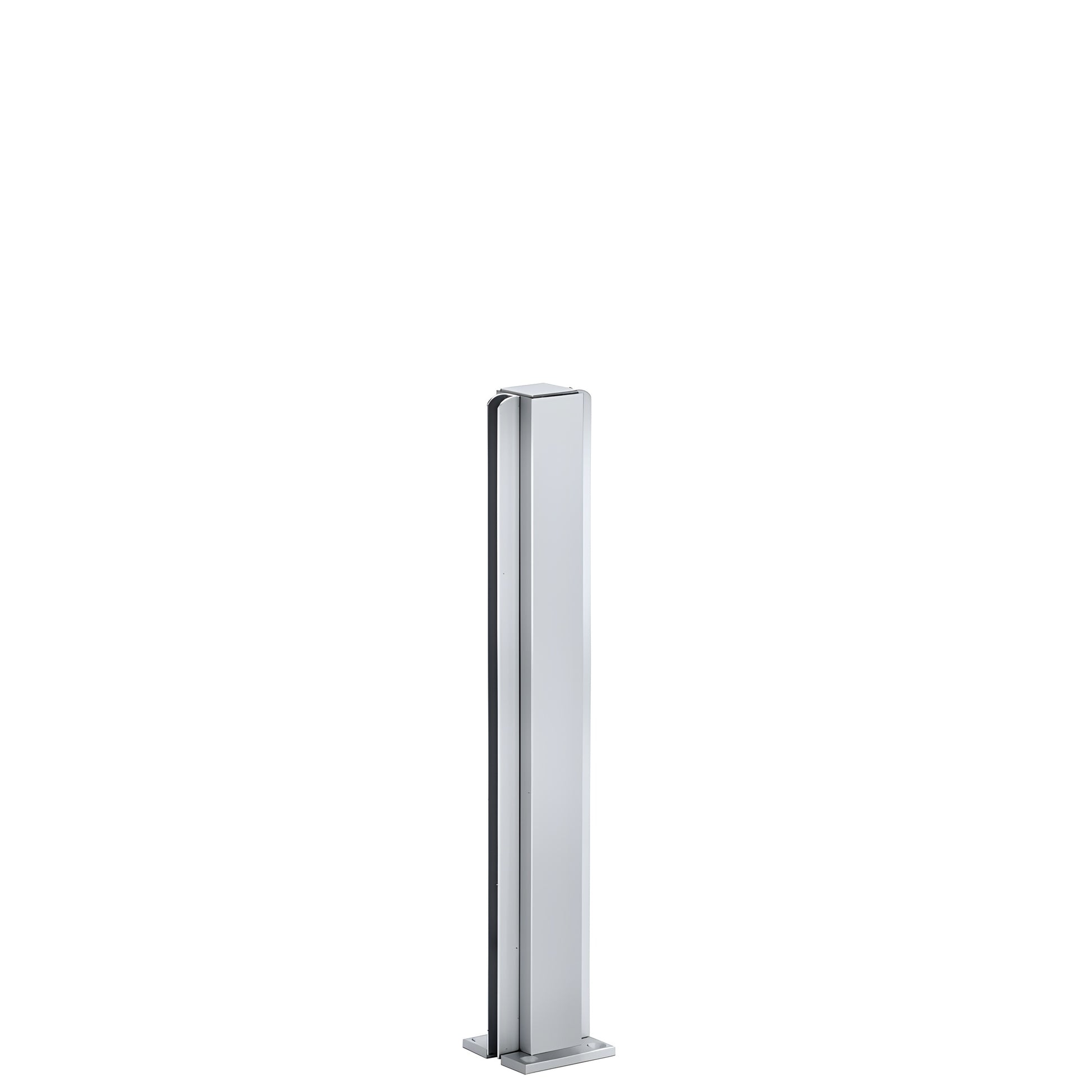

CRL 14" Satin Anodized Center Design Restroom Partition Post
CRL 14" Satin Anodized Center Design Restroom Partition Post
Regular price
$130.61 CAD
Regular price
Sale price
$130.61 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D990A14C
Shipping Weight: 15.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 15.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Type
Square Flat - Mechanical
Cap Type
Flat
Configuration
Center Post
Finish/Color
Satin Anodized
Glazed
No
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
8 (355.6 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
Overview
- SKU: D990A14C — Stock partition post sizes, RED-E to ship
- Standard heights: 12", 18", and 24" (305, 457, and 610 mm) — available in four finishes
- Five standard configurations: End, Center, Corner, 3-Way, and 4-Way
- Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
- Top cap and mounting base included; mounting hardware supplied
- Designed for monolithic tempered glass; glazing vinyl supplied for 1/4" (6 mm) and 3/16" (5 mm) glass
CRL Design Series partition posts (SKU D990A14C) are popular aluminum posts for glass partitions, used widely in banks, offices, and restaurants. Their slim-line profile, full-length glazing channels, and easy-to-install mounting base make them ideal for glass office dividers, reception screens, and interior storefront partitions. These ready-to-ship posts secure glass with Cat. No. 33SC Clear Silicone and are also offered in select finishes and custom 135° post options.

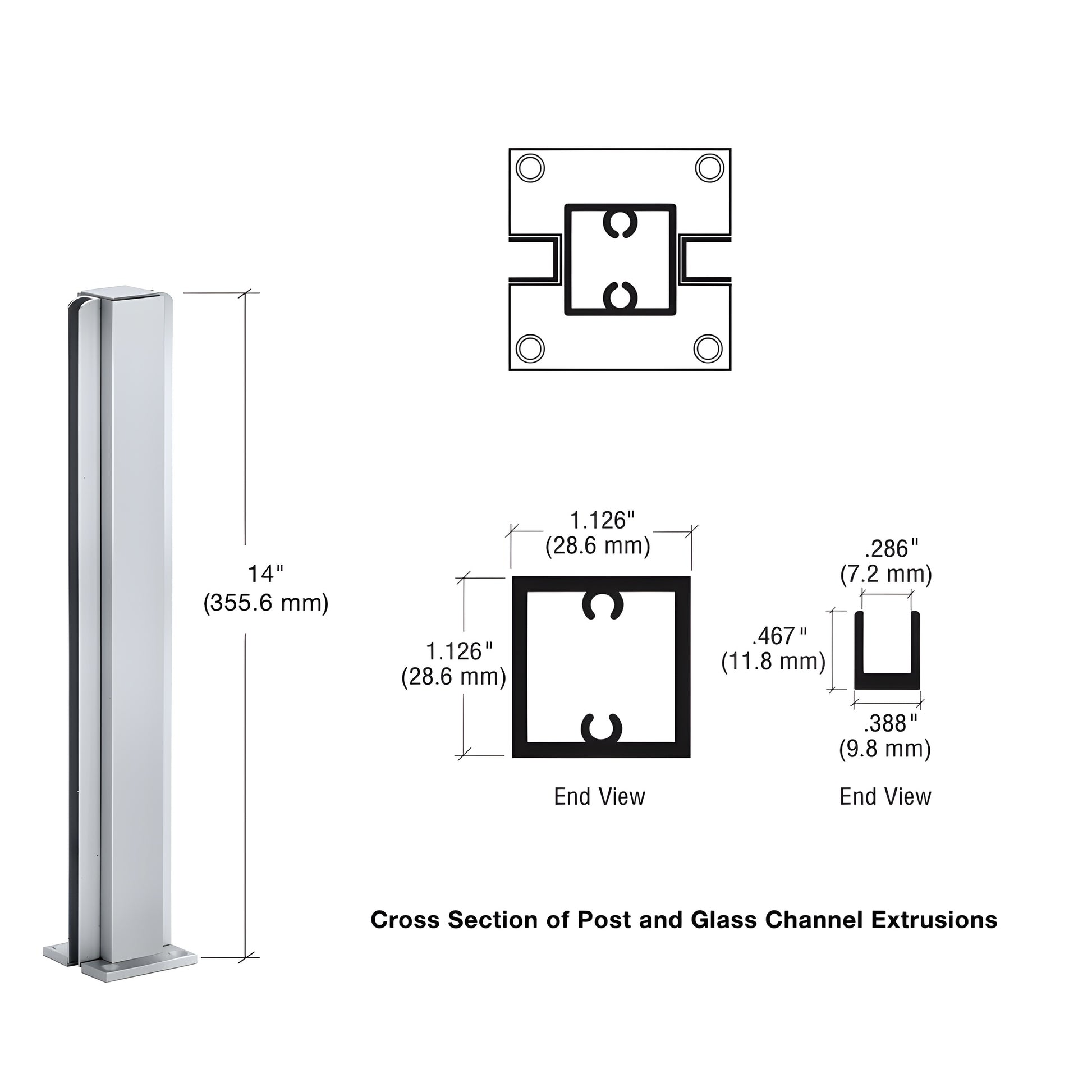

These fully assembled Design Series posts measure 1-1/8" (28.6 mm) square. Mounting base plates measure 2" (51 mm) square. Glazing channels rise 15/32" (12 mm) from the post surface. Each post includes one attached top cap, one attached mounting base, and four wood screws for mounting.
Want custom configurations? You can "Make Your Own" Design Series partition posts with CRL components — see instructions and requirements and the parts page.
Product Warning:
Secure glass into the glazing channels using Cat. No. 33SC Clear Silicone as directed.
Order SKU D990A14C now for fast shipping on aluminum partition posts for glass partitions.
