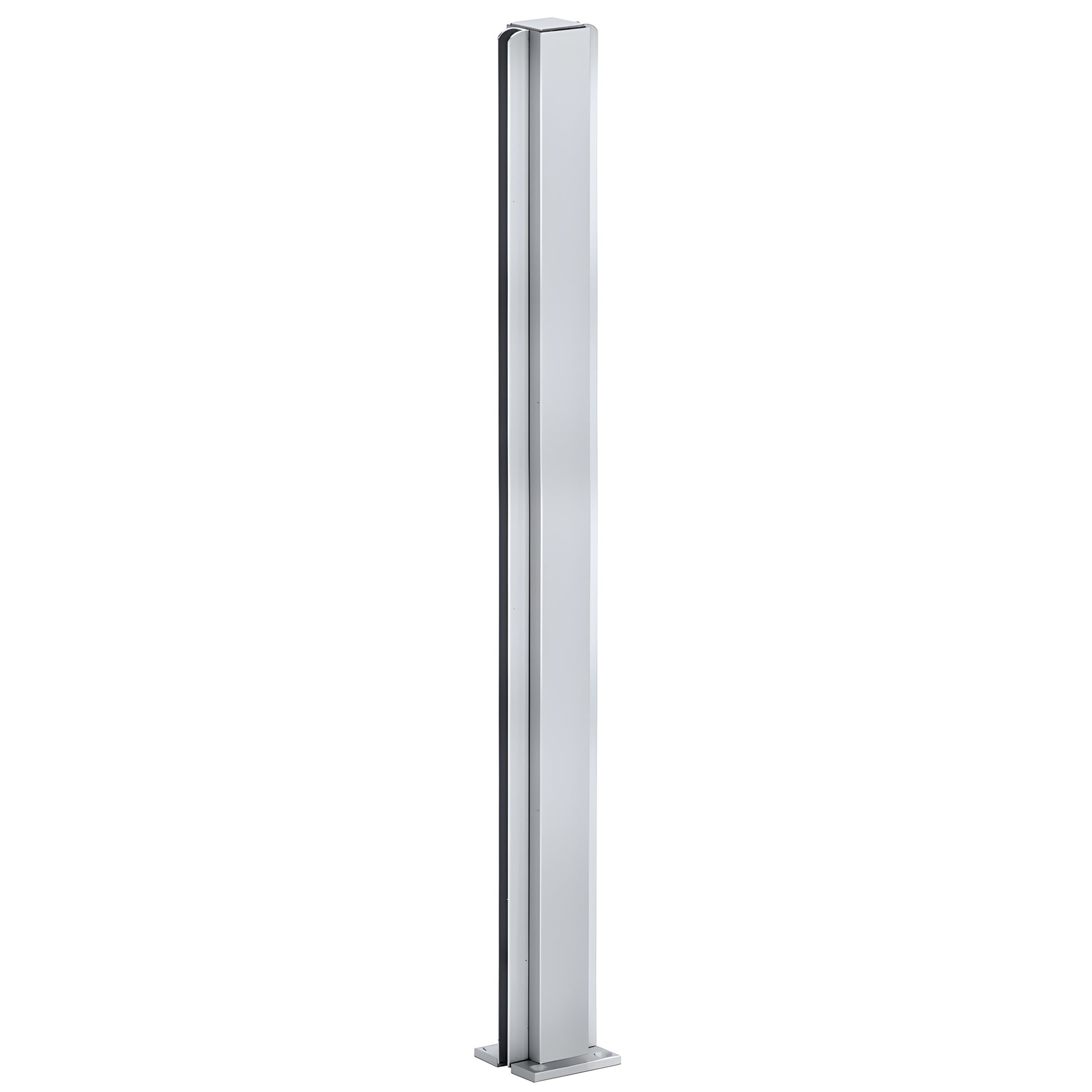

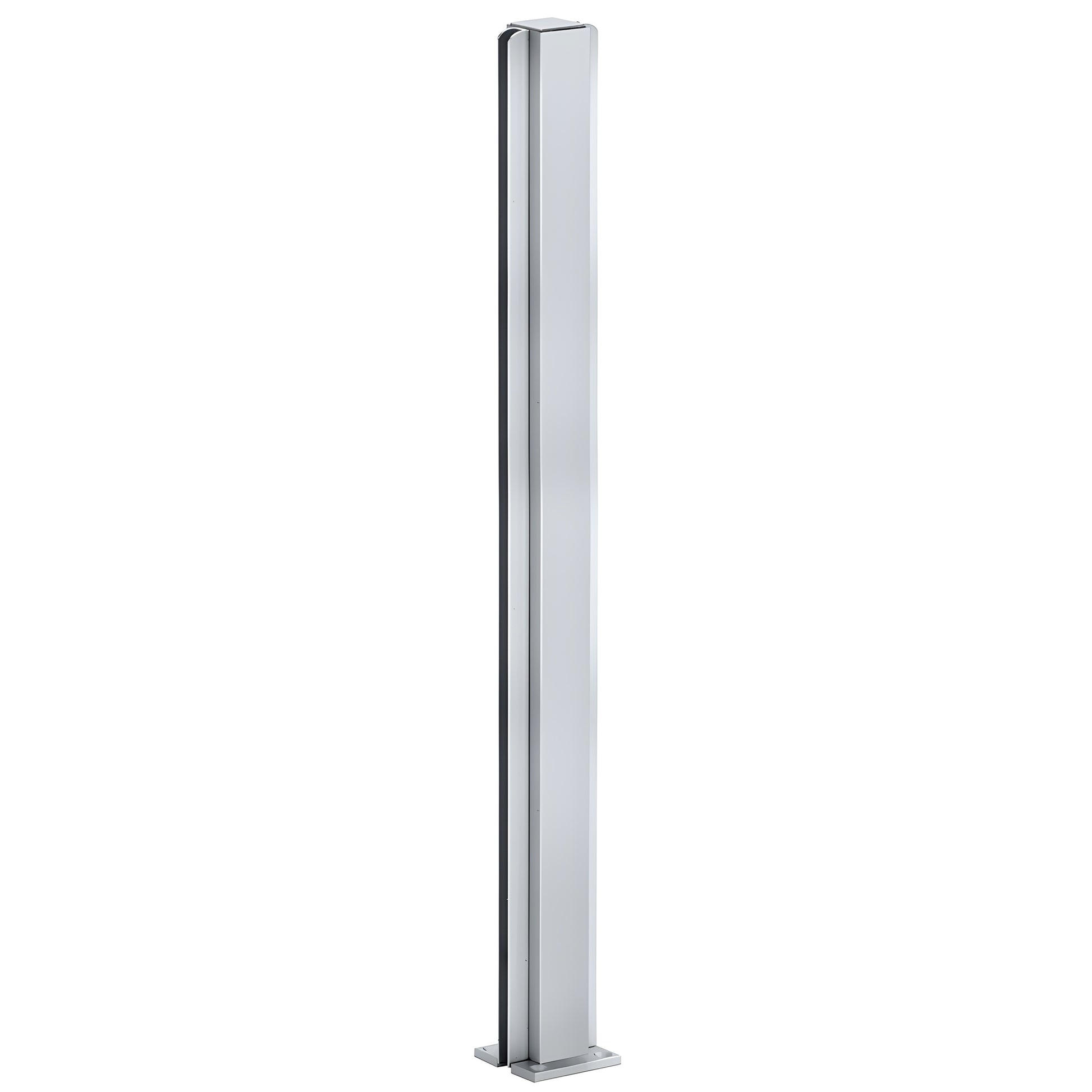

CRL Satin Anodized Aluminum 30in Center-Mount Partition Post

• SKU: D990A30C
• Stock post sizes — RED‑E to ship
• Standard heights: 12", 18", 24" (305, 457, 610 mm) — available in four finishes
• Five configurations: End, Center, Corner, 3‑Way, 4‑Way
• Aluminum tubing with full‑length glazing channels for 1/4" (6 mm) glass
• Top cap and mounting base included; posts ship fully assembled with four wood screws
• Use with monolithic tempered glass; glazing vinyl supplied for 1/4" (6 mm) and 3/16" (5 mm) glass

CRL Design Series partition posts are popular aluminum partition posts for glass installations and are stocked for immediate delivery. Their slim-line profile, full‑length glazing channels, and easy-to-install mounting base make them a common choice for banks, offices, restaurants, and commercial interior partitions. The glass secures into the channel with Cat. No. 33SC Clear Silicone. Custom 135° posts are available in select sizes and finishes.

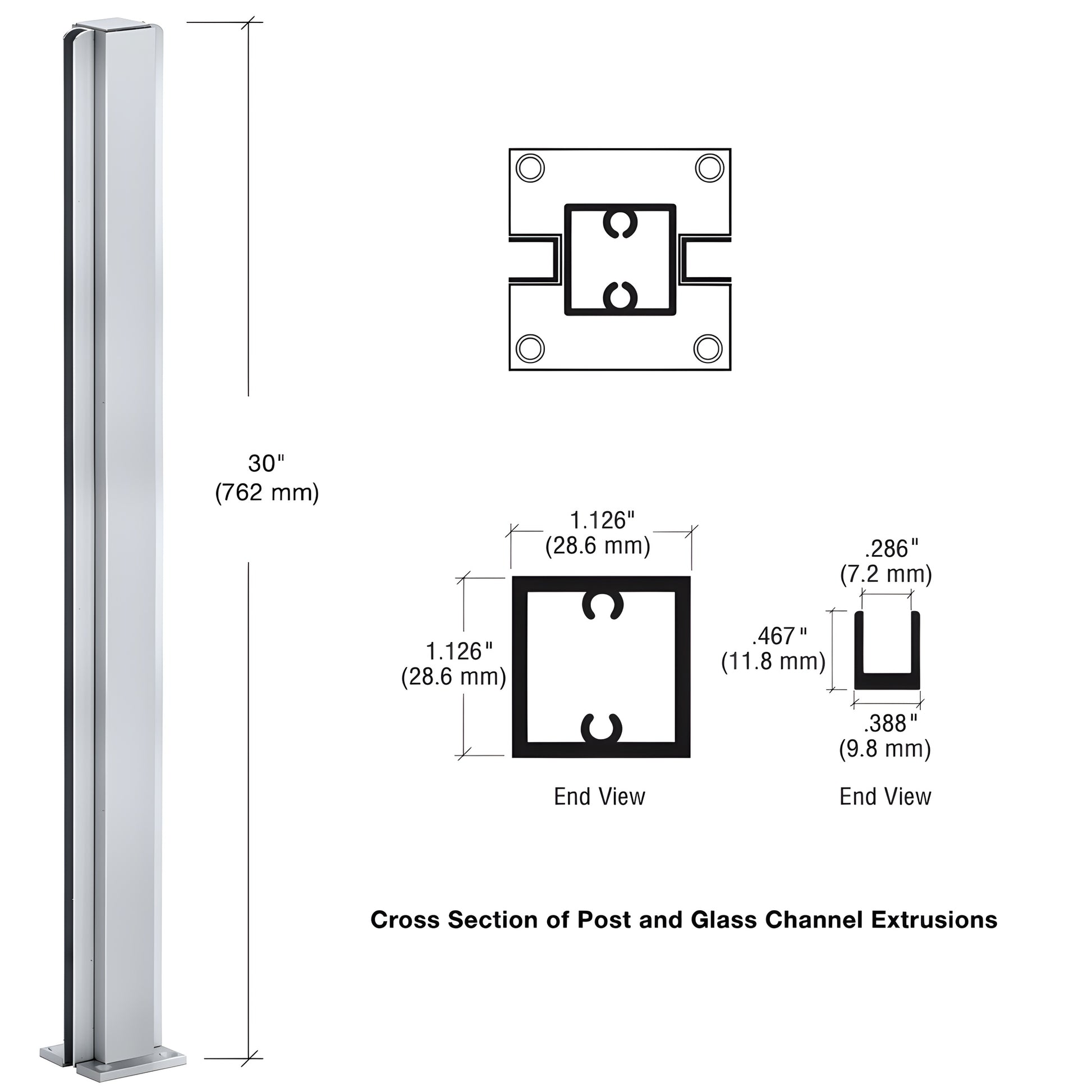

These fully assembled posts measure 1-1/8" (28.6 mm) square. Mounting base plates measure 2" (51 mm) square. Glazing channels rise 15/32" (12 mm) from the post surface. You can also "Make Your Own" Design Series partition posts with CRL components — instructions and requirements, parts page.

Product note: Use Cat. No. 33SC Clear Silicone to secure the glass into the glazing channels. Images are representative; colors may vary. If exact shipping weight is required for cost calculation, contact CRL Customer Service before ordering.


Order SKU D990A30C now for fast shipping and reliable aluminum partition posts for tempered glass installations.
