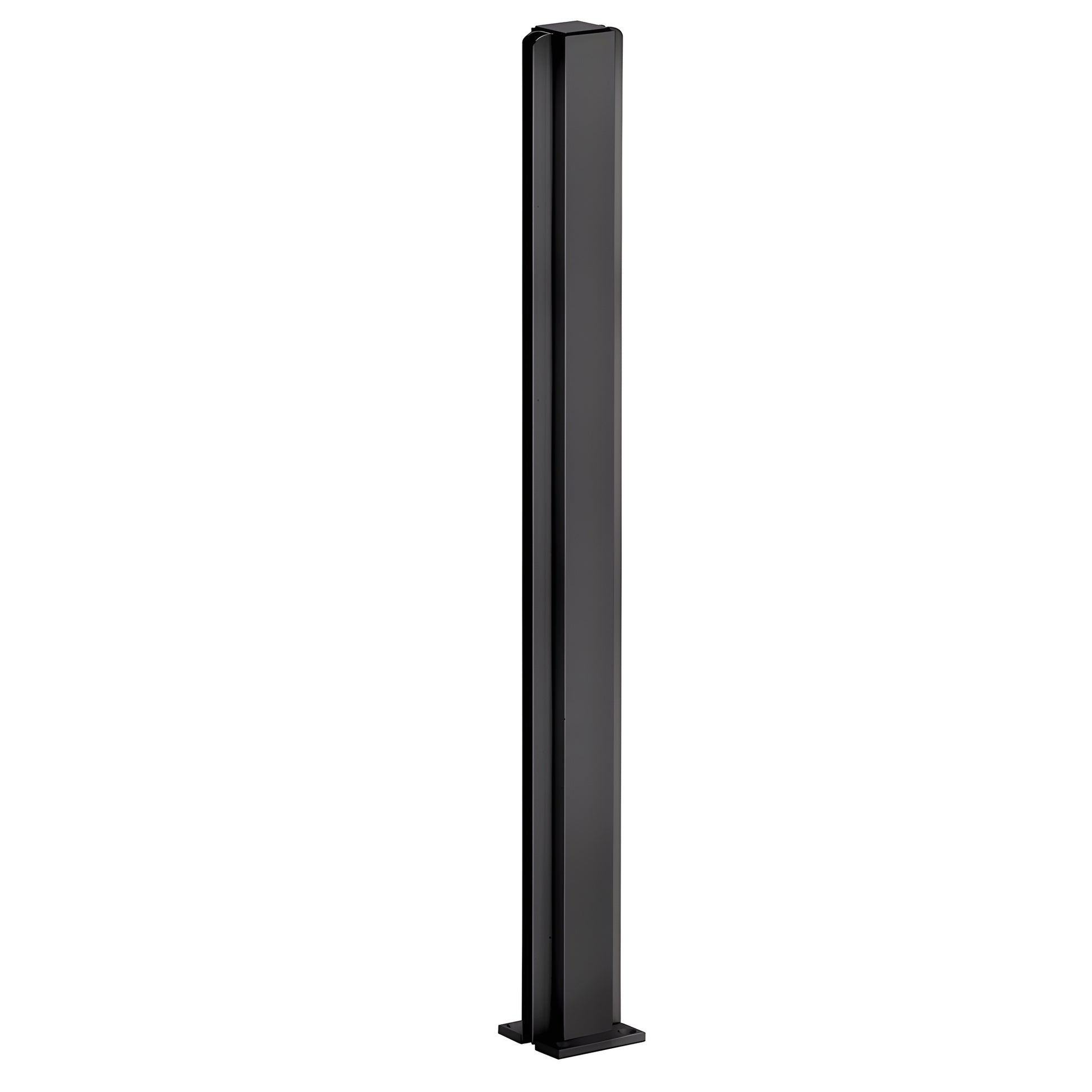

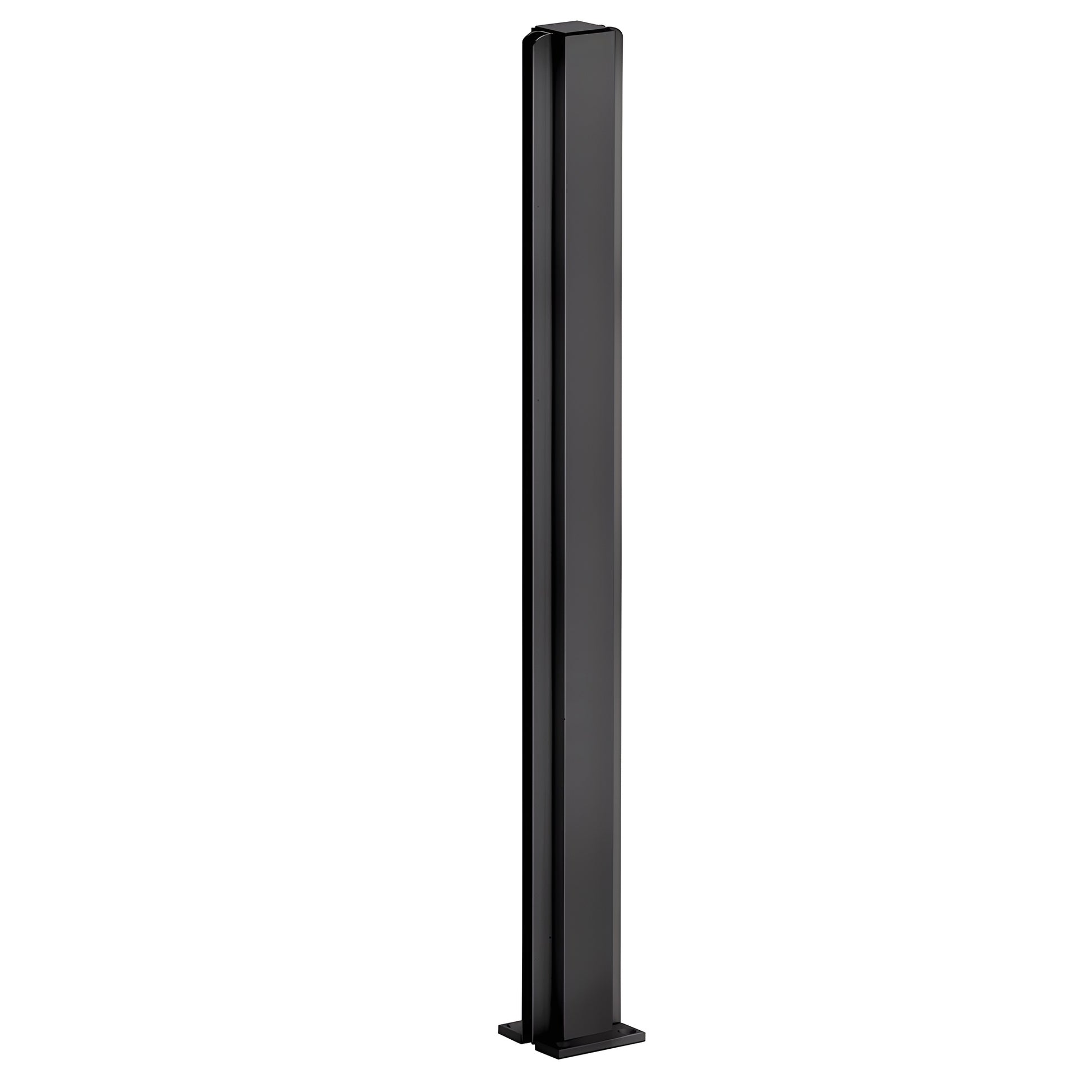

CRL 30in Duranodic Bronze Center Design Partition Post for Glass
CRL 30in Duranodic Bronze Center Design Partition Post for Glass
Regular price
$133.39 CAD
Regular price
Sale price
$133.39 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D990DU30C
Shipping Weight: 1.1 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.1 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Type
Square Flat - Mechanical
Cap Type
Flat
Configuration
Center Post
Finish/Color
Dark Bronze Anodized
Glazed
No
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
30 in. (762 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
Overview
- Stock post sizes, RED-E to ship — SKU: D990DU30C
- Standard heights: 12", 18", 24" (305, 457, 610 mm) in four finishes
- Five configurations: End, Center, Corner, 3-Way, 4-Way
- Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
- Top cap and mounting base included; use monolithic tempered glass
CRL Design Series partition posts are a popular choice for commercial glass partitions, offering a slim-profile aluminum post with full-length glazing channels for secure installation of 1/4" (6 mm) monolithic tempered glass. Available in standard stock sizes for immediate delivery, these posts are commonly specified for banks, offices, restaurants, and other interior glass partition projects.
Key differentiators: easy-to-install mounting base, full-length channels that simplify glazing and improve finish lines, and supplied glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass. Some finishes and sizes offer custom 135° posts. Each fully assembled post includes one attached top cap, one attached mounting base, and four wood screws.

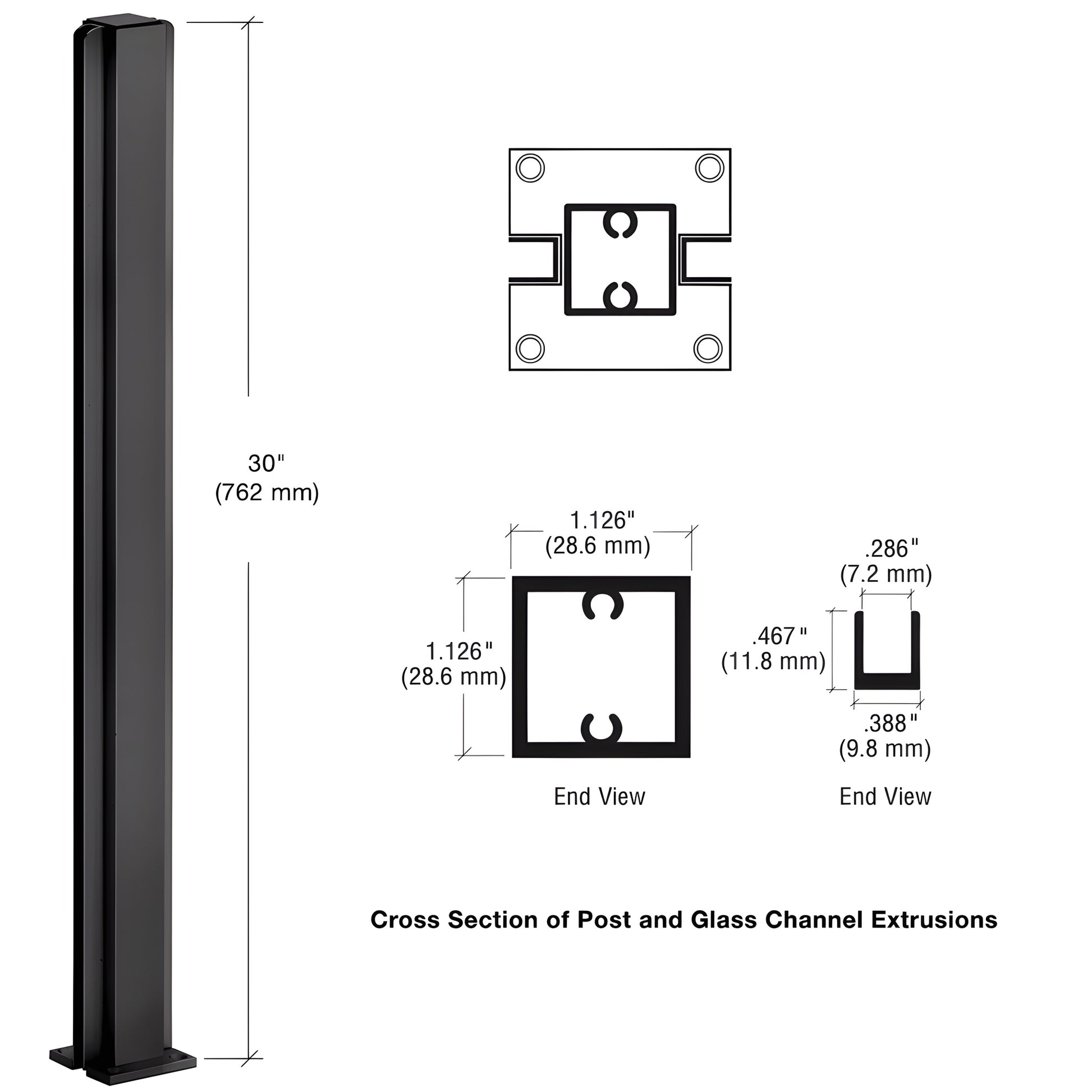

Specifications: posts measure 1-1/8" (28.6 mm) square; mounting base plates measure 2" (51 mm) square; glazing channels rise 15/32" (12 mm) from the post surface.
Make your own Design Series partition posts with CRL components — see instructions and requirements and the parts page.
Product Warning:
Secure glass into glazing channels using Cat. No. 33SC Clear Silicone.
Order stock Design Series partition posts (SKU D990DU30C) for fast delivery — contact sales to confirm finish and availability.
