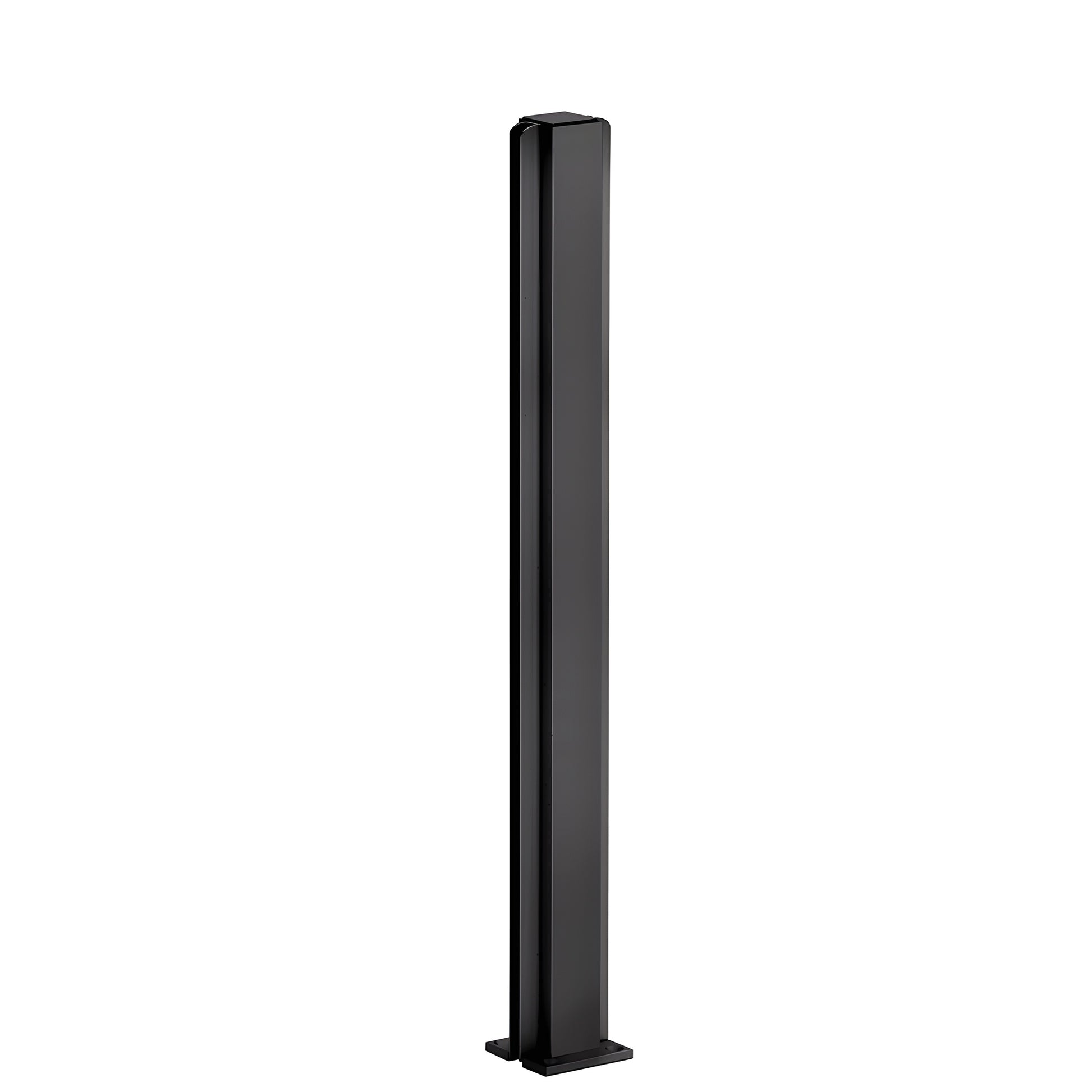

CRL Duranodic Bronze 24" Center Mount Partition Post - Design Series
CRL Duranodic Bronze 24" Center Mount Partition Post - Design Series
Regular price
$134.77 CAD
Regular price
Sale price
$134.77 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D990DU24C
Shipping Weight: 1.45 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.45 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Type
Square Flat - Mechanical
Cap Type
Flat
Configuration
Center Post
Finish/Color
Dark Bronze Anodized
Glazed
No
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
24 in. (609.6 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
Overview
- Stock post sizes, RED-E to ship
- Standard heights: 12", 18", and 24" (305, 457, and 610 mm) — available in four finishes
- Five standard configurations: End, Center, Corner, 3-Way, and 4-Way
- Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
- Top cap and mounting base included
- Designed for monolithic tempered glass
CRL Design Series Partition Posts are widely used for glass partitions in banks, offices, restaurants, and other commercial spaces. The slim-line aluminum profile and easy-to-install mounting base make these partition posts a trade favorite for fast, clean installations. Full-length glazing channels secure 1/4" (6 mm) glass; glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied. Use Cat. No. 33SC Clear Silicone to secure the glass.

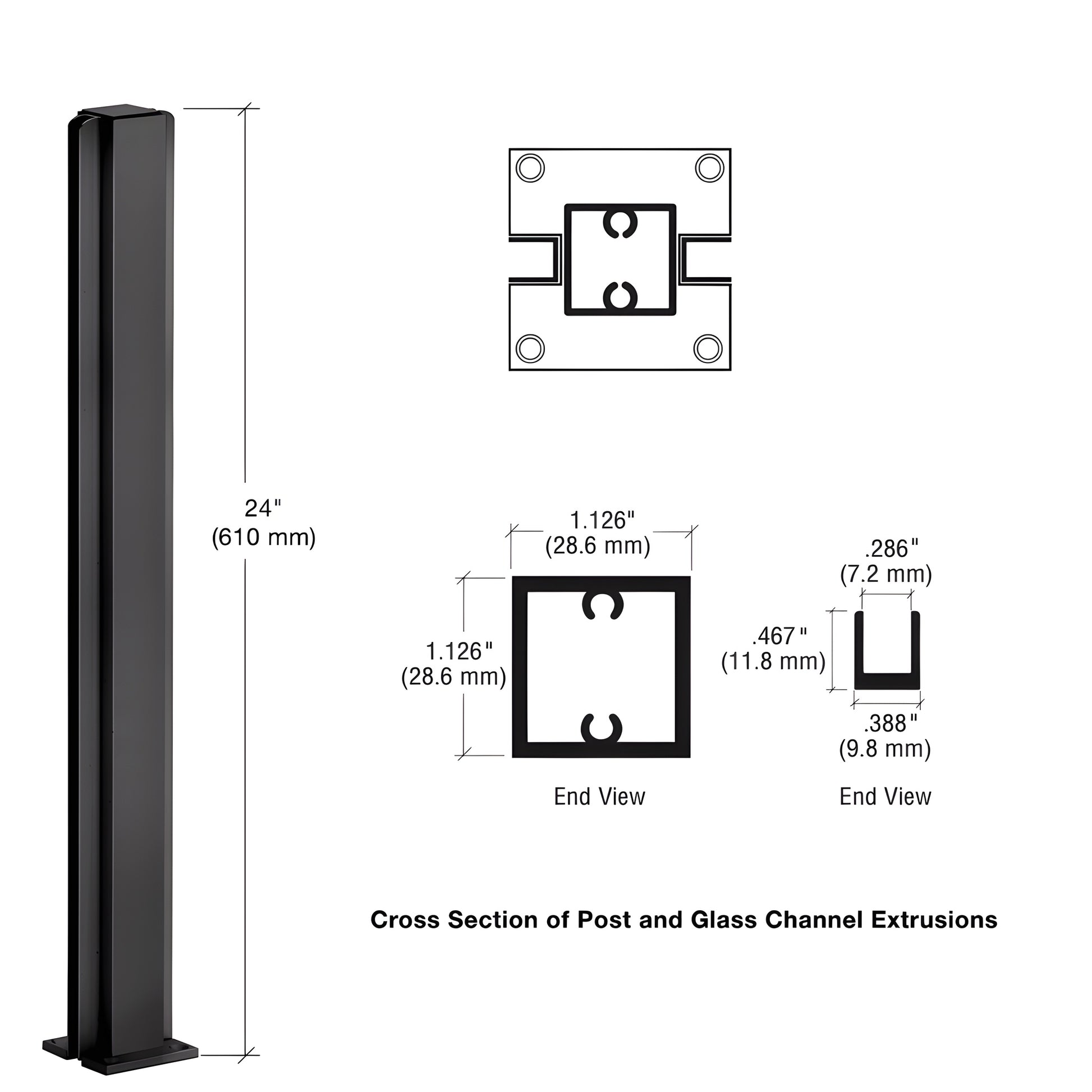

Each fully assembled post measures 1-1/8" (28.6 mm) square. Mounting base plates measure 2" (51 mm) square. Glazing channels rise 15/32" (12 mm) from the post surface. Some finishes and sizes are also available as custom 135° posts. Includes one attached top cap, one attached mounting base, and four wood screws for mounting.
You can also "Make Your Own" Design Series partition posts using CRL components — see instructions and requirements and the parts page.
Product Warning:
The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.
SKU: D990DU24C
Order CRL Design Series aluminum partition posts for tempered glass partitions today — fast shipping available.
