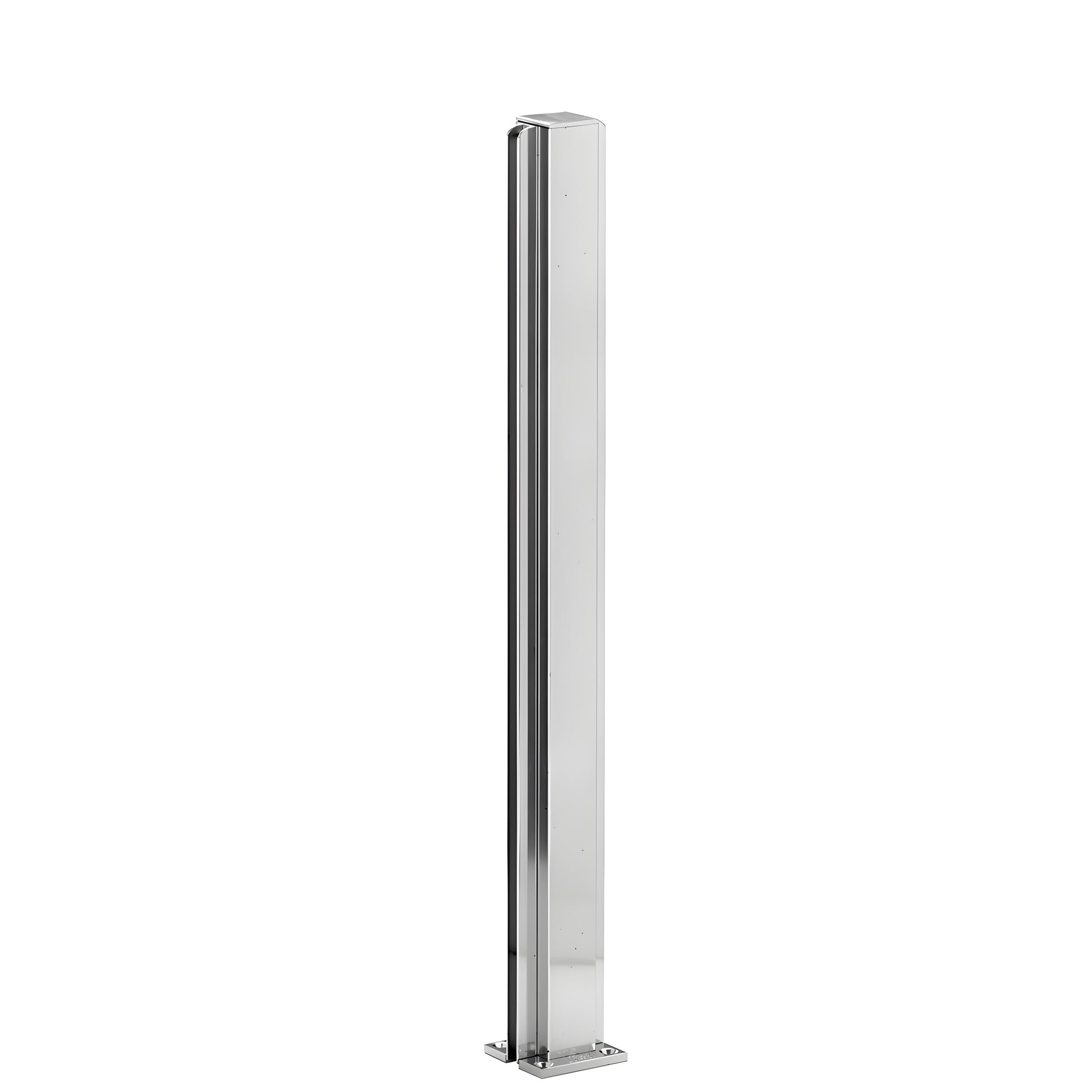

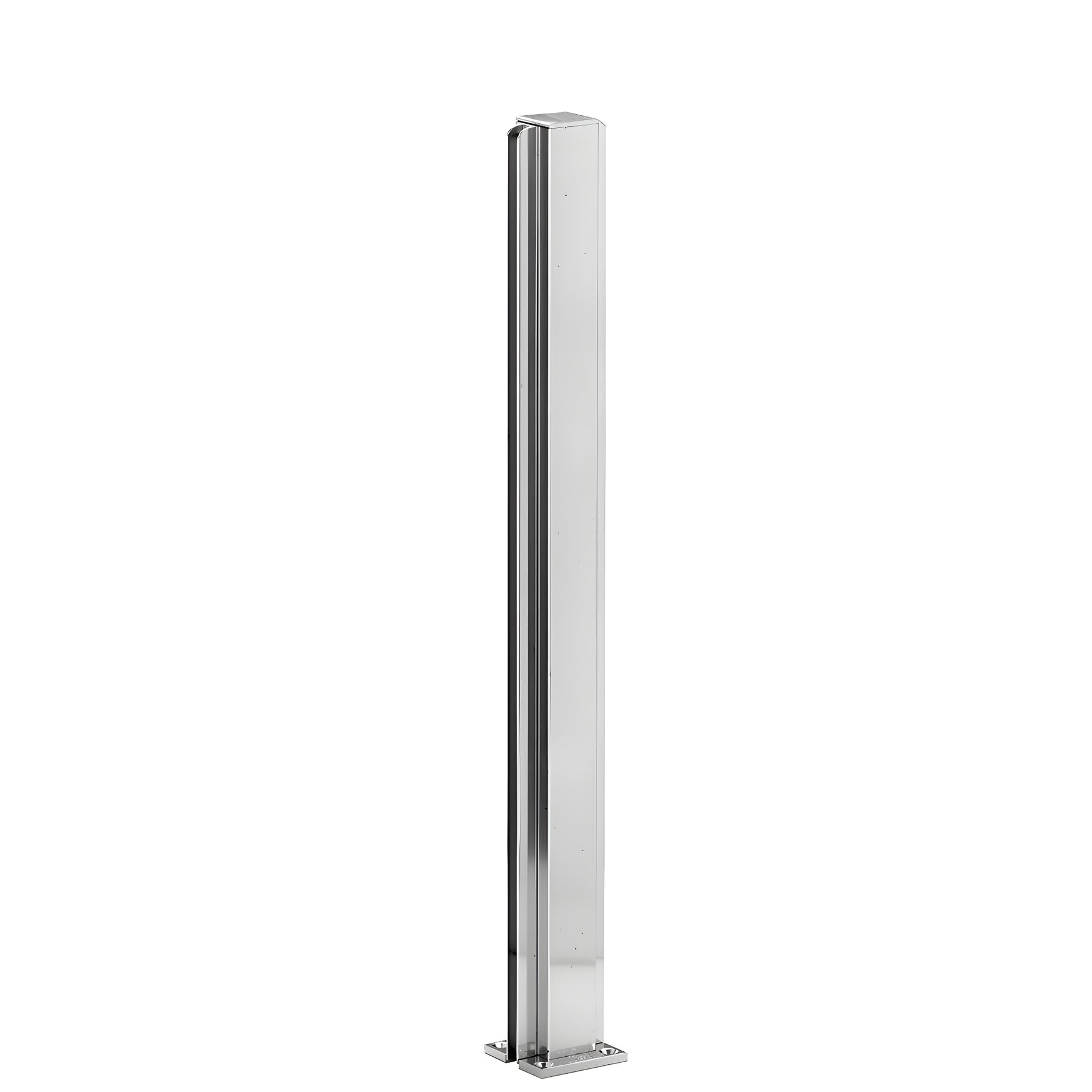

CRL Brite Anodized 24 in Center Mount Aluminum Partition Post
Item# D990BA24C
Shipping Weight: 1.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Base Type
Square Flat - Mechanical
Cap Type
Flat
Configuration
Center Post
Finish/Color
Brite Anodized
Glazed
No
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
24 in. (609.6 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
- Stock post sizes, RED‑E to ship
- Standard heights: 12", 18", 24" (305, 457, 610 mm) — available in four finishes
- Five configurations: End, Center, Corner, 3‑Way, and 4‑Way
- Aluminum tubing with full‑length glazing channels for 1/4" (6 mm) glass
- Top cap and mounting base included; use with monolithic tempered glass
CRL Design Series partition posts (SKU: D990BA24C) are slim-profile aluminum partition posts for glass panels, popular for banks, offices, and restaurants. Ready for immediate delivery in standard stock sizes, these aluminum glass partition posts feature full-length glazing channels and an easy-to-install mounting base — making them a preferred choice for tempered glass partition systems. Glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill the channel.

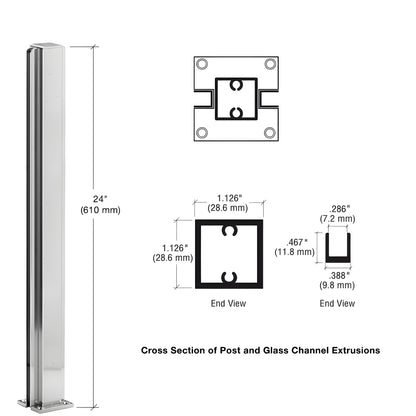

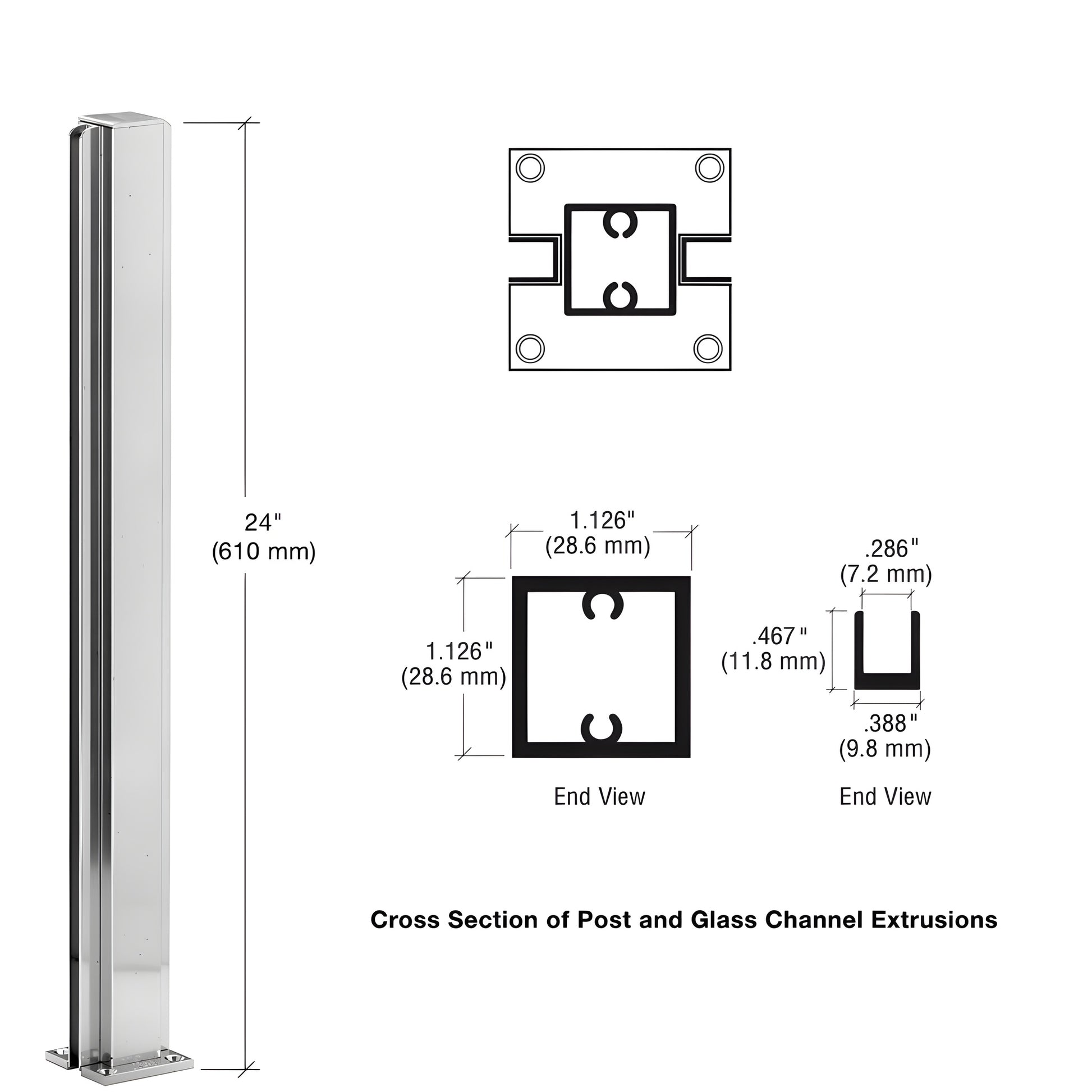

Each fully assembled post measures 1-1/8" (28.6 mm) square with a 2" (51 mm) square mounting base plate. Glazing channels rise 15/32" (12 mm) from the post surface. Posts include one attached top cap, one attached mounting base, and four wood screws for mounting. Custom 135° posts are available in select sizes and finishes. You can also "Make Your Own" Design Series partition posts with CRL components — instructions and requirements, parts page.
Product Warning:
Secure glass into the glazing channels using Cat. No. 33SC Clear Silicone.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation. Colors may vary with monitor settings.
Order CRL Design Series partition posts (D990BA24C) now for fast delivery and reliable installation — contact CRL Customer Service to confirm availability and shipping.
