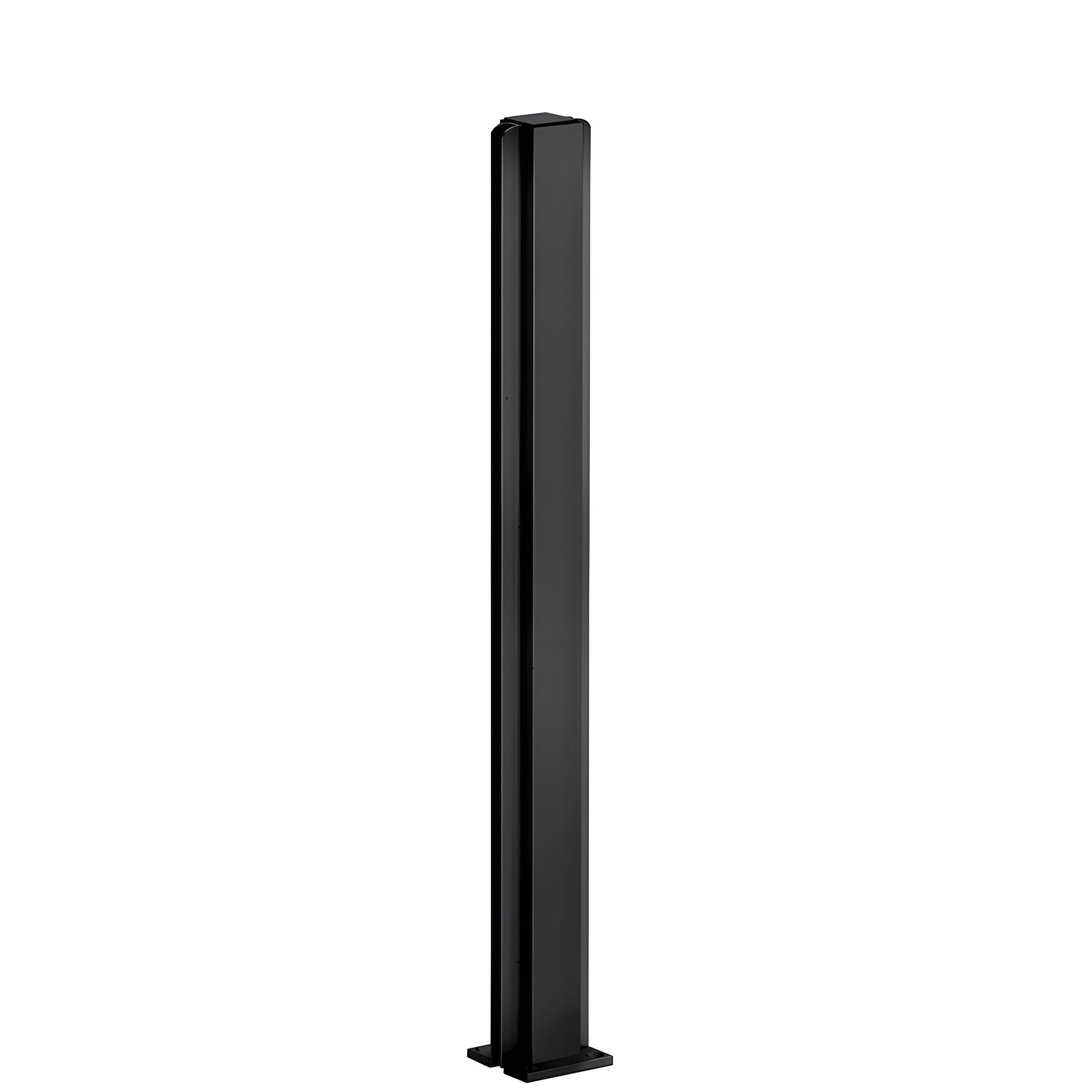

CRL 24-inch Center Design Series Semi-Gloss Black Partition Post
Item# D990BL24C
Shipping Weight: 1.215 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.215 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Configuration
Center
Finish/Color
Semi-Gloss Black (PSP290005)
Glazing Thickness
3/16 in. & 1/4 in. (5 mm & 6 mm)
Height
24 in. (609.6 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
- Stock post sizes, RED-E to ship
- Standard heights: 12", 18", and 24" (305, 457, 610 mm) — available in four finishes
- Five configurations: End, Center, Corner, 3-Way, and 4-Way
- Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
- Top cap and mounting base included; 1-1/8" (28.6 mm) square post profile
- Designed for monolithic tempered glass; glazing vinyl supplied for 1/4" (6 mm) and 3/16" (5 mm) glass
CRL Design Series partition posts are a popular choice for glass partitions, banks, offices, and restaurants—offering a slim-line profile and easy-to-install mounting base for fast installation. These aluminum partition posts secure 1/4" tempered glass in full-length glazing channels and are compatible with Cat. No. 33SC Clear Silicone for sealing. Some sizes and finishes also offer custom 135° posts. Each post ships fully assembled with one attached top cap, one attached mounting base, and four wood screws.

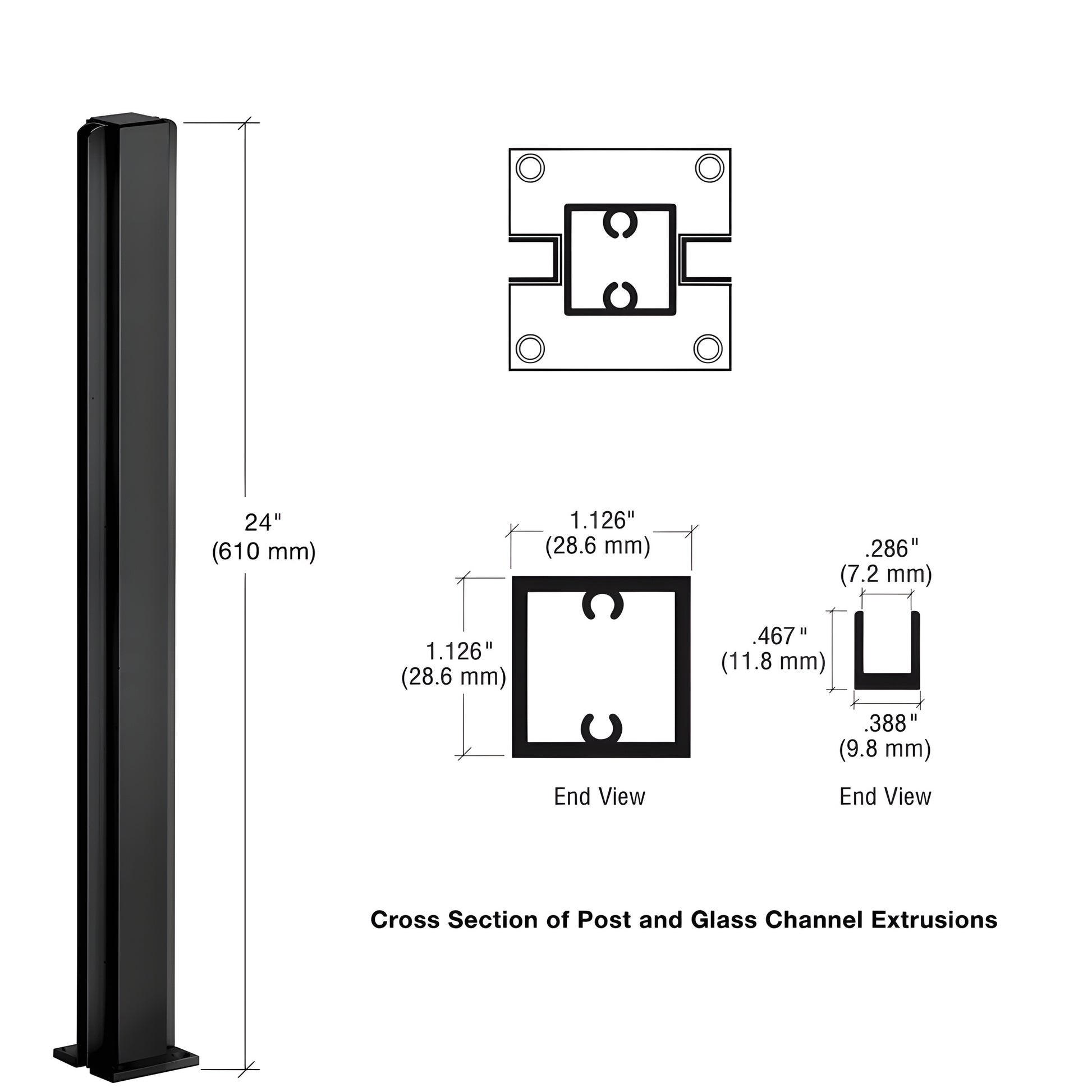

Post mounting base plates measure 2" (51 mm) square. Glazing channels rise 15/32" (12 mm) from the post surface. Use these partition posts as a ready-to-ship solution for glass wall systems and storefront interior partitions.
Product Warning:
Secure glass using Cat. No. 33SC Clear Silicone as recommended.
Most shipping weights are approximate and have not been verified. If the exact weight is needed for shipping cost calculation, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.
