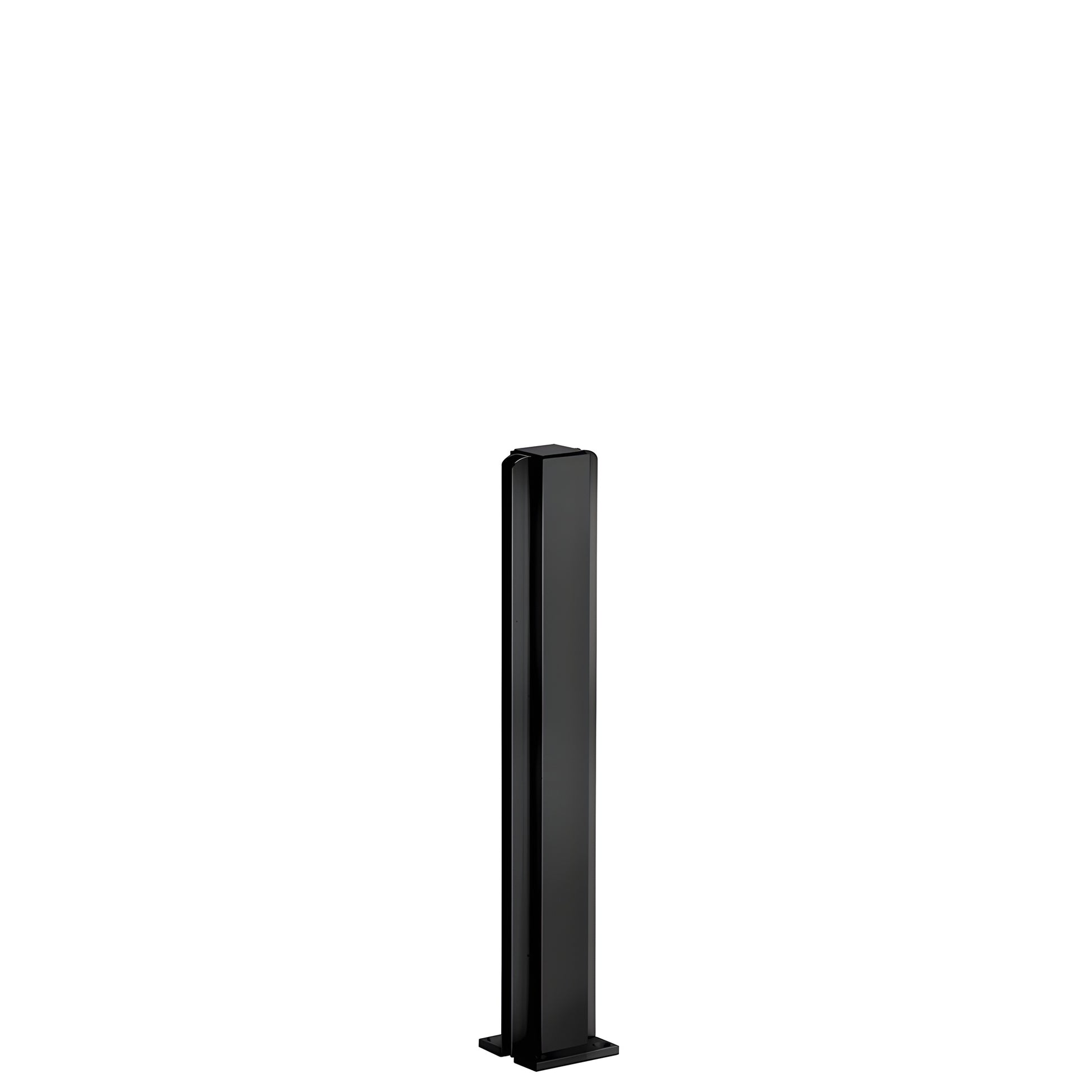

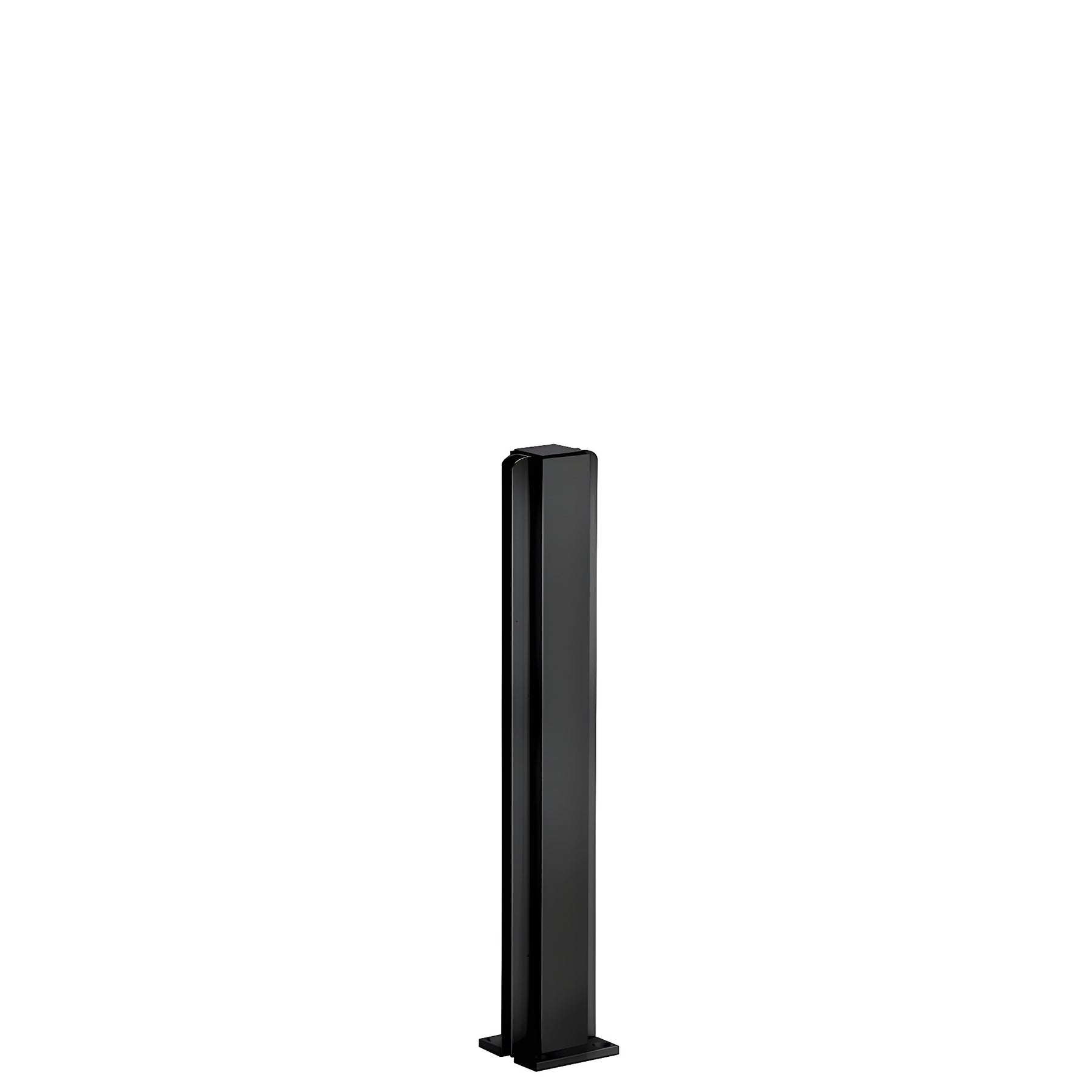

CRL Design Series 12 in Semi-Gloss Black Center-Mount Partition Post
CRL Design Series 12 in Semi-Gloss Black Center-Mount Partition Post
Regular price
$163.95 CAD
Regular price
Sale price
$163.95 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D990BL12C
Shipping Weight: 10.64 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.64 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Center
Finish/Color
Semi-Gloss Black (PSP290005)
Glazing Thickness
3/16 in. & 1/4 in. (5 mm & 6 mm)
Height
12 in. (304.8 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
Overview
- Stock post sizes, RED-E to ship
- Standard heights: 12", 18", and 24" (305, 457, 610 mm)
- Available in four finishes
- Five configurations: End, Center, Corner, 3-Way, and 4-Way
- Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
- Top cap and mounting base included
- Designed for monolithic tempered glass
CRL Design Series Partition Posts (SKU: D990BL12C) are aluminum partition posts for glass panels, stocked in standard sizes for immediate delivery. Popular in banks, offices, and restaurants, these slim-profile posts feature full-length glazing channels and an easy-to-install mounting base for fast commercial installation. Use Cat. No. 33SC Clear Silicone to secure glass in the channel. Custom 135° posts are available in select finishes and sizes.

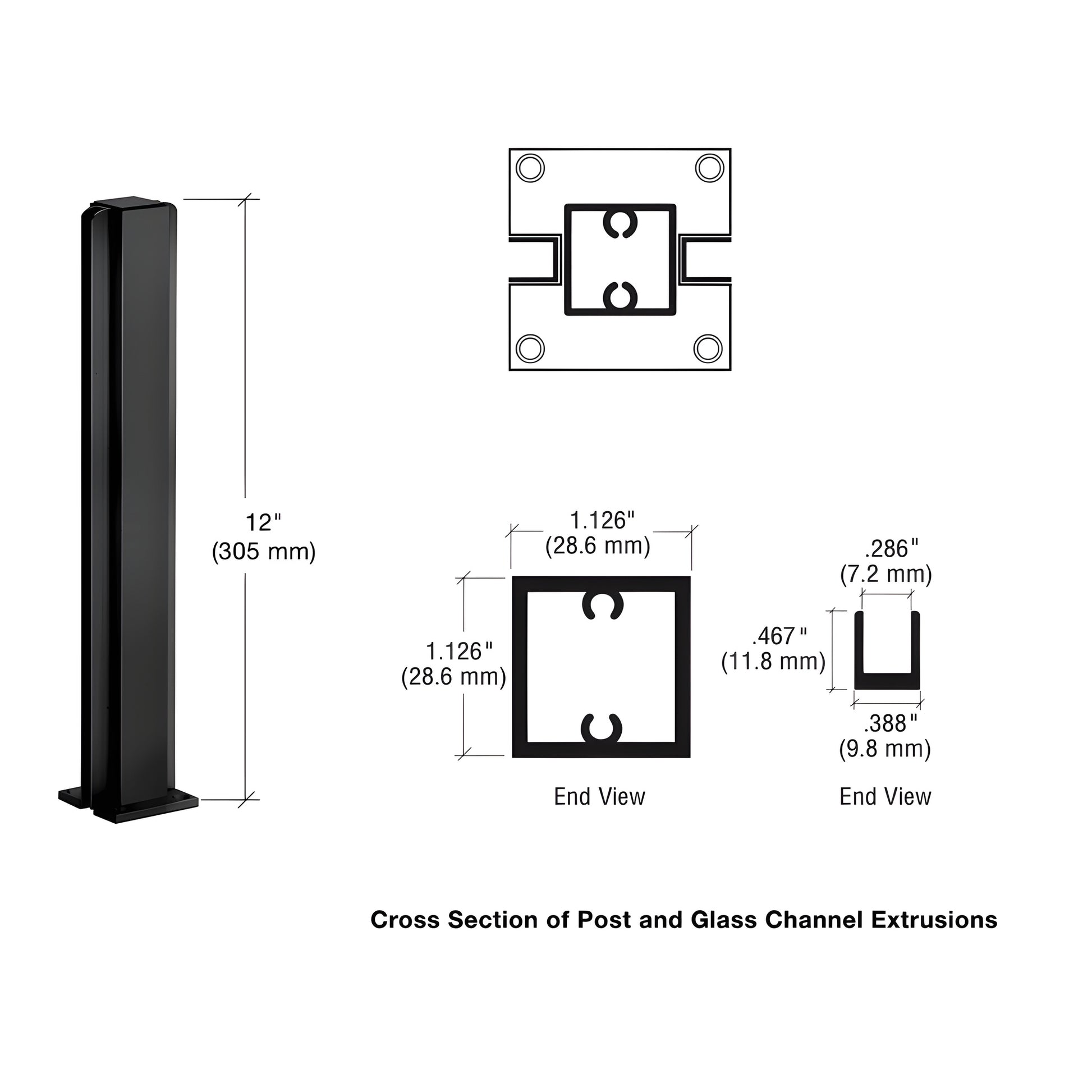

Each fully assembled Design Series post measures 1-1/8" (28.6 mm) square. Mounting base plates measure 2" (51 mm) square. Glazing channels run the full post length and rise 15/32" (12 mm) from the post surface. Glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill the channel.
You can also "Make Your Own" Design Series partition posts with CRL components.
Product Warning:
Secure glass into the glazing channels using Cat. No. 33SC Clear Silicone.
Order SKU D990BL12C now to get stocked aluminum partition posts for tempered glass office partitions—contact CRL for availability and lead time.
