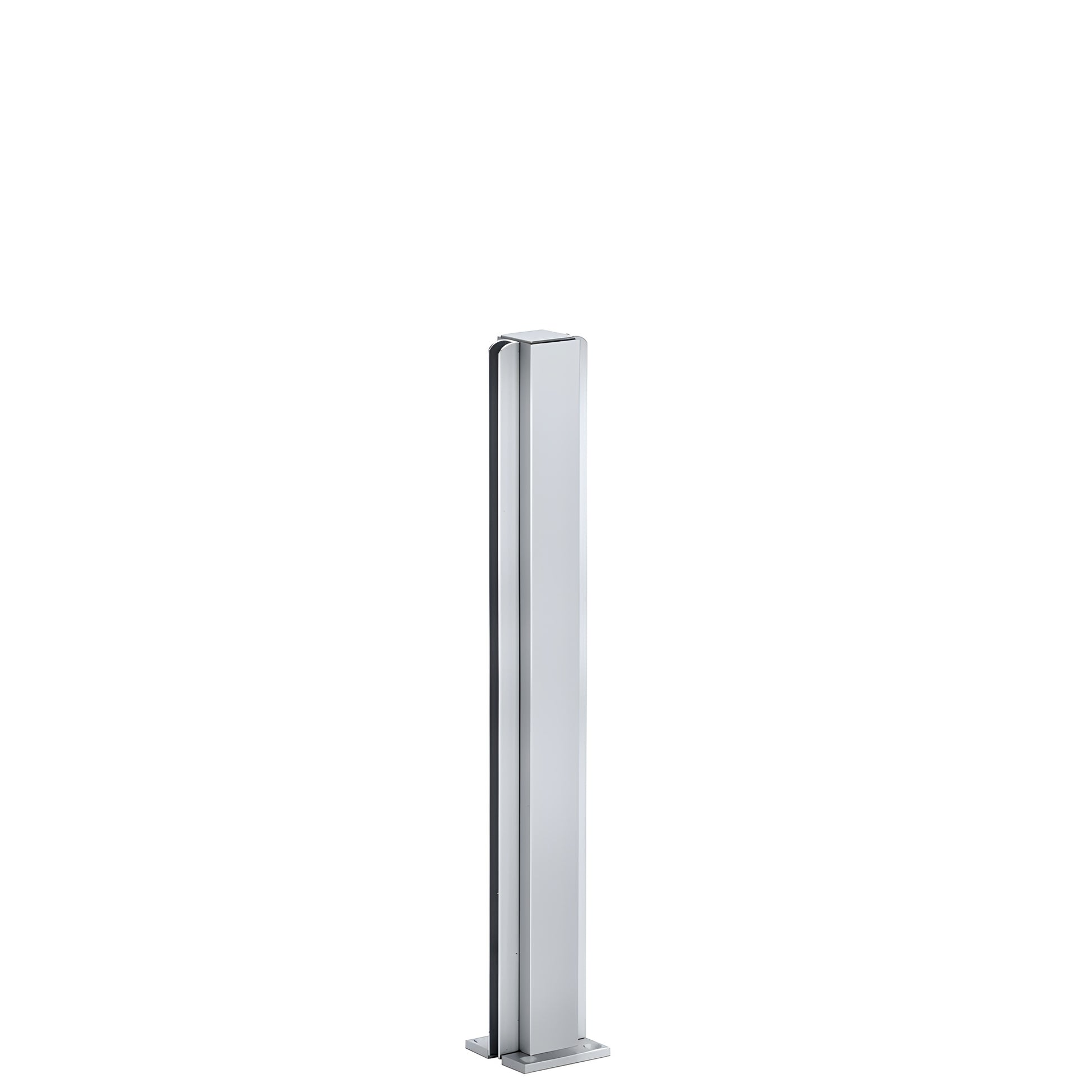

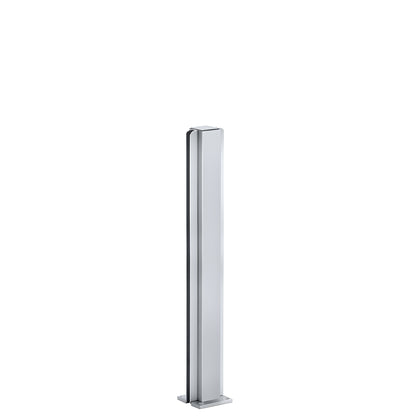

CRL 16 in Satin Anodized Aluminum Center Mount Partition Post
Item# D990A16C
Shipping Weight: 1.05 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.05 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Base Type
Square Flat - Mechanical
Cap Type
Flat
Configuration
Center Post
Finish/Color
Satin Anodized
Glazed
No
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
8 (406.4 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
- Stock post sizes, RED-E to ship — SKU D990A16C
- Standard heights: 12", 18", and 24" (305, 457, 610 mm) — available in four finishes
- Five configurations: end, center, corner, 3-way, and 4-way
- Aluminum tubing with full‑length glazing channels for 1/4" (6 mm) tempered glass
- Top cap and mounting base included; four wood screws supplied
- Use monolithic tempered glass; glazing vinyl supplied for 1/4" (6 mm) and 3/16" (5 mm) glass
CRL Design Series partition posts are popular for office partitions, bank teller dividers, and restaurant screens. Slim-profile aluminum posts with full-length channels secure tempered glass panels and are ready for immediate delivery. The easy-to-install mounting base and included top cap make installation fast — use Cat. No. 33SC Clear Silicone to secure glass in the glazing channels. Custom 135° posts are available in select finishes and sizes.

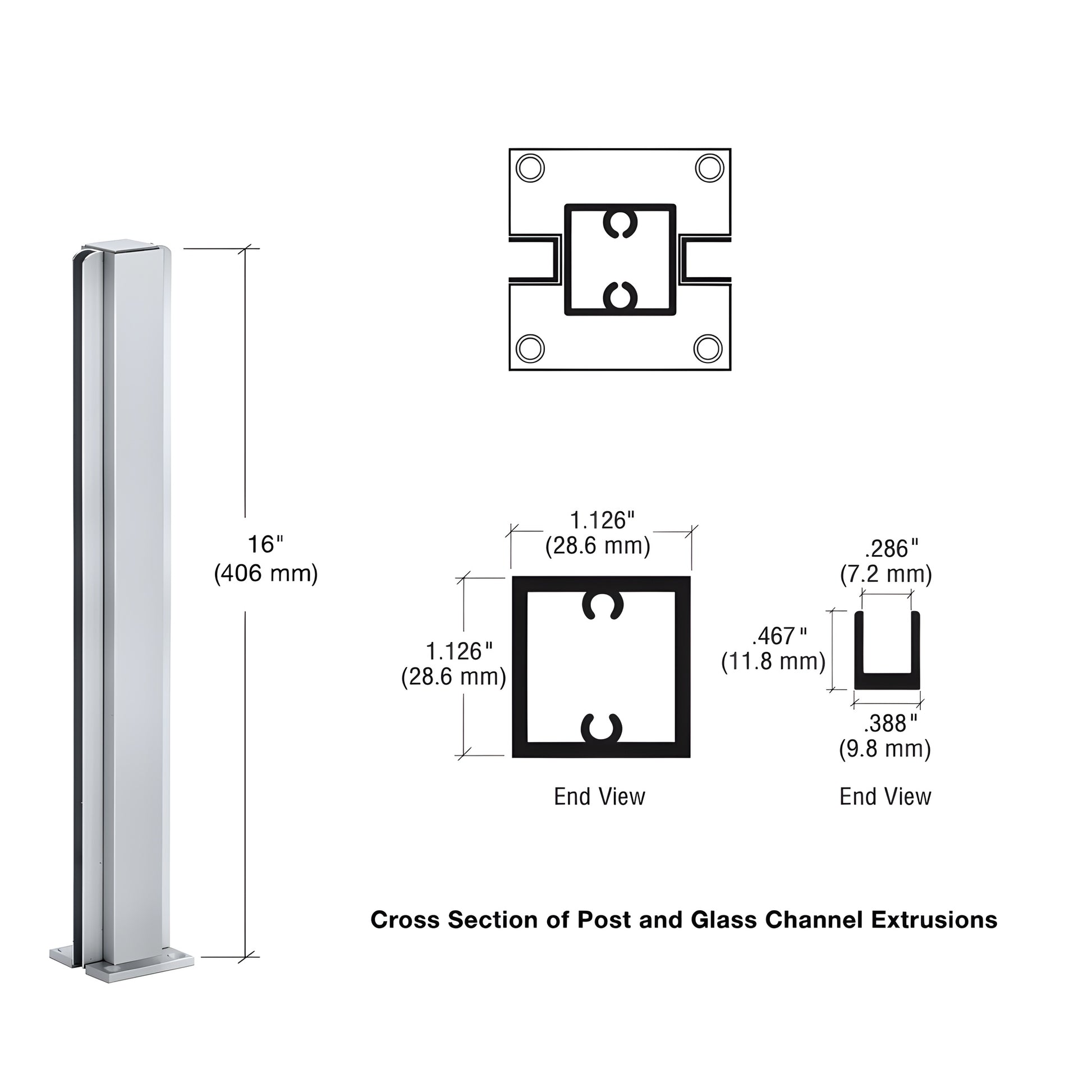

These fully assembled posts measure 1-1/8" (28.6 mm) square. Mounting base plates measure 2" (51 mm) square. Glazing channels rise 15/32" (12 mm) from the post surface. Instructions and requirements and parts page are available to "Make Your Own" Design Series partition posts using CRL components.
Product note: Secure glass into glazing channels using Cat. No. 33SC Clear Silicone.
Most shipping weights are approximate and have not been verified. If you need an exact weight to determine shipping costs, contact CRL Customer Service prior to ordering. Product images are actual or close representations; colors may vary with monitor settings.
Order Design Series partition posts (SKU D990A16C) for fast, durable glass partition installs — add to cart or contact us for custom options.
