Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary depending on your monitor.
CRL

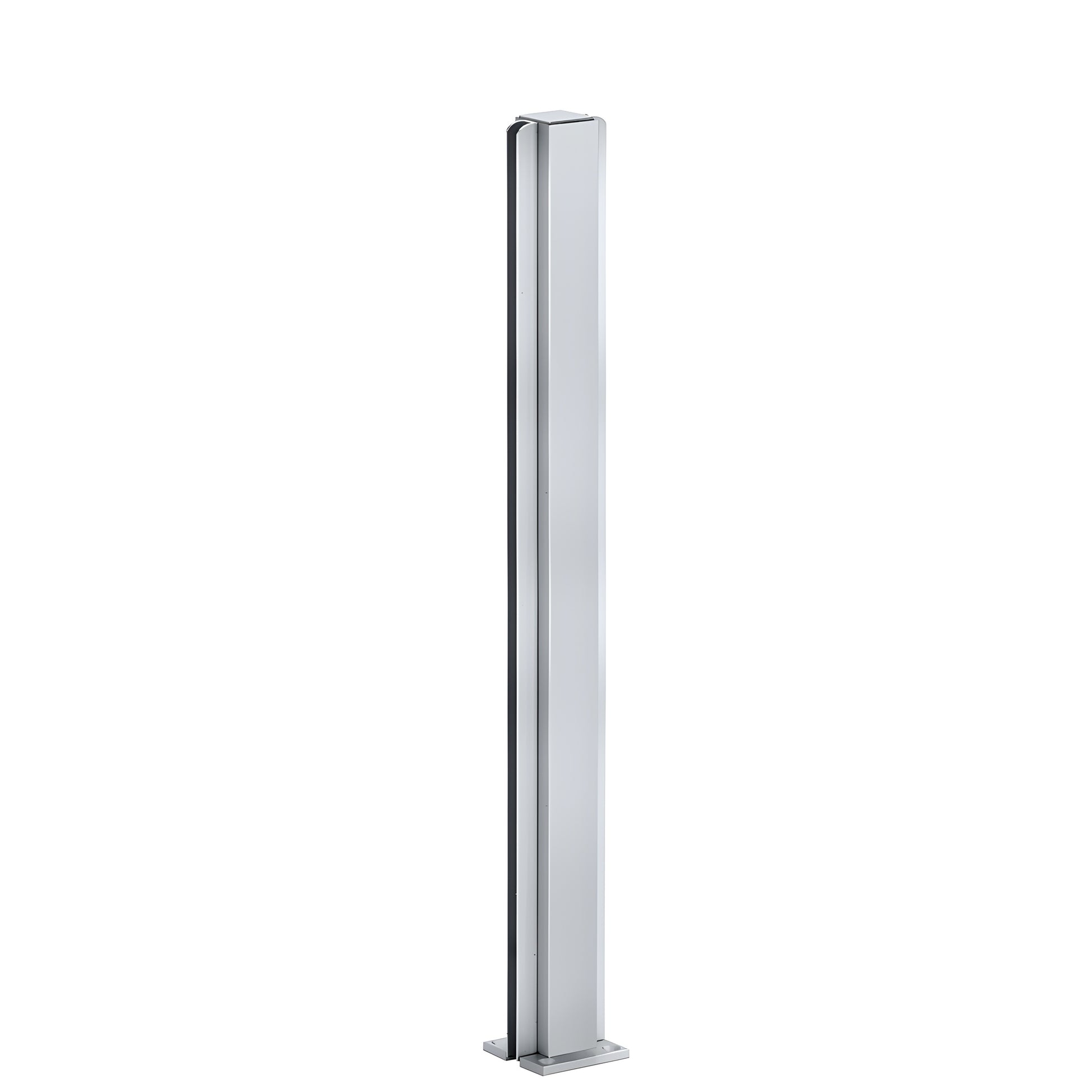

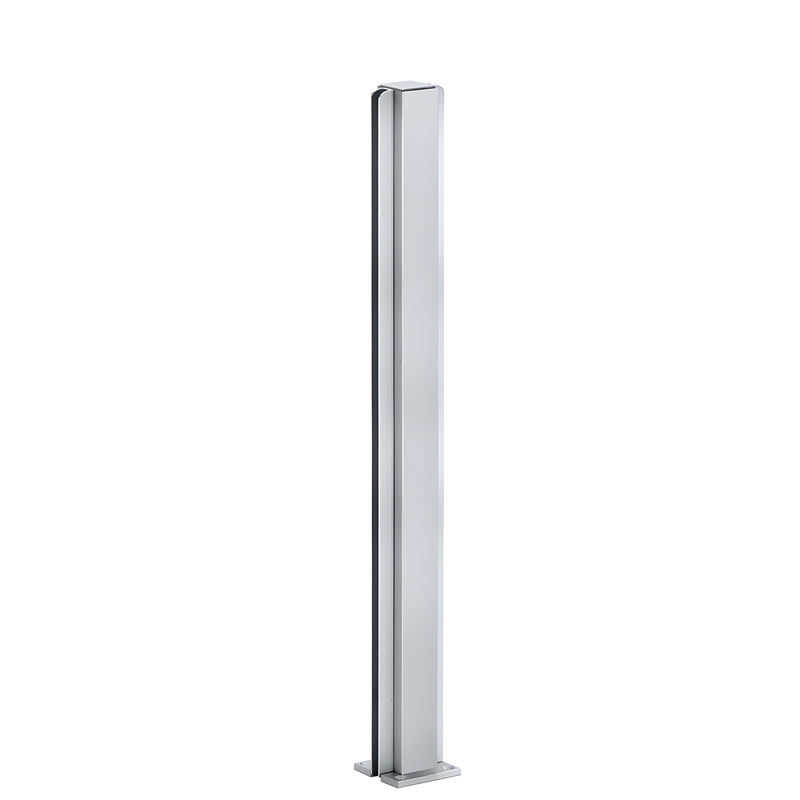

CRL 24" Satin Anodized Aluminum Center-Design Restroom Partition Post
CRL 24" Satin Anodized Aluminum Center-Design Restroom Partition Post
Regular price
$129.21 CAD
Regular price
Sale price
$129.21 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D990A24C
Shipping Weight: 1.4 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.4 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Type
Square Flat - Mechanical
Cap Type
Flat
Configuration
Center Post
Finish/Color
Satin Anodized
Glazed
No
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
24 in. (609.6 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
Overview
- Stock post sizes, RED‑E to ship
- Standard heights: 12", 18", and 24" (305, 457, 610 mm) in four finishes
- Five standard configurations: End, Center, Corner, 3‑Way, and 4‑Way
- Aluminum tubing with full‑length glazing channels for 1/4" (6 mm) glass
- Top cap and mounting base included; use monolithic tempered glass
CRL Design Series partition posts (SKU D990A24C) deliver a slim‑line profile and easy installation for glass partitions in banks, offices, restaurants, and other commercial interiors. Available in standard stock sizes for immediate delivery, these aluminum partition posts accept 1/4" (6 mm) tempered glass in full‑length glazing channels and include an attached top cap, attached mounting base, and four wood screws.

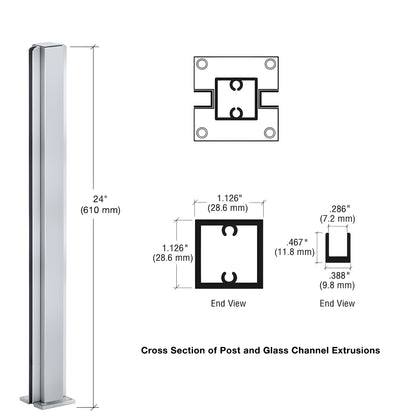

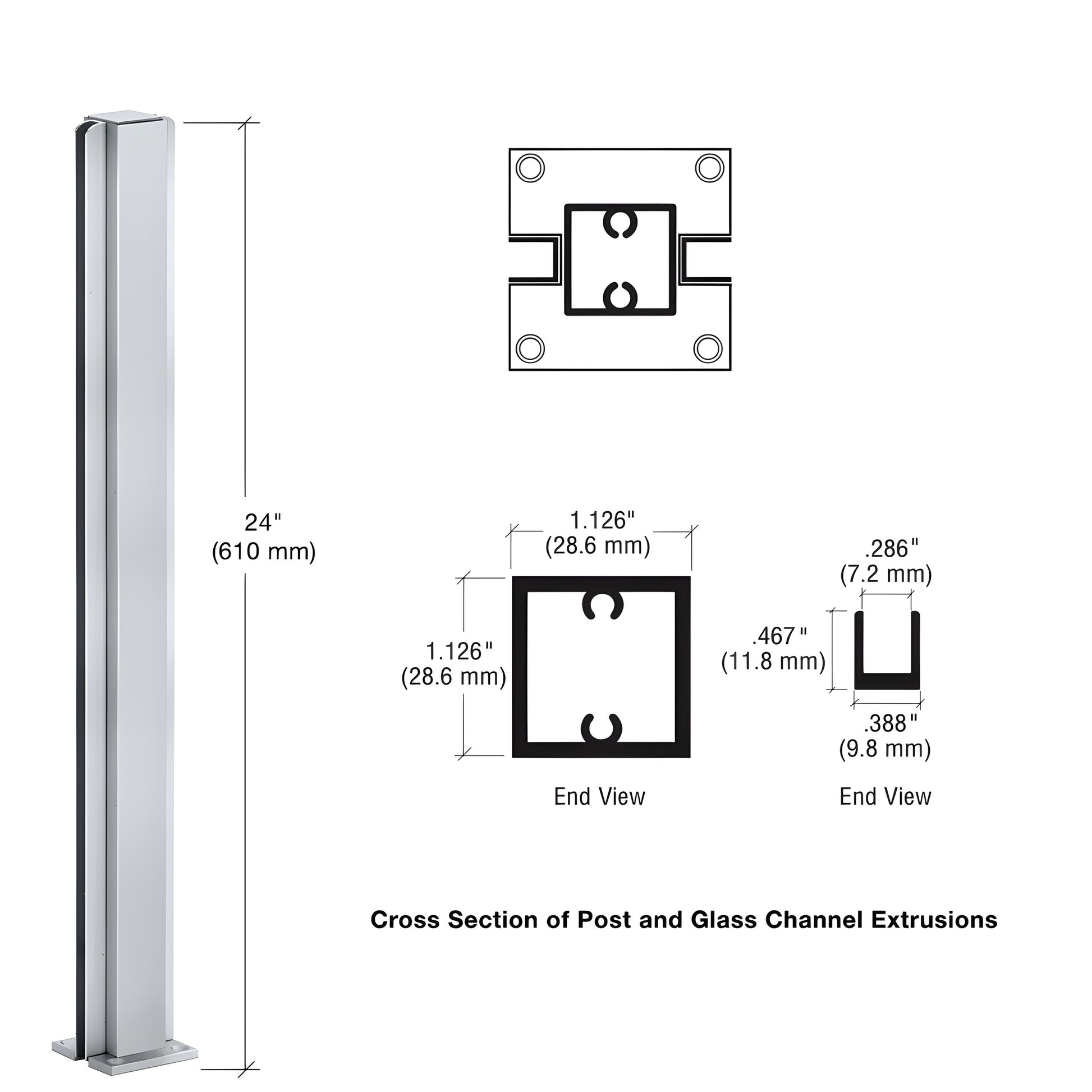

Posts are fully assembled — 1‑1/8" (28.6 mm) square. Mounting base plates: 2" (51 mm) square. Glazing channels run full length and rise 15/32" (12 mm) from the post surface. Glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill the channel. Custom 135° posts available in select finishes and sizes.
You can also "Make Your Own" Design Series partition posts with CRL components: instructions and requirements, parts page.
Product warning:
Secure glass into the glazing channels using Cat. No. 33SC Clear Silicone.
Order CRL Design Series partition posts for fast fulfillment and reliable aluminum partition hardware — add to cart or contact customer service to confirm availability.
