• Dark bronze anodized 12 in aluminum square partition post with full-length U-channel for 1/4" glass and base plate
  • Dark bronze anodized 12 in aluminum square partition post with full-length U-channel for 1/4" glass and base plate
1 2

CRL

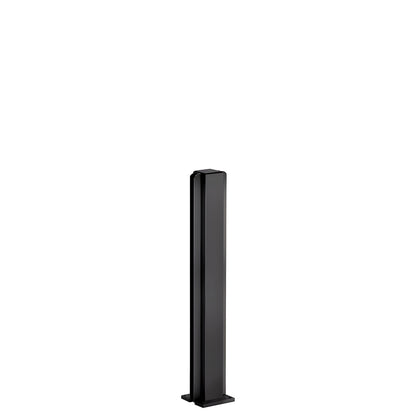

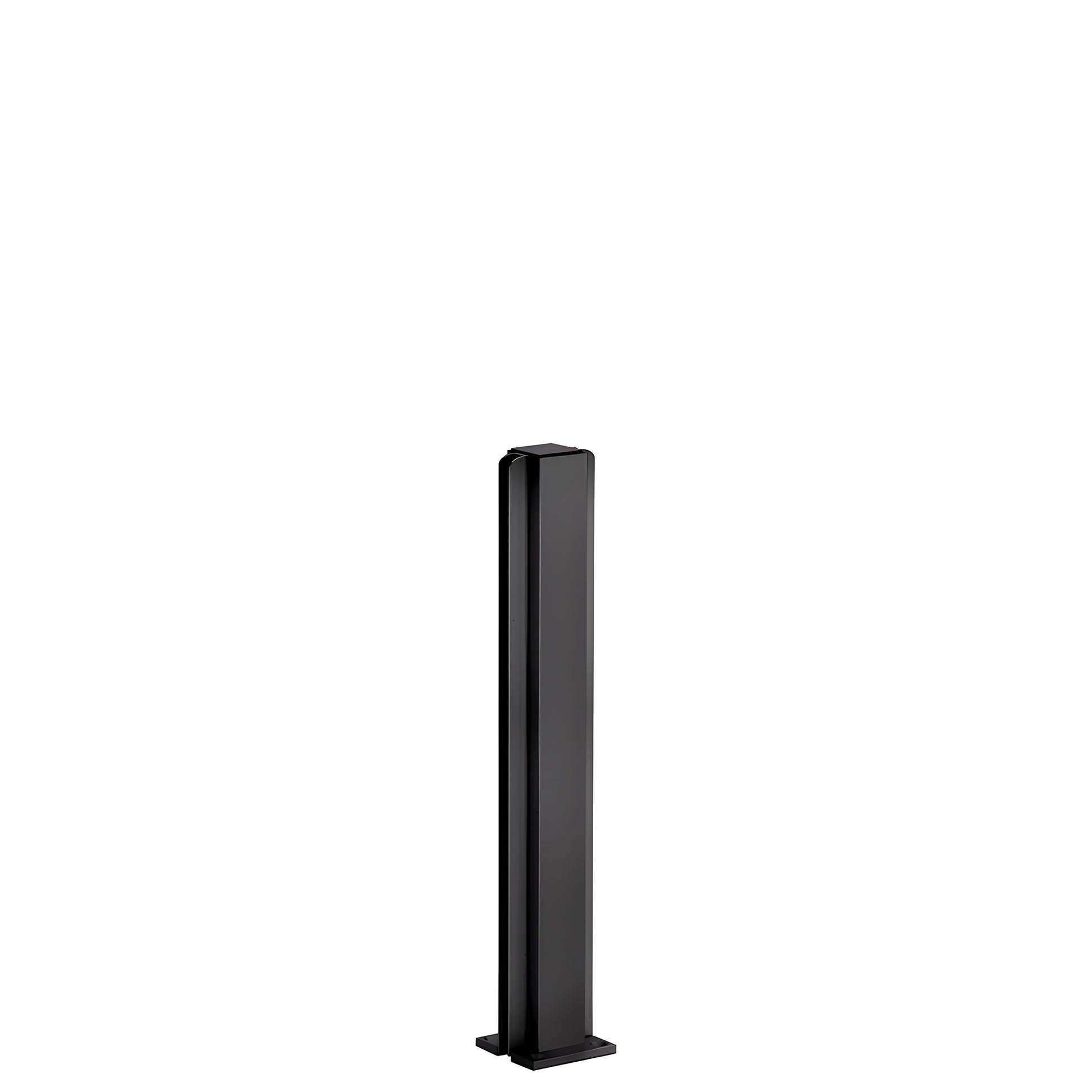

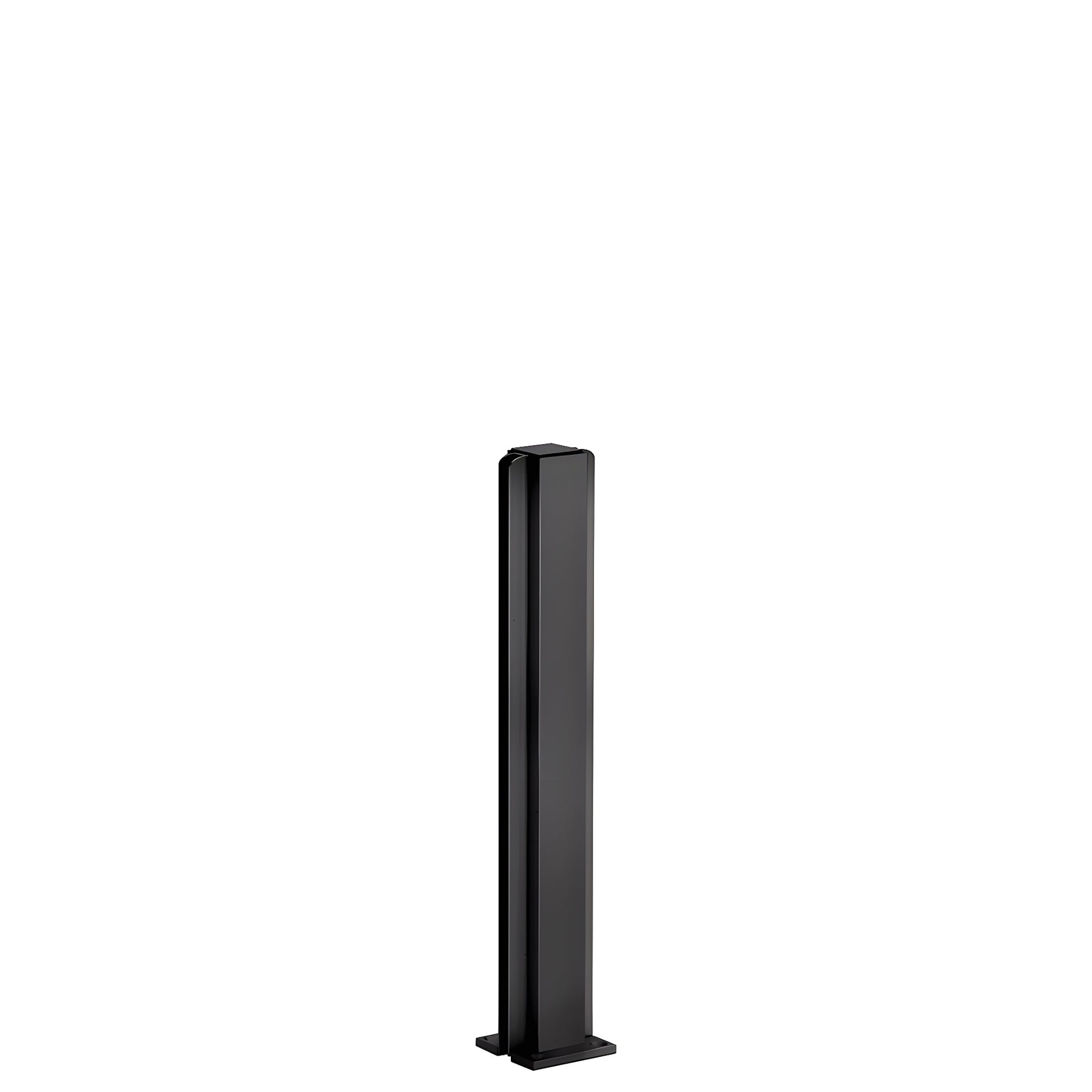

CRL Duranodic Bronze 12 in Center Mount Glass Partition Post

CRL Duranodic Bronze 12 in Center Mount Glass Partition Post

$137.56 CAD
$137.56 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# D990DU12C
Shipping Weight: 12.8 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Base Type
Square Flat - Mechanical
Cap Type
Flat
Configuration
Center Post
Finish/Color
Dark Bronze Anodized
Glazed
No
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
12 in. (304.8 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square

Overview

  • SKU: D990DU12C — Stock partition posts, RED‑E to ship
  • Standard heights: 12", 18", 24" (305, 457, 610 mm) — available in four finishes
  • Five configurations: End, Center, Corner, 3‑Way, and 4‑Way
  • Aluminum tubing with full‑length glazing channels for 1/4" (6 mm) glass
  • Top cap and mounting base included; four wood screws supplied
  • Designed for monolithic tempered glass; glazing vinyl supplied for 1/4" (6 mm) and 3/16" (5 mm) glass

CRL Design Series partition posts are popular aluminum posts for glass partitions and room dividers, stocked in common sizes for immediate delivery. Their slim profile, full‑length glazing channels, and easy‑install mounting base make them a preferred choice for banks, offices, restaurants, and other commercial interiors. The glass is secured with Cat. No. 33SC Clear Silicone. Custom 135° posts available in some finishes and sizes.

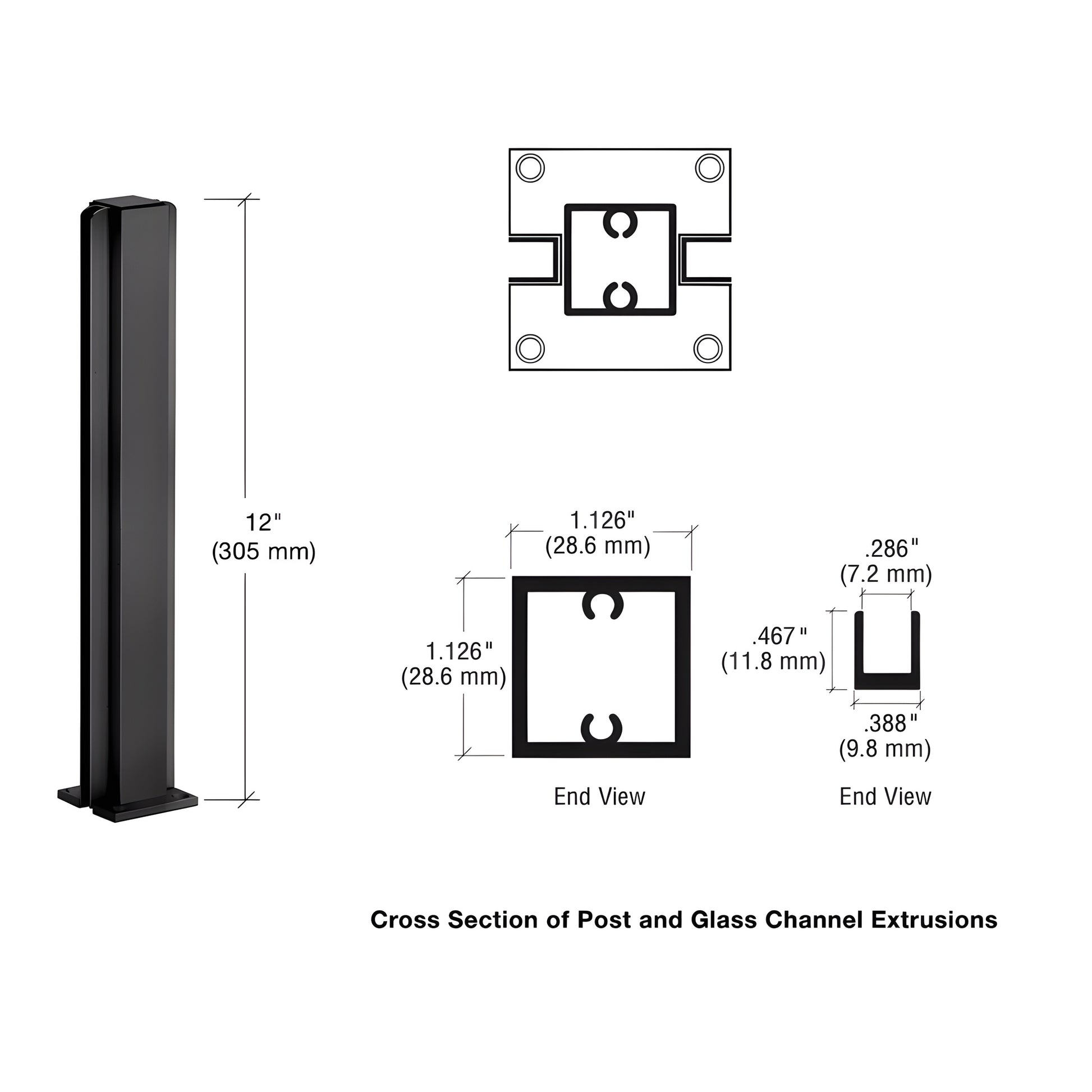

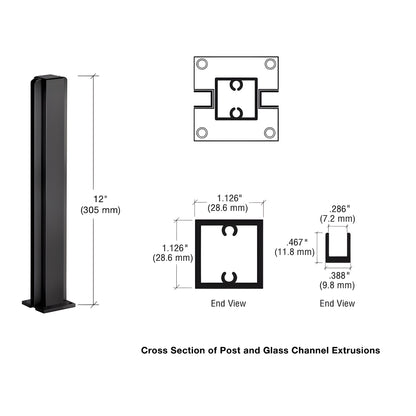

These fully assembled Design Series posts measure 1‑1/8" (28.6 mm) square. Post mounting base plates measure 2" (51 mm) square. Glazing channels run full length and rise 15/32" (12 mm) from the post surface. Glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill the channel.

You can also assemble your own Design Series partition posts with CRL components: Instructions and requirements, parts page.

Product Warning:

Secure glass into glazing channels using Cat. No. 33SC Clear Silicone.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary by monitor.



Shop now for RED‑E‑to‑ship aluminum partition posts for 1/4" tempered glass.
