CRL

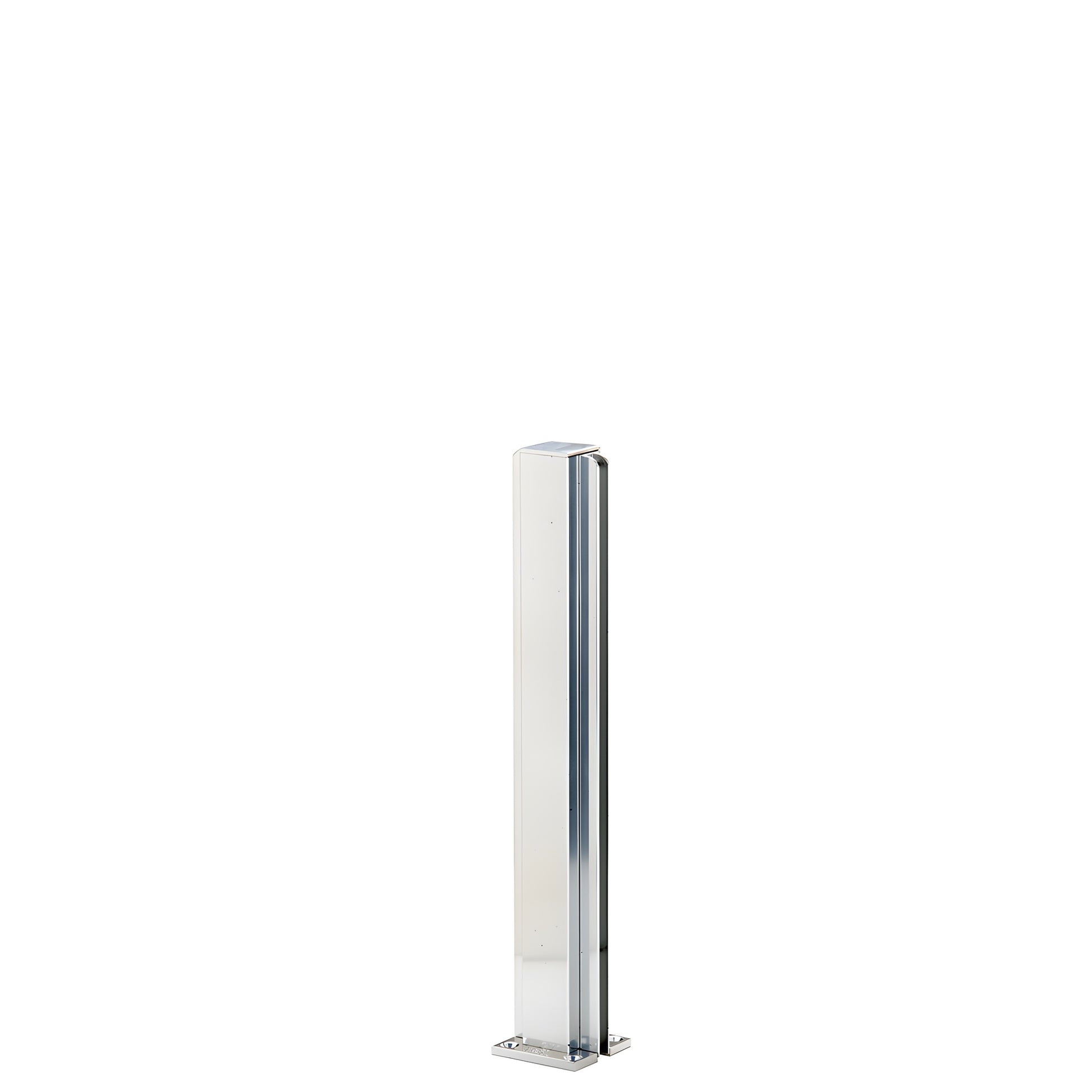

CRL Brite Anodized 12 in Center Partition Post - Stall Hardware
CRL Brite Anodized 12 in Center Partition Post - Stall Hardware
Regular price
$109.77 CAD
Regular price
Sale price
$109.77 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D990BA12C
Shipping Weight: 10.88 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.88 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Type
Square Flat - Mechanical
Cap Type
Flat
Configuration
Center Post
Finish/Color
Brite Anodized
Glazed
No
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
12 in. (304.8 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
Overview
- SKU: D990BA12C — Stock partition posts, RED-E to ship
- Standard heights: 12", 18", 24" (305, 457, 610 mm); available in four finishes
- Five configurations: End, Center, Corner, 3-Way, 4-Way
- Aluminum tubing with full‑length glazing channels for 1/4" (6 mm) tempered glass
- Includes attached top cap, mounting base, and four wood screws
- Use monolithic tempered glass; glazing vinyl supplied for 1/4" (6 mm) and 3/16" (5 mm) glass
CRL Design Series partition posts are a popular choice for glass partitions and tempered glass office dividers. Ready for immediate delivery, these aluminum partition posts feature a slim profile, full‑length glazing channels, and an easy‑to‑install mounting base — ideal for banks, offices, and restaurants. Glass is secured with Cat. No. 33SC Clear Silicone. Select finishes and sizes also offer Custom 135° posts. Each post ships fully assembled with one attached top cap, one attached mounting base, and four wood screws.

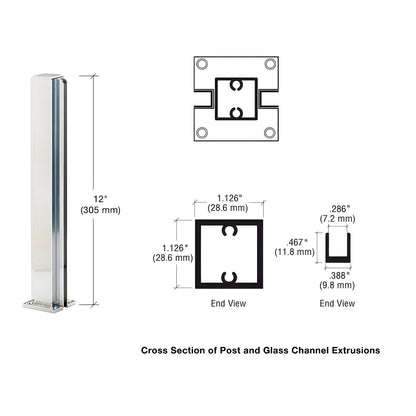

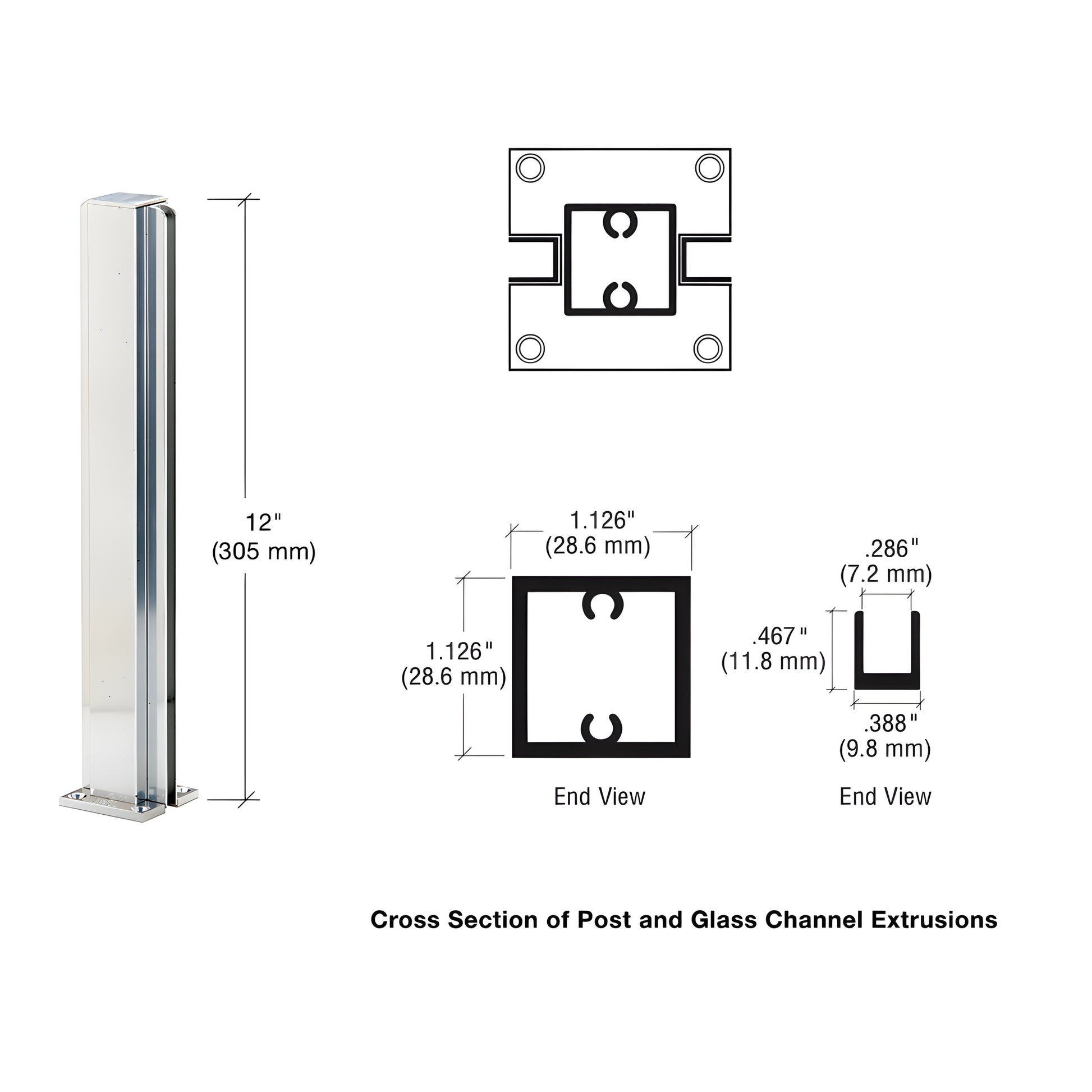

These posts measure 1-1/8" (28.6 mm) square. Mounting base plates measure 2" (51 mm) square. Glazing channels rise 15/32" (12 mm) from the post surface. You can also build custom Design Series partition posts using CRL components — see instructions and requirements and the parts page.
Product Warning:
Glass is secured into the glazing channels using Cat. No. 33SC Clear Silicone.
Upgrade your glass partition project with CRL Design Series posts — order SKU D990BA12C or contact us for help choosing finishes and configurations.
