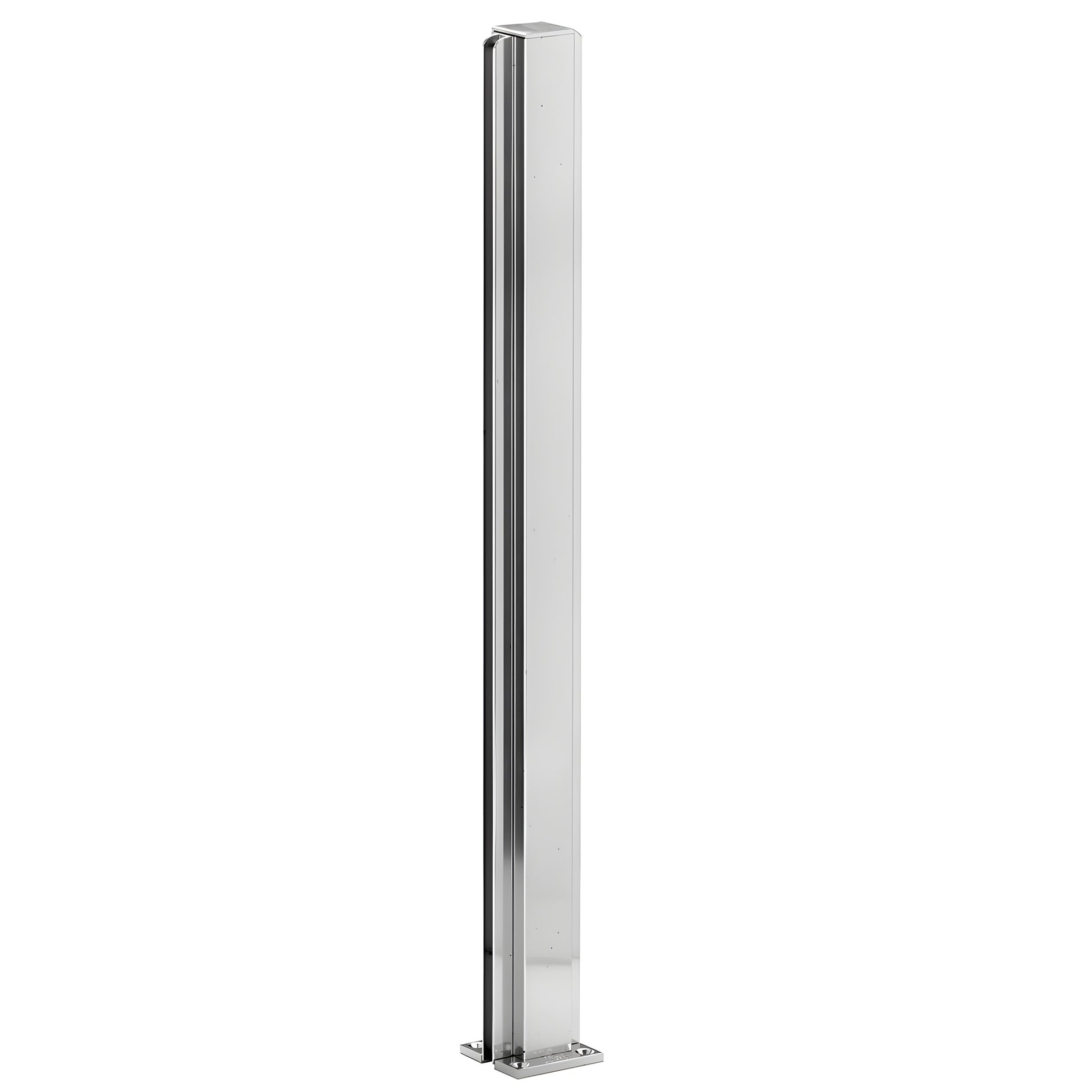

CRL Brite Anodized 30" Aluminum Center Design Restroom Partition Post

• Stock post sizes, RED-E to ship
• Standard heights: 12", 18", 24" (305, 457, 610 mm); available in four finishes
• Five standard configurations: End, Center, Corner, 3-Way, 4-Way
• Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
• Top cap and mounting base included; use monolithic tempered glass

CRL Design Series partition posts (SKU D990BA30C) are popular, in-stock aluminum posts for glass partitions used in banks, offices, and restaurants. The slim-line profile, full-length glazing channels, and easy-to-install mounting base make these aluminum partition posts for glass quick to fit and reliable in commercial interior applications. Glass is secured with Cat. No. 33SC Clear Silicone. Some finishes and sizes are also available as custom 135° posts. Each post ships fully assembled with one attached top cap, one attached mounting base, and four wood screws.

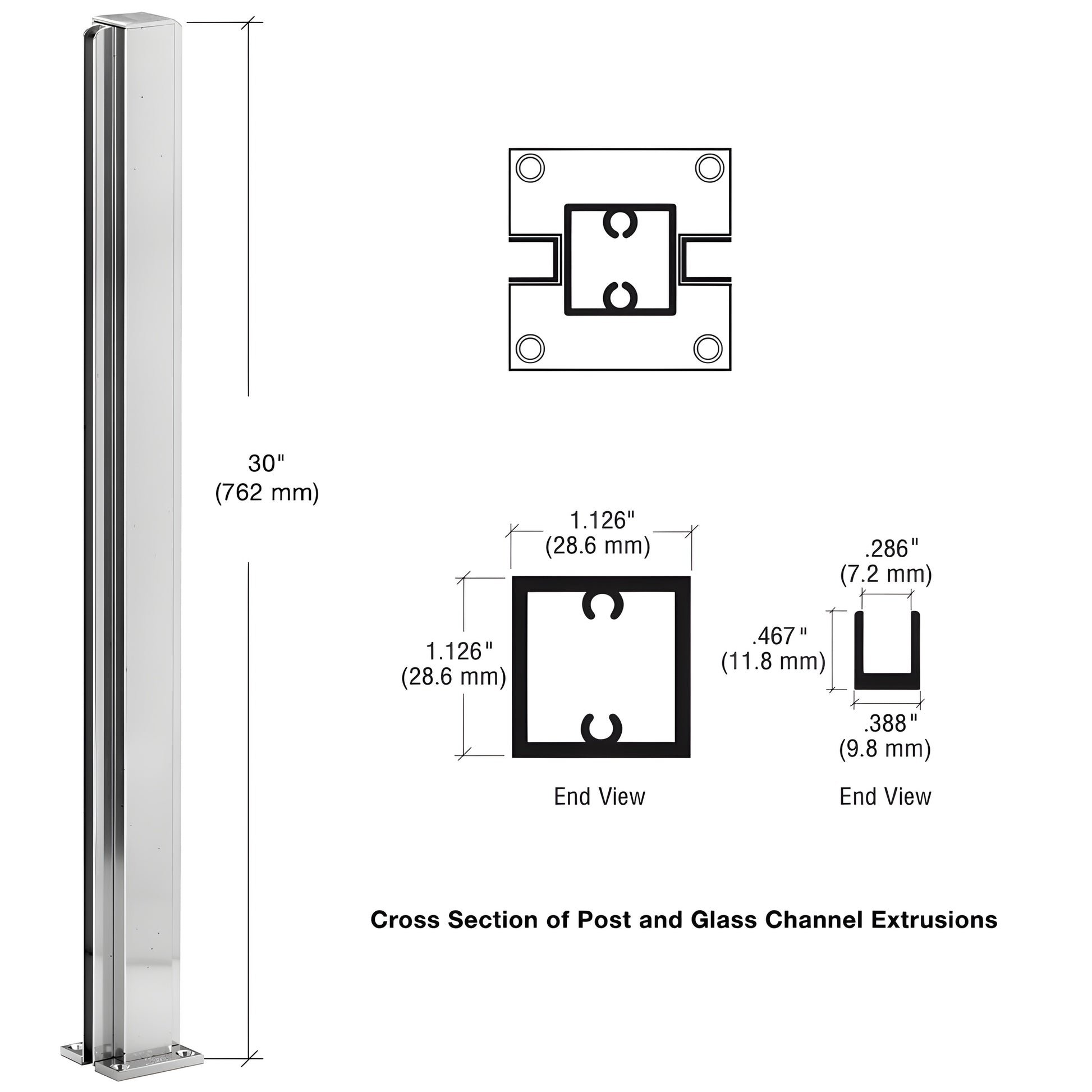

These Design Series posts measure 1-1/8" (28.6 mm) square. Mounting base plates measure 2" (51 mm) square. Glazing channels run the full post length and rise 15/32" (12 mm) from the post surface. Glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill the glass channel.

You can also "Make Your Own" Design Series partition posts with CRL components — instructions and requirements, parts page.

Product Warning:

Secure glass into glazing channels using Cat. No. 33SC Clear Silicone.

Order SKU D990BA30C or contact CRL Customer Service to confirm finish availability and lead times.
