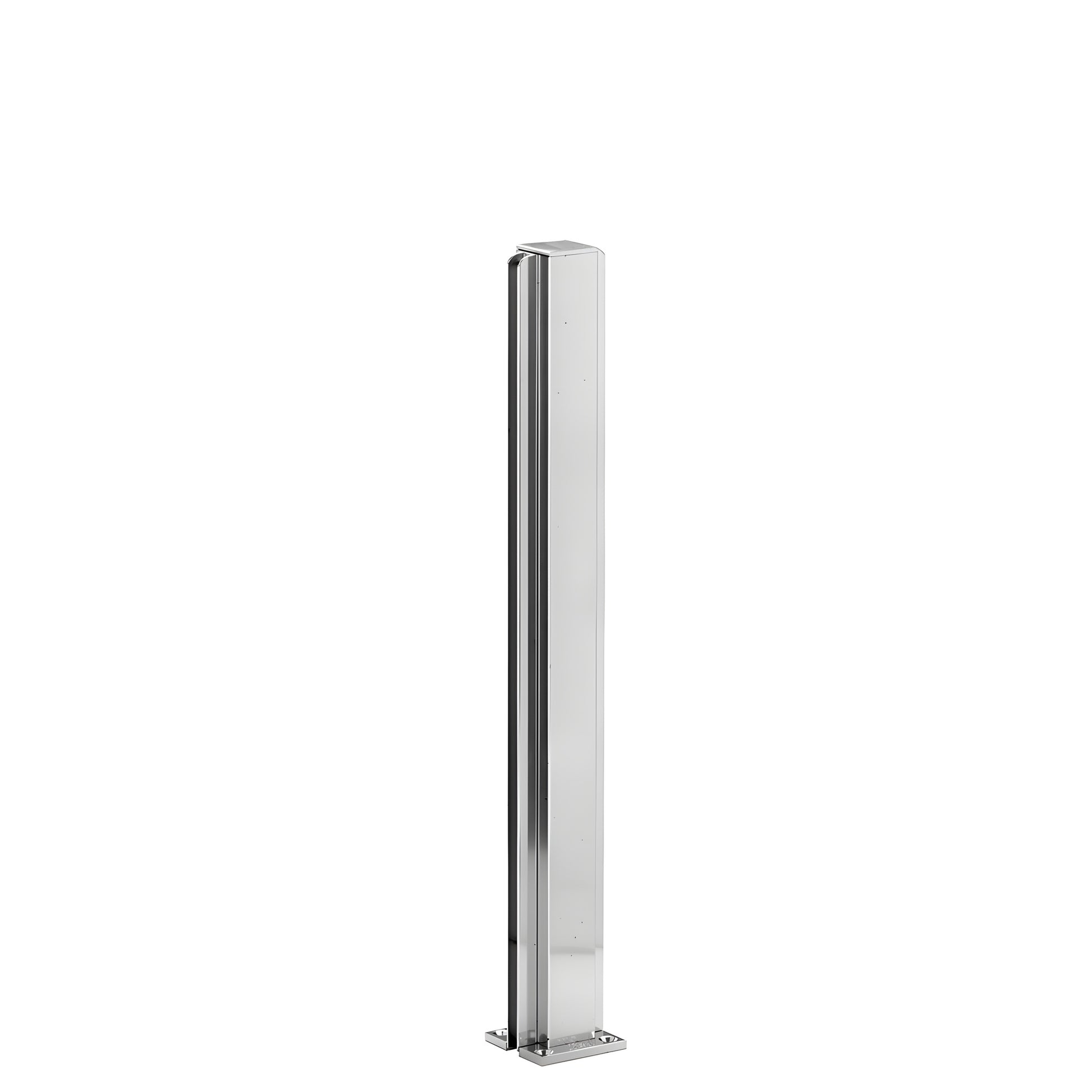

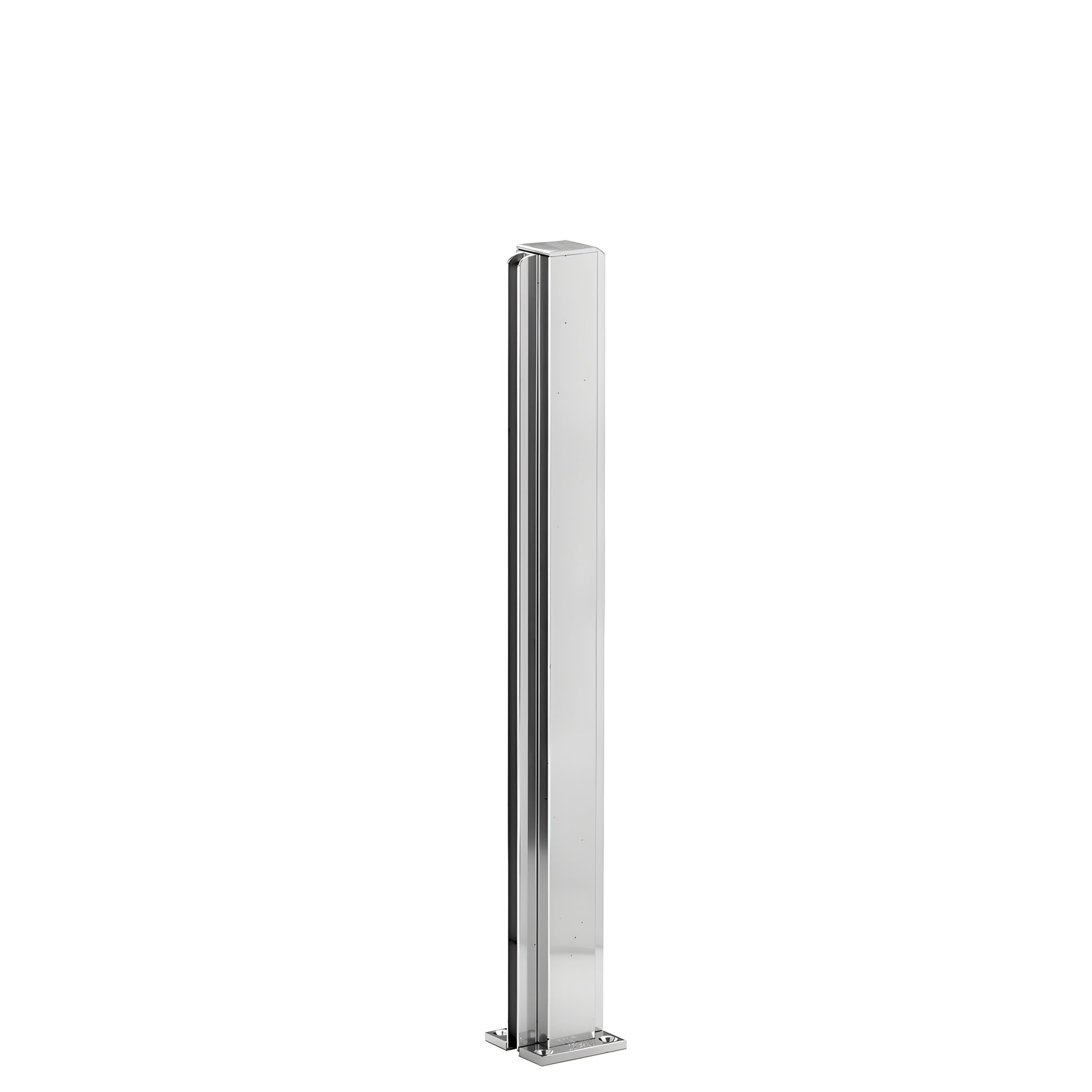

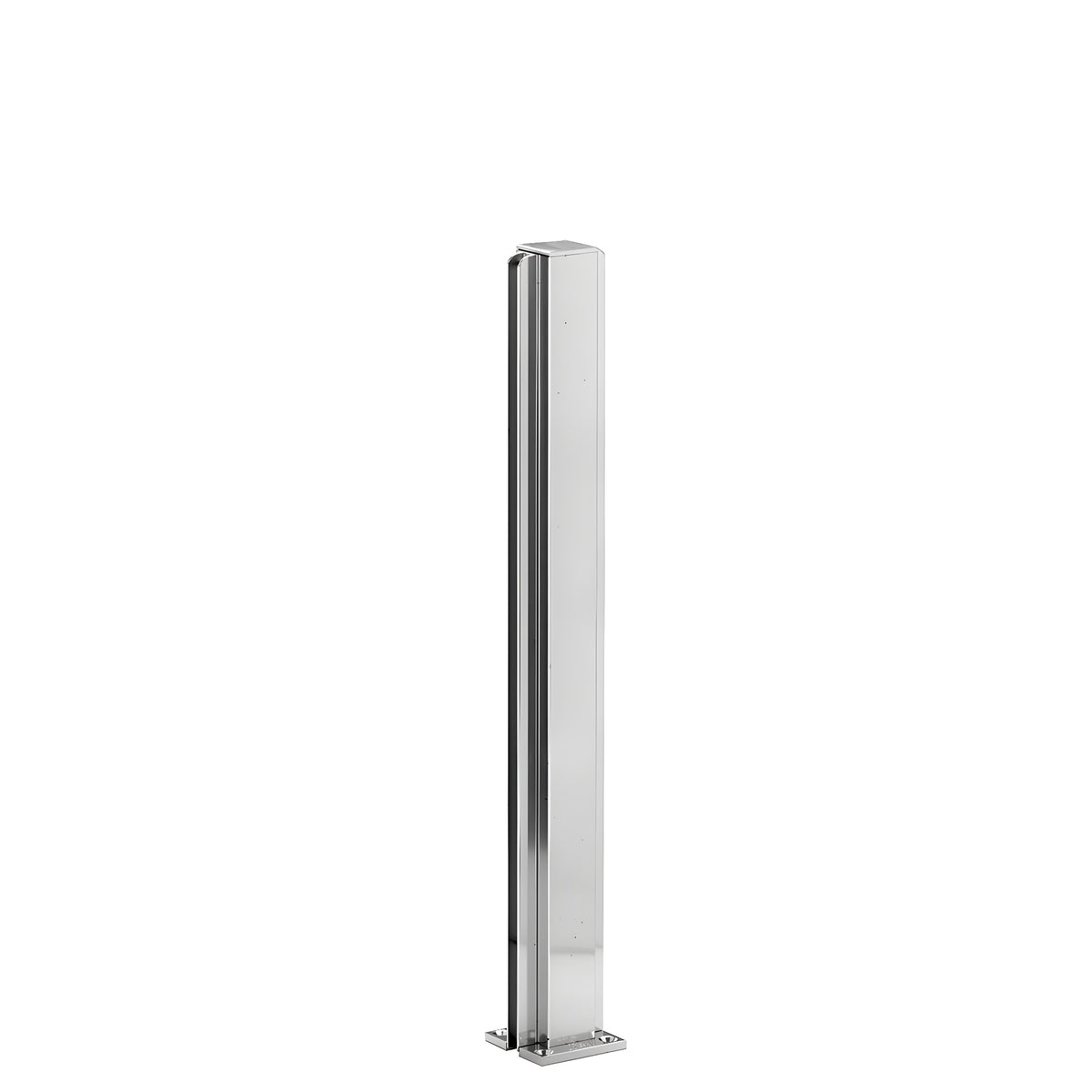

CRL Brite Anodized 18 in Center Partition Post - Design Series

• Stock post sizes, RED-E to ship — SKU D990BA18C
• Standard heights: 12", 18", and 24" (305, 457, 610 mm) in four finishes
• Five configurations: End, Center, Corner, 3-Way, and 4-Way
• Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
• Top cap and mounting base included; mounting screws supplied
• Designed for monolithic tempered glass; glazing vinyl supplied for 1/4" (6 mm) and 3/16" (5 mm) glass

CRL Design Series partition posts are popular glass partition posts for offices, banks, restaurants and commercial interiors. Available in standard stock sizes for immediate delivery, these slim-profile, easy-to-install posts feature full-length channels that secure 1/4" tempered glass panels using Cat. No. 33SC Clear Silicone. Some finishes and sizes also offer Custom 135° posts. Each fully assembled post includes one attached top cap, one attached mounting base and four wood screws.

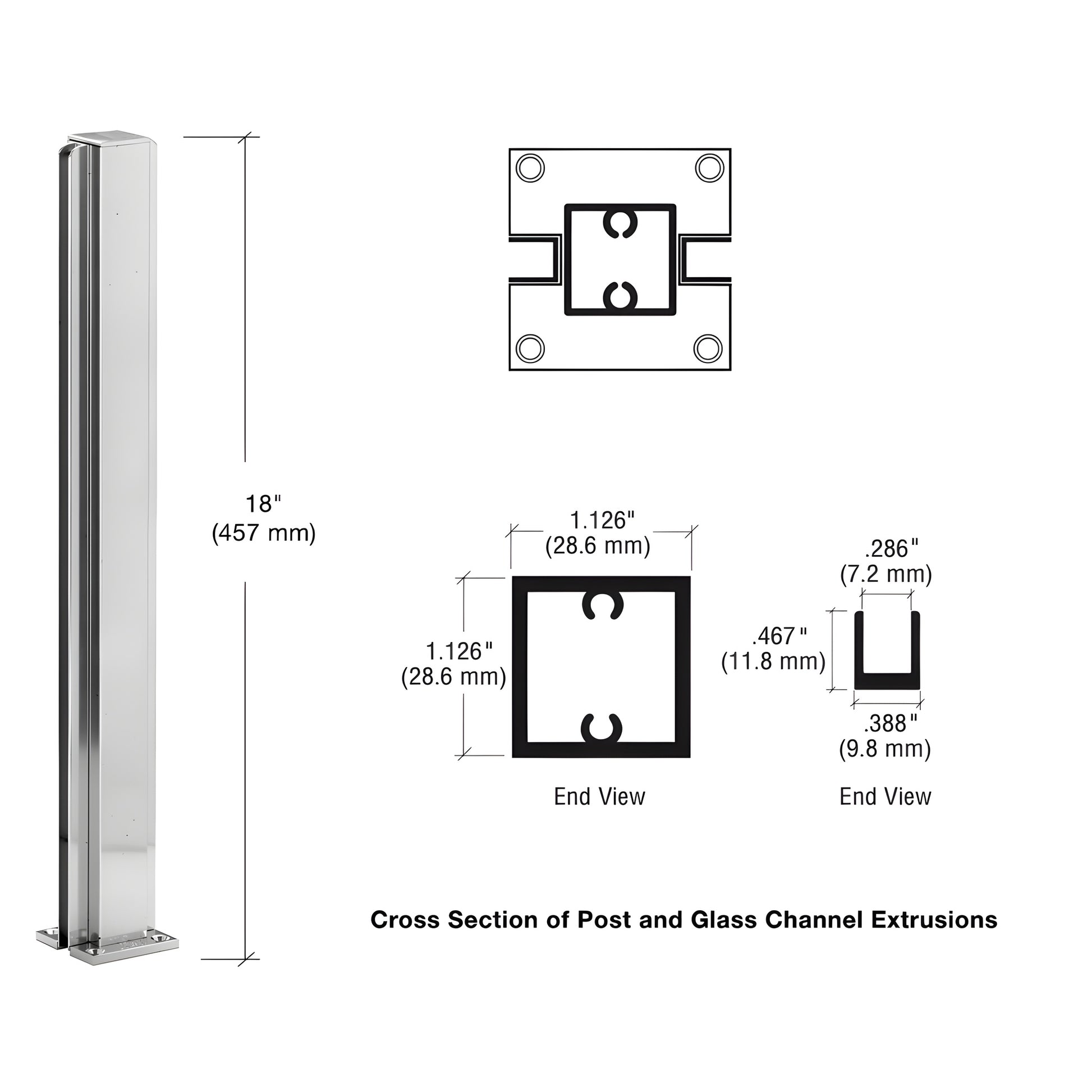

These Design Series posts measure 1-1/8" (28.6 mm) square with 2" (51 mm) square mounting base plates. Glazing channels rise 15/32" (12 mm) from the post surface. Use supplied glazing vinyl to fill the channel for 1/4" and 3/16" glass.

You can also "Make Your Own" Design Series partition posts with CRL components — see instructions and requirements and the parts page.

Product note: Secure glass into glazing channels using Cat. No. 33SC Clear Silicone as recommended.


Order CRL Design Series partition posts (SKU D990BA18C) today for fast delivery and reliable tempered glass partition installation.
