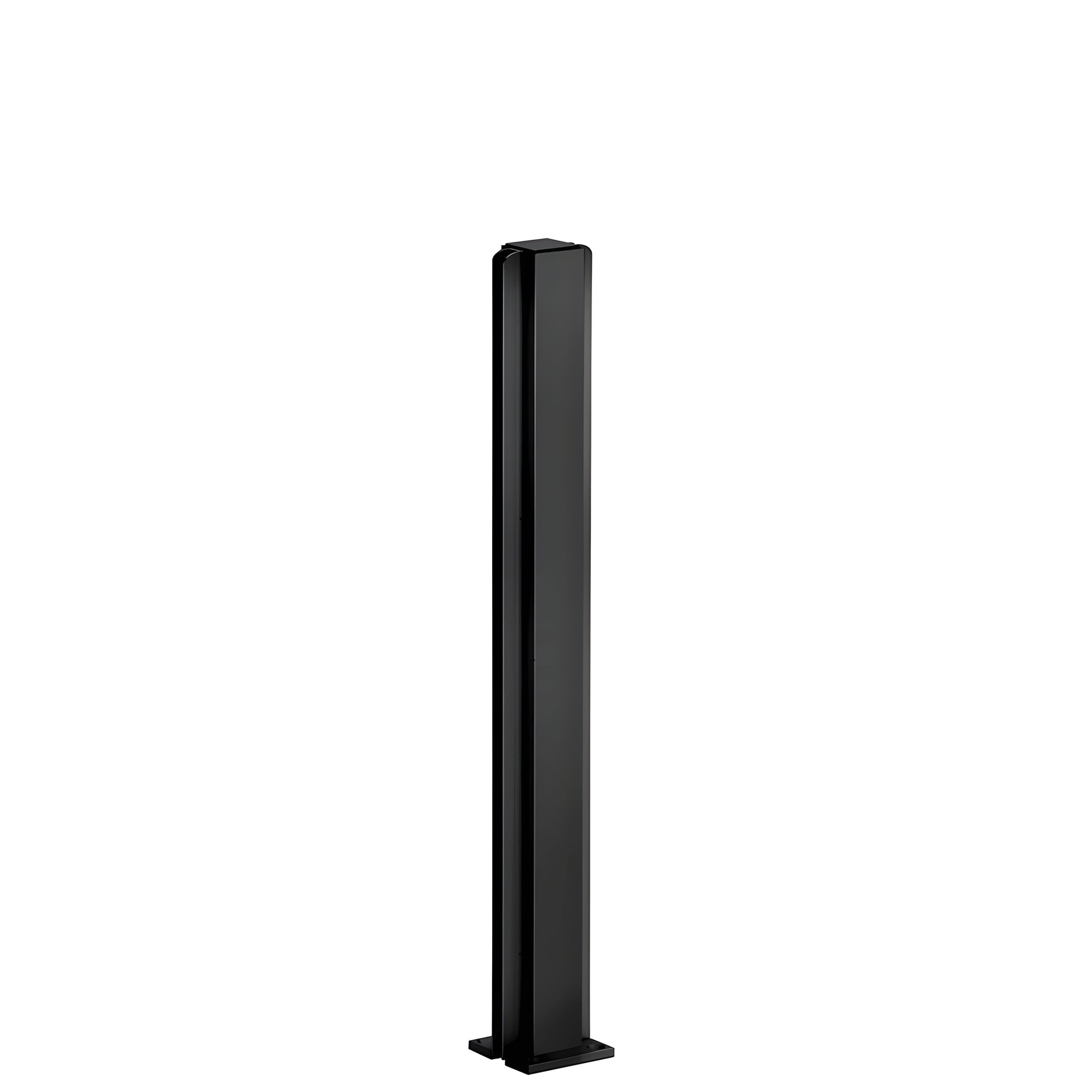

CRL Matte Black 18" Center-Mount Partition Support Post
Item# D990MBL18C
Shipping Weight: 15.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 15.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Base Diameter
2 in. (50.8 mm)
Configuration
Center Post
Finish/Color
Matte Black (PU19115)
Glazing Thickness
1/4 in. (6 mm)
Height
18 in. (457.2 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6mm)
Tube Type
Square
- Stock Post Sizes, RED-E to Ship
- Standard heights: 12", 18", and 24" (305, 457, and 610 mm) — available in four finishes
- Five standard configurations: End, Center, Corner, 3-Way, and 4-Way
- Aluminum tubing with full‑length glazing channels for 1/4" (6 mm) glass
- Top cap and mounting base included; four wood screws supplied
- Designed for monolithic tempered glass
CRL Design Series Partition Posts (SKU D990MBL18C) are popular, ready-to-ship aluminum partition posts used for years in banks, office glass partitions, restaurants, and other commercial interiors. Their slim-line profile, full-length glazing channels, and easy-to-install mounting base simplify installation for framed and semi-frameless glass divider projects. The glass is secured into the channels using Cat. No. 33SC Clear Silicone. Custom 135° posts are also available in select finishes and sizes. Each post ships fully assembled with one attached top cap, one attached mounting base, and four wood screws.

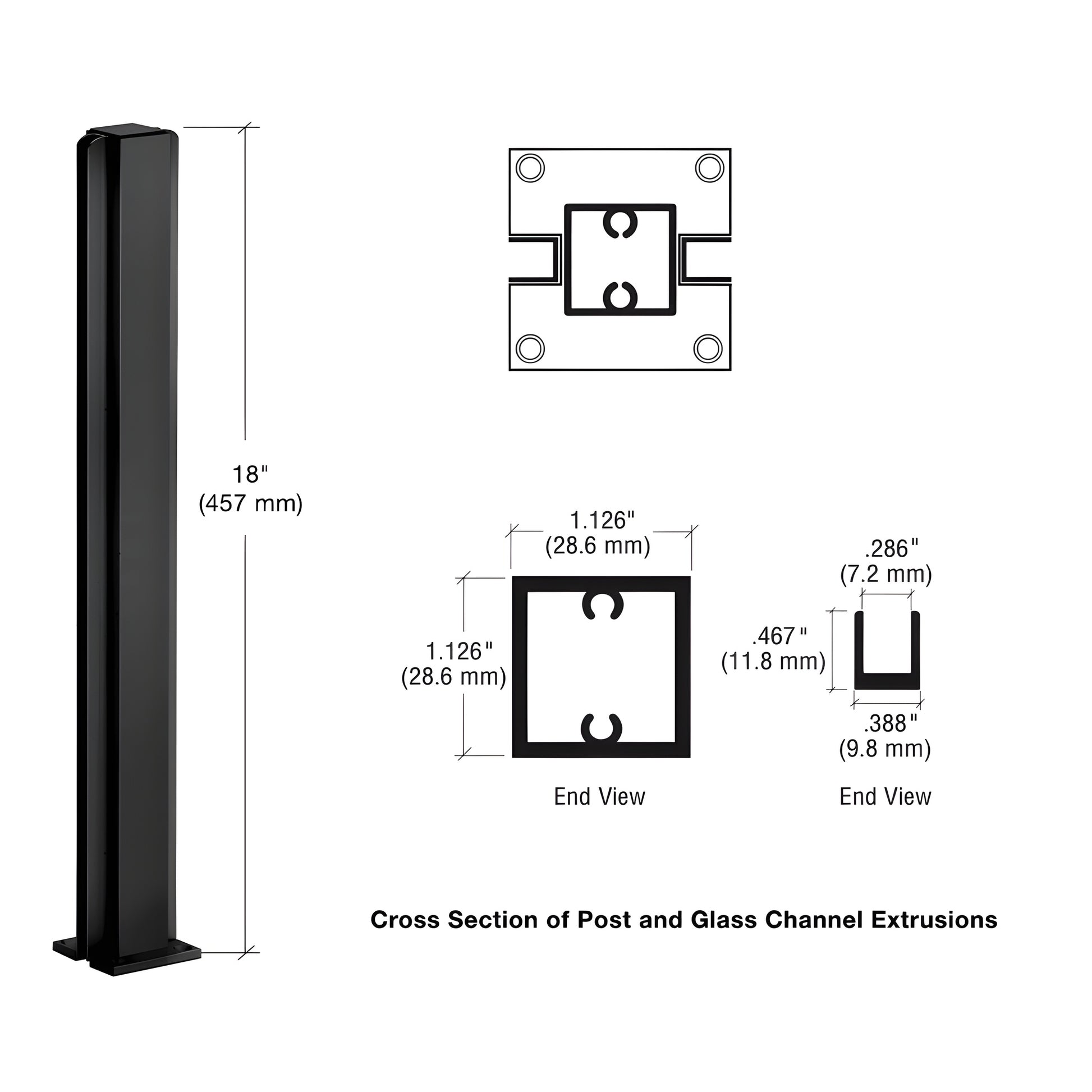

These Design Series posts measure 1-1/8" (28.6 mm) square. Post mounting base plates measure 2" (51 mm) square. Glazing channels run the full length and rise 15/32" (12 mm) from the post surface. Glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill the channel.
Want to build your own? "Make Your Own" Design Series Partition Posts with CRL components — see instructions and requirements and the parts page.
Product Warning:
The glass is secured into the glazing channels using Cat. No. 33SC Clear Silicone.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.
Order CRL Design Series Partition Posts (SKU D990MBL18C) today for fast shipping and reliable performance in commercial glass partition installations.
