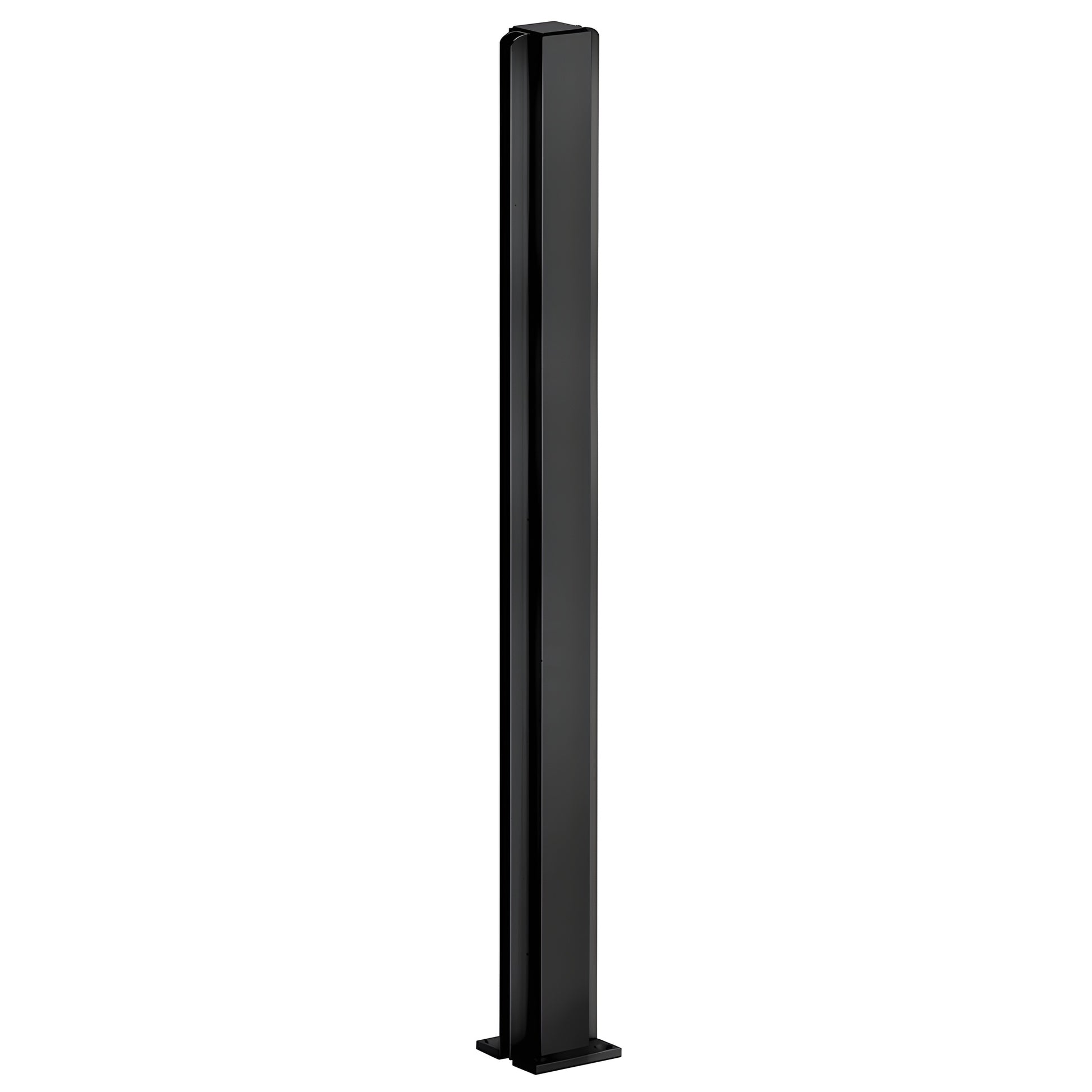

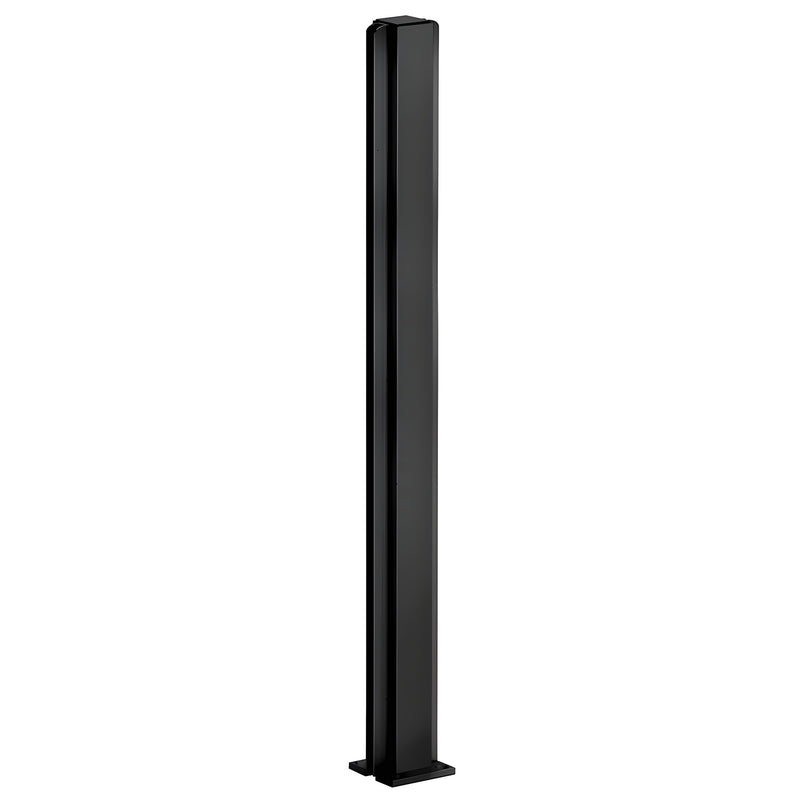

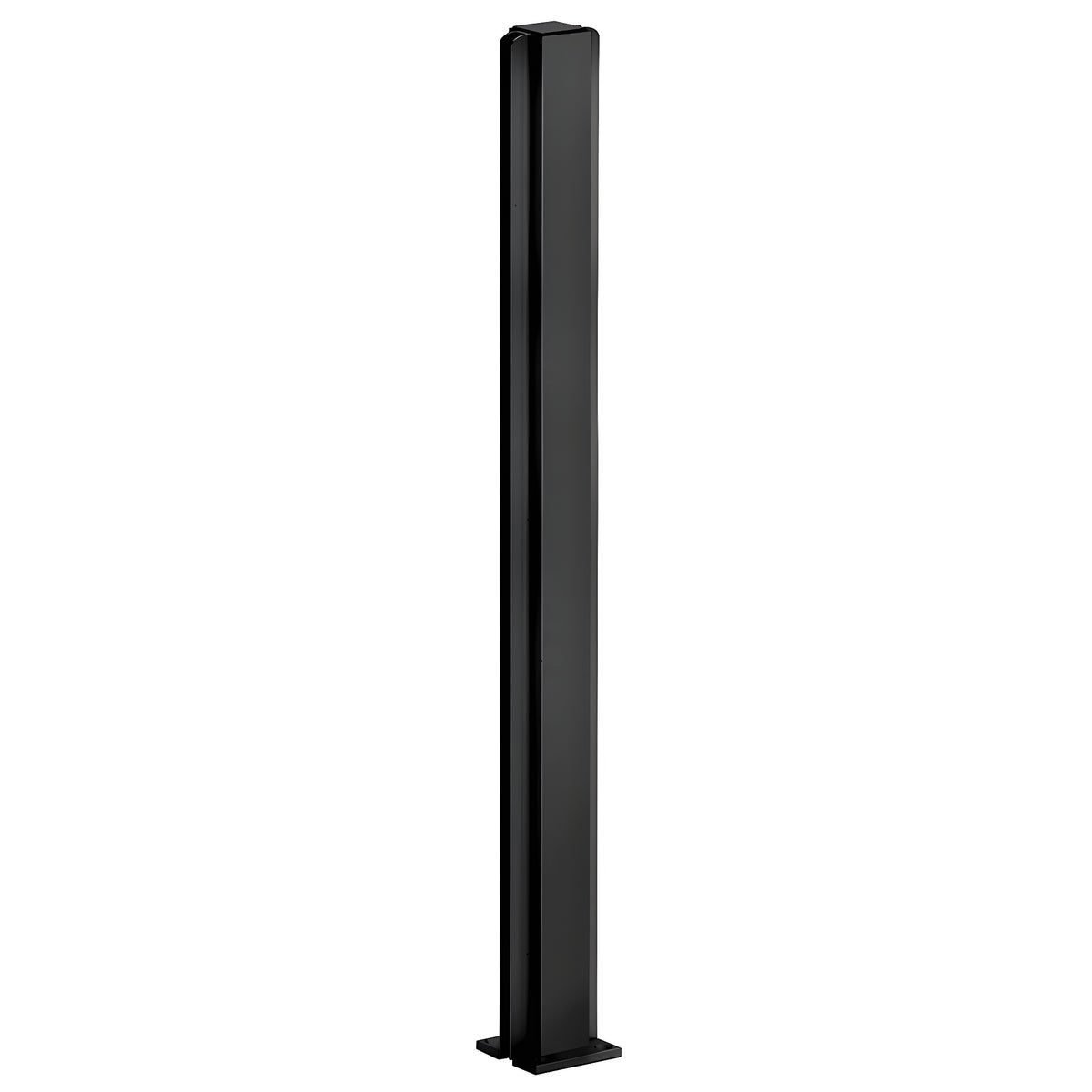

CRL Center Design Series Matte Black 30 in Glass Partition Post
Item# D990MBL30C
Shipping Weight: 1.565 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.565 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Base Diameter
2 in. (50.8 mm)
Configuration
Center Post
Finish/Color
Matte Black (PU19115)
Glazing Thickness
1/4 in. (6 mm)
Height
30 in. (762 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
- Stock post sizes, RED-E to Ship — SKU: D990MBL30C
- Standard heights: 12", 18", and 24" (305, 457, and 610 mm) in four finishes
- Five configurations: End, Center, Corner, 3-Way, and 4-Way
- Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
- Top cap and mounting base included; mounting screws supplied
- Use monolithic tempered glass; glazing vinyl supplied for 1/4" (6 mm) and 3/16" (5 mm) glass

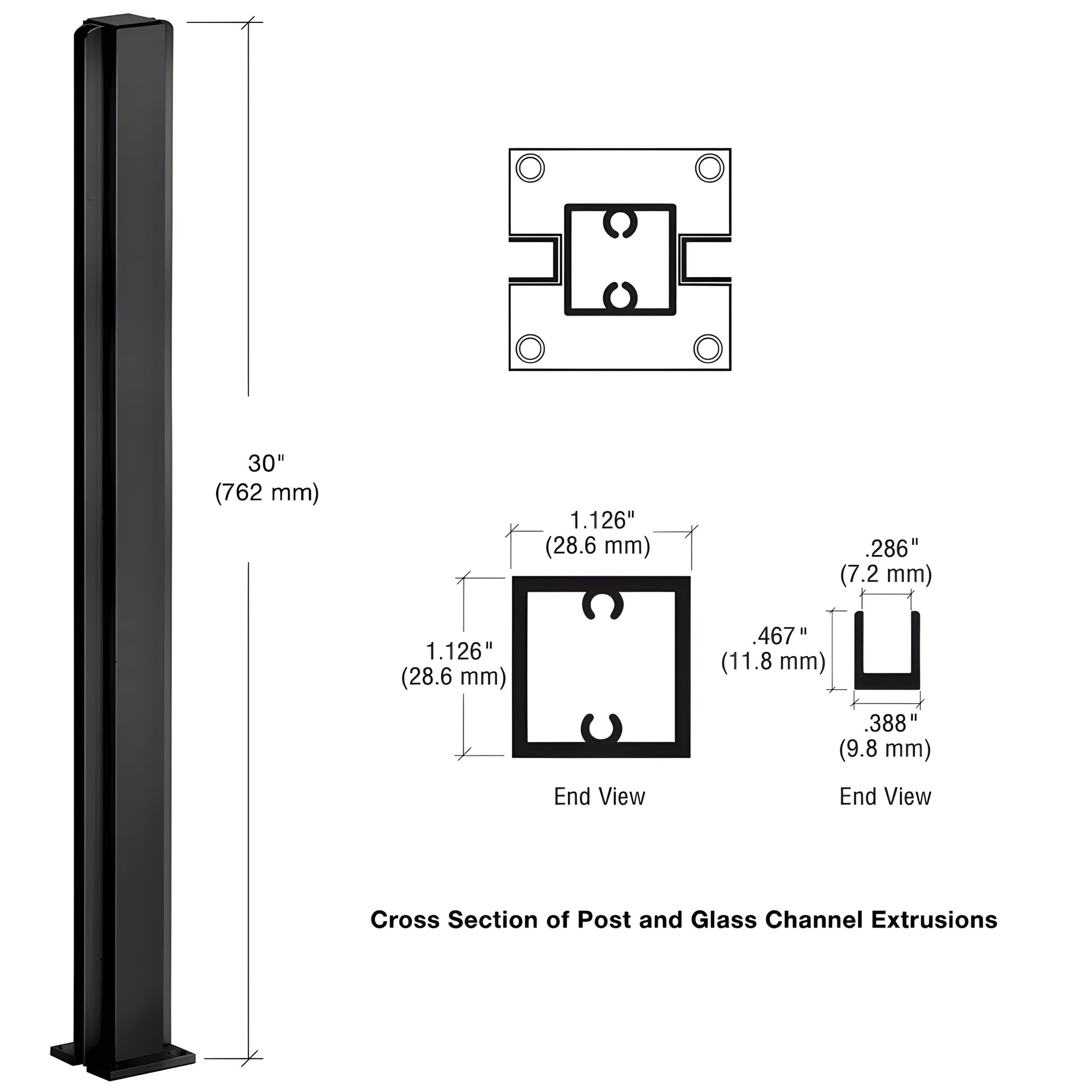

CRL Design Series partition posts for glass offer a slim-line profile and easy installation, making them a go-to choice for banks, offices, and restaurants. These fully assembled posts measure 1-1/8" (28.6 mm) square with 2" (51 mm) square mounting base plates. Full-length glazing channels rise 15/32" (12 mm) from the post surface and accept glass secured with Cat. No. 33SC Clear Silicone.
Also available: Custom 135° posts in select finishes and sizes. Each post includes one attached top cap, one attached mounting base, and four wood screws.
You can also "Make Your Own" Design Series partition posts with CRL components — instructions and requirements, parts page.
Product Warning:
Secure glass into glazing channels using Cat. No. 33SC Clear Silicone.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service prior to ordering. Product images are of the actual product or a close representation; colors may vary by monitor.
Ready for immediate delivery — order Design Series partition posts (SKU: D990MBL30C) today.
