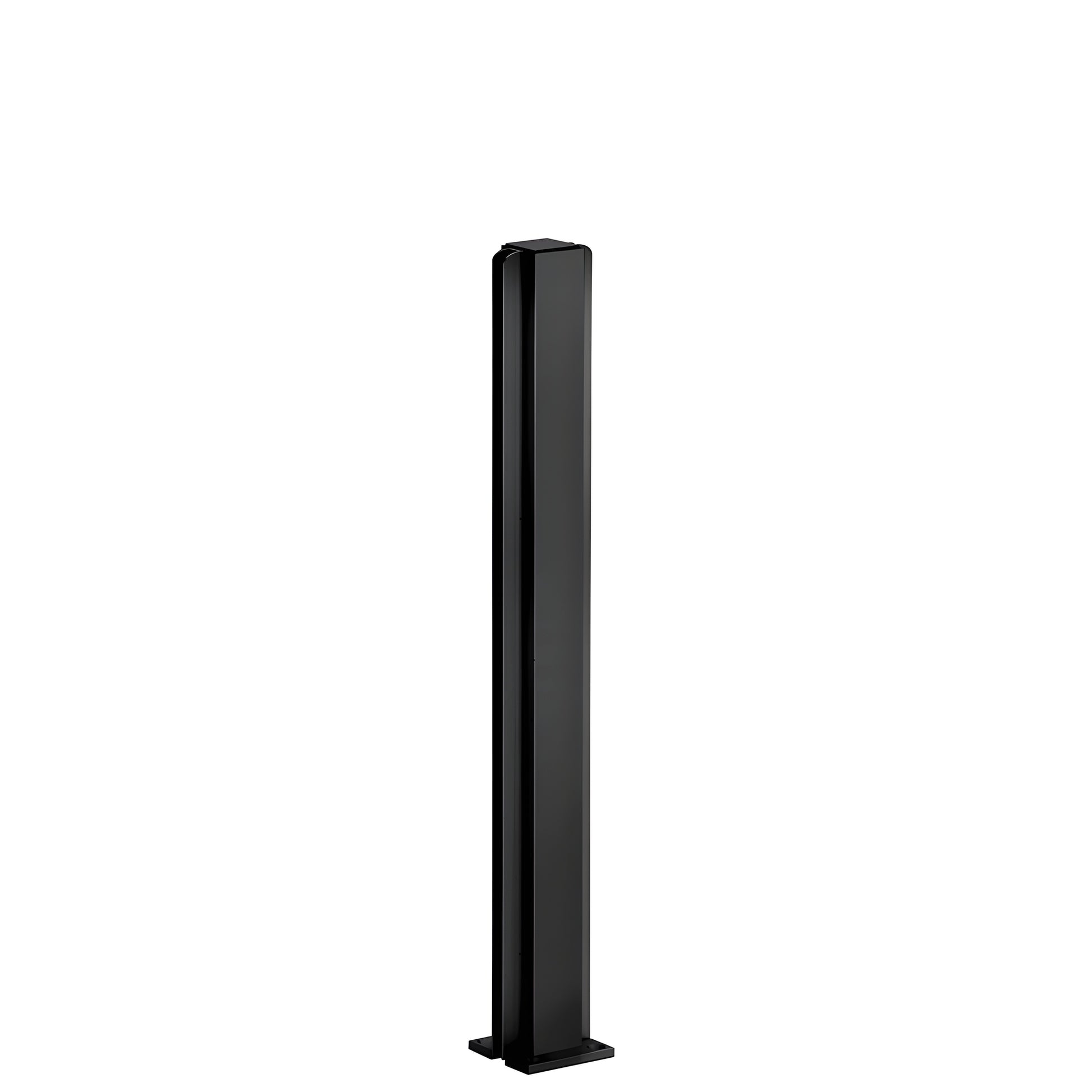

CRL 18" Design Series Center Mount Partition Post - Semi-Gloss Black
CRL 18" Design Series Center Mount Partition Post - Semi-Gloss Black
Regular price
$157.01 CAD
Regular price
Sale price
$157.01 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D990BL18C
Shipping Weight: 15.04 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 15.04 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Center
Finish/Color
Semi-Gloss Black (PSP290005)
Glazing Thickness
3/16 in. & 1/4 in. (5 mm & 6 mm)
Height
18 in. (457.2 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
Overview
- Stock post sizes, RED-E to ship
- Standard heights: 12", 18", and 24" (305, 457, and 610 mm) in four finishes
- Five configurations: End, Center, Corner, 3‑Way, and 4‑Way
- Aluminum tubing with full‑length glazing channels for 1/4" (6 mm) glass
- Includes attached top cap and mounting base (four wood screws included)
- Designed for monolithic tempered glass; glazing vinyl supplied for 1/4" (6 mm) and 3/16" (5 mm) glass
SKU: D990BL18C
CRL Design Series partition posts are popular aluminum partition posts used in banks, offices, restaurants, and commercial interiors. The slim-line profile and easy-to-install mounting base make these partition posts a trusted choice for glass office partitions, restroom dividers, and countertop barriers. Full‑length glazing channels secure 1/4" tempered glass panels; use Cat. No. 33SC Clear Silicone to seal and secure glass.

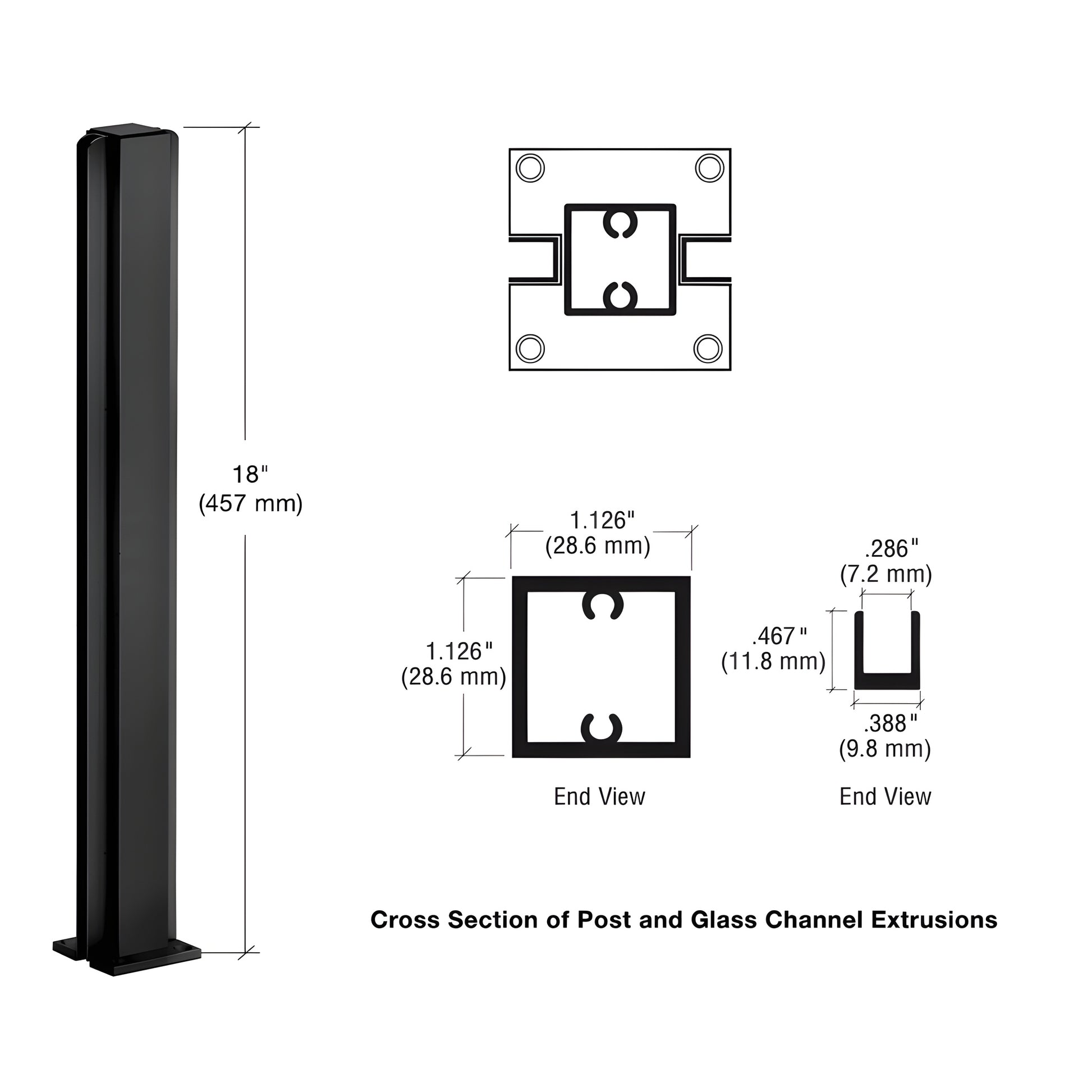

Each fully assembled post measures 1-1/8" (28.6 mm) square. Mounting base plates measure 2" (51 mm) square. Glazing channels rise 15/32" (12 mm) from the post surface. Custom 135° posts are available in select finishes and sizes. You can also build custom posts using CRL components.
Product warning: Use Cat. No. 33SC Clear Silicone to secure glass into glazing channels. Follow local building codes and safety standards when installing tempered glass partitions.
Ready to order or need a custom finish? Contact CRL Customer Service or add SKU D990BL18C to your cart now.
