CRL Satin Anodized Euro Patch Kit for Double Glass Doors - No Lock

• For 3/8" or 1/2" (10 or 12 mm) tempered glass
• Five architectural finishes
• Available with or without locks

Complete pivot door hardware kit for paired free-swinging glass doors with a fixed transom and sidelite (glass and additional supports for the fixed transom and sidelite not included). Pivot setback: 2-9/16" (65 mm). Compatible with floor closers that use a tapered spindle (ordered separately). Ideal for commercial storefronts and interior glass double doors requiring durable, architectural-grade European hardware.

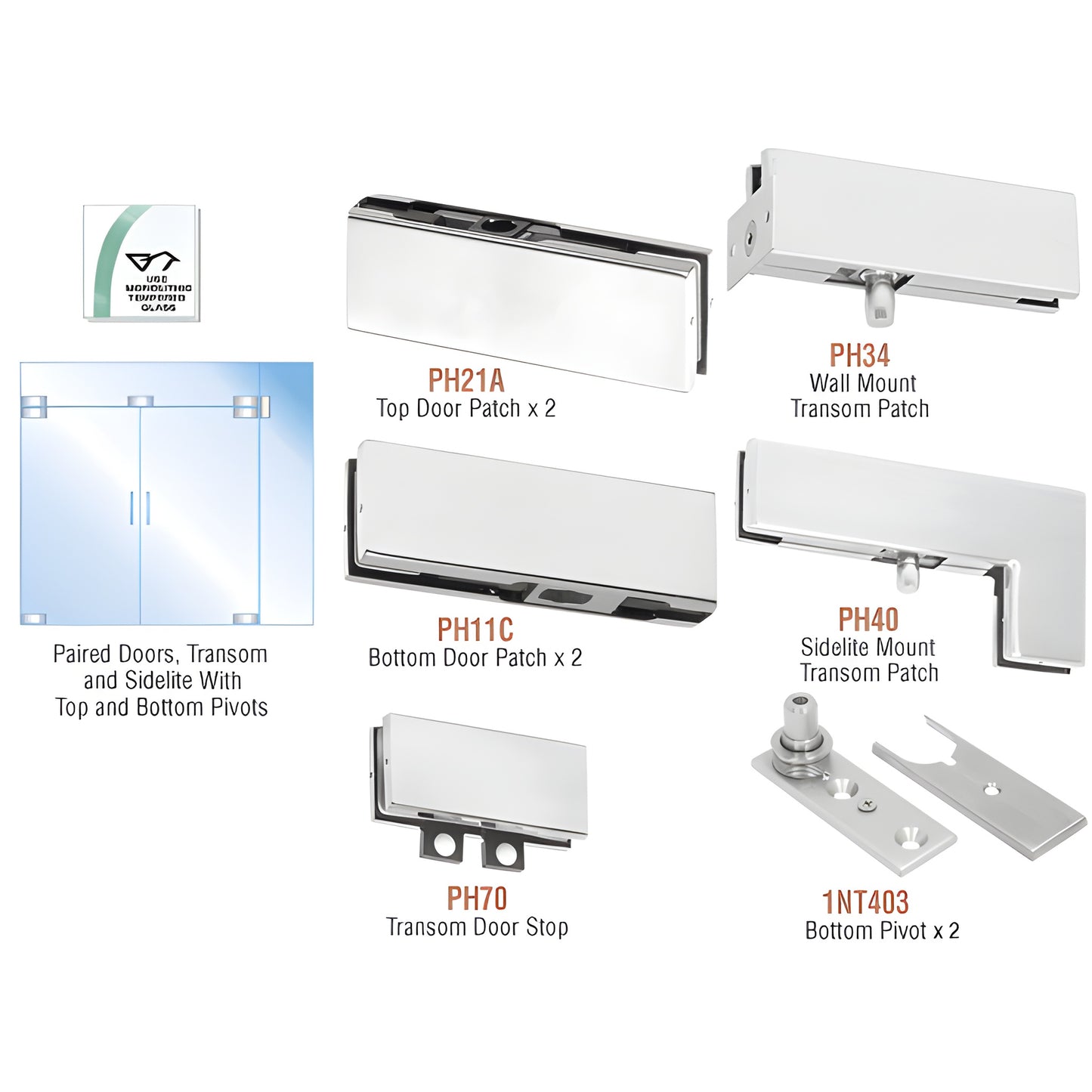

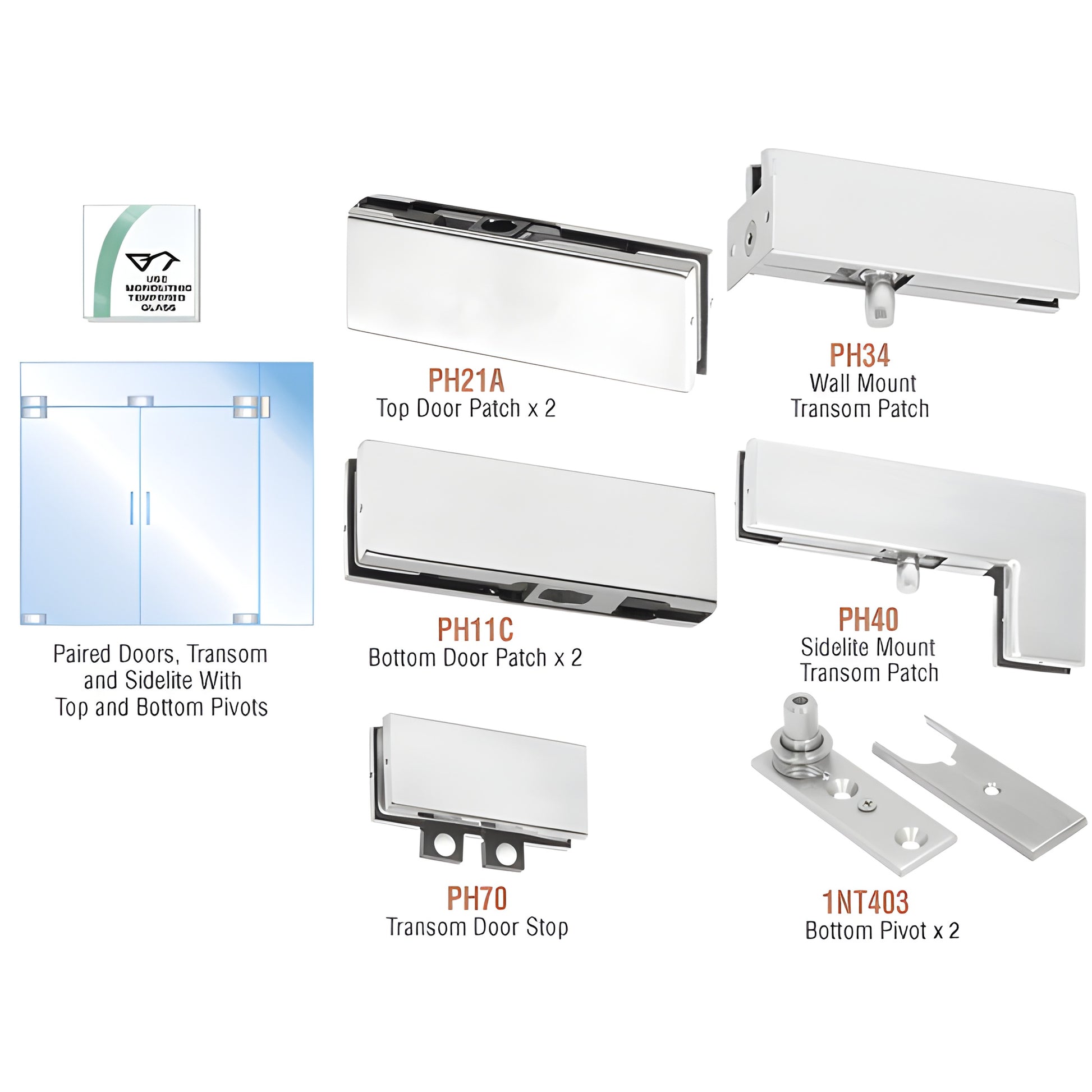

• 1 - PH34 Wall Mount Transom Patch
• 1 - PH40 Sidelite Mount Transom Patch
• 2 - PH21A Top Door Patches
• 2 - PH11C Bottom Door Patches
• 1 - PH70 Transom Door Stop
• 2 - 1NT403 Bottom Pivots
• Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass must be drilled/notched as required)

Kits with locks include two Cat. No. EUR205 patch locks; cylinders, thumbturns, and keepers are ordered separately.

NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Optimize your glass double door project with the CRL PHE7A European double door kit — order now or contact us for pricing and lead times.
