• PHE6A European double-door frameless glass patch kit, satin anodized, fits 3/8-1/2 glass; includes pivots and patches
1 1

CRL

CRL Satin Anodized European Patch Kit for Double Glass Doors, No Lock

CRL Satin Anodized European Patch Kit for Double Glass Doors, No Lock

$769.57 CAD
$769.57 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHE6A
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Pair With Transom
Door Type
A Style Glass Door
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16

Overview

  • Most Popular Design — CRL PHE6A European double door kit
  • Fits 3/8" or 1/2" (10 or 12 mm) tempered glass for frameless doors
  • Available with or without locks (locks sold as EUR205 patch locks; cylinders, thumbturns, and keepers ordered separately)

CRL PHE6 European Double Door Kits (SKU: PHE6A) include complete hardware to assemble a pair of free-swinging frameless glass doors with a fixed transom (glass and any additional transom supports not included). Pivot setback: 2-9/16" (65 mm). Compatible with standard floor closers using a tapered spindle (floor closer ordered separately).

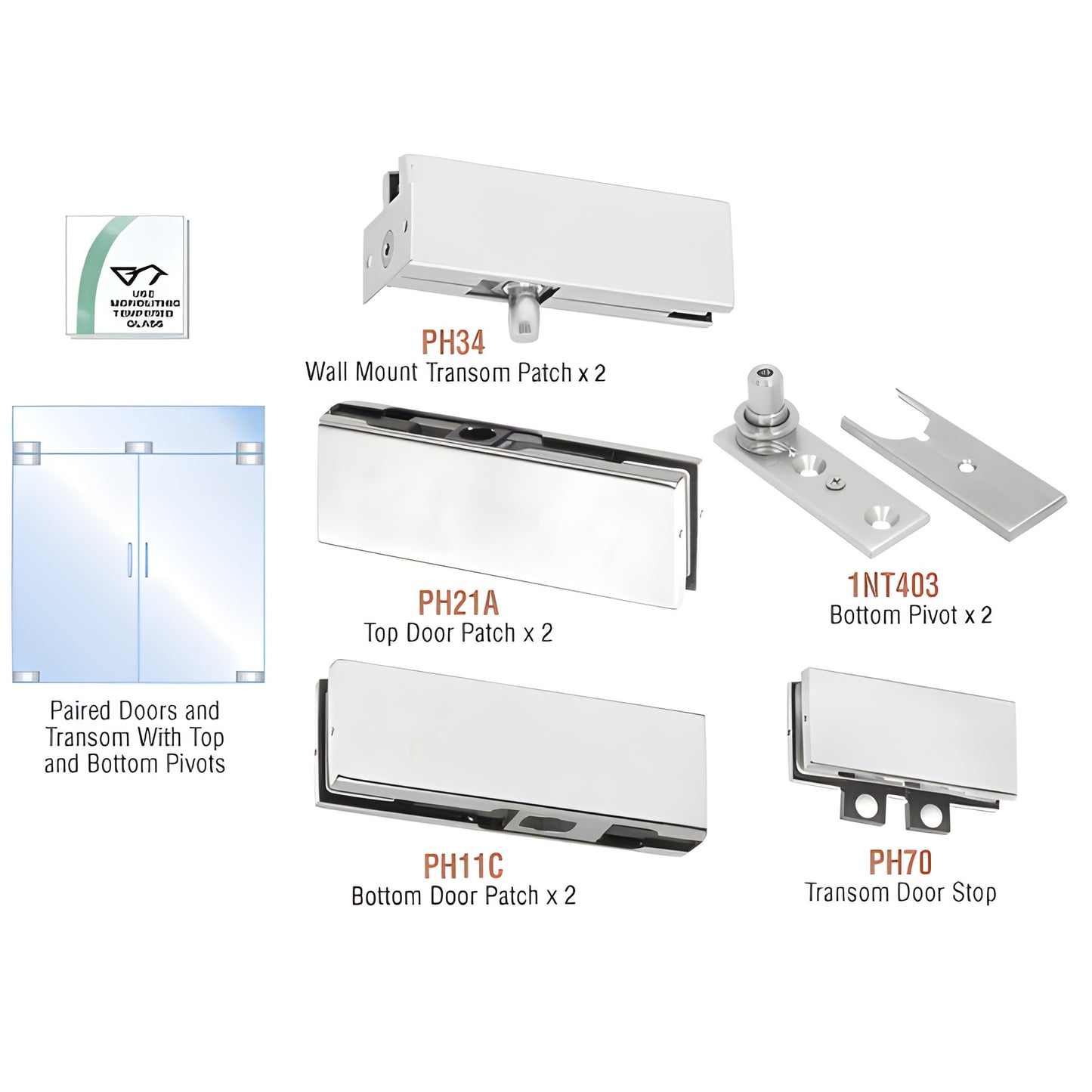

Kit Contains:

  • 2 - PH34 Wall Mount Transom Patches
  • 2 - PH21A Top Door Patches
  • 2 - PH11C Bottom Door Patches
  • 1 - PH70 Transom Door Stop
  • 2 - 1NT403 Bottom Pivots
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass requires holes and notches)

Kits with locks include two Cat. No. EUR205 patch locks. Cylinders, thumbturns, and keepers are sold separately. For maximum door sizes and safe installation, CRL follows GANA Guidelines.

Shipping weights are approximate. If exact shipping weight is required to determine shipping costs, contact CRL Customer Service prior to ordering. Product images are representative; color may vary by monitor and video settings.

Choose the PHE6A kit for a reliable European-style double-door patch fitting solution for tempered glass storefronts and interior frameless glass doors. Order now or contact us for specifications and pricing.
