CRL Satin Anodized European Patch Kit for Double Glass Doors No Lock

• For 3/8" or 1/2" (10 or 12 mm) tempered glass
• Available with or without locks

CRL PHE8 European Double Door Kits (SKU: PHE8A) include all hardware needed to install a pair of free-swinging frameless glass doors with a fixed transom and two sidelites (glass and additional supports for the fixed transom and sidelites not included). Designed for commercial and residential frameless glass door installations, this European-style double-door kit supports pivot setback of 2-9/16" (65 mm). Compatible with a separately ordered floor closer with tapered spindle. Ideal long-tail keywords: European double door kit for tempered glass, frameless glass door hardware kit, PHE8A double door pivot kit.

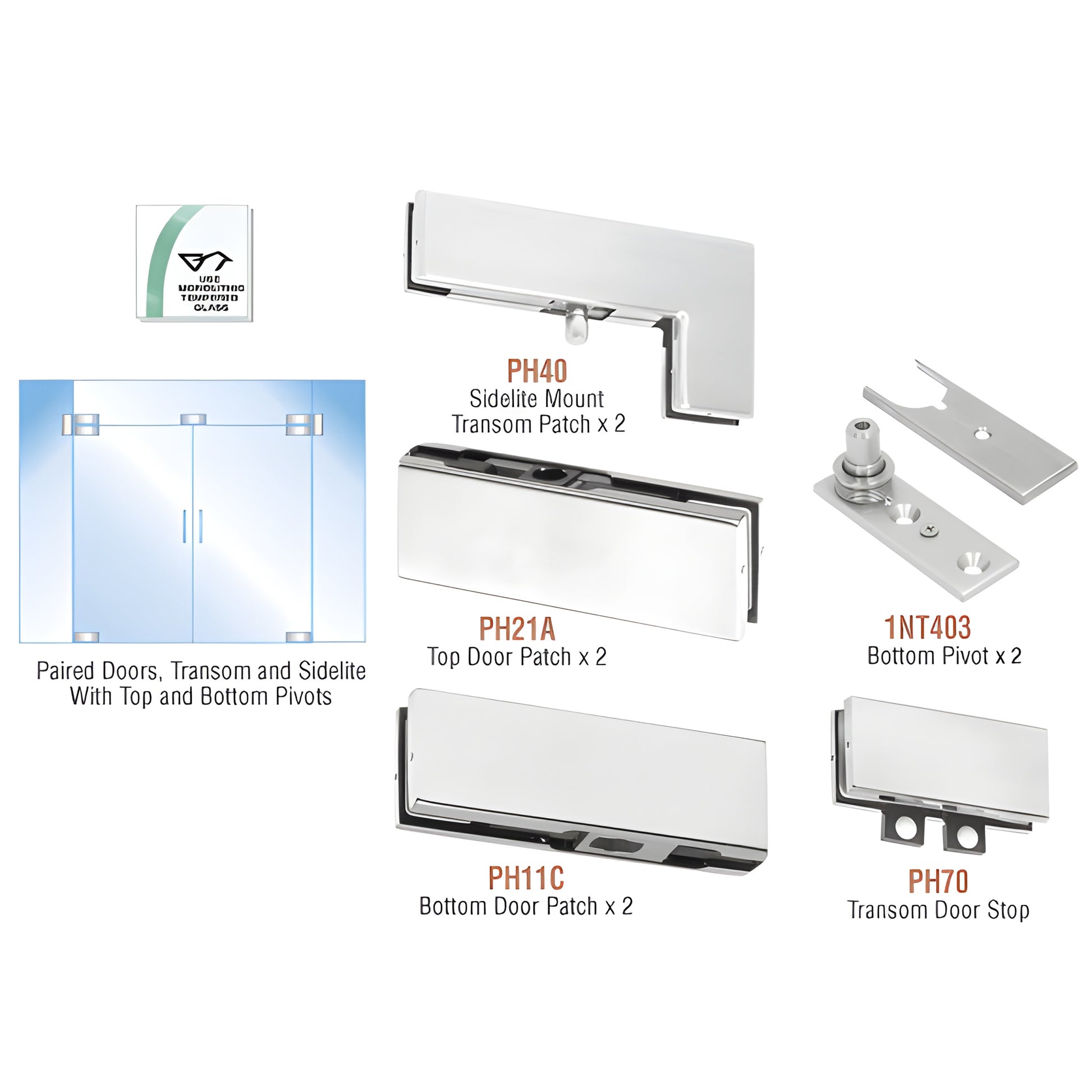

Kit contains:

• 2 - PH40 sidelite mount transom patches
• 2 - PH21A top door patches
• 2 - PH11C bottom door patches
• 1 - PH70 transom door stop
• 2 - 1NT403 bottom pivots
• Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in glass)

Kits with locks include two Cat. No. EUR205 patch locks; cylinders, thumbturns, and keepers sold separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Order the PHE8A European double door kit today to complete your frameless tempered glass door installation.
