• PHE7LA European double door patch kit, satin anodized pivot and patch hardware for 3/8 or 1/2 in tempered glass
1 1

CRL

CRL Satin Anodized European Patch Kit for Double Glass Doors w/ Lock

CRL Satin Anodized European Patch Kit for Double Glass Doors w/ Lock

$1,186.46 CAD
$1,186.46 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHE7LA
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Pair With Transom-Sidelite
Door Type
F Style Glass Door
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16

Overview

  • For 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Five architectural finishes
  • Available with or without locks

CRL PHE7 European Double Door Kits (SKU: PHE7LA) include the hardware needed to finish a pair of free-swinging glass doors with fixed transom and sidelite (glass and any additional supports for the fixed transom and sidelite are not included). Pivot setback: 2-9/16" (65 mm). Compatible with a floor closer using a tapered spindle (floor closer ordered separately). Ideal for architectural glass door installations requiring patch fittings and pivot hardware.

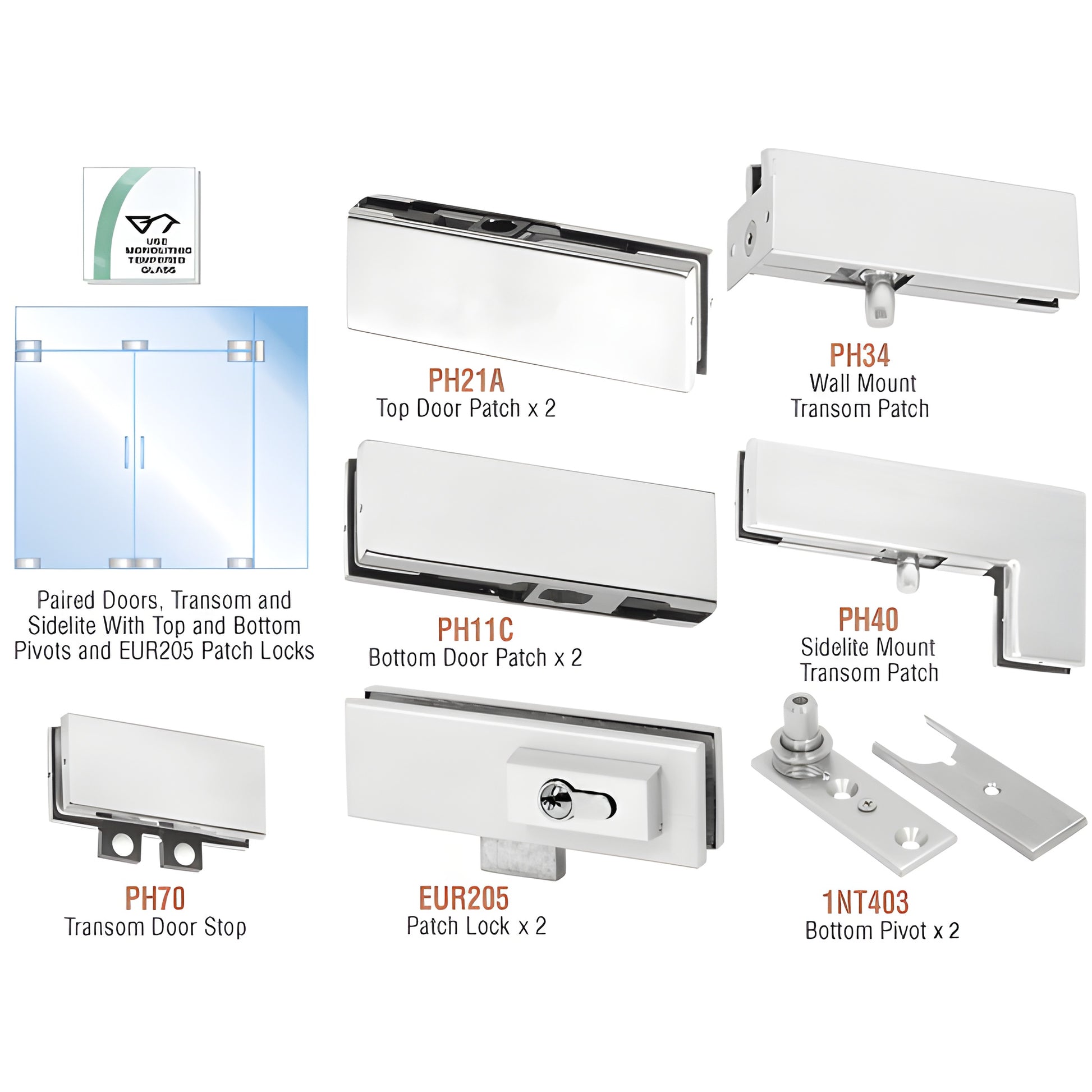

Kit contains:

  • 1 - PH34 Wall Mount Transom Patch
  • 1 - PH40 Sidelite Mount Transom Patch
  • 2 - PH21A Top Door Patches
  • 2 - PH11C Bottom Door Patches
  • 1 - PH70 Transom Door Stop
  • 2 - 1NT403 Bottom Pivots
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass requires holes and notches)

Kits with locks include two Cat. No. EUR205 patch locks; cylinders, thumbturns, and keepers are ordered separately.

Compliance: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Most shipping weights are approximate and unverified. If exact weight is required to determine shipping costs before ordering, contact CRL Customer Service. Product images are actual or close representations; colors may vary by monitor.

Shop the PHE7LA European double door patch kit for durable architectural glass door hardware and order now.
