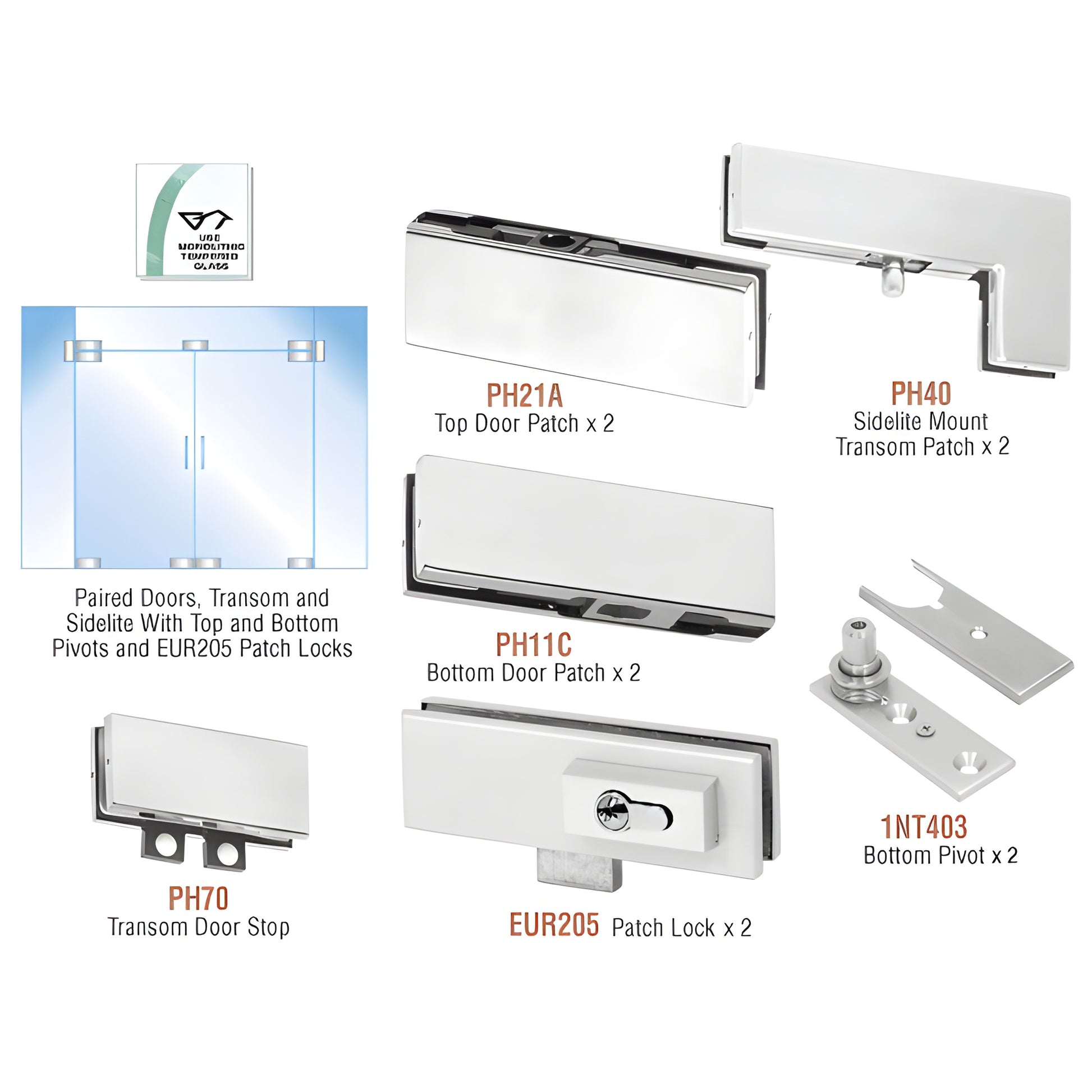

• CRL PHE8LA frameless glass double-door hardware kit, satin anodized patches, pivots and optional EUR205 patch locks
1 1

CRL

CRL Satin Anodized European Patch Kit for Double Glass Doors w/ Lock

CRL Satin Anodized European Patch Kit for Double Glass Doors w/ Lock

$1,249.29 CAD
$1,249.29 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHE8LA
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Sidelite-Pair With Transom-Sidelite
Door Type
F Style Glass Door
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16

Overview

  • For 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Available with or without locks (optional EUR205 patch locks)
CRL PHE8 European Double Door Kits (SKU: PHE8LA) include complete hardware for a pair of free-swinging glass doors with fixed transom and two sidelites (glass and additional supports for the fixed transom and sidelites not included). Designed for frameless glass installations and commercial interior applications, the kit supports a pivot setback of 2-9/16" (65 mm). Compatible with a separately ordered floor closer with tapered spindle.

Kit contains:
  • 2 - PH40 sidelite mount transom patches
  • 2 - PH21A top door patches
  • 2 - PH11C bottom door patches
  • 1 - PH70 transom door stop
  • 2 - 1NT403 bottom pivots
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass requires holes and notches)

Kits with locks include two EUR205 patch locks; cylinders, thumbturns, and keepers are ordered separately.

NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images show the actual product or a close representation; colors may vary by monitor.

Order CRL PHE8LA European double door kit for frameless glass doors or contact CRL Customer Service for help with specs and shipping.
