CRL Satin Anodized Glass-Mount Lever Door Lock for Metal Frames
CRL Satin Anodized Glass-Mount Lever Door Lock for Metal Frames
Regular price
$209.87 CAD
Regular price
Sale price
$209.87 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PTH313A
Shipping Weight: 1.64 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.64 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Glazing Type
Tempered Monolithic, Tempered Laminated
Height
2-9/16 in. (65 mm)
Length
6-1/4 in. (159 mm)
Length - Rabbeted Side
5-11/16 in. (144 mm)
Overview
- Works on single-acting doors
- For 3/8" or 1/2" (10 or 12 mm) glass doors
- Slimline design
- Use with monolithic tempered glass

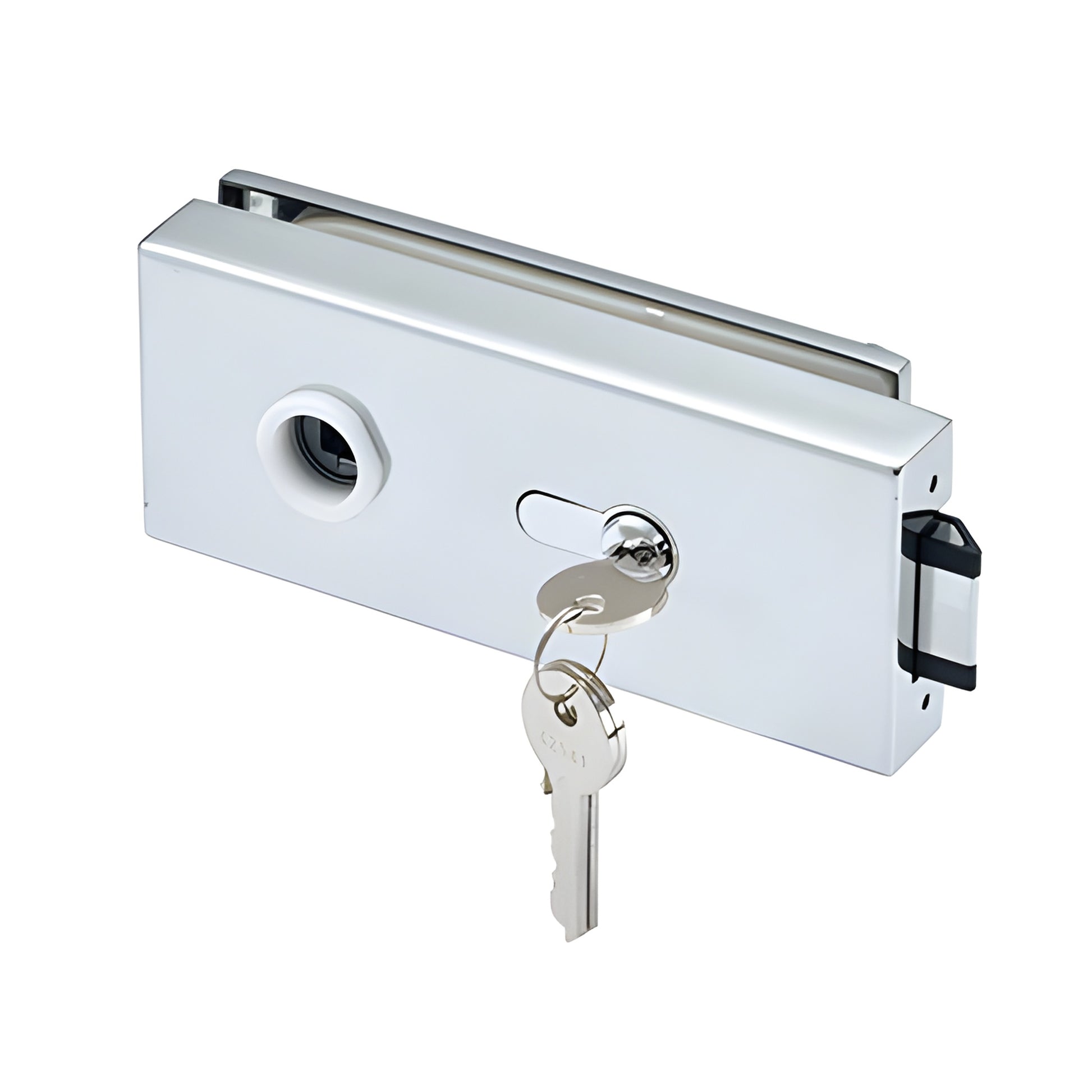

The CRL Glass-Mounted Latch (SKU PTH313A) secures glass doors that close into a frame; the interior of the catch is recessed to accommodate metal or wood frames. Ideal as a glass door latch for single-acting tempered glass doors in commercial and residential applications.
NOTE: Handle sold separately.
GLASS FABRICATION REQUIRED:
Two 1-3/4" (44.5 mm) holes
COMES WITH:
EC3 and EC4 Series cylinder/thumbturn with 3 keys each, template, and instructions.
